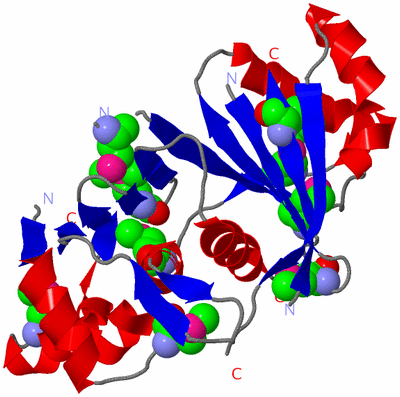

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF IML3 FROM S. CEREVISIAE

Authors :  S. M. Hinshaw, S. C. Harrison
Date :  17 Jan 13  (Deposition) - 16 Oct 13  (Release) - 06 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Sheet, Kinetochore, Chl4, Nucleus, Cell Cycle (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. M. Hinshaw, S. C. Harrison
An Iml3-Chl4 Heterodimer Links The Core Centromere To Factors Required For Accurate Chromosome Segregation.
Cell Rep V. 5 29 2013
PubMed-ID: 24075991  |  Reference-DOI: 10.1016/J.CELREP.2013.08.036

(-) Compounds

Molecule 1 - CENTRAL KINETOCHORE SUBUNIT IML3
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: IML3, MCM19, YBR107C, YBR0836
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932
    Synonym: INCREASED MINICHROMOSOME LOSS PROTEIN 3, MINICHROMOSOME MAINTENANCE PROTEIN 19

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 9)

Asymmetric/Biological Unit (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 4IT3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4IT3)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Thr A:92 -Asp A:93
2Tyr A:177 -Gly A:178

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4IT3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4IT3)

(-) Exons   (0, 0)

(no "Exon" information available for 4IT3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:219

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeee....hhhhhhhhhhhhhh...eeeeeeee.....eeeeeeee..eeeeee.......eeeeee...hhhhhhhhhhhhhhh..eee...hhhhhhhhhhhh.eee.....eee....eeeee....eeeeehhhhhhhhhhh.....hhhhhhhhhhhhhh...hhhhh.eeeeee...eeee...eee.....hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4it3 A   0 AmPYTWKFLGISKQLSLENGIAKLNQLLNLEVDLDIQTIRVPSDDEYIRYEmRLSKFIFLGNSKmEVPmFLCYCGTDNRNEVVLQWLKAEYGVImWPIKFEQKTmIKLADASIVHVTKENIEQITWFSSKLYFEPRQFSIEIPRESCEGLALGYGNTmHPYNDAIVPYIYNETGmAVERLPLTSVILAGHTKImRESIVTSTRSLRNRVLAVVLQSIQF 242
                             |       9        19        29        39   ||   56 | ||   76    |   86        96       106    |  116    |  126       136       146    || 163       173       183       193    |  203       213   |   223       233
                             |                                        43|     58-MSE       81-MSE                       111-MSE   121-MSE                       151|                   181-MSE          198-MSE            217-MSE
                             1-MSE                                     51       60|            85-MSE                                                            159
                                                                                 71
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4IT3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4IT3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4IT3)

(-) Gene Ontology  (16, 16)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 4it3)

  Cis Peptide Bonds
    Thr A:92 - Asp A:93   [ RasMol ]
    Tyr A:177 - Gly A:178   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
