4DJK - JenaLib

Asymmetric Unit (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

Title :   STRUCTURE OF GLUTAMATE-GABA ANTIPORTER GADC

Authors :   D. Ma, P. L. Lu, C. Y. Yan, C. Fan, P. Yin, J. W. Wang, Y. G. Shi

Date :   02 Feb 12 (Deposition) - 14 Mar 12 (Release) - 04 Apr 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.10

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: A,B  (1x)

Keywords :   Leut, Glutamate-Gaba Antiporter, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. Ma, P. L. Lu, C. Y. Yan, C. Fan, P. Yin, J. W. Wang, Y. G. Shi
Structure And Mechanism Of A Glutamate-Gaba Antiporter
Nature V. 483 632 2012
PubMed-ID: 22407317 | Reference-DOI: 10.1038/NATURE10917

Molecule 1 - PROBABLE GLUTAMATE/GAMMA-AMINOBUTYRATE ANTIPORTER
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	GADC
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	83333
	Strain	:	K12
	Synonym	:	GADC, EXTREME ACID SENSITIVITY PROTEIN

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

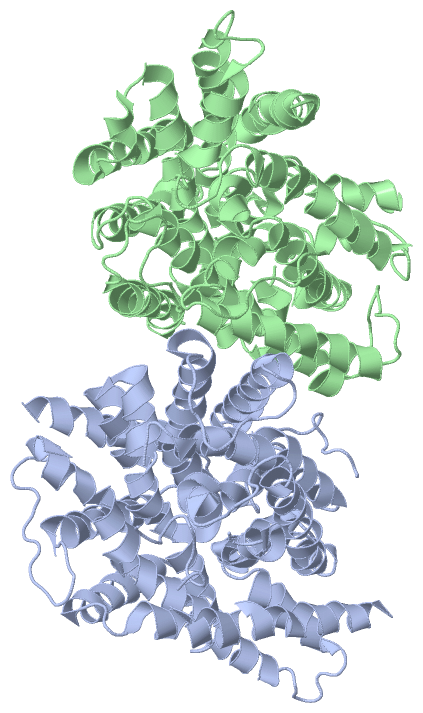

Biological Unit 3 (1x)	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 4DJK)

(no "Site" information available for 4DJK)

(no "SS Bond" information available for 4DJK)

Asymmetric Unit

No.	Residues
1	Asp A:68	-	Gly A:69
2	Pro A:127	-	Ile A:128
3	Lys A:334	-	Asn A:335
4	Gly A:336	-	Val A:337
5	Asp A:398	-	Leu A:399
6	Asp A:440	-	Ser A:441
7	Asp B:68	-	Gly B:69
8	Ala B:219	-	Ser B:220
9	Pro B:261	-	Gly B:262
10	Ala B:283	-	Pro B:284
11	Asp B:398	-	Leu B:399

(no "SAP(SNP)/Variant" information available for 4DJK)

(no "PROSITE Motif" information available for 4DJK)

(no "Exon" information available for 4DJK)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:451
 aligned with GADC_ECOLI | P63235 from UniProtKB/Swiss-Prot  Length:511

    Alignment length:490
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501
           GADC_ECOLI    12 QLTLLGFFAITASMVMAVYEYPTFATSGFSLVFFLLLGGILWFIPVGLCAAEMATVDGWEEGGVFAWVSNTLGPRWGFAAISFGYLQIAIGFIPMLYFVLGALSYILKWPALNEDPITKTIAALIILWALALTQFGGTKYTARIAKVGFFAGILLPAFILIALAAIYLHSGAPVAIEMDSKTFFPDFSKVGTLVVFVAFILSYMGVEASATHVNEMSNPGRDYPLAMLLLMVAAICLSSVGGLSIAMVIPGNEINLSAGVMQTFTVLMSHVAPEIEWTVRVISALLLLGVLAEIASWIVGPSRGMYVTAQKNLLPAAFAKMNKNGVPVTLVISQLVITSIALIILTNTGGGNNMSFLIALALTVVIYLCAYFMLFIGYIVLVLKHPDLKRTFNIPGGKGVKLVVAIVGLLTSIMAFIVSFLPPDNIQGDSTDMYVELLVVSFLVVLALPFILYAVHDRKGKANTGVTLEPINSQNAPKGHFFLHPRARSP 501
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh....---.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh...hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.------------.............hhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhh------------------------........... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4djk A  12 QLTLLGFFAITASMVMAVYEYPTFATSGFSLVFFLLLGGILWFIPVGLCAAEMATVDGW---GVFAWVSNTLGPRWGFAAISFGYLQIAIGFIPMLYFVLGALSYILKWPALNEDPITKTIAALIILWALALTQFGGTKYTARIAKVGFFAGILLPAFILIALAAIYLH------------TFFPDFSKVGTLVVFVAFILSYMGVEASATHVNEMSNPGRDYPLAMLLLMVAAICLSSVGGLSIAMVIPGNEINLSAGVMQTFTVLMSHVAPEIEWTVRVISALLLLGVLAEIASWIVGPSRGMYVTAQKNLLPAAFAKMNKNGVPVTLVISQLVITSIALIILTNTGGGNNMSFLIALALTVVIYLCAYFMLFIGYIVLVLKHPDLKRTFNIPGGKGVKLVVAIVGLLTSIMAFIVSFLPPDNIQGDSTDMYVELLVVSFLVVLALPFILYAV------------------------HFFLHPRARSP 501
                                    21        31        41        51        61        |-  |     81        91       101       111       121       131       141       151       161       171        |-         - |     201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461    |    -         -       491       501
                                                                                     70  74                                                                                                       180          193                                                                                                                                                                                                                                                                              466                      491

Chain B from PDB  Type:PROTEIN  Length:453
 aligned with GADC_ECOLI | P63235 from UniProtKB/Swiss-Prot  Length:511

    Alignment length:490
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501
           GADC_ECOLI    12 QLTLLGFFAITASMVMAVYEYPTFATSGFSLVFFLLLGGILWFIPVGLCAAEMATVDGWEEGGVFAWVSNTLGPRWGFAAISFGYLQIAIGFIPMLYFVLGALSYILKWPALNEDPITKTIAALIILWALALTQFGGTKYTARIAKVGFFAGILLPAFILIALAAIYLHSGAPVAIEMDSKTFFPDFSKVGTLVVFVAFILSYMGVEASATHVNEMSNPGRDYPLAMLLLMVAAICLSSVGGLSIAMVIPGNEINLSAGVMQTFTVLMSHVAPEIEWTVRVISALLLLGVLAEIASWIVGPSRGMYVTAQKNLLPAAFAKMNKNGVPVTLVISQLVITSIALIILTNTGGGNNMSFLIALALTVVIYLCAYFMLFIGYIVLVLKHPDLKRTFNIPGGKGVKLVVAIVGLLTSIMAFIVSFLPPDNIQGDSTDMYVELLVVSFLVVLALPFILYAVHDRKGKANTGVTLEPINSQNAPKGHFFLHPRARSP 501
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhh........hhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh....---.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..-----------.............hhhhhhhhhh.....hhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..-........hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhh...----------------------....hhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4djk B  12 QLTLLGFFAITASMVMAVYEYPTFATSGFSLVFFLLLGGILWFIPVGLCAAEMATVDGW---GVFAWVSNTLGPRWGFAAISFGYLQIAIGFIPMLYFVLGALSYILKWPALNEDPITKTIAALIILWALALTQFGGTKYTARIAKVGFFAGILLPAFILIALAAIYLHS-----------TFFPDFSKVGTLVVFVAFILSYMGVEASATHVNEMSNPGRDYPLAMLLLMVAAICLSSVGGLSIAMVIPGNEINLSAGVMQTFTVLMSHVAPEIEWTVRVISALLLLGVLAEIASWIVGPSRGMYVTAQKNLLPA-FAKMNKNGVPVTLVISQLVITSIALIILTNTGGGNNMSFLIALALTVVIYLCAYFMLFIGYIVLVLKHPDLKRTFNIPGGKGVKLVVAIVGLLTSIMAFIVSFLPPDNIQGDSTDMYVELLVVSFLVVLALPFILYAVHD----------------------HFFLHPRARSP 501
                                    21        31        41        51        61        |-  |     81        91       101       111       121       131       141       151       161       171       181         - |     201       211       221       231       241       251       261       271       281       291       301       311       321     | 331       341       351       361       371       381       391       401       411       421       431       441       451       461      |  -         -       491       501
                                                                                     70  74                                                                                                        181         193                                                                                                                                   327 |                                                                                                                                        468                    491
                                                                                                                                                                                                                                                                                                                                                       329

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 4DJK)

(no "CATH Domain" information available for 4DJK)

(no "Pfam Domain" information available for 4DJK)

Asymmetric Unit(hide GO term definitions)

Chain A,B (GADC_ECOLI | P63235)

molecular function
	GO:0015179	L-amino acid transmembrane transporter activity	Enables the transfer of an L-amino acid from one side of a membrane to the other. L-amino acids are the L-enantiomers of amino acids.
	GO:0015171	amino acid transmembrane transporter activity	Enables the transfer of amino acids from one side of a membrane to the other. Amino acids are organic molecules that contain an amino group and a carboxyl group.
	GO:0015297	antiporter activity	Enables the active transport of a solute across a membrane by a mechanism whereby two or more species are transported in opposite directions in a tightly coupled process not directly linked to a form of energy other than chemiosmotic energy. The reaction is: solute A(out) + solute B(in) = solute A(in) + solute B(out).
biological process
	GO:1902475	L-alpha-amino acid transmembrane transport	The directed movement of L-alpha-amino acid across a membrane.
	GO:0015807	L-amino acid transport	The directed movement of L-enantiomer amino acids into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0003333	amino acid transmembrane transport	The directed movement of amino acids, organic acids containing one or more amino substituents across a membrane by means of some agent such as a transporter or pore.
	GO:0006865	amino acid transport	The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0051454	intracellular pH elevation	Any process that increases the internal pH of a cell, measured by the concentration of the hydrogen ion.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0005887	integral component of plasma membrane	The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4djk)

	Sites
(no "Sites" information available for 4djk)

	Cis Peptide Bonds
		Ala B:219 - Ser B:220	[ RasMol ]
		Ala B:283 - Pro B:284	[ RasMol ]
		Asp A:398 - Leu A:399	[ RasMol ]
		Asp A:440 - Ser A:441	[ RasMol ]
		Asp A:68 - Gly A:69	[ RasMol ]
		Asp B:398 - Leu B:399	[ RasMol ]
		Asp B:68 - Gly B:69	[ RasMol ]
		Gly A:336 - Val A:337	[ RasMol ]
		Lys A:334 - Asn A:335	[ RasMol ]
		Pro A:127 - Ile A:128	[ RasMol ]
		Pro B:261 - Gly B:262	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	4djk
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GADC_ECOLI \| P63235
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GADC_ECOLI \| P63235
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	GADC_ECOLI \| P63235	:	4dji
