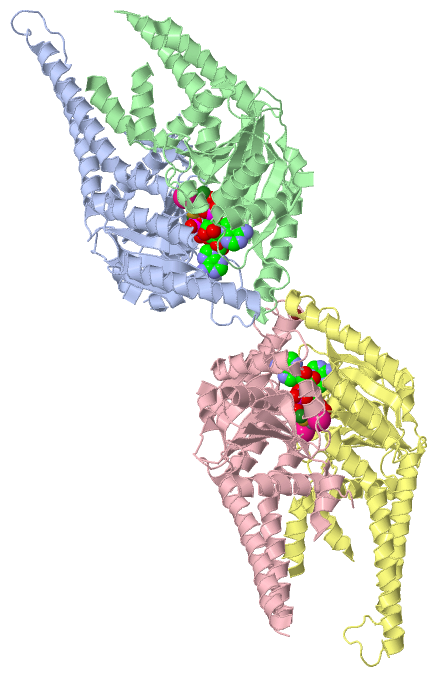

Asymmetric Unit (Jmol Viewer)

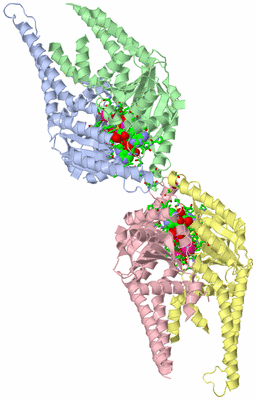

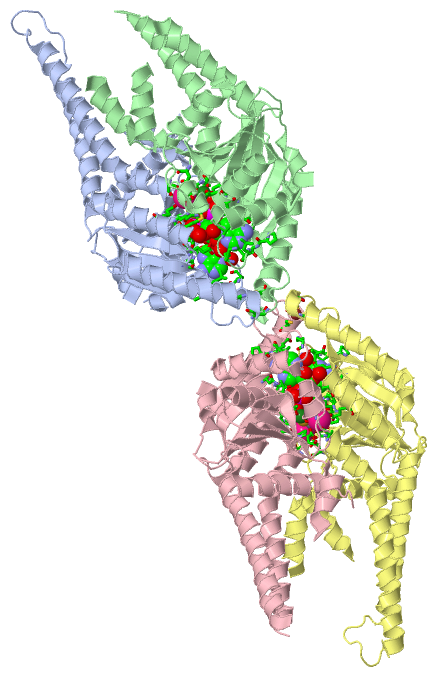

Asym. Unit - sites (Jmol Viewer)

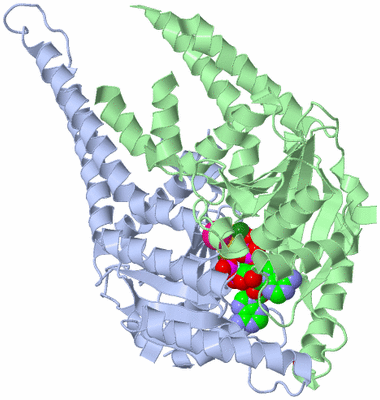

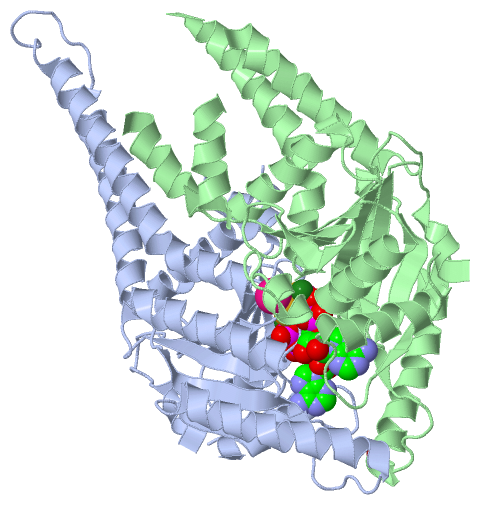

Biological Unit 1 (Jmol Viewer)

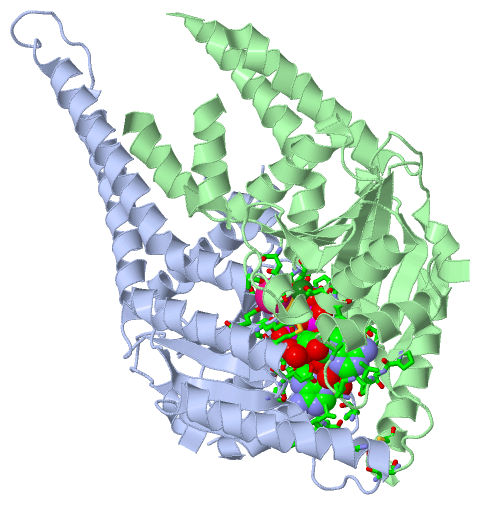

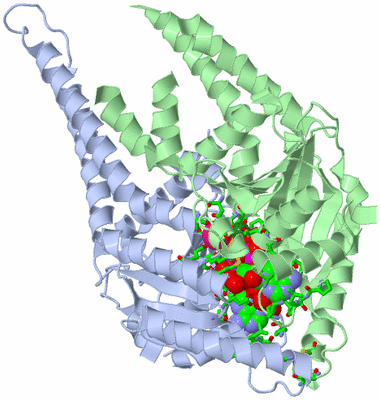

Biol. Unit 1 - sites (Jmol Viewer)

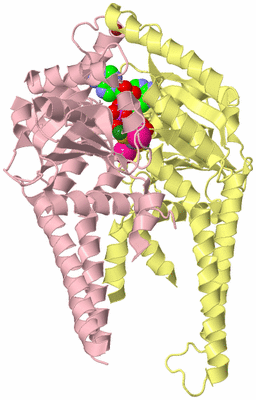

Biological Unit 2 (Jmol Viewer)

Title :   ADP-ALF4 COMPLEX OF M. THERM. TRC40

Authors :   J. Sherrill, M. Mariappan, P. Dominik, R. S. Hegde, R. J. Keenan

Date :   08 Jun 11 (Deposition) - 22 Jun 11 (Release) - 24 Aug 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.11

Chains :   Asym. Unit : A,B,C,D

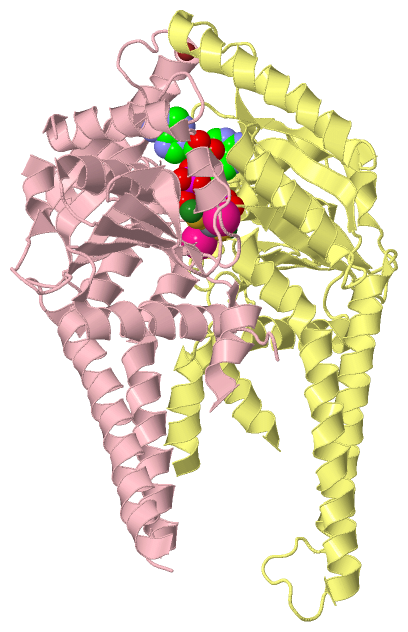

Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Tail-Anchored, Membrane Protein, Targeting Factor Atp-Binding, Arsa, Nucleotide-Binding, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Sherrill, M. Mariappan, P. Dominik, R. S. Hegde, R. J. Keenan
A Conserved Archaeal Pathway For Tail-Anchored Membrane Protein Insertion.
Traffic V. 12 1119 2011
PubMed-ID: 21658170 | Reference-DOI: 10.1111/J.1600-0854.2011.01229.X

Molecule 1 - PUTATIVE ARSENICAL PUMP-DRIVING ATPASE
	Atcc	:	29183
	Chains	:	A, B, C, D
	EC Number	:	3.6.3.16
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Variant	:	PRIL
	Expression System Vector	:	PCDF-1B
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	METHANOTHERMOBACTER THERMAUTOTROPHICUS
	Organism Taxid	:	145262
	Synonym	:	ATPASE TRC40, TRC40, ARSENICAL RESISTANCE ATPASE, ARSENITE-TRANSLOCATING ATPASE, ARSENITE-TRANSPORTING ATPASE, GET3, ARR4, ASNA-1, ATPASE SUBUNIT OF THE GET COMPLEX,

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (5, 18)

No.	Name	Count	Type	Full Name
1	ADP	4	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
2	ALF	4	Ligand/Ion	TETRAFLUOROALUMINATE ION
3	K	4	Ligand/Ion	POTASSIUM ION
4	MG	4	Ligand/Ion	MAGNESIUM ION
5	ZN	2	Ligand/Ion	ZINC ION

Biological Unit 1 (2, 4)

No.	Name	Count	Type	Full Name
1	ADP	2	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
2	ALF	2	Ligand/Ion	TETRAFLUOROALUMINATE ION
3	K	-1	Ligand/Ion	POTASSIUM ION
4	MG	-1	Ligand/Ion	MAGNESIUM ION
5	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (2, 4)

No.	Name	Count	Type	Full Name
1	ADP	2	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
2	ALF	2	Ligand/Ion	TETRAFLUOROALUMINATE ION
3	K	-1	Ligand/Ion	POTASSIUM ION
4	MG	-1	Ligand/Ion	MAGNESIUM ION
5	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (18, 18)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLY A:24 , VAL A:25 , GLY A:26 , LYS A:27 , THR A:28 , THR A:29 , ASN A:259 , PRO A:298 , LEU A:299 , LEU A:300 , LYS A:302 , ALA A:304 , ALF A:402 , MG A:403 , HOH A:2161 , HOH A:2201 , HOH A:2212 , HOH A:2213 , HOH A:4003 , LYS B:22 , GLU B:232 , MET B:234	BINDING SITE FOR RESIDUE ADP A 401
02	AC2	SOFTWARE	GLY A:23 , GLY A:24 , LYS A:27 , ASP A:51 , PRO A:148 , ADP A:401 , MG A:403 , K A:404 , HOH A:2030 , HOH A:4001 , HOH A:4002 , HOH A:4003 , LYS B:22 , GLY B:23	BINDING SITE FOR RESIDUE ALF A 402
03	AC3	SOFTWARE	THR A:28 , ADP A:401 , ALF A:402 , HOH A:4001 , HOH A:4002 , HOH A:4003	BINDING SITE FOR RESIDUE MG A 403
04	AC4	SOFTWARE	ASP A:51 , ALA A:53 , SER A:55 , ALF A:402 , HOH A:4002 , GLU B:238	BINDING SITE FOR RESIDUE K A 404
05	AC5	SOFTWARE	CYS A:268 , CYS A:271 , CYS B:268 , CYS B:271	BINDING SITE FOR RESIDUE ZN A1323
06	AC6	SOFTWARE	LYS A:22 , GLU A:232 , MET A:234 , HOH A:2140 , HOH A:2141 , HOH A:2144 , HOH A:2148 , GLY B:24 , VAL B:25 , GLY B:26 , LYS B:27 , THR B:28 , THR B:29 , ASN B:259 , PRO B:298 , LEU B:299 , LEU B:300 , LYS B:302 , ALA B:304 , ALF B:402 , MG B:403 , HOH B:4003	BINDING SITE FOR RESIDUE ADP B 401
07	AC7	SOFTWARE	LYS A:22 , GLY A:23 , GLY B:23 , GLY B:24 , LYS B:27 , ASP B:51 , PRO B:148 , ADP B:401 , MG B:403 , K B:404 , HOH B:2027 , HOH B:4001 , HOH B:4002 , HOH B:4003	BINDING SITE FOR RESIDUE ALF B 402
08	AC8	SOFTWARE	THR B:28 , ADP B:401 , ALF B:402 , HOH B:4001 , HOH B:4002 , HOH B:4003	BINDING SITE FOR RESIDUE MG B 403
09	AC9	SOFTWARE	GLU A:238 , ASP B:51 , ALA B:53 , SER B:55 , ALF B:402	BINDING SITE FOR RESIDUE K B 404
10	BC1	SOFTWARE	GLY C:24 , VAL C:25 , GLY C:26 , LYS C:27 , THR C:28 , THR C:29 , ASN C:259 , PRO C:298 , LEU C:299 , LEU C:300 , LYS C:302 , ALA C:304 , ALF C:402 , MG C:403 , HOH C:2056 , HOH C:2075 , HOH C:2081 , HOH C:4003 , LYS D:22 , GLU D:232 , MET D:234	BINDING SITE FOR RESIDUE ADP C 401
11	BC2	SOFTWARE	GLY C:23 , GLY C:24 , LYS C:27 , ASP C:51 , PRO C:148 , ADP C:401 , MG C:403 , K C:404 , HOH C:2019 , HOH C:4001 , HOH C:4002 , HOH C:4003 , LYS D:22 , GLY D:23	BINDING SITE FOR RESIDUE ALF C 402
12	BC3	SOFTWARE	THR C:28 , ADP C:401 , ALF C:402 , HOH C:4001 , HOH C:4002 , HOH C:4003	BINDING SITE FOR RESIDUE MG C 403
13	BC4	SOFTWARE	ASP C:51 , ALA C:53 , SER C:55 , ALF C:402 , HOH C:4002 , GLU D:238	BINDING SITE FOR RESIDUE K C 404
14	BC5	SOFTWARE	LYS C:22 , GLU C:232 , MET C:234 , HOH C:2046 , HOH C:2048 , GLY D:24 , VAL D:25 , GLY D:26 , LYS D:27 , THR D:28 , THR D:29 , ASN D:259 , PRO D:298 , LEU D:299 , LEU D:300 , LYS D:302 , ALA D:304 , ALF D:402 , MG D:403 , HOH D:4003	BINDING SITE FOR RESIDUE ADP D 401
15	BC6	SOFTWARE	LYS C:22 , GLY C:23 , GLY D:23 , GLY D:24 , LYS D:27 , ASP D:51 , PRO D:148 , ADP D:401 , MG D:403 , K D:404 , HOH D:2010 , HOH D:4001 , HOH D:4002 , HOH D:4003	BINDING SITE FOR RESIDUE ALF D 402
16	BC7	SOFTWARE	THR D:28 , ADP D:401 , ALF D:402 , HOH D:4001 , HOH D:4002 , HOH D:4003	BINDING SITE FOR RESIDUE MG D 403
17	BC8	SOFTWARE	GLU C:238 , ASP D:51 , ALA D:53 , SER D:55 , ALF D:402	BINDING SITE FOR RESIDUE K D 404
18	BC9	SOFTWARE	CYS C:268 , CYS C:271 , CYS D:268 , CYS D:271	BINDING SITE FOR RESIDUE ZN D1322

(no "SS Bond" information available for 3ZQ6)

(no "Cis Peptide Bond" information available for 3ZQ6)

(no "SAP(SNP)/Variant" information available for 3ZQ6)

(no "PROSITE Motif" information available for 3ZQ6)

(no "Exon" information available for 3ZQ6)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:300
 aligned with ARSA_METTH | O27555 from UniProtKB/Swiss-Prot  Length:324

    Alignment length:321
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
           ARSA_METTH     2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAKLQEQAAMNPGMGLDMLQDQMDMASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSMAKAFKNILPFMGDEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEPE 322
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh.......eeeeeee....hhhhhhhhhhhhhhhh...eeeee.....hhhhhhh.......eeee..eeeee.hhhhhhhhhhhhh---------------------.....hhhhhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeee..hhhhhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.......hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3zq6 A   2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAKL---------------------ASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSMAKAFKNILPFMGDEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEPE 322
                                    11        21        31        41        51        61        71        81        91 |       -         -   |   121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
                                                                                                                      93                   115

Chain B from PDB  Type:PROTEIN  Length:288
 aligned with ARSA_METTH | O27555 from UniProtKB/Swiss-Prot  Length:324

    Alignment length:321
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
           ARSA_METTH     2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAKLQEQAAMNPGMGLDMLQDQMDMASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSMAKAFKNILPFMGDEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEPE 322
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh.......eeeeeee....hhhhhhhhhhhhhhhh...eeeee.....hhhhhhh.......eeee..eeeee.hhhhhhhhhhhh-------------hhhhhhhhhhh...hhhhhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.--------------------hhhhhhhhhhhhhhhhhhhh....eeeeeee..hhhhhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.......hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3zq6 B   2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAK-------------DMLQDQMDMASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGS--------------------ALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEPE 322
                                    11        21        31        41        51        61        71        81        91|        -    |  111       121       131       141       151       161       171      |  -         -       201       211       221       231       241       251       261       271       281       291       301       311       321
                                                                                                                     92           106                                                                     178                  199

Chain C from PDB  Type:PROTEIN  Length:284
 aligned with ARSA_METTH | O27555 from UniProtKB/Swiss-Prot  Length:324

    Alignment length:320
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
           ARSA_METTH     2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAKLQEQAAMNPGMGLDMLQDQMDMASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSMAKAFKNILPFMGDEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEP 321
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh.......eeeeeee....hhhhhhhhhhhhhhhh...eeeee.....hhhhhhh.......eeee..eeeee.hhhhhhhhhh.------------------------....hhhhhhhhhhhhhhhhhh...eeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..------------hhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeee..hhhhhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.......hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3zq6 C   2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQA------------------------SMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSM------------DEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEP 321
                                    11        21        31        41        51        61        71        81        91         -         -    |  121       131       141       151       161       171       | -         -|      201       211       221       231       241       251       261       271       281       291       301       311       321
                                                                                                                    91                      116                                                            179          192

Chain D from PDB  Type:PROTEIN  Length:307
 aligned with ARSA_METTH | O27555 from UniProtKB/Swiss-Prot  Length:324

    Alignment length:320
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
           ARSA_METTH     2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAKLQEQAAMNPGMGLDMLQDQMDMASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSMAKAFKNILPFMGDEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEP 321
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------ArsA_ATPase-3zq6D01 D:14-319                                                                                                                                                                                                                                                                                      -- Pfam domains (1)
           Pfam domains (2) ------------ArsA_ATPase-3zq6D02 D:14-319                                                                                                                                                                                                                                                                                      -- Pfam domains (2)
           Pfam domains (3) ------------ArsA_ATPase-3zq6D03 D:14-319                                                                                                                                                                                                                                                                                      -- Pfam domains (3)
           Pfam domains (4) ------------ArsA_ATPase-3zq6D04 D:14-319                                                                                                                                                                                                                                                                                      -- Pfam domains (4)
         Sec.struct. author hhhhhh.......eeeeeee....hhhhhhhhhhhhhhhh...eeeee.....hhhhhhh.......eeee..eeeee.hhhhhhhhhhhhh-------------hhhhhhhhhhh..hhhhhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeee..hhhhhhhhhhhhhhh......eeeeeeeee......hhhhhhhhhhhhhhhhhhhhhh...eeeeee.......hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3zq6 D   2 AFKDLFKFNKGKTTFVFIGGKGGVGKTTISAATALWMARSGKKTLVISTDPAHSLSDSLEREIGHTPTKITENLYAVEIDPEVAMEEYQAKL-------------MLQDQMDMASMSPGIDEAAAFDQFLRYMTTDEYDIVIFDTAPTGHTLRLLSFPEIMDSWVGKMIKIRRQIGSMAKAFKNILPFMGDEEEEDRALQDMEATKKQINAAREVMSDPERTSFKMVVIPEEMSIYESERAMKALEKYSIHADGVIVNQVLPEESDCEFCNARRKLQQERLKQIREKFSDKVVAEVPLLKKEAKGIETLEKIAEQLYGEP 321
                                    11        21        31        41        51        61        71        81        91 |       -     | 111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
                                                                                                                      93           107

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3ZQ6)

(no "CATH Domain" information available for 3ZQ6)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: P-loop_NTPase (1112)

Family: ArsA_ATPase (6)

Methanobacterium thermoautotrophicum (strain Delta H) (1)

1a	ArsA_ATPase-3zq6D01	D:14-319
1b	ArsA_ATPase-3zq6D02	D:14-319
1c	ArsA_ATPase-3zq6D03	D:14-319
1d	ArsA_ATPase-3zq6D04	D:14-319

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (ARSA_METTH | O27555)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0016887	ATPase activity	Catalysis of the reaction: ATP + H2O = ADP + phosphate + 2 H+. May or may not be coupled to another reaction.
	GO:0015446	ATPase-coupled arsenite transmembrane transporter activity	Catalysis of the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: ATP + H2O + arsenite(in) = ADP + phosphate + arsenite(out).
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
	GO:0098656	anion transmembrane transport	A process in which an anion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
	GO:0098655	cation transmembrane transport	A process in which a cation is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
	GO:0046685	response to arsenic-containing substance	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an arsenic stimulus from compounds containing arsenic, including arsenates, arsenites, and arsenides.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ADP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ALF	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		K	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3zq6)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3zq6
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	ARSA_METTH \| O27555
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.6.3.16
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	ARSA_METTH \| O27555
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 3ZQ6)

(no "Related Entries Specified in the PDB File" available for 3ZQ6)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 18)

Sites (18, 18)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 4)

Gene Ontology (8, 8)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
