Title :   CRYSTAL STRUCTURE OF T4 PHAGE ARN PROTEIN

Authors :   C. H. Ho, H. C. Wang, T. P. Ko, A. H. J. Wang

Date :   16 Jul 14 (Deposition) - 20 Aug 14 (Release) - 10 Dec 14 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Dna Mimic, Gene Regulation, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. H. Ho, H. C. Wang, T. P. Ko, Y. C. Chang, A. H. J. Wang
The T4 Phage Dna Mimic Protein Arn Inhibits The Dna Binding Activity Of The Bacterial Histone-Like Protein H-Ns
J. Biol. Chem. V. 289 27046 2014
PubMed-ID: 25118281 | Reference-DOI: 10.1074/JBC.M114.590851

Compounds

Molecule 1 - ANTI-RESTRICTION ENDONUCLEASE
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET21B
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	ARN, ASIA.1, MOTA.-6
	Organism Scientific	:	ENTEROBACTERIA PHAGE T4
	Organism Taxid	:	10665
	Synonym	:	ANTI-RGL NUCLEASE

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:98
 aligned with ARN_BPT4 | P39510 from UniProtKB/Swiss-Prot  Length:92

    Alignment length:98
                                                                                                                      92
                                    10        20        30        40        50        60        70        80        90 |
              ARN_BPT4    1 MIIDSQSVVQYTFKIDILEKLYKFLPNLYHSIVNELVEELHLENNDFLIGTYKDLSKAGYFYVIPAPGKNIDDVLKTIMIYVHDYEIEDYFE------  -
               SCOP domains -------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee..hhhhh.eeeeee....hhhhhhhhhhhhhhhh.hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  3wx4 A  1 MIIDSQSVVQYTFKIDILEKLYKFLPNLYHSIVNELVEELHLENNDFLIGTYKDLSKAGYFYVIPAPGKNIDDVLKTIMIYVHDYEIEDYFELEHHHH 98
                                    10        20        30        40        50        60        70        80        90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

Asymmetric Unit(hide GO term definitions)

Chain A (ARN_BPT4 | P39510)

molecular function
	GO:0004519	endonuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004518	nuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids.
biological process
	GO:0090305	nucleic acid phosphodiester bond hydrolysis	The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
	GO:0016032	viral process	A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.

Visualization

Interactive Views

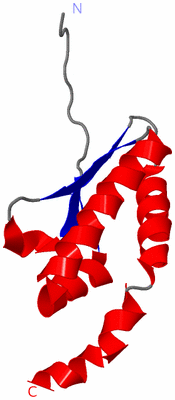

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3wx4)

	Sites
(no "Sites" information available for 3wx4)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3wx4)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]
