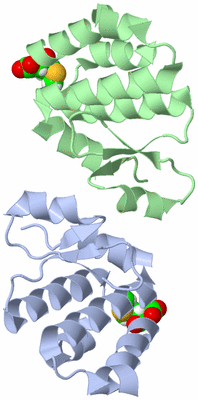

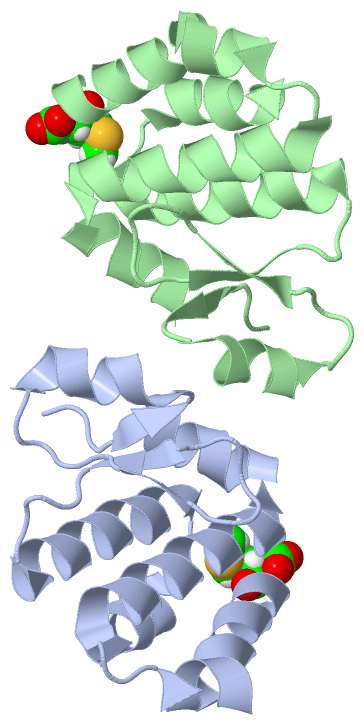

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

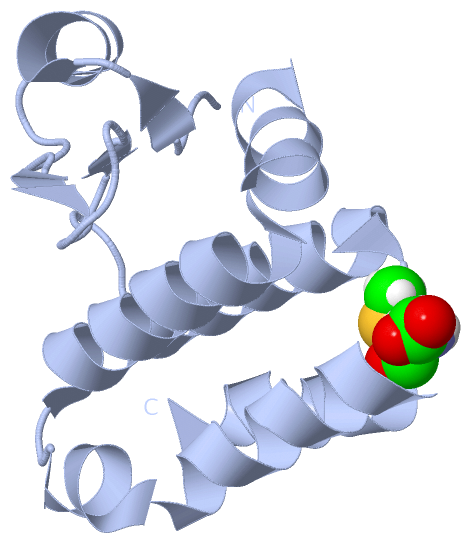

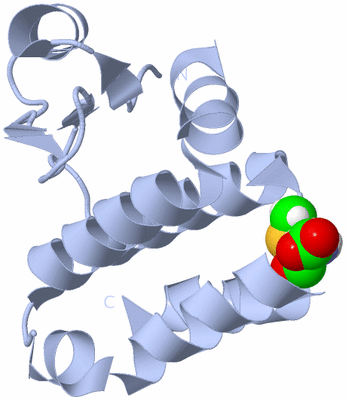

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

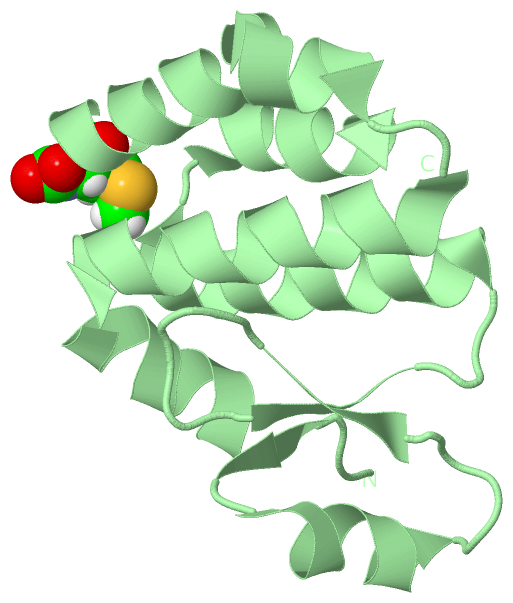

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF V. CHOLERAE SEQA

Authors :  Y. S. Chung, A. Guarne
Date :  22 Jun 11  (Deposition) - 26 Dec 12  (Release) - 04 Jun 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Sequestration, Negative Regulator, Dna Replication Initiation, Dna Binding, Replication Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. S. Chung, A. Guarne
Investigating The Aggregational Property Of Seqavibrio In The Absence Of The Oligomerization Domain
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PROTEIN SEQA
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: A5C_2175, SEQA
    Organism Scientific: VIBRIO CHOLERAE
    Organism Taxid: 417399

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1FME2Mod. Amino AcidN-FORMYLMETHIONINE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1FME1Mod. Amino AcidN-FORMYLMETHIONINE
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1FME1Mod. Amino AcidN-FORMYLMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 3SK7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3SK7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3SK7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3SK7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3SK7)

(-) Exons   (0, 0)

(no "Exon" information available for 3SK7)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:112

               SCOP domains d3sk7a_ A: automated matches                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh...ee.hhhhhhhhh.....ee......ee....hhhhhhhhhhhhhhhh..hhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 3sk7 A  62 mKDKVRAMRSLLISDEFAGLKNAIDRFMLILSTLHRIDSASFSEATMFRVYFADNEQTLLASGQTTKPKAIPNTPFWVITNNNTSRKQQMVEQVMVRMGFPSDIIEKVTHSI 177
                            |       71        81        91       101       115       125       135       145       155       165       175
                            |                                            109|
                           62-FME                                         114


Chain B from PDB  Type:PROTEIN  Length:112

               SCOP domains d3sk7b_ B: automated matches                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh...ee.hhhhhhhh.....eee......eee...hhhhhhhhhhhhhhhhh.hhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 3sk7 B  62 mKDKVRAMRSLLISDEFAGLKNAIDRFMLILSTLHRIDSASFSEATMFRVYFADNEQTLLASGQTTKPKAIPNTPFWVITNNNTSRKQQMVEQVMVRMGFPSDIIEKVTHSI 177
                            |       71        81        91       101       115       125       135       145       155       165       175
                           62-FME                                        109|
                                                                          114
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3SK7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3SK7)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3SK7)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    FME  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3sk7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3sk7)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3sk7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3SK7)

(-) Related Entries Specified in the PDB File

1iu3 STRUCTURE OF C-TERMINAL DOMAIN OF E. COLI SEQA BOUND TO A SINGLE HEMIMETHYLATED GATC
1j3e STRUCTURE OF C-TERMINAL DOMAIN OF E. COLI SEQA BOUND TO A 6MA-G MISMATCH
1lrr STRUCTURE OF C-TERMINAL DOMAIN OF E. COLI SEQA BOUND TO A SINGLE HEMIMETHYLATED GATC
1xrx STRUCTURE OF OLIGOMERIZATION DOMAIN OF E. COLI SEQA
3fmt CRYSTAL STRUCTURE OF E. COLI SEQA BOUND TO DNA
