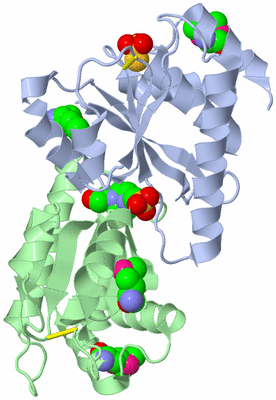

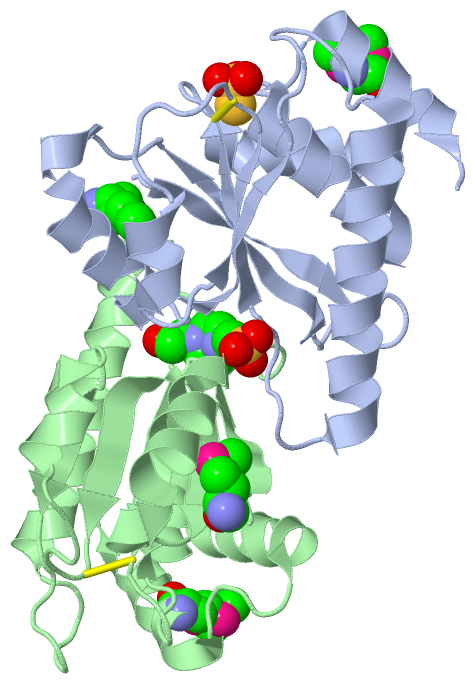

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

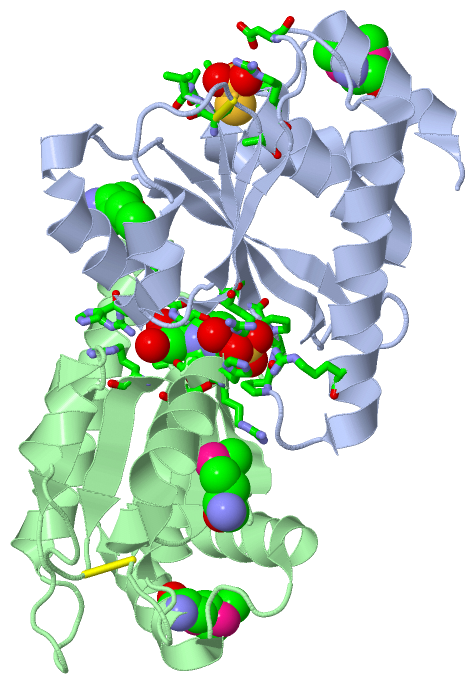

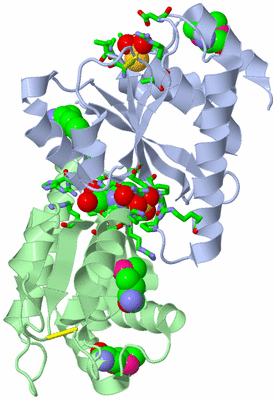

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

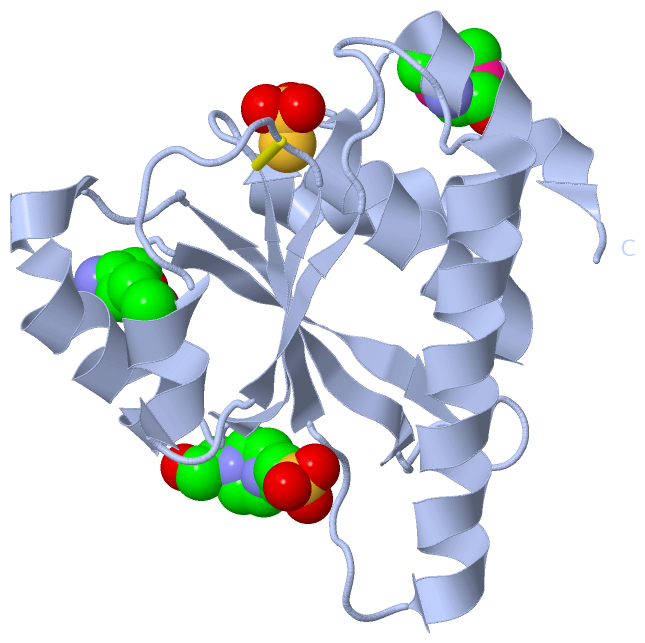

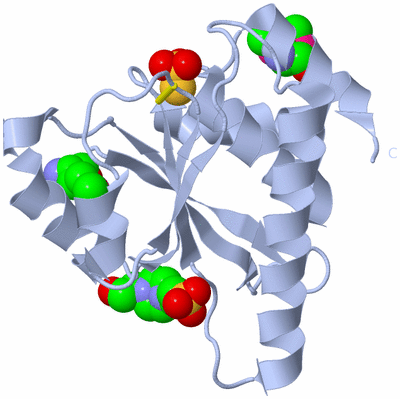

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

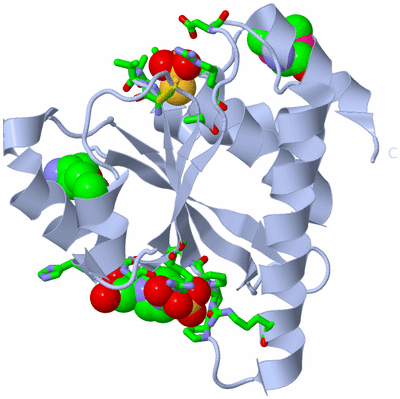

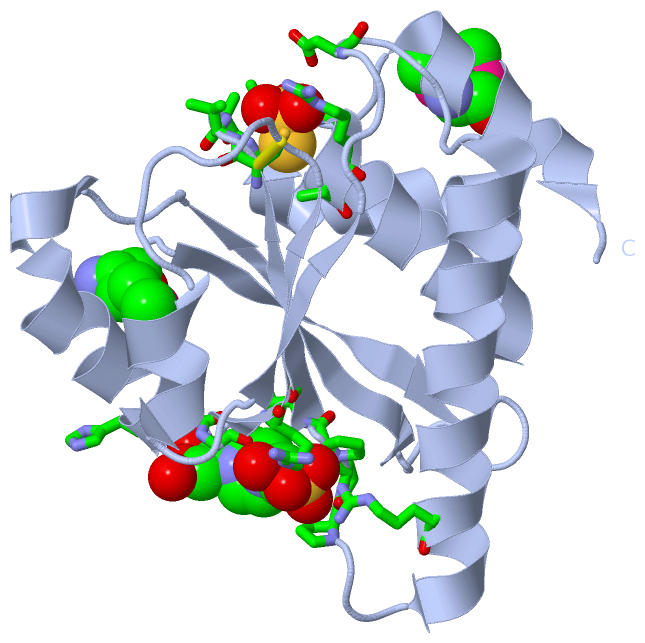

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

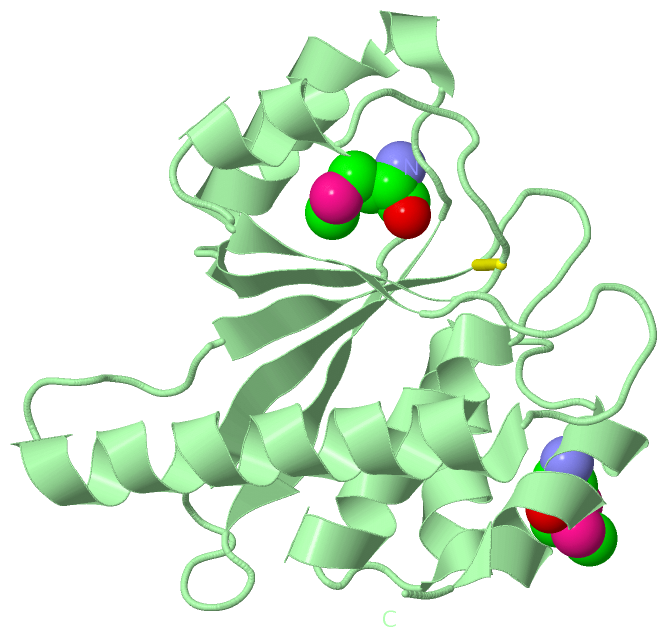

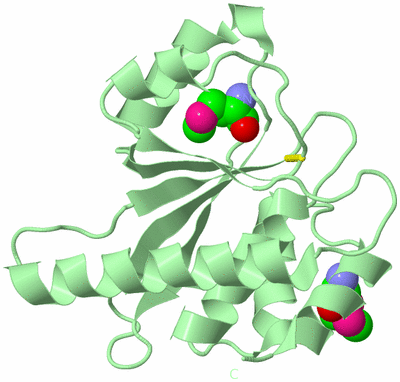

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  PROTEIN TYROSINE PHOSPHATASE (PUTATIVE) FROM LEISHMANIA MAJOR

Authors :  E. A. Merritt, T. Arakaki, Medical Structural Genomics Of Pathoge Protozoa (Msgpp), Structural Genomics Of Pathogenic Protozoa Consortium (Sgpp)
Date :  19 May 11  (Deposition) - 15 Jun 11  (Release) - 15 Jun 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Structural Genomics, Medical Structural Genomics Of Pathogenic Protozoa, Msgpp, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. A. Merritt, T. Arakaki, H. Neely, E. Phizicky, E. Quartley, W. C. Van Voorhis, F. S. Buckner, E. Fan, F. Zucker, C. L. M. J. Verlinde W. G. J. Hol
Protein Tyrosine Phosphatase From Leishmania Major
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PROTEIN TYROSINE PHOSPHATASE-LIKE PROTEIN
    Chains: A, B
    EC Number: 3.1.3.48
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: AVA0421
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: SEQUENCE DATABASE RESIDUES 4-167
    Gene: LMJF16.0230, LMJF_16_0230
    Organism Scientific: LEISHMANIA MAJOR
    Organism Taxid: 5664
    Strain: FRIEDLIN

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 6)

Asymmetric Unit (3, 6)
No.NameCountTypeFull Name
1EPE1Ligand/Ion4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
2MSE4Mod. Amino AcidSELENOMETHIONINE
3THJ1Ligand/IonTHIOSULFATE
Biological Unit 1 (3, 4)
No.NameCountTypeFull Name
1EPE1Ligand/Ion4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
2MSE2Mod. Amino AcidSELENOMETHIONINE
3THJ1Ligand/IonTHIOSULFATE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1EPE-1Ligand/Ion4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
2MSE2Mod. Amino AcidSELENOMETHIONINE
3THJ-1Ligand/IonTHIOSULFATE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:74 , CYS A:112 , VAL A:113 , ALA A:114 , GLY A:115 , LEU A:116 , GLY A:117 , ARG A:118 , ALA A:119BINDING SITE FOR RESIDUE THJ A 170
2AC2SOFTWAREHIS A:41 , ARG A:42 , GLY A:43 , ARG A:45 , ARG A:96 , PRO A:104 , PRO A:105 , PRO A:106 , THR A:107 , HOH A:190 , HOH A:193 , HOH A:202 , HIS B:41 , ARG B:42 , GLY B:43 , ARG B:45 , ARG B:96 , PRO B:105 , PRO B:106 , THR B:107BINDING SITE FOR RESIDUE EPE A 164

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1A:51 -A:112
2B:51 -B:112

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3S4O)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3S4O)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3S4O)

(-) Exons   (0, 0)

(no "Exon" information available for 3S4O)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:163
 aligned with Q4QEZ7_LEIMA | Q4QEZ7 from UniProtKB/TrEMBL  Length:175

    Alignment length:163
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162
         Q4QEZ7_LEIMA     3 VNATLIDCCDPQKPSRVLFHFLILDAPSPSNLPTYIKELQHRGVRHLVRVCGPTYDATLVKSRGIDVHSWPFDDGAPPTRAVLDSWLKLLDTELARQQEDPSVPPPTIGVHCVAGLGRAPILVALALVEYGNVSALDAIALIREKRKGAINQTQMHWITKYKR 165
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee.......eeeeeeee...hhhhhhhhhhhhhh..eeeeee.......hhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhh......eeeee.....hhhhhhhhhhhhhh...hhhhhhhhhhhhh....hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3s4o A   1 mNATLIDCCDPQKPSRVLFHFLILDAPSPSNLPTYIKELQHRGVRHLVRVCGPTYDATLVKSRGIDVHSWPFDDGAPPTRAVLDSWLKLLDTELARQQEDPSVPPPTIGVHCVAGLGRAPILVALALVEYGNVSALDAIALIREKRKGAINQTQmHWITKYKR 163
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150    |  160
                            |                                                                                                                                                       155-MSE
                            1-MSE


Chain B from PDB  Type:PROTEIN  Length:163
 aligned with Q4QEZ7_LEIMA | Q4QEZ7 from UniProtKB/TrEMBL  Length:175

    Alignment length:163
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162
         Q4QEZ7_LEIMA     3 VNATLIDCCDPQKPSRVLFHFLILDAPSPSNLPTYIKELQHRGVRHLVRVCGPTYDATLVKSRGIDVHSWPFDDGAPPTRAVLDSWLKLLDTELARQQEDPSVPPPTIGVHCVAGLGRAPILVALALVEYGNVSALDAIALIREKRKGAINQTQMHWITKYKR 165
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------------------------------------------------------------------------DSPc-3s4oB01 B:88-163                                                        Pfam domains (1)
           Pfam domains (2) ---------------------------------------------------------------------------------------DSPc-3s4oB02 B:88-163                                                        Pfam domains (2)
         Sec.struct. author ...eeeeee.......eeeeeeee...hhhhhhhhhhhhhh..eeeeee.......hhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhh......eeeee......hhhhhhhhhhhhh...hhhhhhhhhhhhh....hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3s4o B   1 mNATLIDCCDPQKPSRVLFHFLILDAPSPSNLPTYIKELQHRGVRHLVRVCGPTYDATLVKSRGIDVHSWPFDDGAPPTRAVLDSWLKLLDTELARQQEDPSVPPPTIGVHCVAGLGRAPILVALALVEYGNVSALDAIALIREKRKGAINQTQmHWITKYKR 163
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150    |  160
                            1-MSE                                                                                                                                                   155-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3S4O)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3S4O)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: Phosphatase (121)
(-)
Family: DSPc (22)
(-)
Leishmania major (1)
1aDSPc-3s4oB01B:88-163
1bDSPc-3s4oB02B:88-163

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q4QEZ7_LEIMA | Q4QEZ7)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016791    phosphatase activity    Catalysis of the hydrolysis of phosphoric monoesters, releasing inorganic phosphate.
    GO:0004725    protein tyrosine phosphatase activity    Catalysis of the reaction: protein tyrosine phosphate + H2O = protein tyrosine + phosphate.
    GO:0008138    protein tyrosine/serine/threonine phosphatase activity    Catalysis of the reactions: protein serine + H2O = protein serine + phosphate; protein threonine phosphate + H2O = protein threonine + phosphate; and protein tyrosine phosphate + H2O = protein tyrosine + phosphate.
biological process
    GO:0016311    dephosphorylation    The process of removing one or more phosphoric (ester or anhydride) residues from a molecule.
    GO:0035335    peptidyl-tyrosine dephosphorylation    The removal of phosphoric residues from peptidyl-O-phospho-tyrosine to form peptidyl-tyrosine.
    GO:0006470    protein dephosphorylation    The process of removing one or more phosphoric residues from a protein.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
