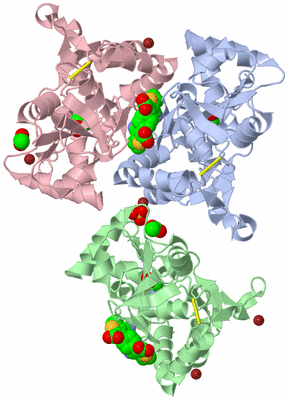

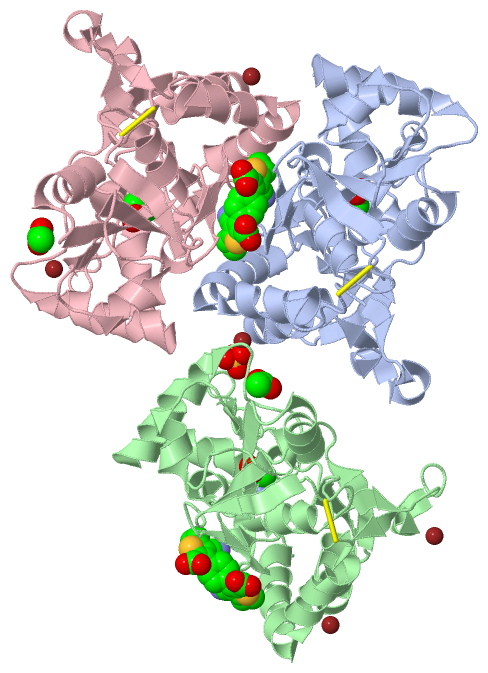

Asymmetric Unit (Jmol Viewer)

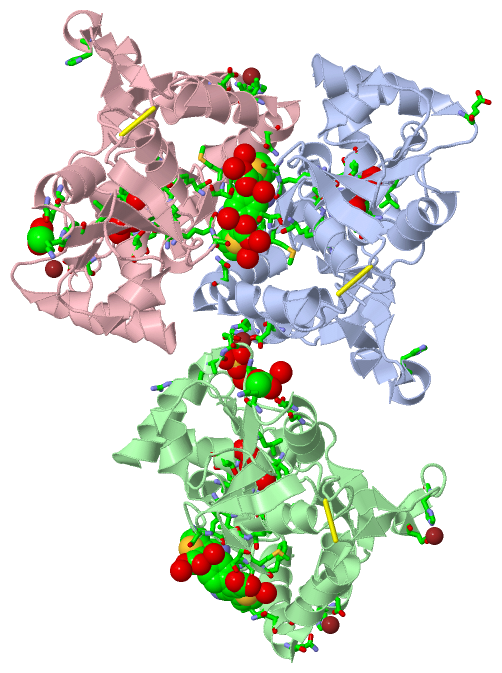

Asym. Unit - sites (Jmol Viewer)

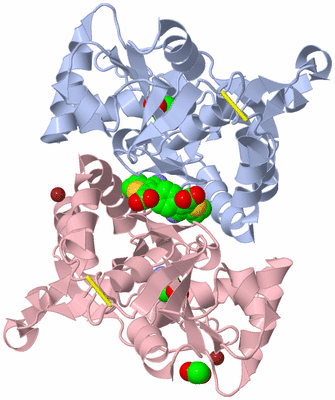

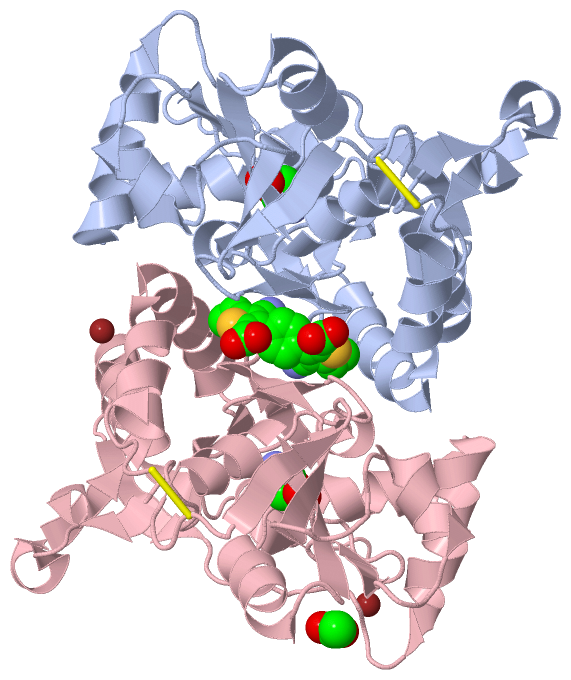

Biological Unit 1 (Jmol Viewer)

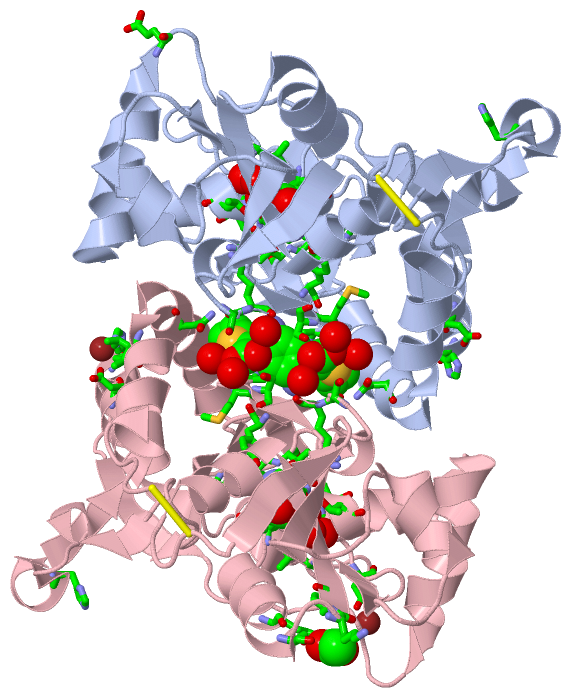

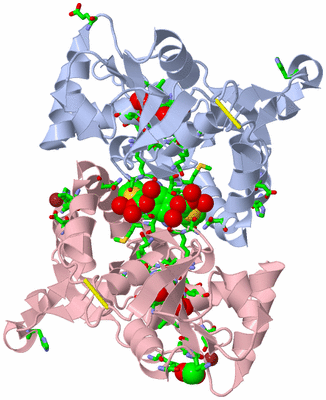

Biol. Unit 1 - sites (Jmol Viewer)

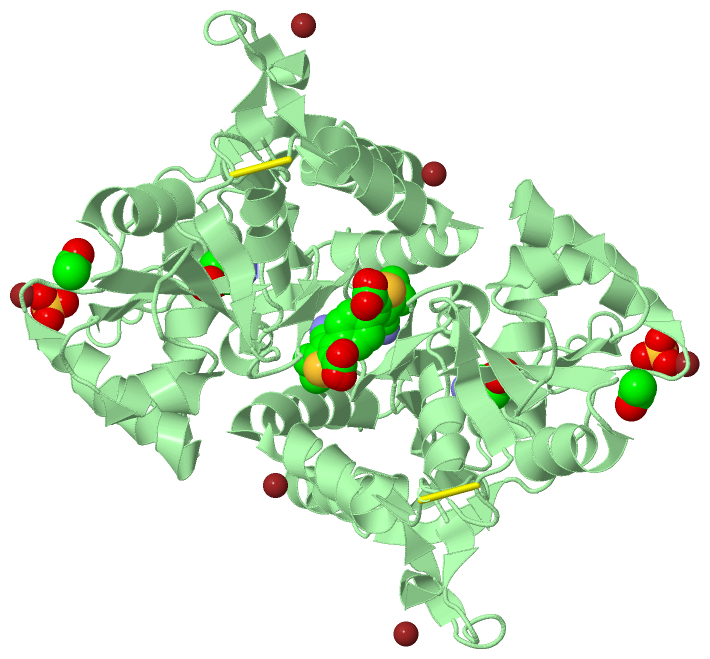

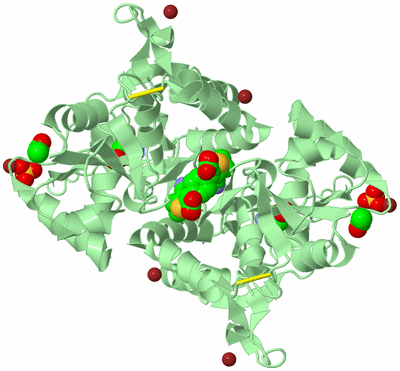

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF IGLUR2 LIGAND BINDING DOMAIN AND SYMMETRICAL CARBOXYL CONTAINING POTENTIATOR

Authors :   D. E. Timm

Date :   22 Apr 11 (Deposition) - 25 May 11 (Release) - 16 Nov 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,C  (1x)
Biol. Unit 2: B  (2x)

Keywords :   Glutamate Receptor Potentiator Complex, Ligand Gated Ion Channel, Membrane, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. E. Timm, M. Benveniste, A. M. Weeks, E. S. Nisenbaum, K. M. Partin
Structural And Functional Analysis Of Two New Positive Allosteric Modulators Of Glua2 Desensitization And Deactivation.
Mol. Pharmacol. V. 80 267 2011
PubMed-ID: 21543522 | Reference-DOI: 10.1124/MOL.110.070243

Molecule 1 - GLUTAMATE RECEPTOR 2
	Chains	:	A, B, C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	UNP RESIDUES 413-527, 653-812
	Gene	:	GRIA2, GLUR2
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	GLUR-2, AMPA-SELECTIVE GLUTAMATE RECEPTOR 2, GLUR-B, GLUR- K2, GLUTAMATE RECEPTOR IONOTROPIC, AMPA 2, GLUA2

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A		C
Biological Unit 2 (2x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (5, 13)

No.	Name	Count	Type	Full Name
1	ACT	2	Ligand/Ion	ACETATE ION
2	GLU	3	Mod. Amino Acid	GLUTAMIC ACID
3	RN8	2	Ligand/Ion	3,3'-BENZENE-1,4-DIYLBIS(4-CYANO-5-ETHYLTHIOPHENE-2-CARBOXYLIC ACID)
4	SO4	1	Ligand/Ion	SULFATE ION
5	ZN	5	Ligand/Ion	ZINC ION

Biological Unit 1 (3, 4)

No.	Name	Count	Type	Full Name
1	ACT	1	Ligand/Ion	ACETATE ION
2	GLU	2	Mod. Amino Acid	GLUTAMIC ACID
3	RN8	1	Ligand/Ion	3,3'-BENZENE-1,4-DIYLBIS(4-CYANO-5-ETHYLTHIOPHENE-2-CARBOXYLIC ACID)
4	SO4	-1	Ligand/Ion	SULFATE ION
5	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (4, 8)

No.	Name	Count	Type	Full Name
1	ACT	2	Ligand/Ion	ACETATE ION
2	GLU	2	Mod. Amino Acid	GLUTAMIC ACID
3	RN8	2	Ligand/Ion	3,3'-BENZENE-1,4-DIYLBIS(4-CYANO-5-ETHYLTHIOPHENE-2-CARBOXYLIC ACID)
4	SO4	2	Ligand/Ion	SULFATE ION
5	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (13, 13)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	TYR A:61 , PRO A:89 , LEU A:90 , THR A:91 , ARG A:96 , LEU A:138 , GLY A:141 , SER A:142 , THR A:143 , GLU A:193 , TYR A:220 , HOH A:282 , HOH A:292 , HOH A:303	BINDING SITE FOR RESIDUE GLU A 280
02	AC2	SOFTWARE	PRO A:105 , MET A:107 , SER A:108 , SER A:217 , LYS A:218 , ASN A:242 , HOH A:291 , HOH A:306 , HOH A:311 , HOH A:419 , HOH A:584 , HOH A:610 , PRO C:105 , MET C:107 , SER C:108 , SER C:217 , LYS C:218 , ASN C:242	BINDING SITE FOR RESIDUE RN8 A 281
03	AC3	SOFTWARE	TYR B:61 , PRO B:89 , LEU B:90 , THR B:91 , ARG B:96 , LEU B:138 , GLY B:141 , SER B:142 , THR B:143 , GLU B:193 , TYR B:220 , HOH B:288 , HOH B:310 , HOH B:315	BINDING SITE FOR RESIDUE GLU B 280
04	AC4	SOFTWARE	ILE B:92 , PRO B:105 , PHE B:106 , MET B:107 , SER B:108 , SER B:217 , LYS B:218 , GLY B:219 , LEU B:239 , ASN B:242 , HOH B:299 , HOH B:316 , HOH B:407	BINDING SITE FOR RESIDUE RN8 B 281
05	AC5	SOFTWARE	GLU A:42 , HIS A:46 , GLU B:166 , SO4 B:286	BINDING SITE FOR RESIDUE ZN B 282
06	AC6	SOFTWARE	HIS B:23 , GLU B:30 , HOH B:732 , HIS C:23	BINDING SITE FOR RESIDUE ZN B 283
07	AC7	SOFTWARE	GLU A:166 , GLU B:42 , HIS B:46 , LEU B:241 , GLN B:244 , HOH B:516	BINDING SITE FOR RESIDUE ZN B 284
08	AC8	SOFTWARE	ARG B:180 , SER B:184 , LYS B:187 , HOH B:771	BINDING SITE FOR RESIDUE ACT B 285
09	AC9	SOFTWARE	GLU A:42 , HIS A:46 , ARG B:163 , ALA B:165 , GLU B:166 , SER B:168 , ZN B:282 , HOH B:520	BINDING SITE FOR RESIDUE SO4 B 286
10	BC1	SOFTWARE	TYR C:61 , PRO C:89 , LEU C:90 , THR C:91 , ARG C:96 , LEU C:138 , GLY C:141 , SER C:142 , THR C:143 , GLU C:193 , TYR C:220 , HOH C:284 , HOH C:287 , HOH C:385	BINDING SITE FOR RESIDUE GLU C 280
11	BC2	SOFTWARE	HIS A:23 , ASP C:65 , HOH C:441 , HOH C:815	BINDING SITE FOR RESIDUE ZN C 281
12	BC3	SOFTWARE	GLU C:42 , HIS C:46 , LEU C:246	BINDING SITE FOR RESIDUE ZN C 282
13	BC4	SOFTWARE	ARG C:180 , SER C:184 , LYS C:187 , TYR C:188	BINDING SITE FOR RESIDUE ACT C 283

Asymmetric Unit

No.	Residues
1	A:206	-	A:261
2	B:206	-	B:261
3	C:206	-	C:261

Asymmetric Unit

No.	Residues
1	Ser A:14	-	Pro A:15
2	Glu A:166	-	Pro A:167
3	Lys A:204	-	Pro A:205
4	Ser B:14	-	Pro B:15
5	Glu B:166	-	Pro B:167
6	Lys B:204	-	Pro B:205
7	Ser C:14	-	Pro C:15
8	Glu C:166	-	Pro C:167
9	Lys C:204	-	Pro C:205

(no "SAP(SNP)/Variant" information available for 3RN8)

(no "PROSITE Motif" information available for 3RN8)

(no "Exon" information available for 3RN8)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:259
 aligned with GRIA2_HUMAN | P42262 from UniProtKB/Swiss-Prot  Length:883

    Alignment length:390
                                   423       433       443       453       463       473       483       493       503       513       523       533       543       553       563       573       583       593       603       613       623       633       643       653       663       673       683       693       703       713       723       733       743       753       763       773       783       793       803
          GRIA2_HUMAN   414 KTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLRNAVNLAVLKLNEQGLLDKLKNKWWYDKGECGSGGGDSKE 803
               SCOP domains d3rn8a_ A: Glutamate receptor ligand binding core                                                                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee.......ee..hhhhhhhhh.eehhhhhhhhhhhhhhh..eeeee................hhhhhhhhh....ee......hhhhhh.eee....eee.eeeeee..---------------------------------------------------------------------------------------------------------------------------....hhhhhhh....eeee...hhhhhhhhhh.hhhhhhhhhhhhhh.......hhhhhhhhhhhh...eeeeeehhhhhhhhh.....eeee......eee..eee....hhhhhhhhhhhhhhhhhhhhhhhhhhh.....--------. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3rn8 A   4 KTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKG---------------------------------------------------------------------------------------------------------------------------TPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLGNAVNLAVLKLNEQGLLDKLKNKWWYDKGEC--------E 280
                                    13        23        33        43        53        63        73        83        93       103       113    |    -         -         -         -         -         -         -         -         -         -         -         -       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260|      280
                                                                                                                                            118                                                                                                                         119                                                                                                                                           261      280

Chain B from PDB  Type:PROTEIN  Length:260
 aligned with GRIA2_HUMAN | P42262 from UniProtKB/Swiss-Prot  Length:883

    Alignment length:383
                                   422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       582       592       602       612       622       632       642       652       662       672       682       692       702       712       722       732       742       752       762       772       782       792
          GRIA2_HUMAN   413 NKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLRNAVNLAVLKLNEQGLLDKLKNKWWYDKGECG 795
               SCOP domains d3rn8b_ B: Glutamate receptor ligand binding core                                                                                                                                                                                                                                                                                                                                               SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee.......ee.......hhhh.eehhhhhhhhhhhhhhh..eeeee................hhhhhhhhh....ee......hhhhhh.eee....eee.eeeeee..---------------------------------------------------------------------------------------------------------------------------....hhhhhhh....eeee...hhhhhhhhhh.hhhhhhhhhhhhhh.......hhhhhhhhhhhh...eeeeeehhhhhhhhh.....eeee......eee..eee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3rn8 B   3 NKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKG---------------------------------------------------------------------------------------------------------------------------TPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLGNAVNLAVLKLNEQGLLDKLKNKWWYDKGECE 280
                                    12        22        32        42        52        62        72        82        92       102       112     |   -         -         -         -         -         -         -         -         -         -         -         -       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259 ||
                                                                                                                                             118                                                                                                                         119                                                                                                                                           261|
                                                                                                                                                                                                                                                                                                                                                                                                                        280

Chain C from PDB  Type:PROTEIN  Length:259
 aligned with GRIA2_HUMAN | P42262 from UniProtKB/Swiss-Prot  Length:883

    Alignment length:382
                                   423       433       443       453       463       473       483       493       503       513       523       533       543       553       563       573       583       593       603       613       623       633       643       653       663       673       683       693       703       713       723       733       743       753       763       773       783       793
          GRIA2_HUMAN   414 KTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLRNAVNLAVLKLNEQGLLDKLKNKWWYDKGECG 795
               SCOP domains d3rn8c_ C: Glutamate receptor ligand binding core                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----------Lig_chan-Glu_bd-3rn8C04 C:15-80                                   ------------------------------------------------------------------------------------------------------------------------------------------------------------------Lig_chan-3rn8C01 C:120-280                                                                                                                      Pfam domains (1)
           Pfam domains (2) -----------Lig_chan-Glu_bd-3rn8C05 C:15-80                                   ------------------------------------------------------------------------------------------------------------------------------------------------------------------Lig_chan-3rn8C02 C:120-280                                                                                                                      Pfam domains (2)
           Pfam domains (3) -----------Lig_chan-Glu_bd-3rn8C06 C:15-80                                   ------------------------------------------------------------------------------------------------------------------------------------------------------------------Lig_chan-3rn8C03 C:120-280                                                                                                                      Pfam domains (3)
         Sec.struct. author ..eeeee.......ee..hhhhhhhhh.eehhhhhhhhhhhhhhh..eeeee................hhhhhhhhh....ee......hhhhhh.eee....eee.eeeeee..---------------------------------------------------------------------------------------------------------------------------....hhhhhhh....eee....hhhhhhhhhh.hhhhhhhhhhhhhh.......hhhhhhhhhhhh...eeeeeehhhhhhhhh.....eeee......eee..eee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3rn8 C   4 KTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKG---------------------------------------------------------------------------------------------------------------------------TPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLGNAVNLAVLKLNEQGLLDKLKNKWWYDKGECE 280
                                    13        23        33        43        53        63        73        83        93       103       113    |    -         -         -         -         -         -         -         -         -         -         -         -       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260||
                                                                                                                                            118                                                                                                                         119                                                                                                                                           261|
                                                                                                                                                                                                                                                                                                                                                                                                                       280

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Periplasmic binding protein-like II (813)

Superfamily: Periplasmic binding protein-like II (813)

Family: Phosphate binding protein-like (463)

Protein domain: Glutamate receptor ligand binding core (127)

Human (Homo sapiens) [TaxId: 9606] (3)

1a	d3rn8a_	A:
1b	d3rn8b_	B:
1c	d3rn8c_	C:

(no "CATH Domain" information available for 3RN8)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Ion_channel (150)

Family: Lig_chan (109)

Homo sapiens (Human) (6)

1a	Lig_chan-3rn8C01	C:120-280
1b	Lig_chan-3rn8C02	C:120-280
1c	Lig_chan-3rn8C03	C:120-280

Clan: PBP (391)

Family: Lig_chan-Glu_bd (91)

Homo sapiens (Human) (5)

2a	Lig_chan-Glu_bd-3rn8C04	C:15-80
2b	Lig_chan-Glu_bd-3rn8C05	C:15-80
2c	Lig_chan-Glu_bd-3rn8C06	C:15-80

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (GRIA2_HUMAN | P42262)

molecular function
	GO:0004971	AMPA glutamate receptor activity	An ionotropic glutamate receptor activity that exhibits fast gating by glutamate and acts by opening a cation channel permeable to sodium, potassium, and, in the absence of a GluR2 subunit, calcium.
	GO:0005231	excitatory extracellular ligand-gated ion channel activity	Enables the transmembrane transfer of an ion by a channel that opens when a specific extracellular ligand has been bound by the channel complex or one of its constituent parts, where channel opening contributes to an increase in membrane potential.
	GO:0005234	extracellular-glutamate-gated ion channel activity	Enables the transmembrane transfer of an ion by a channel that opens when extracellular glutamate has been bound by the channel complex or one of its constituent parts.
	GO:0005216	ion channel activity	Enables the facilitated diffusion of an ion (by an energy-independent process) by passage through a transmembrane aqueous pore or channel without evidence for a carrier-mediated mechanism. May be either selective (it enables passage of a specific ion only) or non-selective (it enables passage of two or more ions of same charge but different size).
	GO:0004970	ionotropic glutamate receptor activity	Catalysis of the transmembrane transfer of an ion by a channel that opens when glutamate has been bound by the channel complex or one of its constituent parts.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004872	receptor activity	Combining with an extracellular or intracellular messenger to initiate a change in cell activity.
biological process
	GO:0007268	chemical synaptic transmission	The vesicular release of classical neurotransmitter molecules from a presynapse, across a chemical synapse, the subsequent activation of neurotransmitter receptors at the postsynapse of a target cell (neuron, muscle, or secretory cell) and the effects of this activation on the postsynaptic membrane potential and ionic composition of the postsynaptic cytosol. This process encompasses both spontaneous and evoked release of neurotransmitter and all parts of synaptic vesicle exocytosis. Evoked transmission starts with the arrival of an action potential at the presynapse.
	GO:0034220	ion transmembrane transport	A process in which an ion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
	GO:0006811	ion transport	The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0035235	ionotropic glutamate receptor signaling pathway	A series of molecular signals initiated by glutamate binding to a glutamate receptor on the surface of the target cell, followed by the movement of ions through a channel in the receptor complex. Ends with regulation of a downstream cellular process, e.g. transcription.
	GO:0007165	signal transduction	The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0032281	AMPA glutamate receptor complex	An assembly of four or five subunits which form a structure with an extracellular N-terminus and a large loop that together form the ligand binding domain. The C-terminus is intracellular. The ionotropic glutamate receptor complex itself acts as a ligand gated ion channel; on binding glutamate, charged ions pass through a channel in the center of the receptor complex. The AMPA receptors mediate fast synaptic transmission in the CNS and are composed of subunits GluR1-4, products from separate genes. These subunits have an extracellular N-terminus and an intracellular C-terminus.
	GO:0030054	cell junction	A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
	GO:0030666	endocytic vesicle membrane	The lipid bilayer surrounding an endocytic vesicle.
	GO:0005783	endoplasmic reticulum	The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
	GO:0005789	endoplasmic reticulum membrane	The lipid bilayer surrounding the endoplasmic reticulum.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0005887	integral component of plasma membrane	The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
	GO:0045211	postsynaptic membrane	A specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters cross the synaptic cleft and transmit the signal to the postsynaptic membrane.
	GO:0045202	synapse	The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GLU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		RN8	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:166 - Pro A:167	[ RasMol ]
		Glu B:166 - Pro B:167	[ RasMol ]
		Glu C:166 - Pro C:167	[ RasMol ]
		Lys A:204 - Pro A:205	[ RasMol ]
		Lys B:204 - Pro B:205	[ RasMol ]
		Lys C:204 - Pro C:205	[ RasMol ]
		Ser A:14 - Pro A:15	[ RasMol ]
		Ser B:14 - Pro B:15	[ RasMol ]
		Ser C:14 - Pro C:15	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3rn8
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GRIA2_HUMAN \| P42262
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GRIA2_HUMAN \| P42262
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	GRIA2_HUMAN \| P42262	:	2wjw 2wjx 2xhd 3r7x 3rnn 3ua8 5h8s

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 13)

Sites (13, 13)

SS Bonds (3, 3)

Cis Peptide Bonds (9, 9)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 3)

CATH Domains (0, 0)

Pfam Domains (2, 6)

Gene Ontology (24, 24)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
