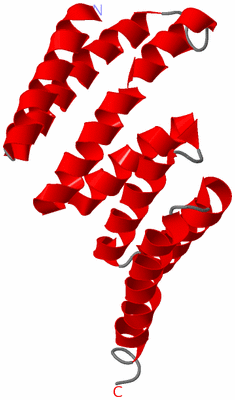

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  C-TERMINAL DOMAIN OF PROTEIN C56C10.10, A PUTATIVE PEPTIDYLPROLYL ISOMERASE, FROM CAENORHABDITIS ELEGANS

Authors :  J. Osipiuk, C. Tesar, M. Gu, P. Van Oosten-Hawle, R. I. Morimoto, A. Joa Midwest Center For Structural Genomics (Mcsg)
Date :  18 Apr 11  (Deposition) - 04 May 11  (Release) - 04 May 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.41
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Apc102156, Psi-Biology, Midwest Center For Structural Genomics, Mcsg, Peptidylprolyl Isomerase, Tpr Domain, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Osipiuk, C. Tesar, M. Gu, P. Van Oosten-Hawle, R. I. Morimoto, A. Joachimiak
C-Terminal Domain Of Protein C56C10. 10, A Putative Peptidylprolyl Isomerase, From Caenorhabditis Elegans
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE PEPTIDYLPROLYL ISOMERASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMCSG19
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: C-TERMINAL DOMAIN, RESIDUES 184-342
    Gene: C56C10.10
    Organism Common: NEMATODE
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239
    Strain: BRISTOL N2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3RKV)

(-) Sites  (0, 0)

(no "Site" information available for 3RKV)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3RKV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3RKV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3RKV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3RKV)

(-) Exons   (0, 0)

(no "Exon" information available for 3RKV)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:147
 aligned with Q18888_CAEEL | Q18888 from UniProtKB/TrEMBL  Length:342

    Alignment length:147
                                   197       207       217       227       237       247       257       267       277       287       297       307       317       327
         Q18888_CAEEL   188 LKSVEALRQKGNELFVQKDYKEAIDAYRDALTRLDTLILREKPGEPEWVELDRKNIPLYANMSQCYLNIGDLHEAEETSSEVLKREETNEKALFRRAKARIAAWKLDEAEEDLKLLLRNHPAAASVVAREMKIVTERRAEKKADSRV 334
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---TPR_1-3rkvA01 A:191-221        ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3rkv A 188 LKSVEALRQKGNELFVQKDYKEAIDAYRDALTRLDTLILREKPGEPEWVELDRKNIPLYANMSQCYLNIGDLHEAEETSSEVLKREETNEKALFRRAKARIAAWKLDEAEEDLKLLLRNHPAAASVVAREMKIVTERRAEKKADSRV 334
                                   197       207       217       227       237       247       257       267       277       287       297       307       317       327
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3RKV)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3RKV)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3RKV)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3rkv)

  Sites
(no "Sites" information available for 3rkv)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3rkv)


(-) Still Images

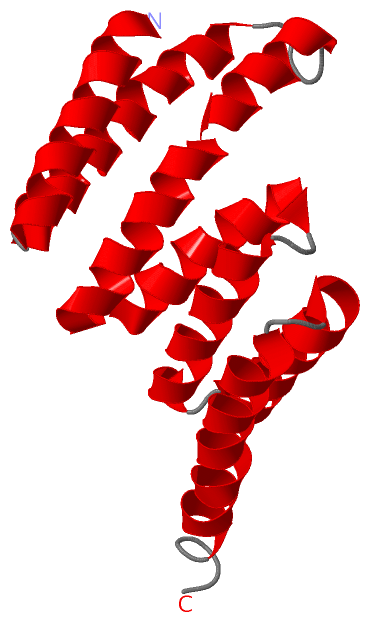

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3rkv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q18888_CAEEL | Q18888
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q18888_CAEEL | Q18888
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3RKV)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3RKV)
