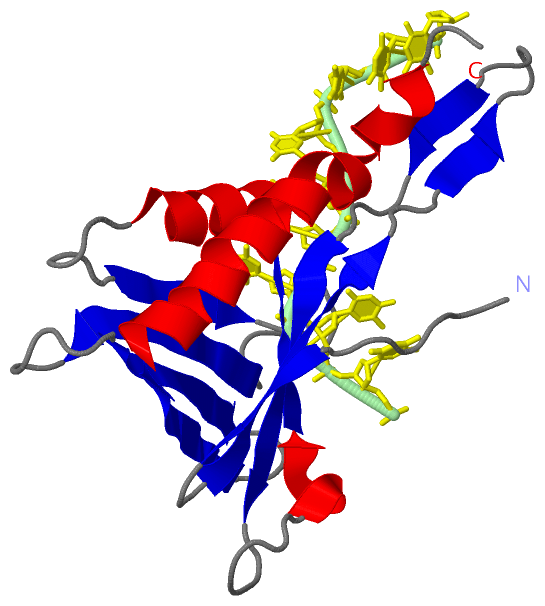

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

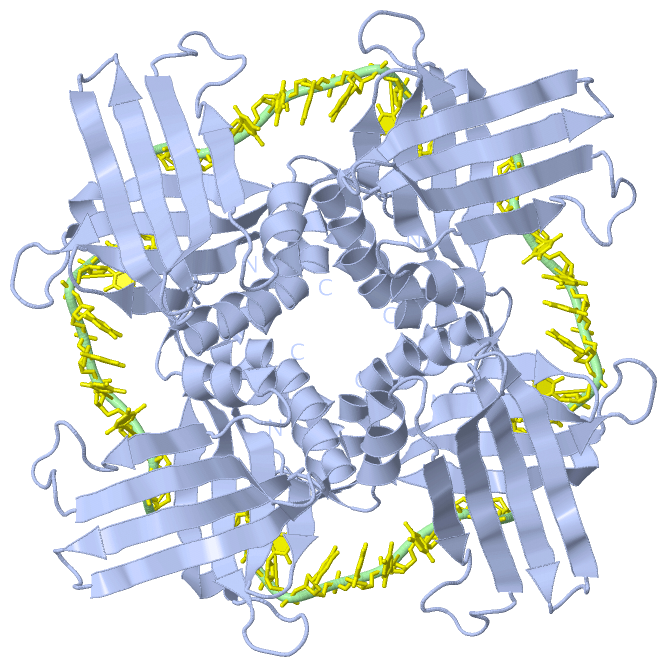

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

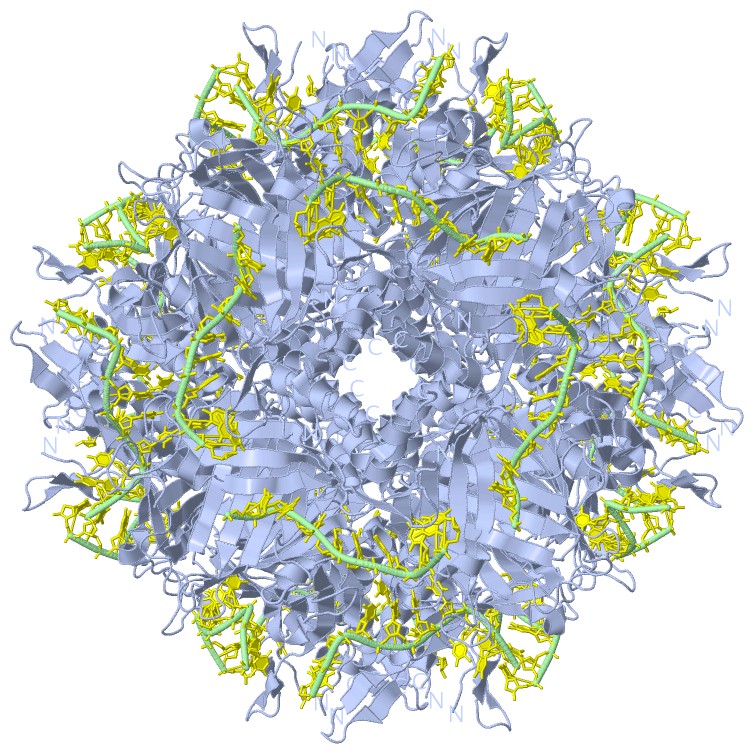

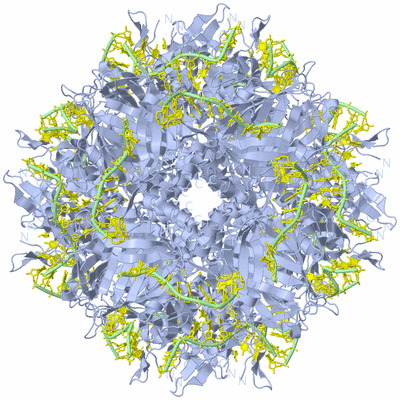

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A STWHY2 K67A-DT32 COMPLEX

Authors :  L. Cappadocia, N. Brisson, J. Sygusch
Date :  26 Mar 11  (Deposition) - 28 Sep 11  (Release) - 11 Jan 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.45
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (4x)
Biol. Unit 2:  A,B  (24x)
Keywords :  Stwhy2, Single-Stranded Dna Binding Protein, Plant, Potato, Whirly, Protein-Dna Complex, Mitochondria, Dna Binding Protein-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Cappadocia, J. S. Parent, E. Zampini, E. Lepage, J. Sygusch, N. Brisson
A Conserved Lysine Residue Of Plant Whirly Proteins Is Necessary For Higher Order Protein Assembly And Protection Against Dna Damage.
Nucleic Acids Res. V. 40 258 2012
PubMed-ID: 21911368  |  Reference-DOI: 10.1093/NAR/GKR740

(-) Compounds

Molecule 1 - WHY2 PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 48-216
    Gene: STWHY2
    Mutation: YES
    Organism Common: POTATOES
    Organism Scientific: SOLANUM TUBEROSUM
    Organism Taxid: 4113
    Strain: KENNEBEC

Molecule 2 - DNA 32-MER DT32
    Chains: B
    Engineered: YES
    Other Details: DNA SYNTHESIS
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (4x): AB
Biological Unit 2 (24x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3RA0)

(-) Sites  (0, 0)

(no "Site" information available for 3RA0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3RA0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3RA0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3RA0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3RA0)

(-) Exons   (0, 0)

(no "Exon" information available for 3RA0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:161
 aligned with WHY2_SOLTU | D9J034 from UniProtKB/Swiss-Prot  Length:238

    Alignment length:161
                                    64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
           WHY2_SOLTU    55 GRVFAPYSVFKGKAALSAEPRLPTFNRLDSGGVKLNRRGVIMLTFWPSVGERKYDWEKRQLFALSATEVGSLISMGTRDSSEFFHDPSMLSSNAGQVRKSLSIKPNADGSGYFISLSVVNNNLKTNDRFTVPVTTAEFAVMRTAFSFALPHIMGWDRFTNR 215
               SCOP domains d3ra0a_ A: automated matches                                                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee...eeeeeeee...eee.....eee....eeeeeeee.......hhhhheeeeehhhhhhhhhh......eeeee...........eeeeeeeee......eeeeeeeee....eeeeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ra0 A  55 GRVFAPYSVFKGAAALSAEPRLPTFNRLDSGGVKLNRRGVIMLTFWPSVGERKYDWEKRQLFALSATEVGSLISMGTRDSSEFFHDPSMLSSNAGQVRKSLSIKPNADGSGYFISLSVVNNNLKTNDRFTVPVTTAEFAVMRTAFSFALPHIMGWDRFTNR 215
                                    64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214


Chain B from PDB  Type:DNA  Length:9

                 3ra0 B   1 TTTTTTTTT   9
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3RA0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3RA0)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (WHY2_SOLTU | D9J034)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3ra0)

  Sites
(no "Sites" information available for 3ra0)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3ra0)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3ra0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  WHY2_SOLTU | D9J034
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  WHY2_SOLTU | D9J034
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        WHY2_SOLTU | D9J034: 3n1h 3n1i 3n1j 3n1k 3n1l 3r9y 3r9z

(-) Related Entries Specified in the PDB File

1l3a PARALOGUE PROTEIN
3n1h SAME PROTEIN WITHOUT K67A MUTATION
3n1i SAME PROTEIN WITHOUT K67A MUTATION
3n1j SAME PROTEIN WITHOUT K67A MUTATION
3n1k SAME PROTEIN WITHOUT K67A MUTATION
3n1l SAME PROTEIN WITHOUT K67A MUTATION
3r9y STWHY2 K67A (FORM I)
3r9z STWHY2 K67A (FORM II)
