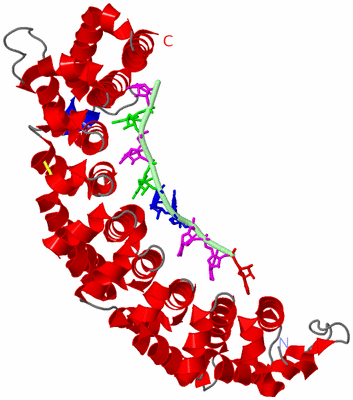

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF FBF-2 R288Y MUTANT IN COMPLEX WITH GLD-1 FBEA A7U MUTANT

Authors :  Y. Wang, C. Qiu, Y. Y. Koh, L. Opperman, L. Gross, T. M. T. Hall, M. Wickens
Date :  24 Jan 11  (Deposition) - 23 Mar 11  (Release) - 30 Mar 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Fbf, Fem-3 Binding Factor, Puf, Rna-Binding Specificity, Base Stacking, Rna Binding Protein-Rna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Y. Koh, Y. Wang, C. Qiu, L. Opperman, L. Gross, T. M. Tanaka Hall, M. Wickens
Stacking Interactions In Puf-Rna Complexes.
Rna V. 17 718 2011
PubMed-ID: 21372189  |  Reference-DOI: 10.1261/RNA.2540311

(-) Compounds

Molecule 1 - FEM-3 MRNA-BINDING FACTOR 2
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX6P1
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: PUM-HD DOMAIN, RSIDUES 164-575
    Gene: FBF-2, F21H12.5
    Mutation: YES
    Organism Common: NEMATODE
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239

Molecule 2 - 5'-R(*UP*GP*UP*GP*CP*CP*UP*UP*A)-3'
    Chains: B
    Engineered: YES
    Other Details: SYNTHETIC RNA
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3QGC)

(-) Sites  (0, 0)

(no "Site" information available for 3QGC)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:405 -A:438

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3QGC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3QGC)

(-) PROSITE Motifs  (1, 8)

Asymmetric/Biological Unit (1, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PUMPS50302 Pumilio RNA-binding repeat profile.FBF2_CAEEL187-225
226-264
271-307
345-384
308-332
400-436
438-473
484-521		  8A:187-225
A:226-264
A:271-307
A:345-384
A:308-332
A:400-436
A:438-473
A:484-521

(-) Exons   (0, 0)

(no "Exon" information available for 3QGC)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:400
 aligned with FBF2_CAEEL | Q09312 from UniProtKB/Swiss-Prot  Length:632

    Alignment length:400
                                   177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567
           FBF2_CAEEL   168 LPTWSLDSNGEMRSRLSLSEVLDSGDLMKFAVDKTGCQFLEKAVKGSLTSYQKFQLFEQVIGRKDDFLKLSTNIFGNYLVQSVIGISLATNDDGYTKRQEKLKNFISSQMTDMCLDKFACRVIQSSLQNMDLSLACKLVQALPRDARLIAICVDQNANHVIQKVVAVIPLKNWEFIVDFVATPEHLRQICSDKYGCRVVQTIIEKLTADSMNVDLTSAAQNLRERALQRLMTSVTNRCQELATNEYANYIIQHIVSNDDLAVYRECIIEKCLMRNLLSLSQEKFASHVVEKAFLHAPLELLAEMMDEIFDGYIPHPDTGKDALDIMMFHQFGNYVVQCMLTICCDAVSGRRQTKEGGYDHAISFQDWLKKLHSRVTKERHRLSRFSSGKKMIETLANLRS 567
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PUF-3qgcA01 A:351-376     ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhh.hhhhhhhhhhhhhhhhhh.....ee..eehhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------PUM  PDB: A:187-225 UniProt: 187-225   PUM  PDB: A:226-264 UniProt: 226-264   ------PUM  PDB: A:271-307 UniProt: 271-307 PUM  PDB: A:308-332      ------------PUM  PDB: A:345-384 UniProt: 345-384    ---------------PUM  PDB: A:400-436 UniProt: 400-436 -PUM  PDB: A:438-473 UniProt: 438-473----------PUM  PDB: A:484-521 UniProt: 484-521  ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qgc A 168 LPTWSLDSNGEMRSRLSLSEVLDSGDLMKFAVDKTGCQFLEKAVKGSLTSYQKFQLFEQVIGRKDDFLKLSTNIFGNYLVQSVIGISLATNDDGYTKRQEKLKNFISSQMTDMCLDKFACYVIQSSLQNMDLSLACKLVQALPRDARLIAICVDQNANHVIQKVVAVIPLKNWEFIVDFVATPEHLRQICSDKYGCRVVQTIIEKLTADSMNVDLTSAAQNLRERALQRLMTSVTNRCQELATNEYANYIIQHIVSNDDLAVYRECIIEKCLMRNLLSLSQEKFASHVVEKAFLHAPLELLAEMMDEIFDGYIPHPDTGKDALDIMMFHQFGNYVVQCMLTICCDAVSGRRQTKEGGYDHAISFQDWLKKLHSRVTKERHRLSRFSSGKKMIETLANLRS 567
                                   177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567


Chain B from PDB  Type:RNA  Length:9

                 3qgc B   1 UGUGCCUUA   9
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3QGC)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3QGC)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (FBF2_CAEEL | Q09312)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0003730    mRNA 3'-UTR binding    Interacting selectively and non-covalently with the 3' untranslated region of an mRNA molecule.
biological process
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0017148    negative regulation of translation    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of proteins by the translation of mRNA or circRNA.
    GO:0007548    sex differentiation    The establishment of the sex of an organism by physical differentiation.
cellular component
    GO:0043186    P granule    A small cytoplasmic, non-membranous RNA/protein complex aggregates in the primordial germ cells of many higher eukaryotes.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3qgc)

  Sites
(no "Sites" information available for 3qgc)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3qgc)


(-) Still Images

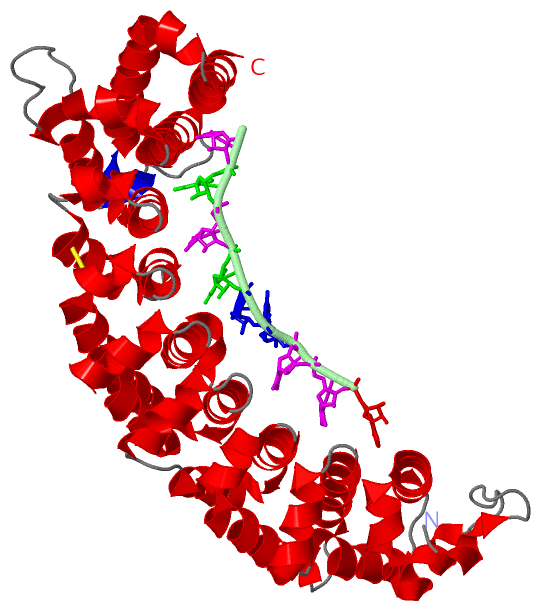

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3qgc
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FBF2_CAEEL | Q09312
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  FBF2_CAEEL | Q09312
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FBF2_CAEEL | Q09312: 3k5q 3k5y 3k5z 3k61 3k62 3k64 3qg9 3qgb 3v6y 3v74

(-) Related Entries Specified in the PDB File

3k5y CRYSTAL STRUCTURE OF FBF-2/GLD-1 FBEA COMPLEX
3qg9 CRYSTAL STRUCTURE OF FBF-2 IN COMPLEX WITH GLD-1 FBEA A7U MUTANT
3qgb CRYSTAL STRUCTURE OF FBF-2 R288Y MUTANT IN COMPLEX WITH GLD -1 FBEA
