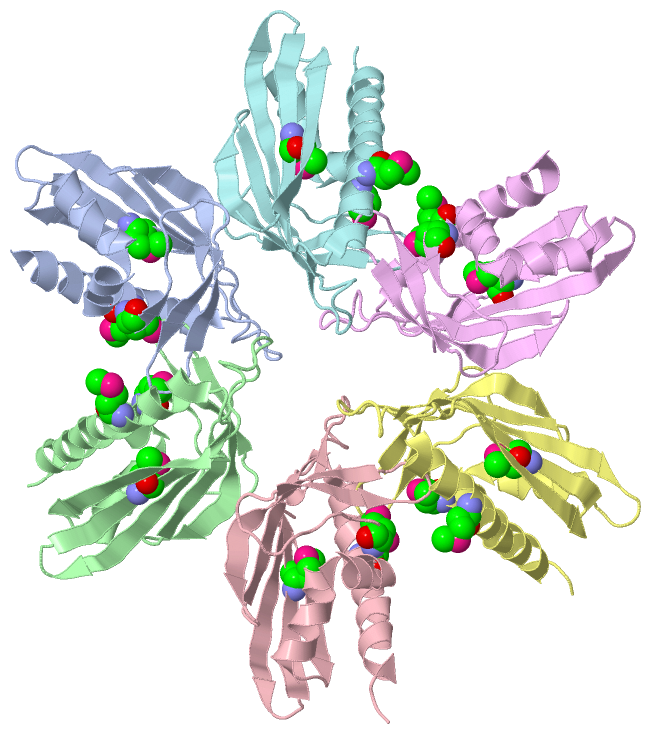

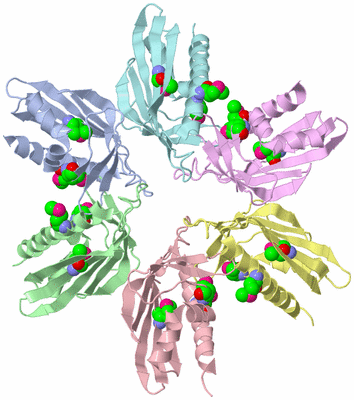

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

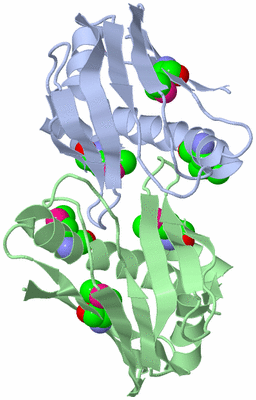

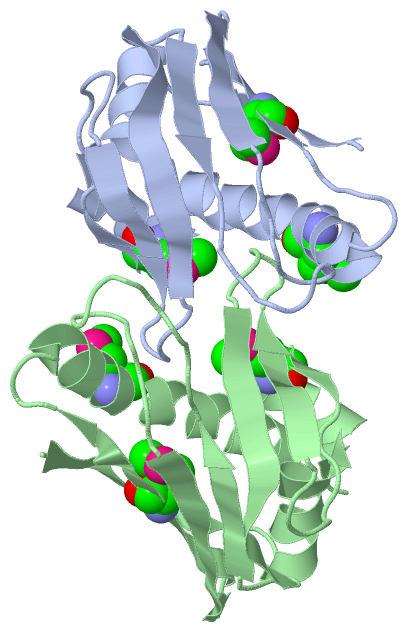

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

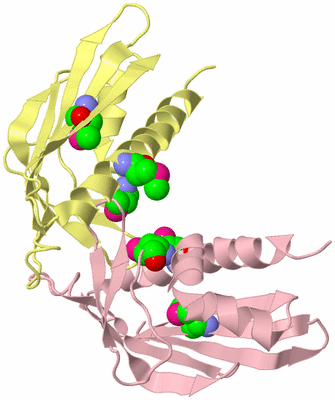

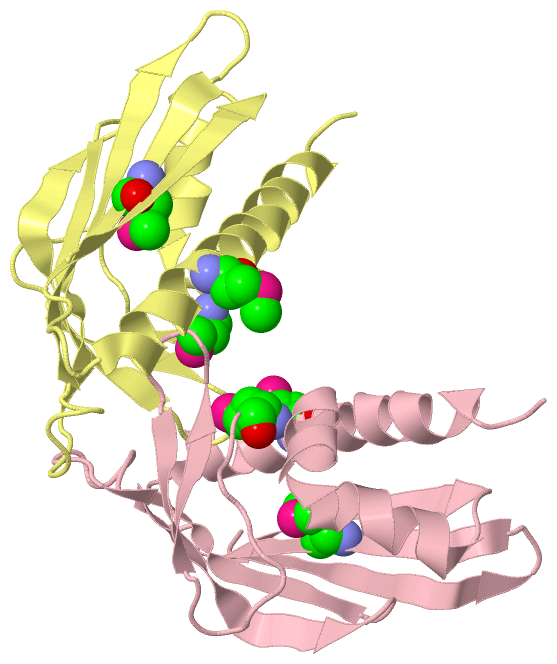

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

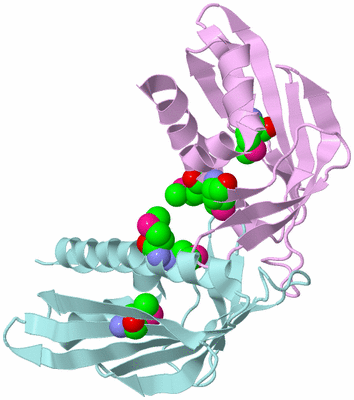

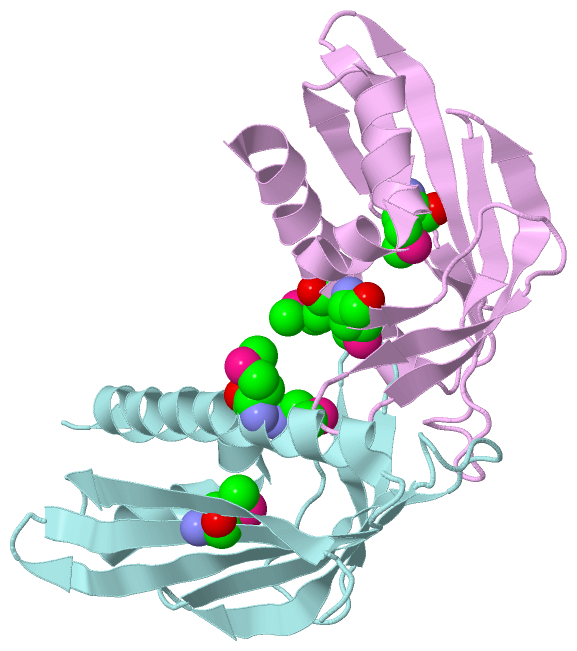

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF PROTEIN MLL2253 FROM MESORHIZOBIUM LOTI, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET MLR404.

Authors :  F. Forouhar, S. Lew, J. Seetharaman, D. Wang, C. Ciccosanti, S. Sahdev, B. Rost, T. B. Acton, R. Xiao, J. K. Everett, G. T. Montelione, J. F. Hunt Northeast Structural Genomics Consortium (Nesg)
Date :  30 Dec 10  (Deposition) - 12 Jan 11  (Release) - 22 Feb 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Keywords :  Structural Genomics, Psi-Biology, Protein Structure Initiative, Alpha-Beta Protein, Unknown, Structure Genomics, Unknown Function, Northeast Structural Genomics Consortium, Nesg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Forouhar, S. Lew, J. Seetharaman, D. Wang, C. Ciccosanti, S. Sahdev R. Nair, B. Rost, T. B. Acton, R. Xiao, J. K. Everett, G. T. Montelione, J. F. Hunt, L. Tong
X-Ray Crystal Structure Of Protein Mll2253 From Mesorhizobium Loti, Northeast Structural Genomics Consortiu Target Mlr404.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - MLL2253 PROTEIN
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: MESORHIZOBIUM LOTI
    Organism Taxid: 266835
    Tissue: MAFF303099

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 18)

Asymmetric Unit (1, 18)
No.NameCountTypeFull Name
1MSE18Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 3Q63)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3Q63)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3Q63)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3Q63)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3Q63)

(-) Exons   (0, 0)

(no "Exon" information available for 3Q63)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:132
 aligned with Q98IT8_RHILO | Q98IT8 from UniProtKB/TrEMBL  Length:143

    Alignment length:132
                                    18        28        38        48        58        68        78        88        98       108       118       128       138
         Q98IT8_RHILO     9 RTVVVERQISHPPEKLWRALTQPHLIEEWLMKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRMEQSGFRPDQRRAYGGAKMGWPQFFEKLEQLLD 140
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeeee..hhhhhhhhhhhhhhhhhhh.ee........eeeee.....eeeeeeeeee...eeeee..............eeeeeeee....eeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3q63 A   9 RTVVVERQISHPPEKLWRALTQPHLIEEWLmKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRmEQSGFRPDQRRAYGGAKmGWPQFFEKLEQLLD 140
                                    18        28        38|       48        58        68        78        88        98       108       118       128       138
                                                         39-MSE                                                              108-MSE           126-MSE


Chain B from PDB  Type:PROTEIN  Length:137
 aligned with Q98IT8_RHILO | Q98IT8 from UniProtKB/TrEMBL  Length:143

    Alignment length:137
                                                                                                                                                                 143
                                    17        27        37        47        57        67        77        87        97       107       117       127       137     |
         Q98IT8_RHILO     8 NRTVVVERQISHPPEKLWRALTQPHLIEEWLMKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRMEQSGFRPDQRRAYGGAKMGWPQFFEKLEQLLDRTD-   -
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee..hhhhhhhhhhhhhhhhhhh.ee........eeeee.....eeeeeeeeee...eeeee..............eeeeeeeee..eeeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q63 B   8 NRTVVVERQISHPPEKLWRALTQPHLIEEWLmKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRmEQSGFRPDQRRAYGGAKmGWPQFFEKLEQLLDRTDL 144
                                    17        27        37 |      47        57        67        77        87        97       107|      117       127       137
                                                          39-MSE                                                              108-MSE           126-MSE


Chain C from PDB  Type:PROTEIN  Length:137
 aligned with Q98IT8_RHILO | Q98IT8 from UniProtKB/TrEMBL  Length:143

    Alignment length:137
                                                                                                                                                                 143
                                    17        27        37        47        57        67        77        87        97       107       117       127       137     |
         Q98IT8_RHILO     8 NRTVVVERQISHPPEKLWRALTQPHLIEEWLMKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRMEQSGFRPDQRRAYGGAKMGWPQFFEKLEQLLDRTD-   -
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee..hhhhhhhhhhhhhhhhhhh...........eeeee.....eeeeeeeeee...eeeeeeee........eeeeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q63 C   8 NRTVVVERQISHPPEKLWRALTQPHLIEEWLmKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRmEQSGFRPDQRRAYGGAKmGWPQFFEKLEQLLDRTDL 144
                                    17        27        37 |      47        57        67        77        87        97       107|      117       127       137
                                                          39-MSE                                                              108-MSE           126-MSE


Chain D from PDB  Type:PROTEIN  Length:136
 aligned with Q98IT8_RHILO | Q98IT8 from UniProtKB/TrEMBL  Length:143

    Alignment length:136
                                                                                                                                                                143
                                    18        28        38        48        58        68        78        88        98       108       118       128       138    |
         Q98IT8_RHILO     9 RTVVVERQISHPPEKLWRALTQPHLIEEWLMKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRMEQSGFRPDQRRAYGGAKMGWPQFFEKLEQLLDRTD-   -
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee..hhhhhhhhhhhhhhhhhhh.ee........eeeee.....eeeeeeeeee...eeeeeeee........eeeeeeeeeee....eeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q63 D   9 RTVVVERQISHPPEKLWRALTQPHLIEEWLmKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRmEQSGFRPDQRRAYGGAKmGWPQFFEKLEQLLDRTDL 144
                                    18        28        38|       48        58        68        78        88        98       108       118       128       138
                                                         39-MSE                                                              108-MSE           126-MSE


Chain E from PDB  Type:PROTEIN  Length:135
 aligned with Q98IT8_RHILO | Q98IT8 from UniProtKB/TrEMBL  Length:143

    Alignment length:135
                                    16        26        36        46        56        66        76        86        96       106       116       126       136
         Q98IT8_RHILO     7 ENRTVVVERQISHPPEKLWRALTQPHLIEEWLMKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRMEQSGFRPDQRRAYGGAKMGWPQFFEKLEQLLDR 141
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eee..eeee..hhhhhhhhhhhhhhhhhhh.ee........eeeee.....eeeeeeeeee...eeeee..............eeeeeeeee..eeeee..eeee...hhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q63 E   7 ENRTVVVERQISHPPEKLWRALTQPHLIEEWLmKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRmEQSGFRPDQRRAYGGAKmGWPQFFEKLEQLLDR 141
                                    16        26        36  |     46        56        66        76        86        96       106 |     116       126       136
                                                           39-MSE                                                              108-MSE           126-MSE


Chain F from PDB  Type:PROTEIN  Length:139
 aligned with Q98IT8_RHILO | Q98IT8 from UniProtKB/TrEMBL  Length:143

    Alignment length:139
                                                                                                                                                                   143
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       |
         Q98IT8_RHILO     6 TENRTVVVERQISHPPEKLWRALTQPHLIEEWLMKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRMEQSGFRPDQRRAYGGAKMGWPQFFEKLEQLLDRTD-   -
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------AHSA1-3q63F01 F:18-140                                                                                                     ---- Pfam domains (1)
           Pfam domains (2) ------------AHSA1-3q63F02 F:18-140                                                                                                     ---- Pfam domains (2)
           Pfam domains (3) ------------AHSA1-3q63F03 F:18-140                                                                                                     ---- Pfam domains (3)
           Pfam domains (4) ------------AHSA1-3q63F04 F:18-140                                                                                                     ---- Pfam domains (4)
           Pfam domains (5) ------------AHSA1-3q63F05 F:18-140                                                                                                     ---- Pfam domains (5)
           Pfam domains (6) ------------AHSA1-3q63F06 F:18-140                                                                                                     ---- Pfam domains (6)
         Sec.struct. author ...eeeeeeeee..hhhhhhhhhhhhhhhhhhh...........eeeee.....eeeeeeeeee...eeeeeeee........eeeeeeeeeeee..eeeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q63 F   6 TENRTVVVERQISHPPEKLWRALTQPHLIEEWLmKNDFKPAVGHRFNISADWGGVLDCEVLAVEPNKTLSYTWNLAHQDPAFDLRSVVTFTLTPTPTGTHLRmEQSGFRPDQRRAYGGAKmGWPQFFEKLEQLLDRTDL 144
                                    15        25        35   |    45        55        65        75        85        95       105  |    115       125|      135
                                                            39-MSE                                                              108-MSE           126-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3Q63)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3Q63)

(-) Pfam Domains  (1, 6)

Asymmetric Unit
(-)
Clan: Bet_V_1_like (93)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (Q98IT8_RHILO | Q98IT8)
biological process
    GO:0006950    response to stress    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a disturbance in organismal or cellular homeostasis, usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3q63)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3q63)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3q63
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q98IT8_RHILO | Q98IT8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q98IT8_RHILO | Q98IT8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3Q63)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3Q63)
