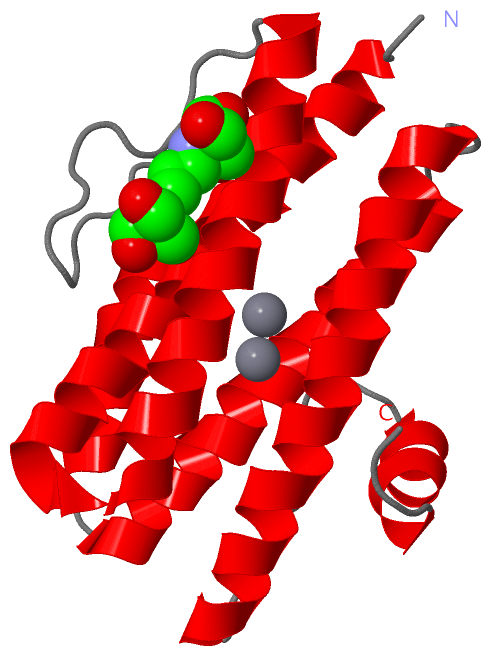

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

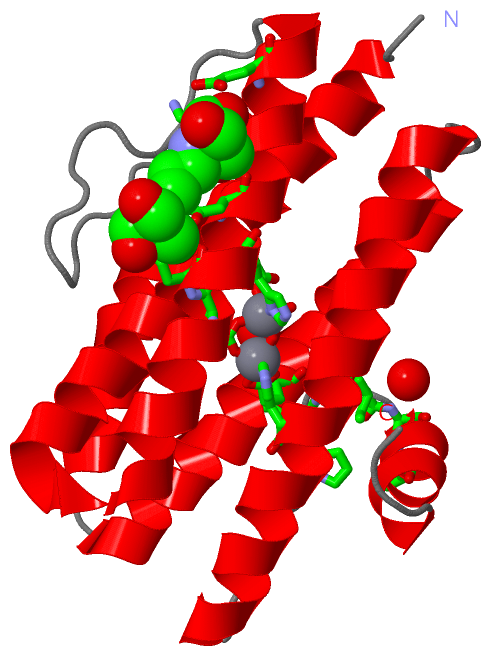

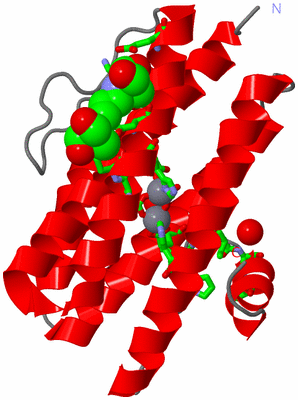

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

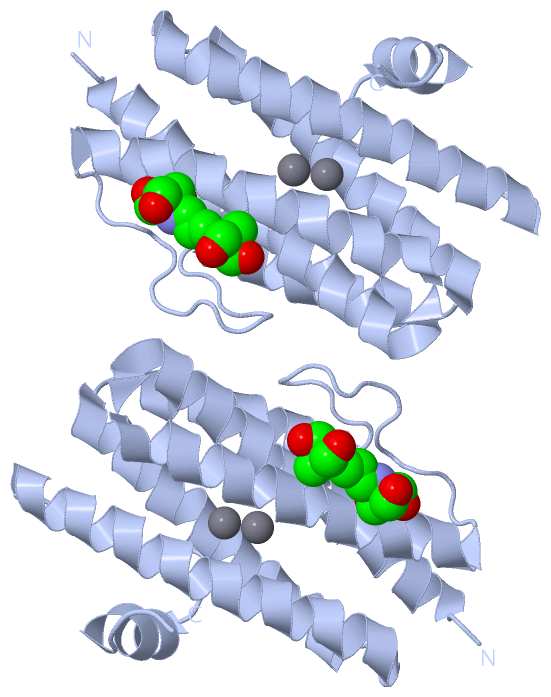

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

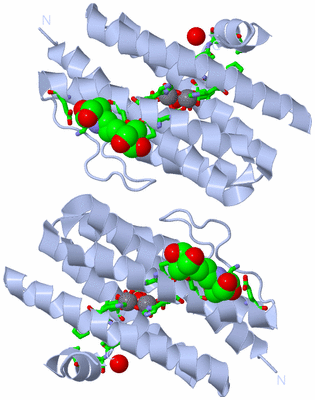

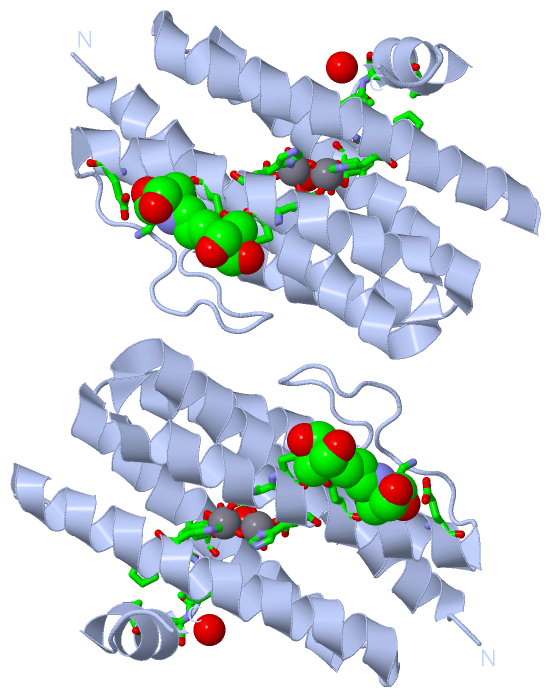

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A DELETION MUTANT(11-185) OF HYPOTHETICAL PROTEIN MJ0754 WITH MN2+

Authors :  K. Y. Hwang, E. H. Lee
Date :  24 Dec 10  (Deposition) - 18 May 11  (Release) - 18 May 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Ferritin-Like Protein, Four-Helix Bundle, Metal Binding, Dinuclear Center, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. H. Lee, H. S. Kim, H. -Y. Kim, Y. H. Jeon, K. Y. Hwang
Structural Insights Into The Metal Binding Properties Of Hypothetical Protein Mj0754 From Methanococcus Jannaschii Dsm 2661
Proteins 2011
PubMed: search  |  Reference-DOI: 10.1002/PROT.23066

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN MJ0754
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 11-185(DELETION 1-10)
    Gene: MJ0754
    Mutation: YES
    Organism Scientific: METHANOCALDOCOCCUS JANNASCHII
    Organism Taxid: 243232
    Strain: DSM 2661

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric Unit (2, 3)
No.NameCountTypeFull Name
1B3P1Ligand/Ion2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2MN2Ligand/IonMANGANESE (II) ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1B3P2Ligand/Ion2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2MN-1Ligand/IonMANGANESE (II) ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:54 , GLU A:113 , HIS A:146 , MN A:202 , HOH A:247 , HOH A:249BINDING SITE FOR RESIDUE MN A 201
2AC2SOFTWAREGLU A:28 , GLU A:54 , HIS A:57 , MN A:201 , HOH A:245 , HOH A:247 , HOH A:249BINDING SITE FOR RESIDUE MN A 202
3AC3SOFTWAREGLN A:55 , ASP A:59 , LYS A:62 , GLU A:66 , PRO A:163 , GLN A:164 , TYR A:165 , ILE A:166 , SER A:167 , LYS A:168 , HOH A:204 , HOH A:246BINDING SITE FOR RESIDUE B3P A 203

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3Q4Q)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3Q4Q)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3Q4Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3Q4Q)

(-) Exons   (0, 0)

(no "Exon" information available for 3Q4Q)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:169
 aligned with Y754_METJA | Q58164 from UniProtKB/Swiss-Prot  Length:185

    Alignment length:169
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
           Y754_METJA    12 PISEEEKEGLIEMREEEKLARDVYLTLYNKWKLQIFKNIAESEQTHMDAVKYLLEKYNIPDPVKNDSIGVFSNPKFEELYKKLVEKGDKSEVDALKVGATIEDLDIADLEKWINKTDNEDIKFVYENLMKGSRNHMRAFVRMLNNYGSNYTPQYISKEEYEEIISSSTE 180
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----DUF2202-3q4qA01 A:17-178                                                                                                                                          -- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q4q A  12 PISEEEKEGLIEMREEEKLARDVYLTLYNKWKLQIFKNIAESEQTHMDAVKYLLEKYNIPDPVKNDSIGVFSNPKFEELYKKLVEKGDKSEVDALKVGATIEDLDIADLEKWINKTDNEDIKFVYENLMKGSRNHMRAFVRMLNNYGSNYTPQYISKEEYEEIISSSTE 180
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3Q4Q)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3Q4Q)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: Ferritin (185)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3Q4Q)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    B3P  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3q4q)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3q4q
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y754_METJA | Q58164
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y754_METJA | Q58164
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y754_METJA | Q58164: 3q4n 3q4o 3q4r

(-) Related Entries Specified in the PDB File

3q4n FULL LENGTH(1-185)MJ0754
3q4o MJ0754(11-185) WITH MG2+
3q4r MJ0754(11-185) WITH ZN2+
