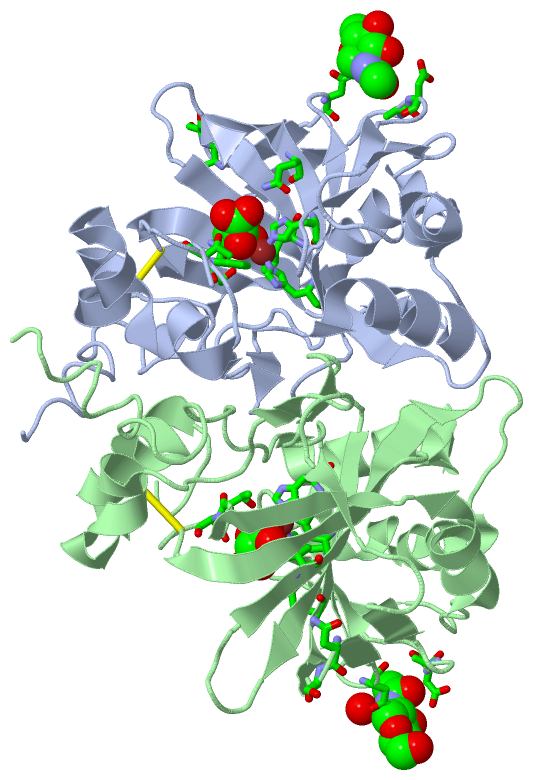

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF FUNGAL ALPHA CARBONIC ANHYDRASE FROM ASPERGILLUS ORYZAE

Authors :  J. A. Cuesta-Seijo, M. S. Borchert, J. C. Navarro-Poulsen, K. M. Schnor L. L. Leggio
Date :  21 Dec 10  (Deposition) - 09 Mar 11  (Release) - 09 Mar 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Alpha Carbonic Anhydrase, Fungal Carbonic Anhydrase, Glysosylation, Secreted, Dimeric, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. A. Cuesta-Seijo, M. S. Borchert, J. C. Navarro-Poulsen, K. M. Schnorr, L. L. Leggio
Structure Of Fungal Alpha Carbonic Anhydrase From Aspergillus Oryzae
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CARBONIC ANHYDRASE
    Chains: A, B
    EC Number: 4.2.1.1
    Engineered: YES
    Expression System: ASPERGILLUS ORYZAE
    Expression System Taxid: 5062
    Fragment: UNP RESIDUES 27-270
    Gene: AO090010000582
    Organism Scientific: ASPERGILLUS ORYZAE
    Organism Taxid: 5062

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 6)

Asymmetric/Biological Unit (3, 6)
No.NameCountTypeFull Name
1MLT2Ligand/IonMALATE ION
2NAG2Ligand/IonN-ACETYL-D-GLUCOSAMINE
3ZN2Ligand/IonZINC ION

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREMLT A:3 , HIS A:123 , HIS A:125 , HIS A:142 , THR A:215BINDING SITE FOR RESIDUE ZN A 1
2AC2SOFTWAREALA A:89 , ASP A:90 , ASN A:107 , ASN B:113 , SER B:114BINDING SITE FOR RESIDUE NAG A 2
3AC3SOFTWAREZN A:1 , GLN A:121 , HIS A:123 , HIS A:142 , VAL A:154 , THR A:215 , THR A:216 , TRP A:225BINDING SITE FOR RESIDUE MLT A 3
4AC4SOFTWAREMLT B:3 , HIS B:123 , HIS B:125 , HIS B:142BINDING SITE FOR RESIDUE ZN B 1
5AC5SOFTWAREASN A:113 , SER A:114 , ALA B:89 , ASP B:90 , ASN B:107 , HOH B:276BINDING SITE FOR RESIDUE NAG B 2
6AC6SOFTWAREZN B:1 , GLN B:121 , HIS B:123 , HIS B:125 , HIS B:142 , VAL B:154 , THR B:215 , THR B:216BINDING SITE FOR RESIDUE MLT B 3

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:58 -A:219
2B:58 -B:219

(-) Cis Peptide Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1Ser A:65 -Pro A:66
2Thr A:126 -Pro A:127
3Pro A:217 -Pro A:218
4Gln A:268 -Lys A:269
5Ser B:65 -Pro B:66
6Thr B:126 -Pro B:127
7Pro B:217 -Pro B:218
8Lys B:269 -Leu B:270

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3Q31)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3Q31)

(-) Exons   (0, 0)

(no "Exon" information available for 3Q31)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:236
 aligned with Q2TWF5_ASPOR | Q2TWF5 from UniProtKB/TrEMBL  Length:274

    Alignment length:236
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
         Q2TWF5_ASPOR    35 NKFNYTGLGGPLNWYGLDEANEACAKGKHQSPIVIDSAAIDYAASGSLKLDLPLADGSKLENLGFGLQVTLTNGSLTANSKTYTLAQFHFHTPSEHHVNEEHFPMEVHFVFQTAAKETAVVGFFFQLSEVGDSVPLFDSVFAPIDNIPDAGTSTTTGQLDFGGLLDHFNRHGVYQYTGSLTTPPCTEEVMWNLSTEPLPLTVQGYNKVKKIIKYNARYTQNALGQDNLLEVAAQKL 270
               SCOP domains d3q31a_ A: automated matches                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhh......ee.....ee.....eeee.......eeee....eeee....eeee..eeeeeeeeeee.....ee......eeeeeeee.....eeeeeeeeee......hhhhhhhhhhhhhh.....eee.....hhhhhhhhhhh.eeeeeee.......eeeeeeee...eeehhhhhhhhhhhhh....................... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q31 A  35 NKFNYTGLGGPLNWYGLDEANEACAKGKHQSPIVIDSAAIDYAASGSLKLDLPLADGSKLENLGFGLQVTLTNGSLTANSKTYTLAQFHFHTPSEHHVNEEHFPMEVHFVFQTAAKETAVVGFFFQLSEVGDSVPLFDSVFAPIDNIPDAGTSTTTGQLDFGGLLDHFNRHGVYQYTGSLTTPPCTEEVMWNLSTEPLPLTVQGYNKVKKIIKYNARYTQNALGQDNLLEVAAQKL 270
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264


Chain B from PDB  Type:PROTEIN  Length:236
 aligned with Q2TWF5_ASPOR | Q2TWF5 from UniProtKB/TrEMBL  Length:274

    Alignment length:236
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
         Q2TWF5_ASPOR    35 NKFNYTGLGGPLNWYGLDEANEACAKGKHQSPIVIDSAAIDYAASGSLKLDLPLADGSKLENLGFGLQVTLTNGSLTANSKTYTLAQFHFHTPSEHHVNEEHFPMEVHFVFQTAAKETAVVGFFFQLSEVGDSVPLFDSVFAPIDNIPDAGTSTTTGQLDFGGLLDHFNRHGVYQYTGSLTTPPCTEEVMWNLSTEPLPLTVQGYNKVKKIIKYNARYTQNALGQDNLLEVAAQKL 270
               SCOP domains d3q31b_ B: automated matches                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----------------Carb_anhydrase-3q31B01 B:52-270                                                                                                                                                                                             Pfam domains (1)
           Pfam domains (2) -----------------Carb_anhydrase-3q31B02 B:52-270                                                                                                                                                                                             Pfam domains (2)
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhh......ee.....ee.....eeee.......eeee....eeee....eeee..eeeeeeeeeee.....ee......eeeeeeee.....eeeeeeeeee......hhhhhhhhhhhhhh.....eee.....hhhhhhhhhhh.eeeeeee.......eeeeeeee...eeehhhhhhhhhhhhh....................... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q31 B  35 NKFNYTGLGGPLNWYGLDEANEACAKGKHQSPIVIDSAAIDYAASGSLKLDLPLADGSKLENLGFGLQVTLTNGSLTANSKTYTLAQFHFHTPSEHHVNEEHFPMEVHFVFQTAAKETAVVGFFFQLSEVGDSVPLFDSVFAPIDNIPDAGTSTTTGQLDFGGLLDHFNRHGVYQYTGSLTTPPCTEEVMWNLSTEPLPLTVQGYNKVKKIIKYNARYTQNALGQDNLLEVAAQKL 270
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3Q31)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Carb_anhydrase] (168)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q2TWF5_ASPOR | Q2TWF5)
molecular function
    GO:0004089    carbonate dehydratase activity    Catalysis of the reaction: H2CO3 = CO2 + H2O.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0006730    one-carbon metabolic process    The chemical reactions and pathways involving the transfer of one-carbon units in various oxidation states.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.
