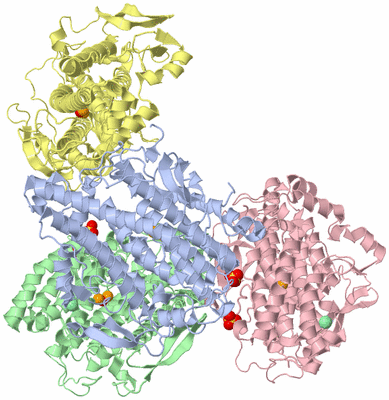

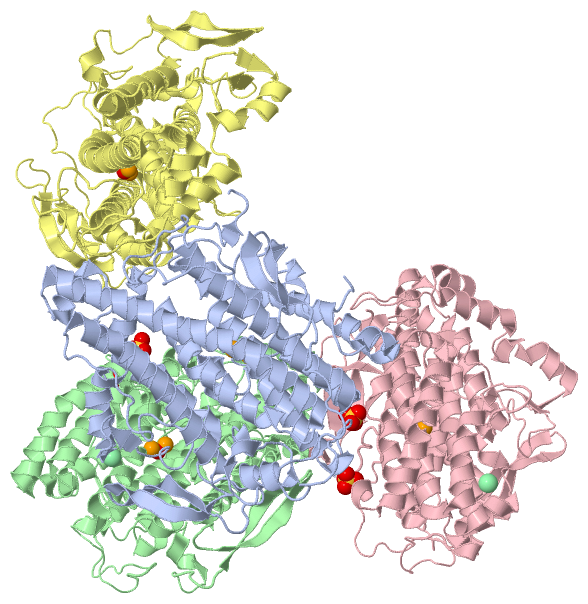

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

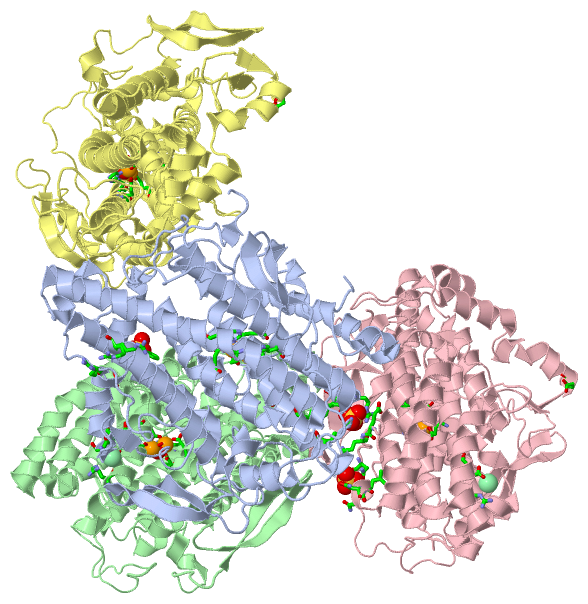

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

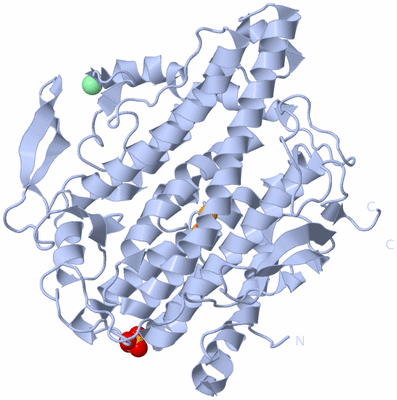

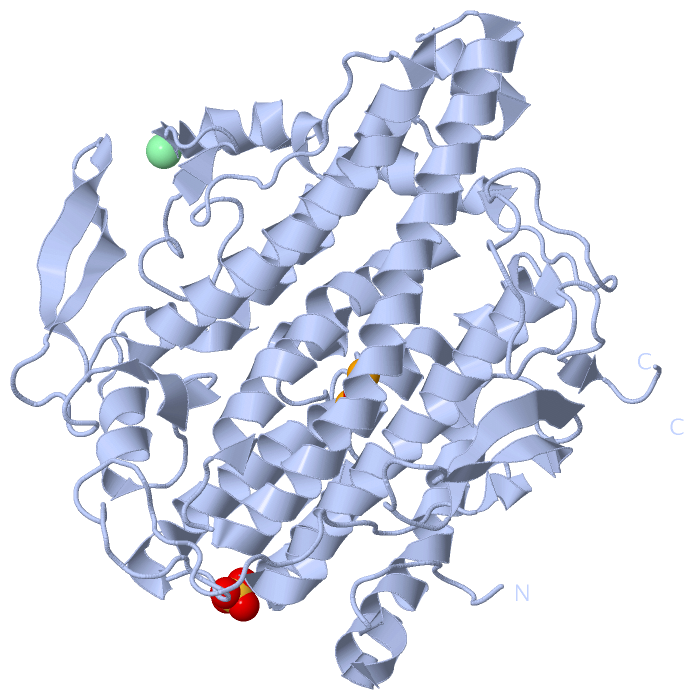

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

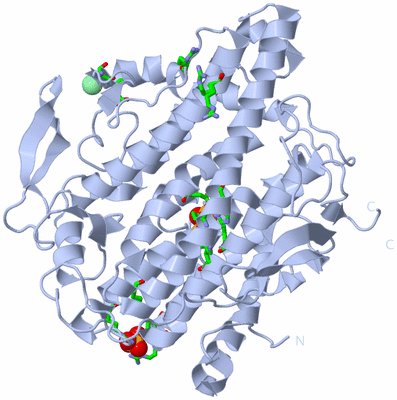

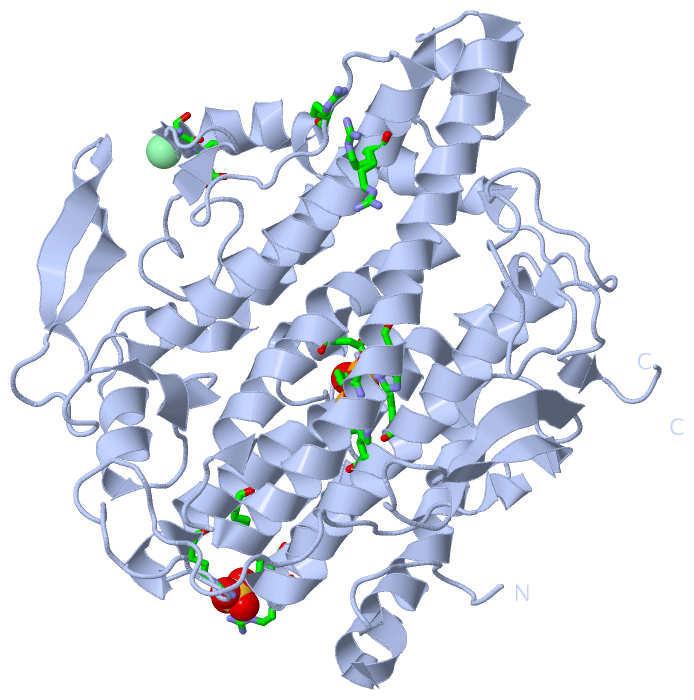

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

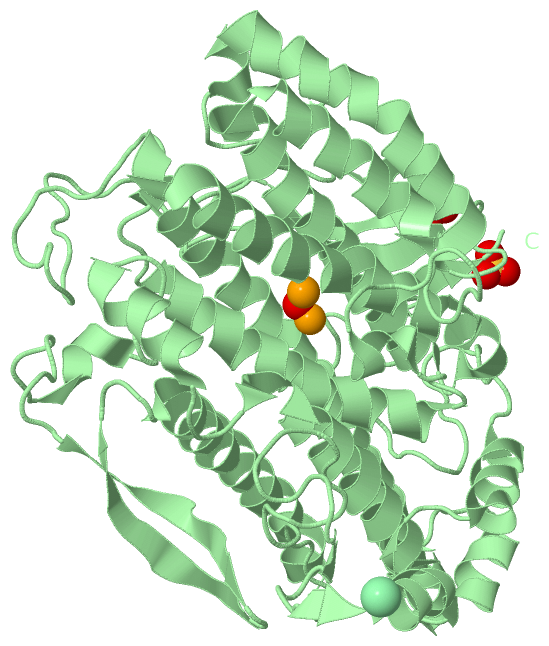

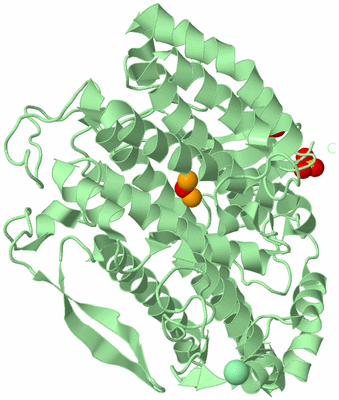

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

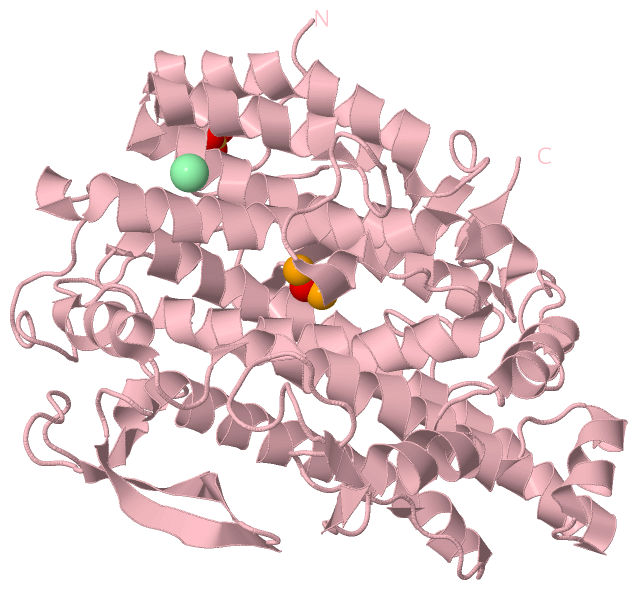

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

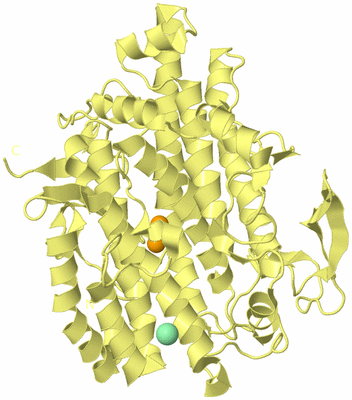

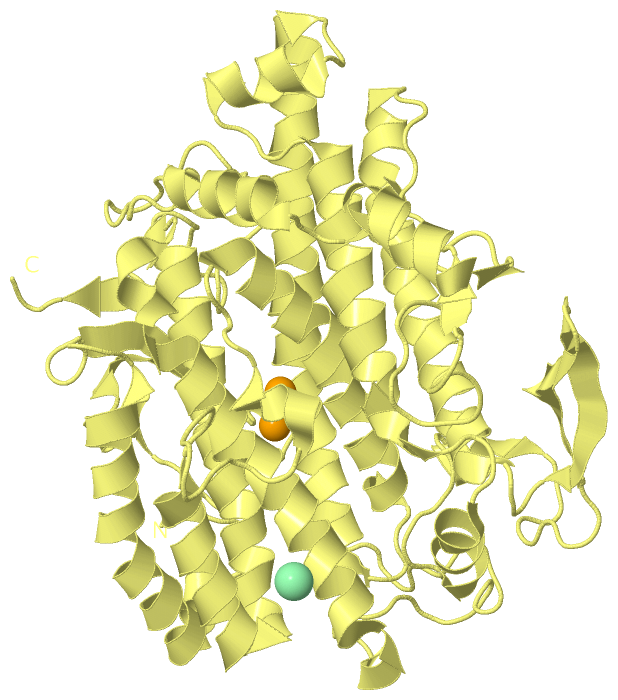

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

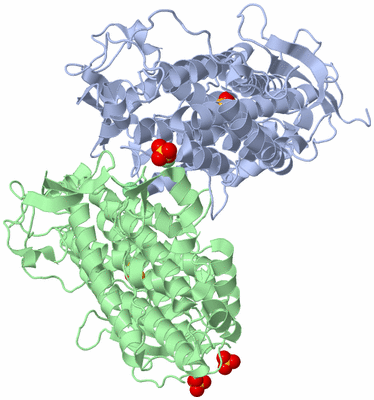

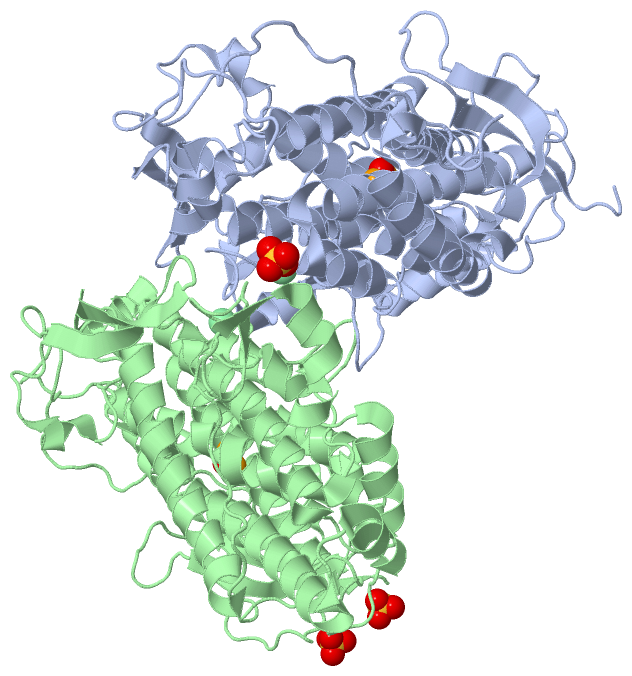

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

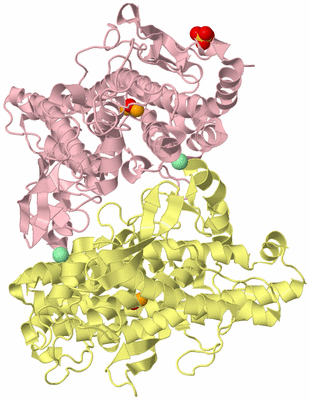

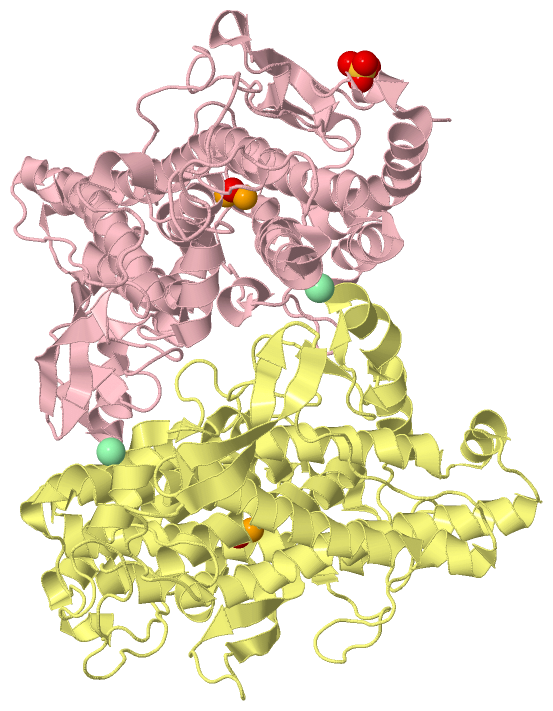

Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BOXB CRYSTALLIZED WITH PEG

Authors :  T. Weinert, L. Rather, G. Fuchs, U. Ermler
Date :  17 Dec 10  (Deposition) - 01 Jun 11  (Release) - 14 Sep 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  A,B  (1x)
Biol. Unit 6:  C (1x),D (1x)
Keywords :  Diiron Center, Epoxidase, Benzoyl Coenzyme A, Oxidoreductase, Benzoyl Coenzyme A Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. J. Rather, T. Weinert, U. Demmer, E. Bill, W. Ismail, G. Fuchs, U. Ermler
Structure And Mechanism Of The Diiron Benzoyl-Coenzyme A Epoxidase Boxb.
J. Biol. Chem. V. 286 29241 2011
PubMed-ID: 21632537  |  Reference-DOI: 10.1074/JBC.M111.236893

(-) Compounds

Molecule 1 - BENZOYL-COA OXYGENASE COMPONENT B
    Chains: A, B, C, D
    EC Number: 1.14.12.21
    Engineered: YES
    Expression System: AZOARCUS EVANSII
    Expression System Taxid: 59406
    Gene: AZOARCUS EVANSII, BOXB
    Mutation: YES
    Organism Scientific: AZOARCUS EVANSII
    Organism Taxid: 59406
    Synonym: BENZOYL-COA 2,3-DIOXYGENASE SUBUNIT B, BENZOYL-COA DIOXYGENASE OXYGENASE COMPONENT

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D
Biological Unit 5 (1x): AB
Biological Unit 6 (1x):   C (1x)D (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 20)

Asymmetric Unit (4, 20)
No.NameCountTypeFull Name
1CL4Ligand/IonCHLORIDE ION
2FE8Ligand/IonFE (III) ION
3OH4Ligand/IonHYDROXIDE ION
4SO44Ligand/IonSULFATE ION
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2FE-1Ligand/IonFE (III) ION
3OH-1Ligand/IonHYDROXIDE ION
4SO41Ligand/IonSULFATE ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2FE-1Ligand/IonFE (III) ION
3OH-1Ligand/IonHYDROXIDE ION
4SO42Ligand/IonSULFATE ION
Biological Unit 3 (1, 1)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2FE-1Ligand/IonFE (III) ION
3OH-1Ligand/IonHYDROXIDE ION
4SO41Ligand/IonSULFATE ION
Biological Unit 4 (0, 0)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2FE-1Ligand/IonFE (III) ION
3OH-1Ligand/IonHYDROXIDE ION
4SO4-1Ligand/IonSULFATE ION
Biological Unit 5 (1, 3)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2FE-1Ligand/IonFE (III) ION
3OH-1Ligand/IonHYDROXIDE ION
4SO43Ligand/IonSULFATE ION
Biological Unit 6 (1, 1)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2FE-1Ligand/IonFE (III) ION
3OH-1Ligand/IonHYDROXIDE ION
4SO41Ligand/IonSULFATE ION

(-) Sites  (20, 20)

Asymmetric Unit (20, 20)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREARG A:377 , GLU B:468 , PHE B:472 , ASN B:473BINDING SITE FOR RESIDUE SO4 B 482
02AC2SOFTWAREARG A:387 , ARG B:471BINDING SITE FOR RESIDUE SO4 B 483
03AC3SOFTWAREARG A:106 , PHE A:165 , ARG A:167 , ASP A:168 , GLU C:6 , ARG C:7BINDING SITE FOR RESIDUE SO4 A 482
04AC4SOFTWAREARG C:7 , ASN C:10 , ASN C:13 , LEU C:14 , ASN C:15 , HOH C:543BINDING SITE FOR RESIDUE SO4 C 482
05AC5SOFTWAREGLU C:416 , ARG D:110BINDING SITE FOR RESIDUE CL D 482
06AC6SOFTWAREARG A:110 , GLU B:416BINDING SITE FOR RESIDUE CL B 484
07AC7SOFTWARESER A:415 , GLU A:416 , ARG B:110BINDING SITE FOR RESIDUE CL A 483
08AC8SOFTWAREARG C:110 , GLU C:172 , GLU D:416BINDING SITE FOR RESIDUE CL C 483
09AC9SOFTWAREGLU A:120 , GLU A:150 , HIS A:153 , GLU A:240 , HOH A:562 , FE A:1002 , OH A:1003BINDING SITE FOR RESIDUE FE A 1001
10BC1SOFTWAREGLU A:150 , ASP A:211 , GLU A:240 , HIS A:243 , HOH A:562 , FE A:1001 , OH A:1003BINDING SITE FOR RESIDUE FE A 1002
11BC2SOFTWAREGLU A:150 , HIS A:153 , GLU A:240 , HIS A:243 , HOH A:562 , FE A:1001 , FE A:1002BINDING SITE FOR RESIDUE OH A 1003
12BC3SOFTWAREGLU B:120 , GLU B:150 , HIS B:153 , HOH B:578 , FE B:1002 , OH B:1003BINDING SITE FOR RESIDUE FE B 1001
13BC4SOFTWAREGLU B:150 , ASP B:211 , GLU B:240 , HIS B:243 , HOH B:578 , FE B:1001 , OH B:1003BINDING SITE FOR RESIDUE FE B 1002
14BC5SOFTWAREGLU B:150 , HIS B:153 , GLU B:240 , HIS B:243 , FE B:1001 , FE B:1002BINDING SITE FOR RESIDUE OH B 1003
15BC6SOFTWAREGLU C:120 , GLU C:150 , HIS C:153 , GLU C:240 , HOH C:544 , FE C:1002 , OH C:1003BINDING SITE FOR RESIDUE FE C 1001
16BC7SOFTWAREGLU C:150 , ASP C:211 , GLU C:240 , HIS C:243 , HOH C:544 , FE C:1001 , OH C:1003BINDING SITE FOR RESIDUE FE C 1002
17BC8SOFTWAREGLU C:150 , HIS C:153 , GLU C:240 , HIS C:243 , HOH C:544 , FE C:1001 , FE C:1002BINDING SITE FOR RESIDUE OH C 1003
18BC9SOFTWAREGLU D:120 , GLU D:150 , HIS D:153 , GLU D:240 , FE D:1002 , OH D:1003BINDING SITE FOR RESIDUE FE D 1001
19CC1SOFTWAREGLU D:150 , ASP D:211 , GLU D:240 , HIS D:243 , HOH D:514 , FE D:1001 , OH D:1003BINDING SITE FOR RESIDUE FE D 1002
20CC2SOFTWAREGLU D:150 , HIS D:153 , GLU D:240 , HIS D:243 , FE D:1001 , FE D:1002BINDING SITE FOR RESIDUE OH D 1003

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3Q1G)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3Q1G)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3Q1G)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3Q1G)

(-) Exons   (0, 0)

(no "Exon" information available for 3Q1G)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:471
 aligned with BOXB_AZOEV | Q9AIX7 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:471
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              473
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464        |-
           BOXB_AZOEV     5 SERIPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFN--   -
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeee........eeeeeee.hhh.............................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............hhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh......hhhhh.........eeeeeeee..eeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh.......................ee.....eehhhhhhhhhhhh..hhhhhhhhhhh..............................ee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q1g A   5 SERIPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFNWS 475
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474


Chain B from PDB  Type:PROTEIN  Length:468
 aligned with BOXB_AZOEV | Q9AIX7 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:468
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465
           BOXB_AZOEV     6 ERIPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFN 473
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeee........eeeeeehhhhh.............................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhh....hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh......hhhhh.........eeeeeeee..eeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh.......................ee.....eehhhhhhhhhhhh..hhhhhhhhhhh..............................ee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3q1g B   6 ERIPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFN 473
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465


Chain C from PDB  Type:PROTEIN  Length:470
 aligned with BOXB_AZOEV | Q9AIX7 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:470
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473
           BOXB_AZOEV     4 YSERIPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFN 473
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeee...hhhh.eeeeeee.hhh.............................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhh....hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh......hhhhh.........eeeeeeee..eeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh.......................ee.....eehhhhhhhhhhhh..hhhhhhhhhhh..............................ee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q1g C   4 YSERIPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFN 473
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473


Chain D from PDB  Type:PROTEIN  Length:467
 aligned with BOXB_AZOEV | Q9AIX7 from UniProtKB/Swiss-Prot  Length:473

    Alignment length:467
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                           473
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467     |
           BOXB_AZOEV     8 IPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFN-   -
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------------------------------------------------------------------------PaaA_PaaC-3q1gD01 D:95-265                                                                                                                                                 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) ---------------------------------------------------------------------------------------PaaA_PaaC-3q1gD02 D:95-265                                                                                                                                                 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (2)
           Pfam domains (3) ---------------------------------------------------------------------------------------PaaA_PaaC-3q1gD03 D:95-265                                                                                                                                                 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (3)
           Pfam domains (4) ---------------------------------------------------------------------------------------PaaA_PaaC-3q1gD04 D:95-265                                                                                                                                                 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (4)
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeeee........eeeeeee.hhh.............................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhh....hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh......hhhhh.........eeeeeeee..eeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhh.......................ee.....eehhhhhhhhhhhh..hhhhhhhhhhh..............................ee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q1g D   8 IPNNVNLNENKTLQRALEQWQPSFLNWWDDMGPENSSNYDVYLRTAVSVDPKGWADFGYVKMHDYRWGIFLAPQEGEKKITFGEHKGQDVWQEVPGEYRSTLRRIIVTQGDTEPASVEQQRHLGLTAPSLYDLRNLFQVNVEEGRHLWAMVYLLHAHFGRDGREEGEALLERRSGDEDNPRILTAFNEKTPDWLSFFMFTFITDRDGKFQLASLAESAFDPLARTCKFMLTEEAHHLFVGESGIARVIQRTCEVMKELGTDDPAKLRAAGVIDLPTLQKYLNFHYSVTSDLYGAEISSNAATYYTNGLKGRFEEEKIGDDHKLQNSEYEVMDVAGDKILTRHVPALSALNERLRDDWITDVQAGVDRWNRIPAKFGFDFRFTLPHKGFHRKIGMFADVHVSPDGRLISEAEWTHQHKNWLPTESDRLYVHSLMGRCLEPGKFANWIAAPARGINNQPVNFEYVRFNW 474
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3Q1G)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3Q1G)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: Ferritin (185)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (BOXB_AZOEV | Q9AIX7)
molecular function
    GO:0051213    dioxygenase activity    Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0019439    aromatic compound catabolic process    The chemical reactions and pathways resulting in the breakdown of aromatic compounds, any substance containing an aromatic carbon ring.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    OH  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3q1g)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3q1g
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  BOXB_AZOEV | Q9AIX7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.14.12.21
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  BOXB_AZOEV | Q9AIX7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        BOXB_AZOEV | Q9AIX7: 3per 3pf7 3pm5

(-) Related Entries Specified in the PDB File

3per 3pf7 3pm5
