3Q13 - JenaLib

Title :   THE STRUCTURE OF THE CA2+-BINDING, GLYCOSYLATED F-SPONDIN DOMAIN OF F-SPONDIN, A C2-DOMAIN VARIANT FROM EXTRACELLULAR MATRIX

Authors :   K. Tan, J. Lawler

Date :   16 Dec 10 (Deposition) - 29 Jun 11 (Release) - 29 Jun 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.95

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)
Biol. Unit 2: A  (2x)

Keywords :   F-Spondin, Fs-Domain, Membrane Targeting, Axon Guidance, C2-Domain Derivative, Glycosylated, Extracellular Matrix, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Tan, J. Lawler
The Structure Of The Ca2+-Binding, Glycosylated F-Spondin Domain Of F-Spondin - A C2-Domain Variant In An Extracellular Matrix Protein.
Bmc Struct. Biol. V. 11 22 2011
PubMed-ID: 21569239 | Reference-DOI: 10.1186/1472-6807-11-22

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 8)

Asymmetric Unit (5, 8)

No.	Name	Count	Type	Full Name
1	ACT	1	Ligand/Ion	ACETATE ION
2	BMA	1	Ligand/Ion	BETA-D-MANNOSE
3	CA	1	Ligand/Ion	CALCIUM ION
4	NAG	2	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	SO4	3	Ligand/Ion	SULFATE ION

Biological Unit 1 (4, 7)

No.	Name	Count	Type	Full Name
1	ACT	1	Ligand/Ion	ACETATE ION
2	BMA	1	Ligand/Ion	BETA-D-MANNOSE
3	CA	-1	Ligand/Ion	CALCIUM ION
4	NAG	2	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	SO4	3	Ligand/Ion	SULFATE ION

Biological Unit 2 (4, 14)

No.	Name	Count	Type	Full Name
1	ACT	2	Ligand/Ion	ACETATE ION
2	BMA	2	Ligand/Ion	BETA-D-MANNOSE
3	CA	-1	Ligand/Ion	CALCIUM ION
4	NAG	4	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	SO4	6	Ligand/Ion	SULFATE ION

Sites (8, 8)

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	TYR A:212 , ASN A:214 , GLN A:399 , NAG A:502	BINDING SITE FOR RESIDUE NAG A 501
2	AC2	SOFTWARE	TYR A:212 , ARG A:402 , NAG A:501 , BMA A:503 , HOH A:957 , HOH A:994 , HOH A:995 , HOH A:1021	BINDING SITE FOR RESIDUE NAG A 502
3	AC3	SOFTWARE	ARG A:402 , NAG A:502 , HOH A:957 , HOH A:994	BINDING SITE FOR RESIDUE BMA A 503
4	AC4	SOFTWARE	ASP A:325 , ASP A:354 , ASP A:358 , HOH A:942 , HOH A:943 , HOH A:946	BINDING SITE FOR RESIDUE CA A 601
5	AC5	SOFTWARE	ILE A:196 , LEU A:197 , ASP A:198 , CYS A:199 , LYS A:241 , ARG A:309 , HIS A:312 , HOH A:873	BINDING SITE FOR RESIDUE SO4 A 621
6	AC6	SOFTWARE	TYR A:224 , PRO A:225 , ARG A:226 , ARG A:227 , GLU A:364 , HOH A:826	BINDING SITE FOR RESIDUE SO4 A 622
7	AC7	SOFTWARE	ARG A:226 , ARG A:227	BINDING SITE FOR RESIDUE SO4 A 623
8	AC8	SOFTWARE	ARG A:273 , THR A:281 , VAL A:282 , HOH A:1005	BINDING SITE FOR RESIDUE ACT A 641

SS Bonds (3, 3)

Cis Peptide Bonds (3, 3)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:236
 aligned with SPON1_HUMAN | Q9HCB6 from UniProtKB/Swiss-Prot  Length:807

    Alignment length:236
                                   201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421
          SPON1_HUMAN   192 TDKPILDCCACGTAKYRLTFYGNWSEKTHPKDYPRRANHWSAIIGGSHSKNYVLWEYGGYASEGVKQVAELGSPVKMEEEIRQQSDEVLTVIKAKAQWPAWQPLNVRAAPSAEFSVDRTRHLMSFLTMMGPSPDWNVGLSAEDLCTKECGWVQKVVQDLIPWDAGTDSGVTYESPNKPTIPQEKIRPLTSLDHPQSPFYDPEGGSITQVARVVIERIARKGEQCNIVPDNVDDIVA 427
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------Spond_N-3q13A01 A:204-399                                                                                                                                                                           ---------------------------- Pfam domains
         Sec.struct. author ............eeeeeeeeee................ee..eeeeee.............hhhhhhhhhhh.hhhhhhhhhhhhh.eeeeeee................eeeeeee....eeeeeeeee....eeeeeeeee..........eeeeee..ee......................ee......................eeeeeeeeeee.............ee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---SPONDIN  PDB: A:195-388 UniProt: 195-388                                                                                                                                                          --------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3q13 A 192 TDKPILDCCACGTAKYRLTFYGNWSEKTHPKDYPRRANHWSAIIGGSHSKNYVLWEYGGYASEGVKQVAELGSPVKMEEEIRQQSDEVLTVIKAKAQWPAWQPLNVRAAPSAEFSVDRTRHLMSFLTMMGPSPDWNVGLSAEDLCTKECGWVQKVVQDLIPWDAGTDSGVTYESPNKPTIPQEKIRPLTSLDHPQSPFYDPEGGSITQVARVVIERIARKGEQCNIVPDNVDDIVA 427
                                   201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 1)

Gene Ontology (9, 9)

Asymmetric Unit(hide GO term definitions)

Chain A (SPON1_HUMAN | Q9HCB6)

molecular function
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0007155	cell adhesion	The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
	GO:0036066	protein O-linked fucosylation	The process of transferring a fucosyl group to a serine or threonine residues in a protein acceptor molecule, to form an O-linked protein-sugar linkage.
cellular component
	GO:0005788	endoplasmic reticulum lumen	The volume enclosed by the membranes of the endoplasmic reticulum.
	GO:0031012	extracellular matrix	A structure lying external to one or more cells, which provides structural support for cells or tissues.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
	GO:0005578	proteinaceous extracellular matrix	A layer consisting mainly of proteins (especially collagen) and glycosaminoglycans (mostly as proteoglycans) that forms a sheet underlying or overlying cells such as endothelial and epithelial cells. The proteins are secreted by cells in the vicinity. An example of this component is found in Mus musculus.

Visualization

Interactive Views

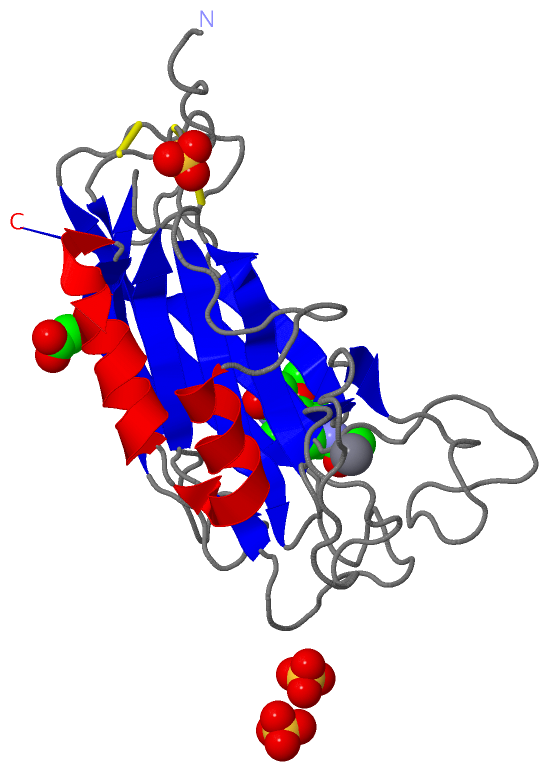

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		BMA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

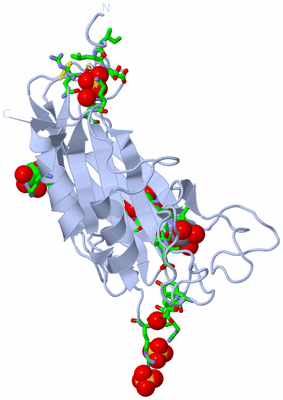

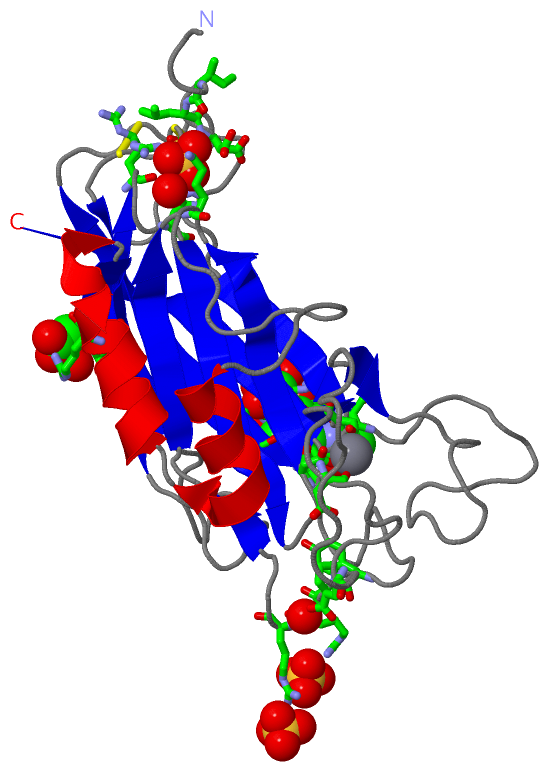

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Gly A:321 - Pro A:322	[ RasMol ]
		Ile A:371 - Pro A:372	[ RasMol ]
		Trp A:289 - Pro A:290	[ RasMol ]

Biological Units
	Complete Structure

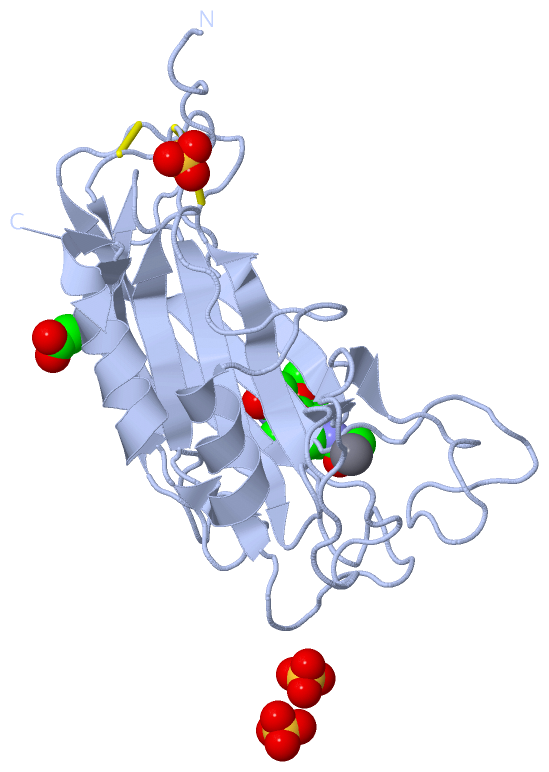

		Biological Unit 1	[ Jena3D ]

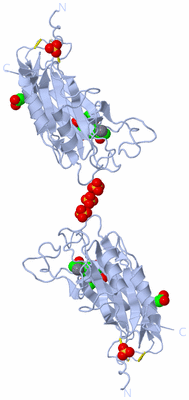

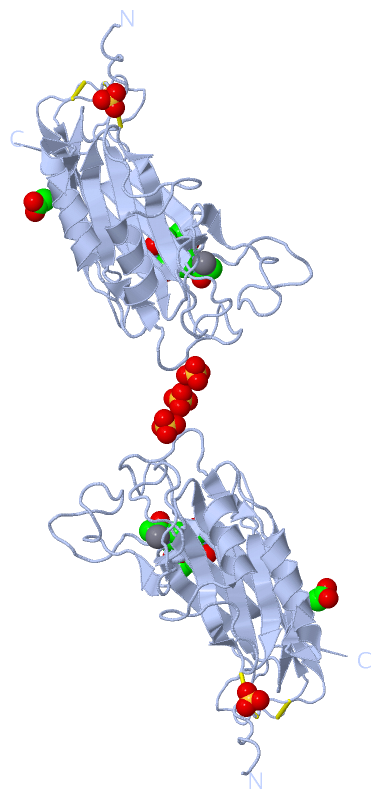

		Biological Unit 2	[ Jena3D ]
