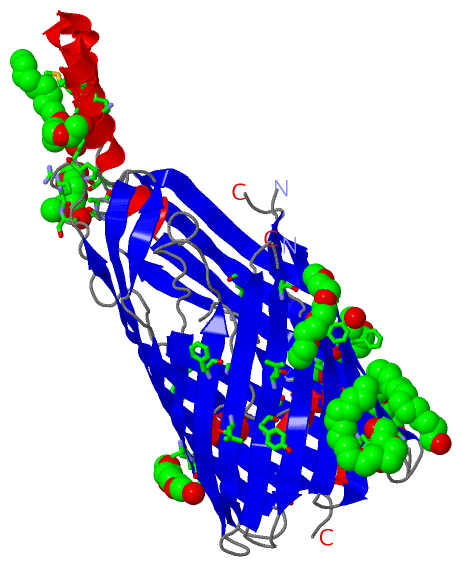

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ASP348ARG MUTANT OF ECFADL

Authors :  B. W. Lepore, B. Van Den Berg, M. Indic, E. Hearn, D. Patel, H. Pham
Date :  02 Nov 10  (Deposition) - 25 May 11  (Release) - 06 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Barrel, Lipid Transport, Outer Membrane (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. W. Lepore, M. Indic, H. Pham, E. M. Hearn, D. R. Patel, B. Van Den Ber
From The Cover: Ligand-Gated Diffusion Across The Bacterial Outer Membrane.
Proc. Natl. Acad. Sci. Usa V. 108 10121 2011
PubMed-ID: 21593406  |  Reference-DOI: 10.1073/PNAS.1018532108

(-) Compounds

Molecule 1 - LONG-CHAIN FATTY ACID TRANSPORT PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PB22/PBAD
    Expression System Strain: C43
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: B2344, FADL, JW2341, TTR
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI K-12
    Organism Taxid: 83333
    Strain: K12
    Synonym: OUTER MEMBRANE FADL PROTEIN, OUTER MEMBRANE FLP PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 10)

Asymmetric/Biological Unit (1, 10)
No.NameCountTypeFull Name
1C8E10Ligand/Ion(HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE

(-) Sites  (10, 10)

Asymmetric Unit (10, 10)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREPRO A:63 , GLN A:164 , GLY A:168 , GLN A:169 , MET A:171 , ALA A:185 , ALA A:186BINDING SITE FOR RESIDUE C8E A 500
02AC2SOFTWARETRP A:94 , GLY A:132 , PHE A:347 , C8E A:433 , HOH A:472BINDING SITE FOR RESIDUE C8E A 428
03AC3SOFTWARETRP A:275 , LEU A:293 , SER A:297 , TYR A:419BINDING SITE FOR RESIDUE C8E A 429
04AC4SOFTWARETRP A:140BINDING SITE FOR RESIDUE C8E A 430
05AC5SOFTWAREGLY A:48 , TRP A:78 , PRO A:80 , MET A:82 , ARG A:152 , TYR A:215BINDING SITE FOR RESIDUE C8E A 431
06AC6SOFTWARESER A:97 , ILE A:98 , TYR A:291 , LEU A:329 , C8E A:433 , C8E A:434BINDING SITE FOR RESIDUE C8E A 432
07AC7SOFTWARELEU A:329 , C8E A:428 , C8E A:432BINDING SITE FOR RESIDUE C8E A 433
08AC8SOFTWARELEU A:128 , ASN A:129 , LEU A:130 , PHE A:146 , ALA A:148 , PHE A:207 , C8E A:432BINDING SITE FOR RESIDUE C8E A 434
09AC9SOFTWAREALA A:371 , GLY A:372 , THR A:373 , VAL A:385 , HOH A:490BINDING SITE FOR RESIDUE C8E A 435
10BC1SOFTWAREARG A:66 , SER A:67 , THR A:111 , ALA A:113 , GLN A:164 , SER A:193 , HOH A:447 , HOH A:464BINDING SITE FOR RESIDUE C8E A 436

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3PGR)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Ala A:1 -Gly A:2
2Gly A:2 -Phe A:3
3Tyr A:266 -Leu A:267
4His A:423 -His A:424

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3PGR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3PGR)

(-) Exons   (0, 0)

(no "Exon" information available for 3PGR)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:376
 aligned with FADL_ECOLI | P10384 from UniProtKB/Swiss-Prot  Length:446

    Alignment length:424
                                                                                                                                                                                                                                                                                                                                                                                                                                                              446
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445|
           FADL_ECOLI    26 AGFQLNEFSSSGLGRAYSGEGAIADDAGNVSRNPALITMFDRPTFSAGAVYIDPDVNISGTSPSGRSLKADNIAPTAWVPNMHFVAPINDQFGWGASITSNYGLATEFNDTYAGGSVGGTTDLETMNLNLSGAYRLNNAWSFGLGFNAVYARAKIERFAGDLGQLVAGQIMQSPAGQTQQGQALAATANGIDSNTKIAHLNGNQWGFGWNAGILYELDKNNRYALTYRSEVKIDFKGNYSSDLNRAFNNYGLPIPTATGGATQSGYLTLNLPEMWEVSGYNRVDPQWAIHYSLAYTSWSQFQQLKATSTSGDTLFQKHEGFKDAYRIALGTTYYYDDNWTFRTGIAFDDSPVPAQNRSISIPDQDRFWLSAGTTYAFNKDASVDVGVSYMHGQSVKINEGPYQFESEGKAWLFGTNFNYAF---   -
               SCOP domains d3pgra_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                                                             SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains Toluene_X-3pgrA01 A:1-421                                                                                                                                                                                                                                                                                                                                                                                                            --- Pfam domains
         Sec.struct. author ........hhhhhhh..........hhhhhhhhhhhhhhh...eeeeeeeeeeeeeeee.................eeeeeeeeeee....eeeeeeee....eeee......hhhhh.eeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeeeeeeeeeeeeeee..eeeeeeee..eeee....---------------------------..eeee..eeeeeeeee....eeeeeeeeeee..---------------------..eeeeeeeeeee.....eeeeeeeeeee................eeeeeeeeeee....eeeeeeeeeee...eeeee..eeeeeeeeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pgr A   1 AGFQLNEFSSSGLGRAYSGEGAIADDAGNVSRNPALITMFDRPTFSAGAVYIDPDVNISGTSPSGRSLKADNIAPTAWVPNMHFVAPINDQFGWGASITSNYGLATEFNDTYAGGSVGGTTDLETMNLNLSGAYRLNNAWSFGLGFNAVYARAKIERFAGDLGQLVAGQIMQSPAGQTQQGQALAATANGIDSNTKTAHLNGNQWGFGWNAGILYELDKNNRYALTYRSEVKIDFKGN---------------------------YLTLNLPEMWEVSGYNRVDPQWAIHYSLAYTSWS---------------------FKDAYRIALGTTYYYDDNWTFRTGIAFRDSPVPAQNRSISIPDQDRFWLSAGTTYAFNKDASVDVGVSYMHGQSVKINEGPYQFESEGKAWLFGTNFNYAFHHH 424
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       | -         -         -     | 270       280       290        |-         -         -|      330       340       350       360       370       380       390       400       410       420
                                                                                                                                                                                                                                                                       238                         266                              299                   321
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3PGR)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: MBB (97)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (FADL_ECOLI | P10384)
molecular function
    GO:0022834    ligand-gated channel activity    Enables the transmembrane transfer of a solute by a channel that opens when a specific ligand has been bound by the channel complex or one of its constituent parts.
    GO:0015483    long-chain fatty acid transporting porin activity    Enables the transfer of long-chain fatty acids from one side of the membrane to the other. A long-chain fatty acid is a fatty acid with a chain length between C13 and C22. This transporter is a porin and so enables the energy independent passage of substances, sized less than 1000 Da, across a membrane. The transmembrane portions of porins consist exclusively of beta-strands which form a beta-barrel. They are found in the outer membranes of Gram-negative bacteria, mitochondria, plastids and possibly acid-fast Gram-positive bacteria.
biological process
    GO:0006869    lipid transport    The directed movement of lipids into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore. Lipids are compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent.
    GO:0015909    long-chain fatty acid transport    The directed movement of long-chain fatty acids into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore. A long-chain fatty acid is a fatty acid with a chain length between C13 and C22.
    GO:0015718    monocarboxylic acid transport    The directed movement of monocarboxylic acids into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    C8E  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:1 - Gly A:2   [ RasMol ]
    Gly A:2 - Phe A:3   [ RasMol ]
    His A:423 - His A:424   [ RasMol ]
    Tyr A:266 - Leu A:267   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3pgr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FADL_ECOLI | P10384
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  FADL_ECOLI | P10384
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FADL_ECOLI | P10384: 1t16 1t1l 2r4l 2r4n 2r4o 2r4p 2r88 2r89 2r8a 3dwn 3pf1 3pgs 3pgu

(-) Related Entries Specified in the PDB File

1t16 WILD-TYPE ECFADL ALTERNATE N-TERMINAL CONFORMATION
1t1l WILD-TYPE ECFADL ALTERNATE N-TERMINAL CONFORMATION
3pf1 ASP348ALA ECFADL MUTANT
