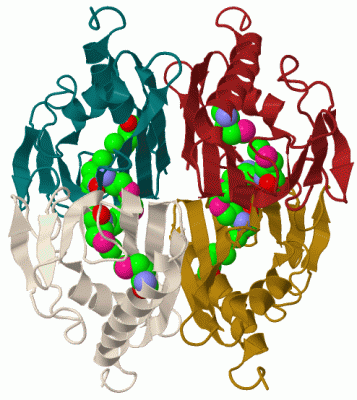

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

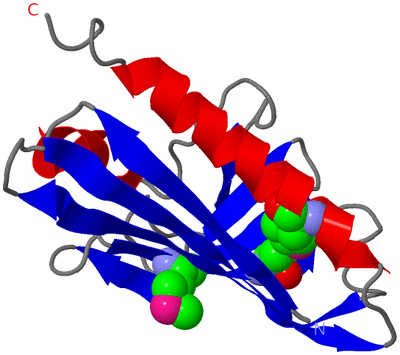

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

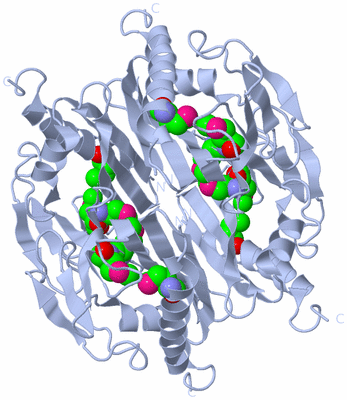

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  THREE-DIMENSIONAL STRUCTURE OF PROTEIN Q2Y8N9_NITMU FROM NITROSOSPIRA MULTIFORMIS, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET NMR118

Authors :  A. Kuzin, Y. Chen, J. Seetharaman, S. Sahdev, R. Xiao, C. Ciccosanti, D. J. K. Everett, R. Nair, T. B. Acton, B. Rost, G. T. Montelione, J. F. Hunt Northeast Structural Genomics Consortium (Nesg)
Date :  07 Oct 10  (Deposition) - 27 Oct 10  (Release) - 22 Feb 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.06
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (4x)
Keywords :  Structural Genomics, Psi-Biology, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Kuzin, Y. Chen, J. Seetharaman, S. Sahdev, R. Xiao, C. Ciccosanti, D. Lee, J. K. Everett, R. Nair, T. B. Acton, B. Rost, G. T. Montelione, J. F. Hunt, L. Tong
Northeast Structural Genomics Consortium Target Nmr118
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN
    Chains: A
    Engineered: YES
    Expression System Strain: BL21(DE3) + MAGIC
    Expression System Taxid: 469008
    Expression System Vector: PET 21-23C
    Gene: NMUL_A1581
    Organism Scientific: NITROSOSPIRA MULTIFORMIS
    Organism Taxid: 323848
    Strain: ATCC 25196 / NCIMB 11849

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1MSE3Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 12)
No.NameCountTypeFull Name
1MSE12Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 3P51)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3P51)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ser A:81 -Pro A:82

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3P51)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3P51)

(-) Exons   (0, 0)

(no "Exon" information available for 3P51)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:145
 aligned with Q2Y8N9_NITMU | Q2Y8N9 from UniProtKB/TrEMBL  Length:152

    Alignment length:145
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q2Y8N9_NITMU     2 PKVYNSIVVDAPVERVWSRIRNFHDFSWAPSLIKSCKKVGGGGGYSVGARRLLNGEFLDTLIAYSEIERRIMYSMDEGPSPVSSGEIYNYVGNLHLLPVTIDDTTFVEWSGSWESASTEAVEYMNTVYRSLLADLAAEFTSESRR 146
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains Polyketide_cyc2-3p51A01 A:2-141                                                                                                             ----- Pfam domains
         Sec.struct. author .eeeeeeee..hhhhhhhhhh..............eeee..........eeee...eeeeeeeee....eeeeeeee.........eeeeeeeeeeeee....eeeeeeeeeeee...hhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3p51 A   2 PKVYNSIVVDAPVERVWSRIRNFHDFSWAPSLIKSCKKVGGGGGYSVGARRLLNGEFLDTLIAYSEIERRImYSmDEGPSPVSSGEIYNYVGNLHLLPVTIDDTTFVEWSGSWESASTEAVEYmNTVYRSLLADLAAEFTSESRR 146
                                    11        21        31        41        51        61        71 |  |   81        91       101       111       121   |   131       141
                                                                                                  73-MSE                                             125-MSE
                                                                                                     76-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3P51)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3P51)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: Bet_V_1_like (93)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3P51)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3p51)

  Cis Peptide Bonds
    Ser A:81 - Pro A:82   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

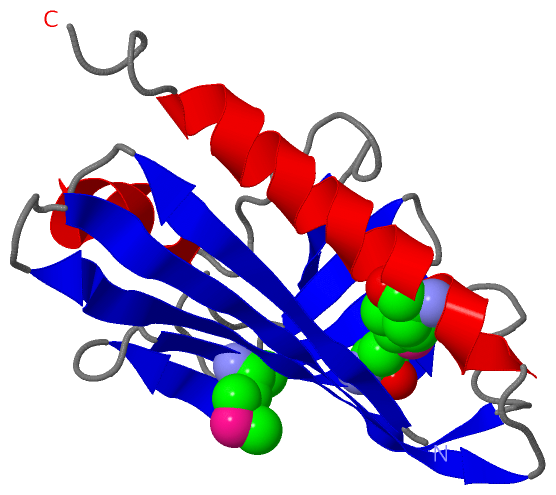

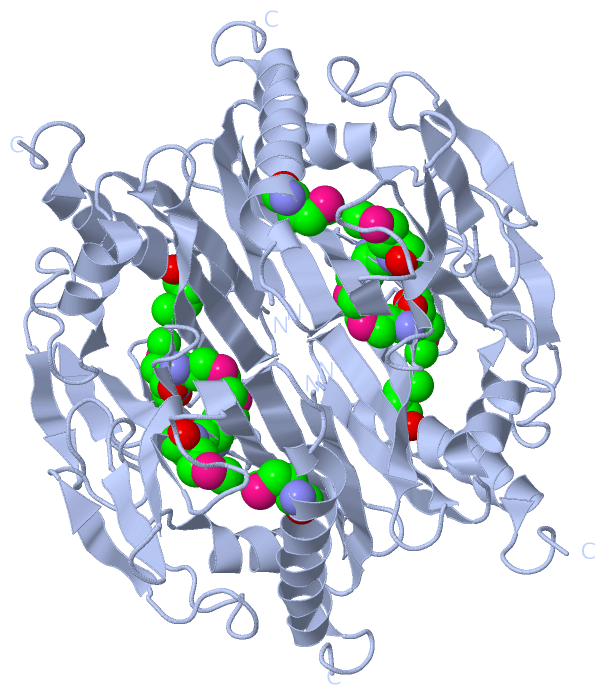

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
