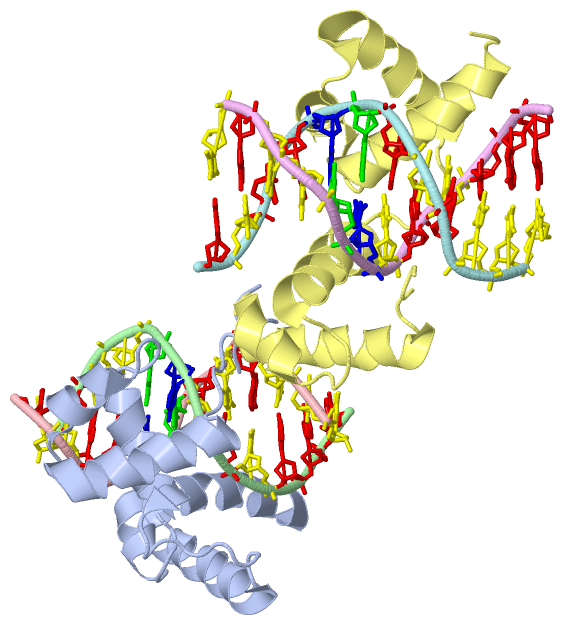

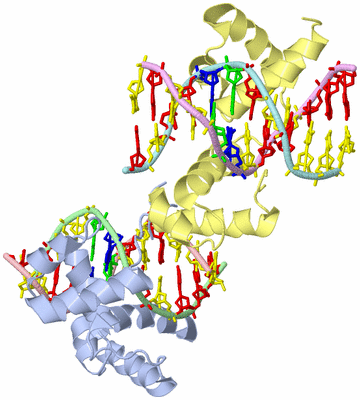

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

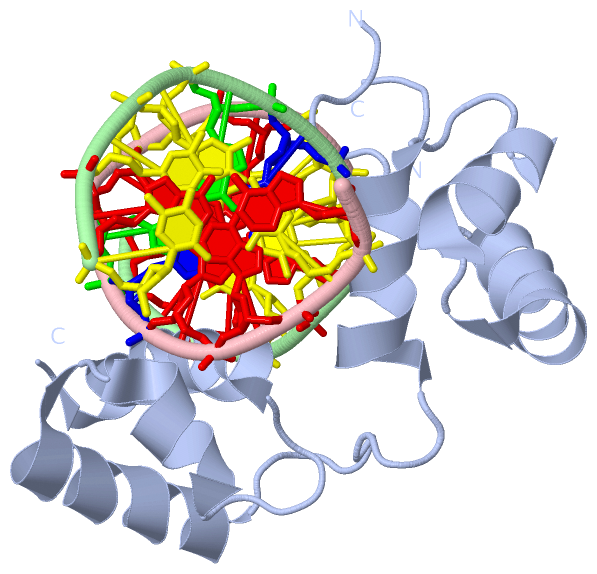

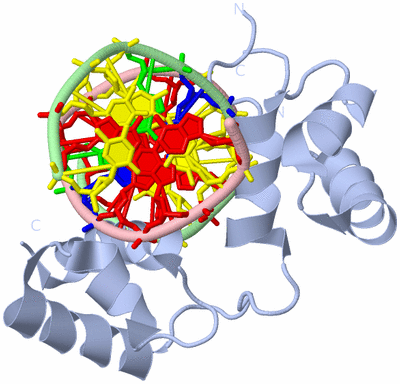

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

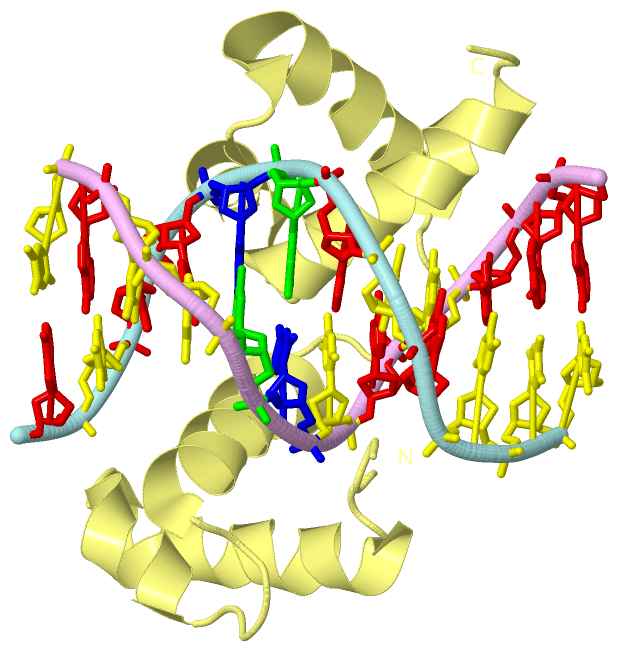

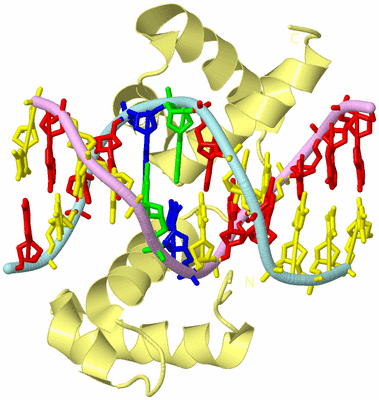

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF PROTOZOAN PARASITE TRICHOMONAS VAGINALIS MYB2 IN COMPLEX WITH MRE-1-12 DNA

Authors :  I. Jiang, C. K. Tsai, S. C. Chen, S. H. Wang, I. Amiraslanov, C. F. Chang, W J. H. Tai, Y. C. Liaw, T. H. Huang
Date :  09 Sep 10  (Deposition) - 03 Aug 11  (Release) - 28 Aug 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B,C  (1x)
Biol. Unit 2:  D,E,F  (1x)
Keywords :  Transcription-Dna Complex, Myb2, R2R3 Domain, Dna Binding Protein, Transcription Factor, Nucleus (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. Jiang, C. K. Tsai, S. C. Chen, S. H. Wang, I. Amiraslanov, C. F. Chang, W. J. Wu, J. H. Tai, Y. C. Liaw, T. H. Huang
Molecular Basis Of The Recognition Of The Ap65-1 Gene Transcription Promoter Elements By A Myb Protein From The Protozoan Parasite Trichomonas Vaginalis.
Nucleic Acids Res. V. 39 8992 2011
PubMed-ID: 21771861  |  Reference-DOI: 10.1093/NAR/GKR558

(-) Compounds

Molecule 1 - MYB21
    Chains: A, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-22B(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: MYB2 R2R3 DOMAIN
    Gene: TVAG_211210
    Organism Scientific: TRICHOMONAS VAGINALIS
    Organism Taxid: 5722
    Synonym: MYB-LIKE DNA-BINDING DOMAIN CONTAINING PROTEIN

Molecule 2 - 5'-D(*AP*AP*AP*TP*AP*TP*CP*GP*TP*TP*AP*T)-3'
    Chains: B, E
    Engineered: YES
    Synonym: MRE-2F
    Synthetic: YES

Molecule 3 - 5'-D(*AP*TP*AP*AP*CP*GP*AP*TP*AP*TP*TP*T)-3'
    Chains: C, F
    Engineered: YES
    Synonym: MRE-2F
    Synthetic: YES

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): ABC
Biological Unit 2 (1x):    DEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3OSG)

(-) Sites  (0, 0)

(no "Site" information available for 3OSG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3OSG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3OSG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3OSG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3OSG)

(-) Exons   (0, 0)

(no "Exon" information available for 3OSG)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:110
 aligned with Q58HP3_TRIVA | Q58HP3 from UniProtKB/TrEMBL  Length:179

    Alignment length:111
                                    49        59        69        79        89        99       109       119       129       139       149
         Q58HP3_TRIVA    40 VQVNLKAAKKQKFTPEEDEMLKRAVAQHGSDWKMIAATFPNRNARQCRDRWKNYLAPSISHTPWTAEEDALLVQKIQEYGRQWAIIAKFFPGRTDIHIKNRWVTISNKLGI 150
               SCOP domains d3os ga1 A:40-96 automated matches                       d3osga2 A:97-150 automated matches                     SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....-........hhhhhhhhhhhhhhhh.hhhhhhhh....hhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh.hhhhhhh.....hhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 3osg A  40 VQVN-KAAKKQKFTPEEDEMLKRAVAQHGSDWKMIAATFPNRNARQCRDRWKNYLAPSISHTPWTAEEDALLVQKIQEYGRQWAIIAKFFPGRTDIHIKNRWVTISNKLGI 150
                               | |  49        59        69        79        89        99       109       119       129       139       149
                              43 |
                                45


Chain B from PDB  Type:DNA  Length:12

                 3osg B   1 AAATATCGTTAT  12
                                    10


Chain C from PDB  Type:DNA  Length:12

                 3osg C   1 ATAACGATATTT  12
                                    10


Chain D from PDB  Type:PROTEIN  Length:103
 aligned with Q58HP3_TRIVA | Q58HP3 from UniProtKB/TrEMBL  Length:179

    Alignment length:103
                                    57        67        77        87        97       107       117       127       137       147
         Q58HP3_TRIVA    48 KKQKFTPEEDEMLKRAVAQHGSDWKMIAATFPNRNARQCRDRWKNYLAPSISHTPWTAEEDALLVQKIQEYGRQWAIIAKFFPGRTDIHIKNRWVTISNKLGI 150
               SCOP domains d3osgd1 D:48-96 automated matches                d3osgd2 D:97-150 automated matches                     SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhh.hhhhhhh.....hhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh.hhhhhhhhh...hhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 3osg D  48 KKQKFTPEEDEMLKRAVAQHGSDWKMIAATFPNRNARQCRDRWKNYLAPSISHTPWTAEEDALLVQKIQEYGRQWAIIAKFFPGRTDIHIKNRWVTISNKLGI 150
                                    57        67        77        87        97       107       117       127       137       147


Chain E from PDB  Type:DNA  Length:12

                 3osg E   1 AAATATCGTTAT  12
                                    10


Chain F from PDB  Type:DNA  Length:12

                 3osg F   1 ATAACGATATTT  12
                                    10
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3OSG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3OSG)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,D   (Q58HP3_TRIVA | Q58HP3)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
