3ODJ - JenaLib

Title :   CRYSTAL STRUCTURE OF H. INFLUENZAE RHOMBOID GLPG WITH DISORDERED LOOP 4, HELIX 5 AND LOOP 5

Authors :   C. L. Brooks, C. Lazareno-Saez, J. S. Lamoureux, M. W. Mak, M. J. Lemieux

Date :   11 Aug 10 (Deposition) - 23 Feb 11 (Release) - 30 Mar 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.84

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)
Biol. Unit 2: A  (2x)

Keywords :   Rhomboid Peptidase, Membrane Protein, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. L. Brooks, C. Lazareno-Saez, J. S. Lamoureux, M. W. Mak, M. J. Lemieu
Insights Into Substrate Gating In H. Influenzae Rhomboid.
J. Mol. Biol. V. 407 687 2011
PubMed-ID: 21295583 | Reference-DOI: 10.1016/J.JMB.2011.01.046

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:157
 aligned with GLPG_HAEIN | P44783 from UniProtKB/Swiss-Prot  Length:192

    Alignment length:188
                                                                                                                                                                                                                  192
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187    |
           GLPG_HAEIN     8 QGKITLILTALCVLIYLAQQLGFEDDIMYLMHYPAYEEQDSEVWRYISHTLVHLSNLHILFNLSWFFIFGGMIERTFGSVKLLMLYVVASAITGYVQNYVSGPAFFGLSGVVYAVLGYVFIRDKLNHHLFDLPEGFFTMLLVGIALGFISPLFGVEMGNAAHISGLIVGLIWGFIDSKLRKNSLE---   -
               SCOP domains d3odja_ A: automated matches                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------Rhomboid-3odjA01 A:44-188                                                                                                                        ------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh....hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh-------------------------------hhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3odj A   8 QGKITLILTALCVLIYIAQQLGFEDDIMYLMHYPAYEEQDSEVWRYISHTLVHLSNLHILFNLSWFFIFGGMIERTFGSVKLLMLYVVASAITGYVQNYVSGPAFFGLSGVVYAVLGYVFIRDKLNH-------------------------------NAAHISGLIVGLIWGFIDSKLRKNSLELVP 195
                                    17        27        37        47        57        67        77        87        97       107       117       127      |  -         -         -       167       177       187
                                                                                                                                                        134                             166

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (1, 1)

Gene Ontology (10, 10)

Asymmetric Unit(hide GO term definitions)

Chain A (GLPG_HAEIN | P44783)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
	GO:0008236	serine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0016485	protein processing	Any protein maturation process achieved by the cleavage of a peptide bond or bonds within a protein. Protein maturation is the process leading to the attainment of the full functional capacity of a protein.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

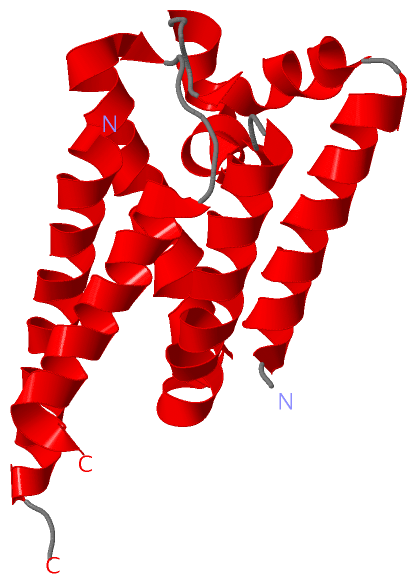

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3odj)

	Sites
(no "Sites" information available for 3odj)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3odj)

Biological Units
	Complete Structure

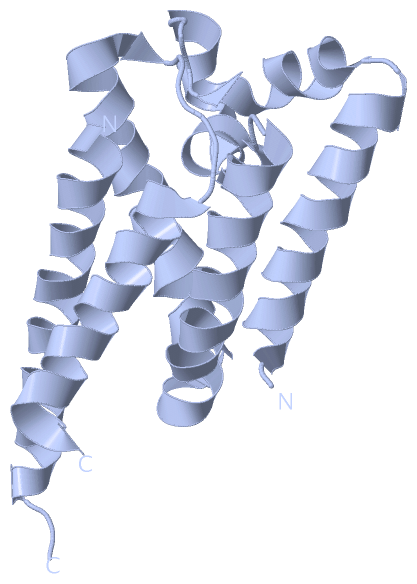

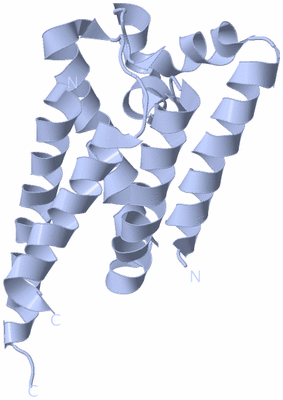

		Biological Unit 1	[ Jena3D ]

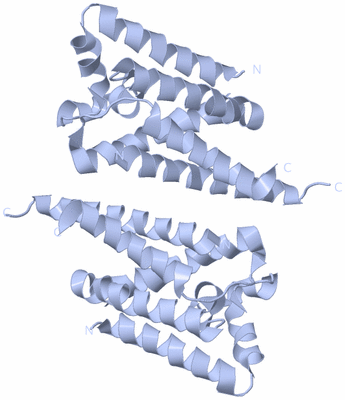

		Biological Unit 2	[ Jena3D ]
