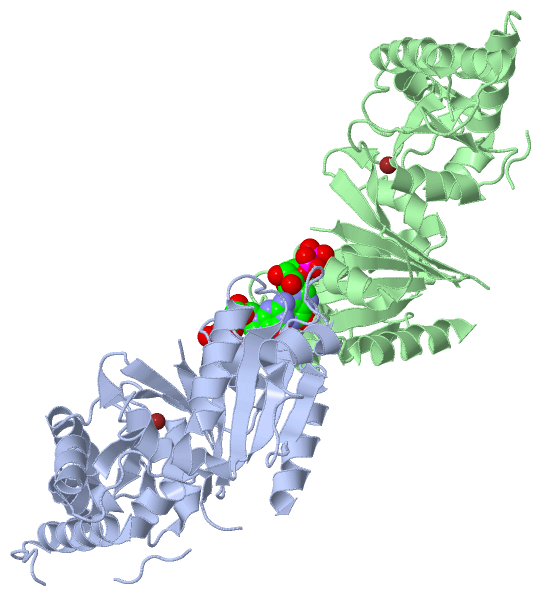

Asymmetric Unit (Jmol Viewer)

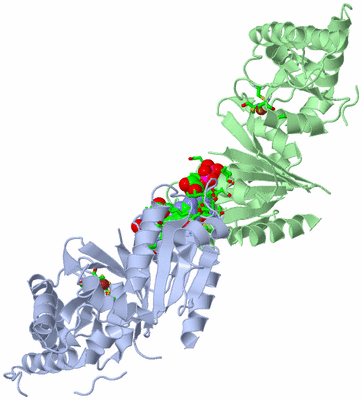

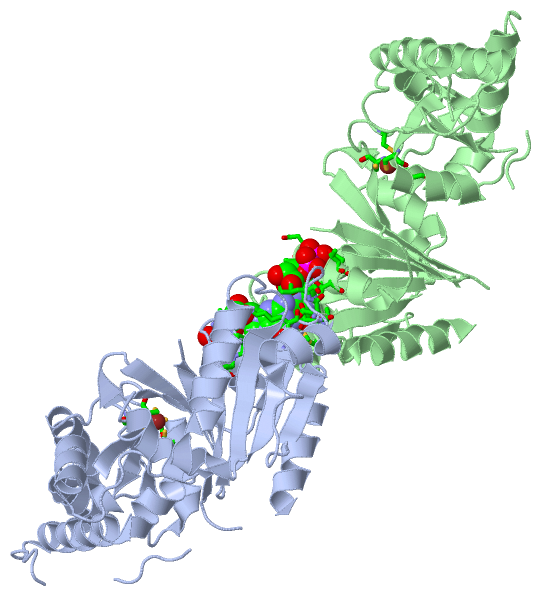

Asym. Unit - sites (Jmol Viewer)

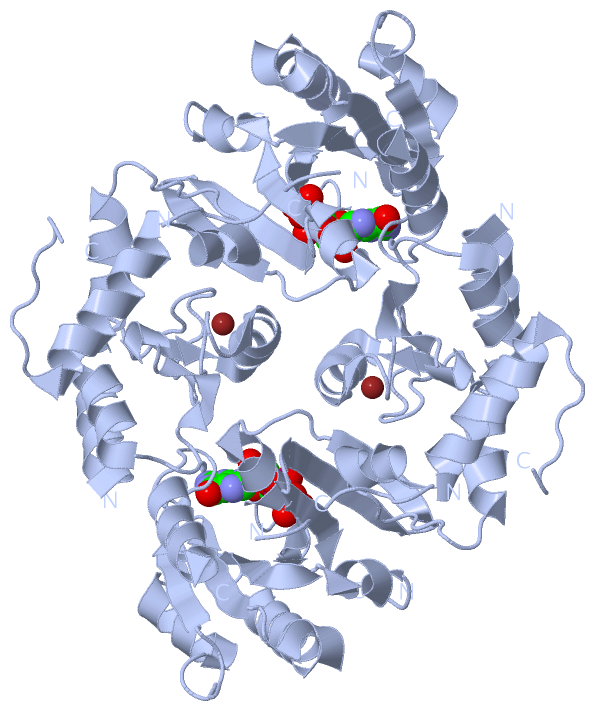

Biological Unit 1 (Jmol Viewer)

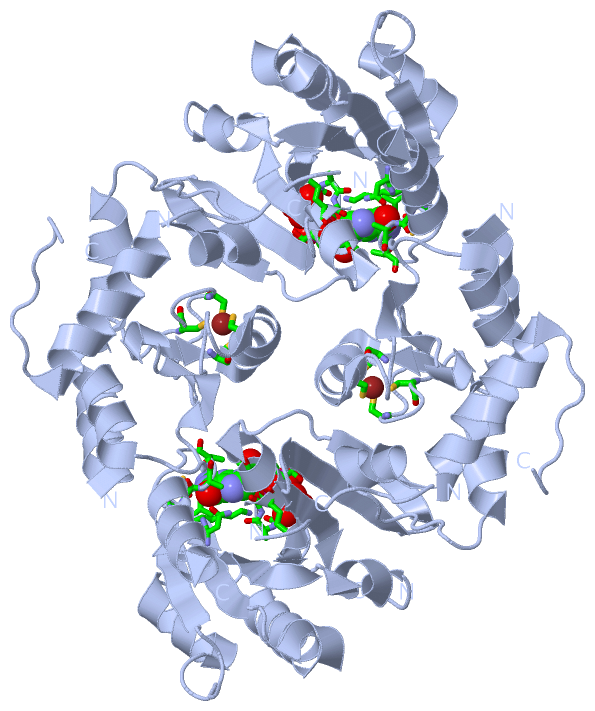

Biol. Unit 1 - sites (Jmol Viewer)

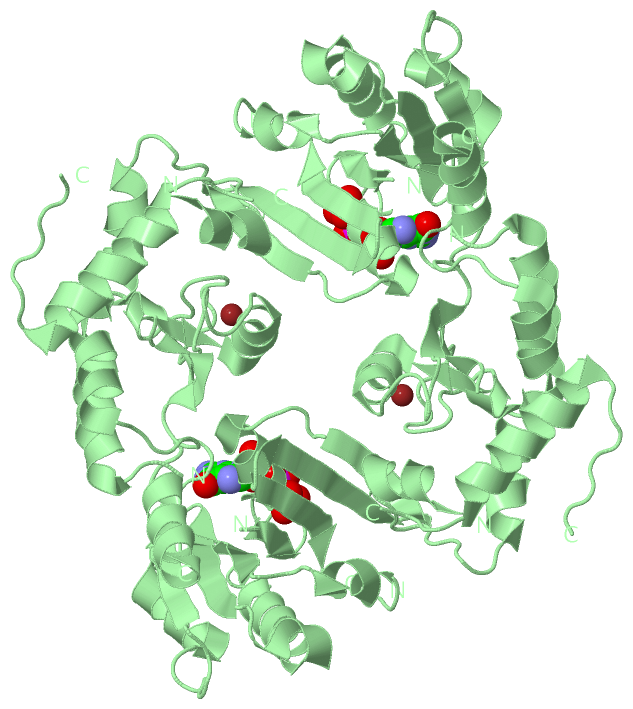

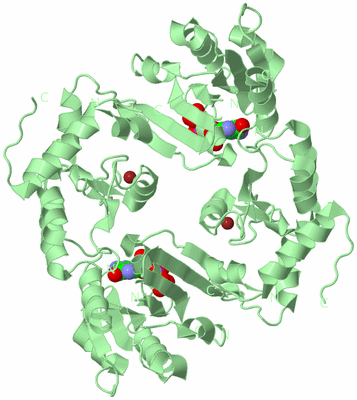

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF ARFGAP1-ARF1 FUSION PROTEIN

Authors :   H. Wang, Y. Tong, L. Nedyalkova, W. Tempel, X. Guan, L. Crombet, C. H. Arr A. M. Edwards, C. Bountra, J. Weigelt, A. Bochkarev, H. Park, Structur Genomics Consortium (Sgc)

Date :   26 Jul 10 (Deposition) - 11 Aug 10 (Release) - 11 Aug 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (2x)
Biol. Unit 2: B  (2x)

Keywords :   Structural Genomics Consortium, Gtpase Activation, Fusion Protein, Chimera Protein, Sgc, Hydrolase, Hydrolase Activator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. Wang, Y. Tong, L. Nedyalkova, W. Tempel, X. Guan, L. Crombet, C. H. Arrowsmith, A. M. Edwards, C. Bountra, J. Weigelt, A. Bochkarev, H. Park
Crystal Structure Of Arfgap1-Arf1 Fusion Protein
To Be Published
PubMed: search

Molecule 1 - ADP-RIBOSYLATION FACTOR GTPASE-ACTIVATING PROTEIN 1, ADP- RIBOSYLATION FACTOR 1
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET28-MHL
	Expression System Strain	:	BL21-V2R-PRARE2
	Expression System Taxid	:	511693
	Fragment	:	ARF1GAP, UNP RESIDUES 1-140, ARF1, UNP RESIDUES 11-181
	Gene	:	ARFGAP1, ARF1GAP, ARF1
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS, HOMO SAPIENS
	Organism Taxid	:	9606, 9606
	Synonym	:	ARF GAP 1, ADP-RIBOSYLATION FACTOR 1 GTPASE-ACTIVATING PROTEIN, ARF1 GAP, ARF1-DIRECTED GTPASE-ACTIVATING PROTEIN

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (2x)	:	A
Biological Unit 2 (2x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 4)

No.	Name	Count	Type	Full Name
1	GDP	2	Ligand/Ion	GUANOSINE-5'-DIPHOSPHATE
2	ZN	2	Ligand/Ion	ZINC ION

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	GDP	2	Ligand/Ion	GUANOSINE-5'-DIPHOSPHATE
2	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	GDP	2	Ligand/Ion	GUANOSINE-5'-DIPHOSPHATE
2	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS A:22 , CYS A:25 , CYS A:42 , CYS A:45	BINDING SITE FOR RESIDUE ZN A 501
2	AC2	SOFTWARE	ALA A:157 , ALA A:158 , GLY A:159 , LYS A:160 , THR A:161 , THR A:162 , ASN A:256 , LYS A:257 , ASP A:259 , LEU A:260 , CYS A:289 , ALA A:290 , THR A:291	BINDING SITE FOR RESIDUE GDP A 502
3	AC3	SOFTWARE	CYS B:22 , CYS B:25 , CYS B:42 , CYS B:45	BINDING SITE FOR RESIDUE ZN B 501
4	AC4	SOFTWARE	LEU B:155 , ASP B:156 , ALA B:157 , ALA B:158 , GLY B:159 , LYS B:160 , THR B:161 , THR B:162 , ASN B:256 , LYS B:257 , ASP B:259 , LEU B:260 , CYS B:289 , ALA B:290 , THR B:291	BINDING SITE FOR RESIDUE GDP B 502

(no "SS Bond" information available for 3O47)

(no "Cis Peptide Bond" information available for 3O47)

(no "SAP(SNP)/Variant" information available for 3O47)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ARF	PS51417	small GTPase Arf family profile.	ARF1_HUMAN	11-177	2	A:126-307 B:110-307

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ARF	PS51417	small GTPase Arf family profile.	ARF1_HUMAN	11-177	2	A:126-307 -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ARF	PS51417	small GTPase Arf family profile.	ARF1_HUMAN	11-177	2	- B:110-307

Asymmetric Unit (4, 8)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1a	ENST00000272102	1a	ENSE00001015362	chr1:228270361-228270466	106	ARF1_HUMAN	-	0	0	-	-
1.6b	ENST00000272102	6b	ENSE00002182167	chr1:228284779-228284963	185	ARF1_HUMAN	1-50	50	2	A:103-180 (gaps) B:77-180 (gaps)	78 104
1.6e	ENST00000272102	6e	ENSE00001801213	chr1:228285043-228285153	111	ARF1_HUMAN	50-87	38	2	A:180-217 (gaps) B:180-217 (gaps)	38 38
1.7b	ENST00000272102	7b	ENSE00000961832	chr1:228285292-228285416	125	ARF1_HUMAN	87-128	42	2	A:217-258 B:217-258	42 42
1.8i	ENST00000272102	8i	ENSE00001908017	chr1:228285553-228286910	1358	ARF1_HUMAN	129-181	53	2	A:259-309 B:259-308	51 50

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:289
 aligned with ARF1_HUMAN | P84077 from UniProtKB/Swiss-Prot  Length:181

    Alignment length:294
                                                                                                                                                      14
                                                                                                                              1        11           12 |    15
                                     -         -         -         -         -         -         -         -         -        |2        |-         - | |    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175
           ARF1_HUMAN     - --------------------------------------------------------------------------------------------------MGNIFANLFKG------------LFG-----KKEMRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVGGQDKIRPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLRN 179
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...............eee.hhheeehhhhhhhhhhhh.....eee......hhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhh................eeeeeee....hhhhhhhhh.....eeeeee..eeeeeeee..eeeeeee..-----..hhhhhhh.eeeeeeeee.....hhhhhhhhhhhhhhhhhhh..eeeeeee........hhhhhhhhhh........eeeee.......hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------ARF  PDB: A:126-307 UniProt: 11-177                                                                                                                                                     -- PROSITE
           Transcript 1 (1) --------------------------------------------------------------------------------------------------Exon 1.6b  PDB: A:103-180 (gaps) UniProt: 1-50                     ------------------------------------Exon 1.7b  PDB: A:217-258 UniProt: 87-128 Exon 1.8i  PDB: A:259-309 UniProt: 129-181          Transcript 1 (1)
           Transcript 1 (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------Exon 1.6e  PDB: A:180-217 (gaps)      -------------------------------------------------------------------------------------------- Transcript 1 (2)
                 3o47 A   5 RTRKVLKEVRVQDENNVCFECGAFNPQWVSVTYGIWICLECSGRHRGLGVHLSFVRSVTMDKWKDIELEKMKAGGNAKFREFLESQEDYDPCWSLQEKYNSRAAALFRDKVVALAEGREWSLESWTPPQKKEMRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVG-----RPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLRN 309
                                    14        24        34        44        54        64        74        84        94       104       114       124   ||  145       155       165       175       185       195   |   205       215       225       235       245       255       265       275       285       295       305
                                                                                                                                                     128| 138|                                                   199   205
                                                                                                                                                      134  145

Chain B from PDB  Type:PROTEIN  Length:289
 aligned with ARF1_HUMAN | P84077 from UniProtKB/Swiss-Prot  Length:181

    Alignment length:294
                                                                                                                                         13         15
                                                                                                        1 3  4     11                   12|        14|        16
                                     -         -         -         -         -         -         -      | |- |      |-         -        12|        -||       - |      24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174
           ARF1_HUMAN     - ----------------------------------------------------------------------------MGN--IFANLFKG--------------------LF---------GK---------KEMRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVGGQDKIRPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLR 178
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------Arf-3o47B01 B:89-307                                                                                                                                                                                         - Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------Arf-3o47B02 B:89-307                                                                                                                                                                                         - Pfam domains (2)
         Sec.struct. author ..hhhhhhhhhhhhhh...............eee.hhheeehhhhhhhhhh.......eee......hhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhh.............eeeeeee....hhhhhhhhhh....eeeeee..eeeeeeee..eeeeeee..-----..hhhhhhh...eeeeeee.....hhhhhhhhhhhhhhhhhhh..eeeeeee........hhhhhhhhhh........eeeee.......hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------ARF  PDB: B:110-307 UniProt: 11-177                                                                                                                                                                          - PROSITE
           Transcript 1 (1) ----------------------------------------------------------------------------Exon 1.6b  PDB: B:77-180 (gaps) UniProt: 1-50                                             ------------------------------------Exon 1.7b  PDB: B:217-258 UniProt: 87-128 Exon 1.8i  PDB: B:259-308 UniProt: 129-181         Transcript 1 (1)
           Transcript 1 (2) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------Exon 1.6e  PDB: B:180-217 (gaps)      ------------------------------------------------------------------------------------------- Transcript 1 (2)
                 3o47 B   1 MASPRTRKVLKEVRVQDENNVCFECGAFNPQWVSVTYGIWICLECSGRHRGLGVHLSFVRSVTMDKWKDIELEKMKAGGNAKFREFLESQEDYDPCWSLQEKYNSRAAALFRDKVVALAEGREWSLEWTPPKEMRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVG-----RPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLR 308
                                    10        20        30        40        50        60        70        80        90       100       110       120      |136||     154       164       174       184       194    |    -|      214       224       234       244       254       264       274       284       294       304
                                                                                                                                                        127|  ||                                                  199   205
                                                                                                                                                         134  ||
                                                                                                                                                            137|
                                                                                                                                                             146

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3O47)

(no "CATH Domain" information available for 3O47)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: P-loop_NTPase (1112)

Family: Arf (26)

Homo sapiens (Human) (9)

1a	Arf-3o47B01	B:89-307
1b	Arf-3o47B02	B:89-307

Asymmetric Unit(hide GO term definitions)

Chain A,B (ARF1_HUMAN | P84077)

molecular function
	GO:0019003	GDP binding	Interacting selectively and non-covalently with GDP, guanosine 5'-diphosphate.
	GO:0005525	GTP binding	Interacting selectively and non-covalently with GTP, guanosine triphosphate.
	GO:0003924	GTPase activity	Catalysis of the reaction: GTP + H2O = GDP + phosphate.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:1990583	phospholipase D activator activity	Increases the activity of the enzyme phospholipase D.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0005057	signal transducer activity, downstream of receptor	Conveys a signal from an upstream receptor or intracellular signal transducer, converting the signal into a form where it can ultimately trigger a change in the state or activity of a cell.
biological process
	GO:0055108	Golgi to transport vesicle transport	The directed movement of proteins from the Golgi to a transport vesicle. Continuously secreted proteins are sorted into transport vesicles that fuse with the plasma membrane, releasing their contents by exocytosis.
	GO:0007015	actin filament organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments. Includes processes that control the spatial distribution of actin filaments, such as organizing filaments into meshworks, bundles, or other structures, as by cross-linking.
	GO:0019886	antigen processing and presentation of exogenous peptide antigen via MHC class II	The process in which an antigen-presenting cell expresses a peptide antigen of exogenous origin on its cell surface in association with an MHC class II protein complex. The peptide antigen is typically, but not always, processed from a whole protein.
	GO:0006878	cellular copper ion homeostasis	Any process involved in the maintenance of an internal steady state of copper ions at the level of a cell.
	GO:0097061	dendritic spine organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a dendritic spine. A dendritic spine is a specialized protrusion from a neuronal dendrite and is involved in synaptic transmission.
	GO:0060292	long term synaptic depression	A process that modulates synaptic plasticity such that synapses are changed resulting in the decrease in the rate, or frequency of synaptic transmission at the synapse.
	GO:0097212	lysosomal membrane organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a lysosomal membrane. A lysosomal membrane is the lipid bilayer surrounding the lysosome and separating its contents from the cell cytoplasm.
	GO:0006661	phosphatidylinositol biosynthetic process	The chemical reactions and pathways resulting in the formation of phosphatidylinositol, any glycophospholipid in which the sn-glycerol 3-phosphate residue is esterified to the 1-hydroxyl group of 1D-myo-inositol.
	GO:1902953	positive regulation of ER to Golgi vesicle-mediated transport	Any process that activates or increases the frequency, rate or extent of ER to Golgi vesicle-mediated transport.
	GO:0045956	positive regulation of calcium ion-dependent exocytosis	Any process that activates or increases the frequency, rate or extent of calcium ion-dependent exocytosis.
	GO:0043085	positive regulation of catalytic activity	Any process that activates or increases the activity of an enzyme.
	GO:0060999	positive regulation of dendritic spine development	Any process that increases the rate, frequency, or extent of dendritic spine development, the process whose specific outcome is the progression of the dendritic spine over time, from its formation to the mature structure.
	GO:0045807	positive regulation of endocytosis	Any process that activates or increases the frequency, rate or extent of endocytosis.
	GO:1902824	positive regulation of late endosome to lysosome transport	Any process that activates or increases the frequency, rate or extent of late endosome to lysosome transport.
	GO:0050714	positive regulation of protein secretion	Any process that activates or increases the frequency, rate or extent of the controlled release of a protein from a cell.
	GO:1902307	positive regulation of sodium ion transmembrane transport	Any process that activates or increases the frequency, rate or extent of sodium ion transmembrane transport.
	GO:0006892	post-Golgi vesicle-mediated transport	The directed movement of substances from the Golgi to other parts of the cell, including organelles and the plasma membrane, mediated by small transport vesicles.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0034315	regulation of Arp2/3 complex-mediated actin nucleation	Any process that modulates the frequency, rate or extent of actin nucleation mediated by the Arp2/3 complex and interacting proteins.
	GO:0050690	regulation of defense response to virus by virus	Any viral process that modulates the frequency, rate, or extent of the antiviral response of the host cell or organism.
	GO:1903725	regulation of phospholipid metabolic process	Any process that modulates the frequency, rate or extent of phospholipid metabolic process.
	GO:0002090	regulation of receptor internalization	Any process that modulates the frequency, rate or extent of receptor internalization.
	GO:0007264	small GTPase mediated signal transduction	Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
	GO:0070142	synaptic vesicle budding	Evagination of a membrane to form a synaptic vesicle.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
	GO:0034379	very-low-density lipoprotein particle assembly	The non-covalent aggregation and arrangement of proteins and lipids in the liver to form a very-low-density lipoprotein particle.
	GO:0016192	vesicle-mediated transport	A cellular transport process in which transported substances are moved in membrane-bounded vesicles; transported substances are enclosed in the vesicle lumen or located in the vesicle membrane. The process begins with a step that directs a substance to the forming vesicle, and includes vesicle budding and coating. Vesicles are then targeted to, and fuse with, an acceptor membrane.
cellular component
	GO:0030137	COPI-coated vesicle	A vesicle with a coat formed of the COPI coat complex proteins. COPI-coated vesicles are found associated with Golgi membranes at steady state, are involved in Golgi to endoplasmic reticulum (retrograde) vesicle transport, and possibly also in intra-Golgi transport.
	GO:0005794	Golgi apparatus	A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
	GO:0000139	Golgi membrane	The lipid bilayer surrounding any of the compartments of the Golgi apparatus.
	GO:0030054	cell junction	A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
	GO:0031252	cell leading edge	The area of a motile cell closest to the direction of movement.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0012505	endomembrane system	A collection of membranous structures involved in transport within the cell. The main components of the endomembrane system are endoplasmic reticulum, Golgi bodies, vesicles, cell membrane and nuclear envelope. Members of the endomembrane system pass materials through each other or though the use of vesicles.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005925	focal adhesion	Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
	GO:0005622	intracellular	The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
	GO:0005770	late endosome	A prelysosomal endocytic organelle differentiated from early endosomes by lower lumenal pH and different protein composition. Late endosomes are more spherical than early endosomes and are mostly juxtanuclear, being concentrated near the microtubule organizing center.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0043005	neuron projection	A prolongation or process extending from a nerve cell, e.g. an axon or dendrite.
	GO:0048471	perinuclear region of cytoplasm	Cytoplasm situated near, or occurring around, the nucleus.
	GO:0005778	peroxisomal membrane	The lipid bilayer surrounding a peroxisome.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
	GO:0014069	postsynaptic density of dendrite	An electron dense network of proteins within and adjacent to the postsynaptic membrane of the dendrite of asymetric synapses. Its major components include neurotransmitter receptors and the proteins that spatially and functionally organize them such as anchoring and scaffolding molecules, signaling enzymes and cytoskeletal components.
	GO:0045211	postsynaptic membrane	A specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters cross the synaptic cleft and transmit the signal to the postsynaptic membrane.
	GO:0030017	sarcomere	The repeating unit of a myofibril in a muscle cell, composed of an array of overlapping thick and thin filaments between two adjacent Z discs.
	GO:0045202	synapse	The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.
	GO:0005802	trans-Golgi network	The network of interconnected tubular and cisternal structures located within the Golgi apparatus on the side distal to the endoplasmic reticulum, from which secretory vesicles emerge. The trans-Golgi network is important in the later stages of protein secretion where it is thought to play a key role in the sorting and targeting of secreted proteins to the correct destination.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GDP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3o47)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3o47
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	ARF1_HUMAN \| P84077
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	ARFG1_HUMAN \| Q8N6T3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	ARF1_HUMAN \| P84077
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	ARFG1_HUMAN \| Q8N6T3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	ARF1_HUMAN \| P84077	:	1hur 1re0 1u81 4hmy
	ARFG1_HUMAN \| Q8N6T3	:	3dwd

(no "Related Entries Specified in the PDB File" available for 3O47)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 4)

Sites (4, 4)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (4, 8)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 2)

Gene Ontology (64, 73)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
