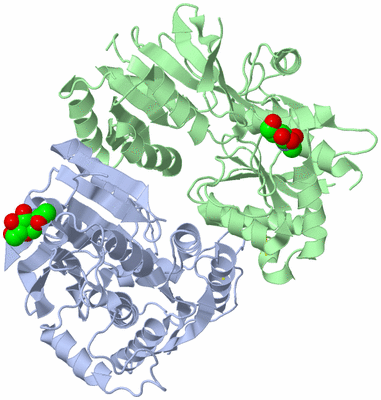

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

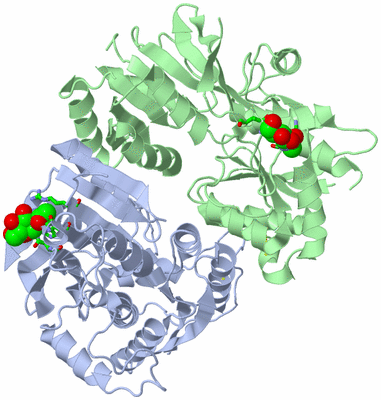

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE GLUA2 NTD-DIMER INTERFACE MUTANT, N54A

Authors :  M. Rossmann, M. Sukumaran, A. C. Penn, D. B. Veprintsev, I. H. Greger
Date :  22 Jul 10  (Deposition) - 09 Mar 11  (Release) - 16 Mar 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.95
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Ampa, Periplasmatic Binding Protein, Ntd, Atd, Oligomerization, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Rossmann, M. Sukumaran, A. C. Penn, D. B. Veprintsev, M. M. Babu, I. H. Greger
Subunit-Selective N-Terminal Domain Associations Organize The Formation Of Ampa Receptor Heteromers
Embo J. V. 30 959 2011
PubMed-ID: 21317873  |  Reference-DOI: 10.1038/EMBOJ.2011.16

(-) Compounds

Molecule 1 - GLUTAMATE RECEPTOR 2
    ChainsA, B
    EngineeredYES
    Expression SystemHOMO SAPIENS
    Expression System CommonHUMAN
    Expression System Taxid9606
    FragmentN-TERMINAL DOMAIN
    GeneGRIA2, GLUR2
    MutationYES
    Organism CommonRAT
    Organism ScientificRATTUS NORVEGICUS
    Organism Taxid10116
    SynonymGLUR-2, GLUR-B, GLUR-K2, GLUTAMATE RECEPTOR IONOTROPIC, AMPA 2, GLUA2, AMPA-SELECTIVE GLUTAMATE RECEPTOR 2

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1NAG2Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:185 , GLY A:211 , HIS A:213 , ASN A:235 , HOH A:407 , HOH A:577BINDING SITE FOR RESIDUE NAG A 389
2AC2SOFTWARELYS B:340 , ASN B:349 , VAL B:371BINDING SITE FOR RESIDUE NAG B 389

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:57 -A:309
2B:57 -B:309

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Arg A:303 -Gly A:304
2Asn A:312 -Pro A:313
3Leu B:227 -Lys B:228
4Ile B:229 -Gln B:230

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3O2J)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3O2J)

(-) Exons   (0, 0)

(no "Exon" information available for 3O2J)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:356
 aligned with GRIA2_RAT | P19491 from UniProtKB/Swiss-Prot  Length:883

    Alignment length:375
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394
            GRIA2_RAT    25 NSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGANVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVVTL 399
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee..hhhhhhhhhhhhhhh.....eeeeeeeee...hhhhhhhhhhhhhhh....eee.....hhhhhhhhhhhhh..eee...........eee....hhhhhhhhhhhh...eeeeee.....hhhhhhhhhhhhhhh.eeeeee..-------------------.....eeeee.hhhhhhhhhhhhh....hhhh.eeee........hhhhh.....eeeeee.....hhhhhhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhh.....................hhhhhhhhhhhh..eee..eee...........eeeeeeee..eeeeeeeee.....eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3o2j A   4 NSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTAAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVG-------------------LKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGANVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVVTL 378
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153      |  -         -      |183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373
                                                                                                                                                                                      160                 180

Chain B from PDB  Type:PROTEIN  Length:362
 aligned with GRIA2_RAT | P19491 from UniProtKB/Swiss-Prot  Length:883

    Alignment length:374
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396
            GRIA2_RAT    27 IQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGANVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVVTLT 400
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------ANF_receptor-3o2jB01 B:27-358                                                                                                                                                                                                                                                                                                               --------------------- Pfam domains (1)
           Pfam domains (2) ---------------------ANF_receptor-3o2jB02 B:27-358                                                                                                                                                                                                                                                                                                               --------------------- Pfam domains (2)
         Sec.struct. author .eeeeeee..hhhhhhhhhhhhhhh.......eeeeeee...hhhhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhh.eeee...........eee....hhhhhhhhhhhh...eeeeee.....hhhhhhhhhhhhhhh.eeeeee.......hhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhh----....eeee..................eeeeee.....hhhhhhhhhhhh...............hhhhhhhhhhhhhhhhhhh..--------.....hhhhhh...hhhhhhhhhhhhhh..eee..eee...........eeeeeeee..eeeeeeeee.....eee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3o2j B   6 IQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTAAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVIT----VKGYHYIIANLGFTDGDLLKIQFGGANVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNL--------RRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVVTLT 379
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195        |-   |   215       225       235       245       255       265       275       285       | -      |305       315       325       335       345       355       365       375
                                                                                                                                                                                                                                204  209                                                                                 293      302

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3O2J)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3O2J)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit

(-) Gene Ontology  (49, 49)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (GRIA2_RAT | P19491)
molecular function
    GO:0004971    AMPA glutamate receptor activity    An ionotropic glutamate receptor activity that exhibits fast gating by glutamate and acts by opening a cation channel permeable to sodium, potassium, and, in the absence of a GluR2 subunit, calcium.
    GO:0030165    PDZ domain binding    Interacting selectively and non-covalently with a PDZ domain of a protein, a domain found in diverse signaling proteins.
    GO:0005246    calcium channel regulator activity    Modulates the activity of a calcium channel.
    GO:0005234    extracellular-glutamate-gated ion channel activity    Enables the transmembrane transfer of an ion by a channel that opens when extracellular glutamate has been bound by the channel complex or one of its constituent parts.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0005216    ion channel activity    Enables the facilitated diffusion of an ion (by an energy-independent process) by passage through a transmembrane aqueous pore or channel without evidence for a carrier-mediated mechanism. May be either selective (it enables passage of a specific ion only) or non-selective (it enables passage of two or more ions of same charge but different size).
    GO:0004970    ionotropic glutamate receptor activity    Catalysis of the transmembrane transfer of an ion by a channel that opens when glutamate has been bound by the channel complex or one of its constituent parts.
    GO:0015277    kainate selective glutamate receptor activity    An ionotropic glutamate receptor activity that exhibits fast gating by glutamate, acts by opening a cation channel permeable to sodium and potassium, and for which kainate is an agonist.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0004872    receptor activity    Combining with an extracellular or intracellular messenger to initiate a change in cell activity.
biological process
    GO:0007268    chemical synaptic transmission    The vesicular release of classical neurotransmitter molecules from a presynapse, across a chemical synapse, the subsequent activation of neurotransmitter receptors at the postsynapse of a target cell (neuron, muscle, or secretory cell) and the effects of this activation on the postsynaptic membrane potential and ionic composition of the postsynaptic cytosol. This process encompasses both spontaneous and evoked release of neurotransmitter and all parts of synaptic vesicle exocytosis. Evoked transmission starts with the arrival of an action potential at the presynapse.
    GO:0045184    establishment of protein localization    The directed movement of a protein to a specific location.
    GO:0034220    ion transmembrane transport    A process in which an ion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0035235    ionotropic glutamate receptor signaling pathway    A series of molecular signals initiated by glutamate binding to a glutamate receptor on the surface of the target cell, followed by the movement of ions through a channel in the receptor complex. Ends with regulation of a downstream cellular process, e.g. transcription.
    GO:0050806    positive regulation of synaptic transmission    Any process that activates or increases the frequency, rate or extent of synaptic transmission, the process of communication from a neuron to a target (neuron, muscle, or secretory cell) across a synapse.
    GO:0051262    protein tetramerization    The formation of a protein tetramer, a macromolecular structure consisting of four noncovalently associated identical or nonidentical subunits.
    GO:0031623    receptor internalization    A receptor-mediated endocytosis process that results in the movement of receptors from the plasma membrane to the inside of the cell. The process begins when cell surface receptors are monoubiquitinated following ligand-induced activation. Receptors are subsequently taken up into endocytic vesicles from where they are either targeted to the lysosome or vacuole for degradation or recycled back to the plasma membrane.
    GO:0001919    regulation of receptor recycling    Any process that modulates the frequency, rate, or extent of receptor recycling.
    GO:0051966    regulation of synaptic transmission, glutamatergic    Any process that modulates the frequency, rate or extent of glutamatergic synaptic transmission, the process of communication from a neuron to another neuron across a synapse using the neurotransmitter glutamate.
    GO:0060992    response to fungicide    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a fungicide stimulus. Fungicides are chemicals used to kill fungi.
    GO:0010226    response to lithium ion    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lithium (Li+) ion stimulus.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0032281    AMPA glutamate receptor complex    An assembly of four or five subunits which form a structure with an extracellular N-terminus and a large loop that together form the ligand binding domain. The C-terminus is intracellular. The ionotropic glutamate receptor complex itself acts as a ligand gated ion channel; on binding glutamate, charged ions pass through a channel in the center of the receptor complex. The AMPA receptors mediate fast synaptic transmission in the CNS and are composed of subunits GluR1-4, products from separate genes. These subunits have an extracellular N-terminus and an intracellular C-terminus.
    GO:0032279    asymmetric synapse    A type of synapse occurring between an axon and a dendritic spine or dendritic shaft. Asymmetric synapses, the most abundant synapse type in the central nervous system, involve axons that contain predominantly spherical vesicles and contain a thickened postsynaptic density. Most or all synapses of this type are excitatory.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0009986    cell surface    The external part of the cell wall and/or plasma membrane.
    GO:0030425    dendrite    A neuron projection that has a short, tapering, often branched, morphology, receives and integrates signals from other neurons or from sensory stimuli, and conducts a nerve impulse towards the axon or the cell body. In most neurons, the impulse is conveyed from dendrites to axon via the cell body, but in some types of unipolar neuron, the impulse does not travel via the cell body.
    GO:0032839    dendrite cytoplasm    All of the contents of a dendrite, excluding the surrounding plasma membrane.
    GO:0043198    dendritic shaft    Cylindric portion of the dendrite, directly stemming from the perikaryon, and carrying the dendritic spines.
    GO:0043197    dendritic spine    A small, membranous protrusion from a dendrite that forms a postsynaptic compartment - typically receiving input from a single presynapse. They function as partially isolated biochemical and an electrical compartments. Spine morphology is variable including "thin", "stubby", "mushroom", and "branched", with a continuum of intermediate morphologies. They typically terminate in a bulb shape, linked to the dendritic shaft by a restriction. Spine remodeling is though to be involved in synaptic plasticity.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005789    endoplasmic reticulum membrane    The lipid bilayer surrounding the endoplasmic reticulum.
    GO:0030426    growth cone    The migrating motile tip of a growing nerve cell axon or dendrite.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0008328    ionotropic glutamate receptor complex    A multimeric assembly of four or five subunits which form a structure with an extracellular N-terminus and a large loop that together form the ligand binding domain. The C-terminus is intracellular. The ionotropic glutamate receptor complex itself acts as a ligand-gated ion channel; on binding glutamate, charged ions pass through a channel in the center of the receptor complex.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0043025    neuronal cell body    The portion of a neuron that includes the nucleus, but excludes cell projections such as axons and dendrites.
    GO:0043204    perikaryon    The portion of the cell soma (neuronal cell body) that excludes the nucleus.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0014069    postsynaptic density of dendrite    An electron dense network of proteins within and adjacent to the postsynaptic membrane of the dendrite of asymetric synapses. Its major components include neurotransmitter receptors and the proteins that spatially and functionally organize them such as anchoring and scaffolding molecules, signaling enzymes and cytoskeletal components.
    GO:0045211    postsynaptic membrane    A specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters cross the synaptic cleft and transmit the signal to the postsynaptic membrane.
    GO:0042734    presynaptic membrane    A specialized area of membrane of the axon terminal that faces the plasma membrane of the neuron or muscle fiber with which the axon terminal establishes a synaptic junction; many synaptic junctions exhibit structural presynaptic characteristics, such as conical, electron-dense internal protrusions, that distinguish it from the remainder of the axon plasma membrane.
    GO:0043234    protein complex    A stable macromolecular complex composed (only) of two or more polypeptide subunits along with any covalently attached molecules (such as lipid anchors or oligosaccharide) or non-protein prosthetic groups (such as nucleotides or metal ions). Prosthetic group in this context refers to a tightly bound cofactor. The component polypeptide subunits may be identical.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.
    GO:0030672    synaptic vesicle membrane    The lipid bilayer surrounding a synaptic vesicle.
    GO:0043195    terminal bouton    Terminal inflated portion of the axon, containing the specialized apparatus necessary to release neurotransmitters. The axon terminus is considered to be the whole region of thickening and the terminal bouton is a specialized region of it.
