Title :   CRYSTAL STRUCTURE OF UREE FROM HELICOBACTER PYLORI (CU2+ BOUND FORM)

Authors :   R. Shi, C. Munger, A. Assinas, A. Matte, M. Cygler, Montreal-Kingston Structural Genomics Initiative (Bsgi)

Date :   14 Jul 10 (Deposition) - 25 Aug 10 (Release) - 01 Sep 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.70

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Structural Genomics, Montreal-Kingston Bacterial Structural Genomics Initiative, Bsgi, Urease Maturation Protein, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Shi, C. Munger, A. Asinas, S. L. Benoit, E. Miller, A. Matte, R. J. Maier, M. Cygler
Crystal Structures Of Apo And Metal-Bound Forms Of The Uree Protein From Helicobacter Pylori: Role Of Multiple Metal Binding Sites
Biochemistry V. 49 7080 2010
PubMed-ID: 20681615 | Reference-DOI: 10.1021/BI100372H

Molecule 1 - UREASE ACCESSORY PROTEIN UREE
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	HP_0070, UREE
	Organism Common	:	CAMPYLOBACTER PYLORI
	Organism Scientific	:	HELICOBACTER PYLORI
	Organism Taxid	:	210
	Strain	:	ATCC 43504

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 1)

No.	Name	Count	Type	Full Name
1	CU	1	Ligand/Ion	COPPER (II) ION

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS A:102 , HIS B:102 , HIS C:102 , HOH C:171 , HIS D:102	BINDING SITE FOR RESIDUE CU A 200

(no "SS Bond" information available for 3NXZ)

Asymmetric/Biological Unit

No.	Residues
1	Leu A:13	-	Asn A:14
2	Leu A:16	-	Asp A:17
3	Leu B:13	-	Asn B:14
4	Leu B:16	-	Asp B:17
5	Leu C:13	-	Asn C:14
6	Leu C:16	-	Asp C:17
7	Leu D:13	-	Asn D:14
8	Leu D:16	-	Asp D:17

(no "SAP(SNP)/Variant" information available for 3NXZ)

(no "PROSITE Motif" information available for 3NXZ)

(no "Exon" information available for 3NXZ)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:149
 aligned with UREE_HELPY | Q09064 from UniProtKB/Swiss-Prot  Length:170

    Alignment length:149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           UREE_HELPY     1 MIIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTVS 149
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee...............eeeeeeehhhhh....eeee.....eeee..............eeeee..eeeeeee..eeeeeee..hhhhhhhhhhhhhhhh...ee.....eeeee.hhhhhhhhhhh..eeeeeee..hhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3nxz A   1 MIIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTVS 149
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain B from PDB  Type:PROTEIN  Length:147
 aligned with UREE_HELPY | Q09064 from UniProtKB/Swiss-Prot  Length:170

    Alignment length:147
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           UREE_HELPY     2 IIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTV 148
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................eeeeeehhhhh....eeee.....eeee..............eeeee..eeeeeee..eeeeeee..hhhhhhhhhhhhhhhh...ee.....eeeee.hhhhhhhhhhh..eeeeeee..hhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3nxz B   2 IIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTV 148
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141

Chain C from PDB  Type:PROTEIN  Length:148
 aligned with UREE_HELPY | Q09064 from UniProtKB/Swiss-Prot  Length:170

    Alignment length:148
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           UREE_HELPY     2 IIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTVS 149
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .................eeeeeeehhhhh....eeee.....eeee..............eeeee..eeeeeee..eeeeeee..hhhhhhhhhhhhhh.....ee.....eeeee.hhhhhhhhhhh..eeeeeee..hhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3nxz C   2 IIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTVS 149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141

Chain D from PDB  Type:PROTEIN  Length:149
 aligned with UREE_HELPY | Q09064 from UniProtKB/Swiss-Prot  Length:170

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           UREE_HELPY     2 IIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTVSM 150
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----UreE_N-3nxzD05 D:6-71                                             -----UreE_C-3nxzD01 D:77-150                                                    Pfam domains (1)
           Pfam domains (2) ----UreE_N-3nxzD06 D:6-71                                             -----UreE_C-3nxzD02 D:77-150                                                    Pfam domains (2)
           Pfam domains (3) ----UreE_N-3nxzD07 D:6-71                                             -----UreE_C-3nxzD03 D:77-150                                                    Pfam domains (3)
           Pfam domains (4) ----UreE_N-3nxzD08 D:6-71                                             -----UreE_C-3nxzD04 D:77-150                                                    Pfam domains (4)
         Sec.struct. author .................eeeeeee........eeeee.....eeeee.............eeeee..eeeeeee..eeeeeee..hhhhhhhhhhhhhhhh...ee.....eeeee.hhhhhhhhhhh..eeeeeee..hhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3nxz D   2 IIERLVGNLRDLNPLDFSVDHVDLEWFETRKKIARFKTRQGKDIAIRLKDAPKLGLSQGDILFKEEKEIIAVNILDSEVIHIQAKSVAEVAKICYEIGNRHAALYYGESQFEFKTPFEKPTLALLEKLGVQNRVLSSKLDSKERLTVSM 150
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3NXZ)

(no "CATH Domain" information available for 3NXZ)

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: UreE_C] (4)

Family: UreE_C (4)

Helicobacter pylori (Campylobacter pylori) (4)

1a	UreE_C-3nxzD01	D:77-150
1b	UreE_C-3nxzD02	D:77-150
1c	UreE_C-3nxzD03	D:77-150
1d	UreE_C-3nxzD04	D:77-150

Clan: no clan defined [family: UreE_N] (4)

Family: UreE_N (4)

Helicobacter pylori (Campylobacter pylori) (4)

2a	UreE_N-3nxzD05	D:6-71
2b	UreE_N-3nxzD06	D:6-71
2c	UreE_N-3nxzD07	D:6-71
2d	UreE_N-3nxzD08	D:6-71

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D (UREE_HELPY | Q09064)

molecular function
	GO:0016151	nickel cation binding	Interacting selectively and non-covalently with nickel (Ni) cations.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0051082	unfolded protein binding	Interacting selectively and non-covalently with an unfolded protein.
biological process
	GO:0018307	enzyme active site formation	The modification of part of an enzyme to form the active site.
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0006461	protein complex assembly	The aggregation, arrangement and bonding together of a set of components to form a protein complex.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0019627	urea metabolic process	The chemical reactions and pathways involving urea, the water soluble compound O=C-(NH2)2.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

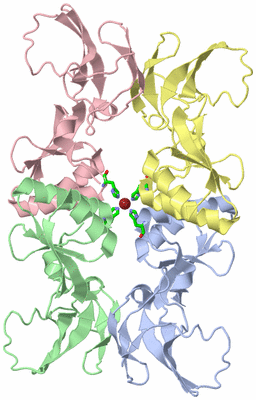

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Leu A:13 - Asn A:14	[ RasMol ]
		Leu A:16 - Asp A:17	[ RasMol ]
		Leu B:13 - Asn B:14	[ RasMol ]
		Leu B:16 - Asp B:17	[ RasMol ]
		Leu C:13 - Asn C:14	[ RasMol ]
		Leu C:16 - Asp C:17	[ RasMol ]
		Leu D:13 - Asn D:14	[ RasMol ]
		Leu D:16 - Asp D:17	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3nxz
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	UREE_HELPY \| Q09064
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	UREE_HELPY \| Q09064
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	UREE_HELPY \| Q09064	:	3l9z 3la0 3ny0 3tj8 3tj9 3tja

3l9z	CRYSTAL STRUCTURE OF APO FORM OF H. PYROLI UREE
3la0	CRYSTAL STRUCTURE OF METAL BOUND FORM (UNKNOWN IDENTITY) OF H. PYROLI UREE
3ny0	CRYSTAL STRUCTURE OF METAL BOUND FORM (NI2+ BOUND FORM) OF H. PYROLI UREE RELATED ID: UREE_HELPY RELATED DB: TARGETDB
