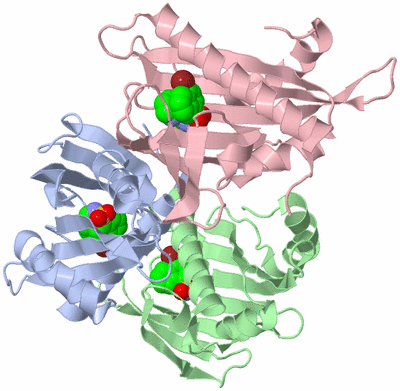

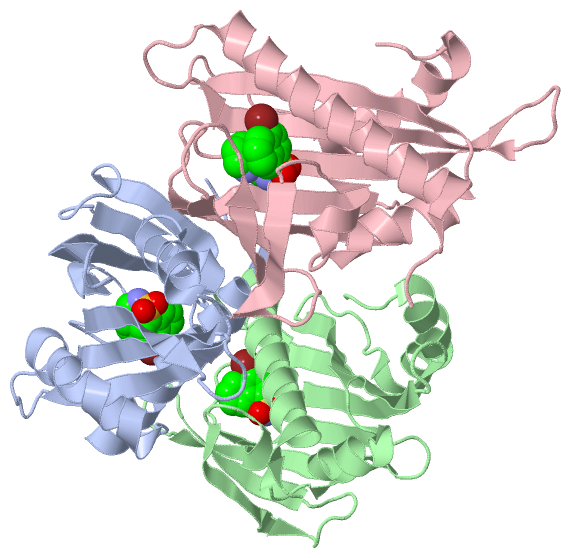

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

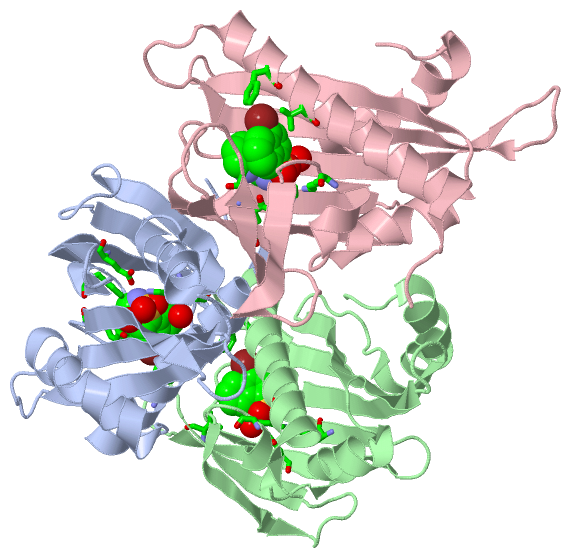

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

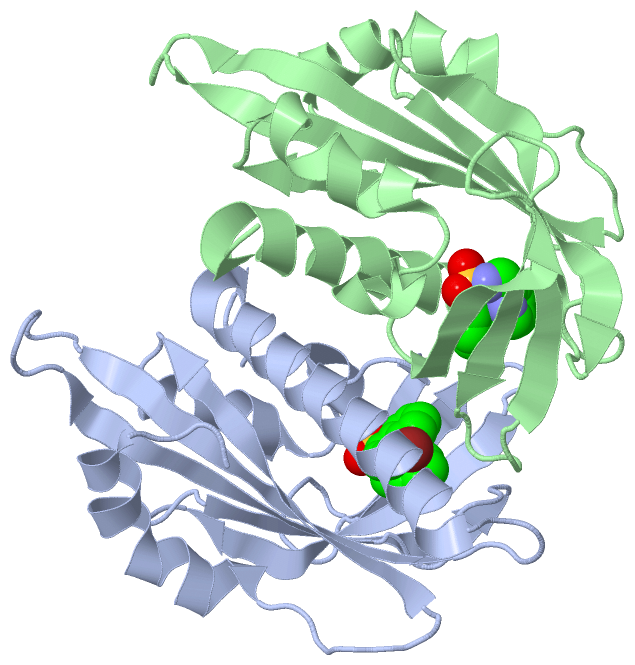

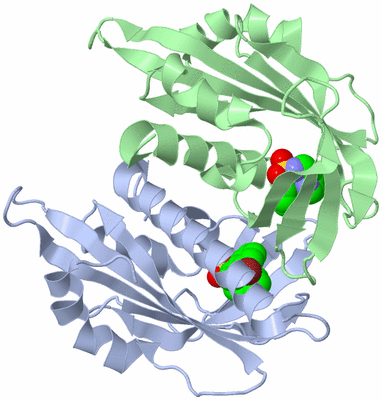

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

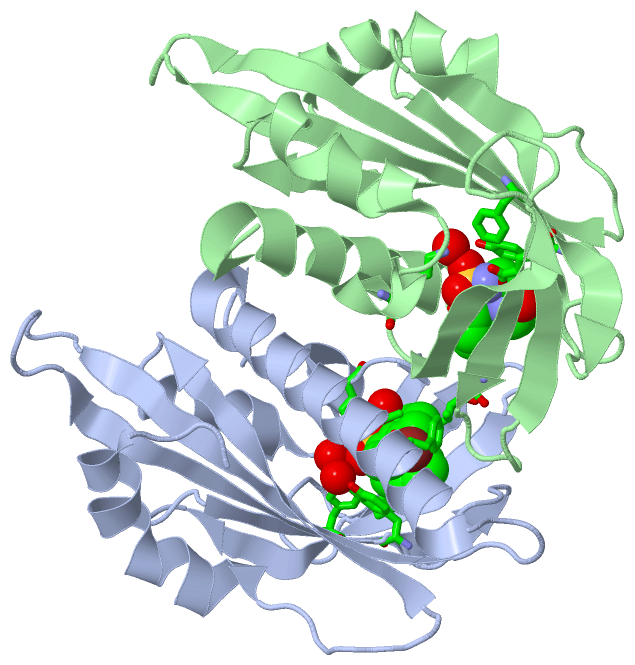

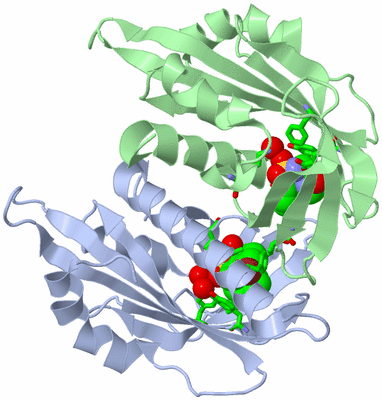

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

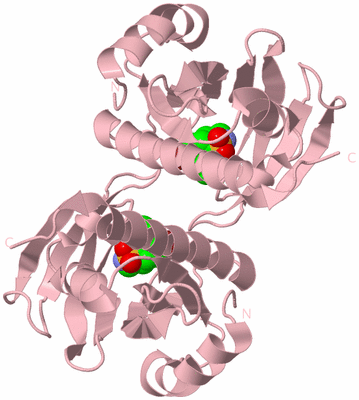

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  HIGH-RESOLUTION STRUCTURE OF PYRABACTIN-BOUND PYL2

Authors :  Q. Hao, P. Yin, C. Yan, X. Yuan, J. Wang, N. Yan
Date :  01 Jul 10  (Deposition) - 21 Jul 10  (Release) - 15 Sep 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.63
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C  (2x)
Keywords :  Abscisic Acid, Aba Receptor, Pyl2, Pyrabactin, Hormone Receptor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Yuan, P. Yin, Q. Hao, C. Yan, J. Wang, N. Yan
Single Amino Acid Alteration Between Valine And Isoleucine Determines The Distinct Pyrabactin Selectivity By Pyl1 And Pyl2
J. Biol. Chem. V. 285 28953 2010
PubMed-ID: 20630864  |  Reference-DOI: 10.1074/JBC.M110.160192

(-) Compounds

Molecule 1 - ABSCISIC ACID RECEPTOR PYL2
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Common: MOUSE-EAR CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Synonym: PYL2, PYR1-LIKE PROTEIN 2, REGULATORY COMPONENTS OF ABA RECEPTOR 14

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): AB
Biological Unit 2 (2x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1PYV3Ligand/Ion4-BROMO-N-(PYRIDIN-2-YLMETHYL)NAPHTHALENE-1-SULFONAMIDE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1PYV2Ligand/Ion4-BROMO-N-(PYRIDIN-2-YLMETHYL)NAPHTHALENE-1-SULFONAMIDE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1PYV2Ligand/Ion4-BROMO-N-(PYRIDIN-2-YLMETHYL)NAPHTHALENE-1-SULFONAMIDE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:64 , VAL A:87 , GLU A:98 , PHE A:112 , TYR A:124 , PHE A:165 , VAL A:169 , HOH A:244 , HOH A:264 , HOH A:283BINDING SITE FOR RESIDUE PYV A 191
2AC2SOFTWARELYS B:64 , VAL B:87 , GLU B:98 , PHE B:112 , TYR B:124 , PHE B:165 , HOH B:260 , HOH B:269BINDING SITE FOR RESIDUE PYV B 191
3AC3SOFTWARELYS C:64 , VAL C:87 , GLU C:98 , PHE C:112 , TYR C:124 , PHE C:165 , VAL C:169 , HOH C:196BINDING SITE FOR RESIDUE PYV C 191

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3NS2)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3NS2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3NS2)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3NS2)

(-) Exons   (0, 0)

(no "Exon" information available for 3NS2)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:181
 aligned with PYL2_ARATH | O80992 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:181
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187
           PYL2_ARATH     8 KGLTDEEQKTLEPVIKTYHQFEPDPTTCTSLITQRIHAPASVVWPLIRRFDNPERYKHFVKRCRLISGDGDVGSVREVTVISGLPASTSTERLEFVDDDHRVLSFRVVGGEHRLKNYKSVTSVNEFLNQDSGKVYTVVLESYTVDIPEGNTEEDTKMFVDTVVKLNLQKLGVAATSAPMHD 188
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh.......eeeeeeeeee..hhhhhhhhhhh..hhhhh...eeeeeeee.......eeeeee......eeeeeeeeeee....eeeeeeeee.......eeeeeeeeee......eeeeeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ns2 A   8 KGLTDEEQKTLEPVIKTYHQFEPDPTTCTSLITQRIHAPASVVWPLIRRFDNPERYKHFVKRCRLISGDGDVGSVREVTVISGLPASTSTERLEFVDDDHRVLSFRVVGGEHRLKNYKSVTSVNEFLNQDSGKVYTVVLESYTVDIPEGNTEEDTKMFVDTVVKLNLQKLGVAATSAPMHD 188
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187


Chain B from PDB  Type:PROTEIN  Length:179
 aligned with PYL2_ARATH | O80992 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:179
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177
           PYL2_ARATH     8 KGLTDEEQKTLEPVIKTYHQFEPDPTTCTSLITQRIHAPASVVWPLIRRFDNPERYKHFVKRCRLISGDGDVGSVREVTVISGLPASTSTERLEFVDDDHRVLSFRVVGGEHRLKNYKSVTSVNEFLNQDSGKVYTVVLESYTVDIPEGNTEEDTKMFVDTVVKLNLQKLGVAATSAPM 186
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh.......eeeeeeeeee..hhhhhhhhhhh..hhhhh...eeeeeeee.......eeeeee......eeeeeeeeeee....eeeeeeeee.......eeeeeeeeeee....eeeeeeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ns2 B   8 KGLTDEEQKTLEPVIKTYHQFEPDPTTCTSLITQRIHAPASVVWPLIRRFDNPERYKHFVKRCRLISGDGDVGSVREVTVISGLPASTSTERLEFVDDDHRVLSFRVVGGEHRLKNYKSVTSVNEFLNQDSGKVYTVVLESYTVDIPEGNTEEDTKMFVDTVVKLNLQKLGVAATSAPM 186
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177


Chain C from PDB  Type:PROTEIN  Length:181
 aligned with PYL2_ARATH | O80992 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:181
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187
           PYL2_ARATH     8 KGLTDEEQKTLEPVIKTYHQFEPDPTTCTSLITQRIHAPASVVWPLIRRFDNPERYKHFVKRCRLISGDGDVGSVREVTVISGLPASTSTERLEFVDDDHRVLSFRVVGGEHRLKNYKSVTSVNEFLNQDSGKVYTVVLESYTVDIPEGNTEEDTKMFVDTVVKLNLQKLGVAATSAPMHD 188
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) --------------------------Polyketide_cyc2-3ns2C01 C:34-181                                                                                                                    ------- Pfam domains (1)
           Pfam domains (2) --------------------------Polyketide_cyc2-3ns2C02 C:34-181                                                                                                                    ------- Pfam domains (2)
           Pfam domains (3) --------------------------Polyketide_cyc2-3ns2C03 C:34-181                                                                                                                    ------- Pfam domains (3)
         Sec.struct. author ...hhhhhhhhhhhhhhhh.......eeeeeeeeee..hhhhhhhhhhh..hhhhh...eeeeeeee.......eeeeee......eeeeeeeeeee....eeeeeeeee.......eeeeeeeeee......eeeeeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ns2 C   8 KGLTDEEQKTLEPVIKTYHQFEPDPTTCTSLITQRIHAPASVVWPLIRRFDNPERYKHFVKRCRLISGDGDVGSVREVTVISGLPASTSTERLEFVDDDHRVLSFRVVGGEHRLKNYKSVTSVNEFLNQDSGKVYTVVLESYTVDIPEGNTEEDTKMFVDTVVKLNLQKLGVAATSAPMHD 188
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3NS2)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3NS2)

(-) Pfam Domains  (1, 3)

Asymmetric Unit
(-)
Clan: Bet_V_1_like (93)

(-) Gene Ontology  (12, 12)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (PYL2_ARATH | O80992)
molecular function
    GO:0010427    abscisic acid binding    Interacting selectively and non-covalently with abscisic acid, plant hormones that regulate aspects of plant growth.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0004864    protein phosphatase inhibitor activity    Stops, prevents or reduces the activity of a protein phosphatase, an enzyme that hydrolyzes phosphate groups from phosphorylated proteins.
    GO:0004872    receptor activity    Combining with an extracellular or intracellular messenger to initiate a change in cell activity.
biological process
    GO:0009738    abscisic acid-activated signaling pathway    A series of molecular signals generated by the binding of the plant hormone abscisic acid (ABA) to a receptor, and ending with modulation of a cellular process, e.g. transcription.
    GO:0043086    negative regulation of catalytic activity    Any process that stops or reduces the activity of an enzyme.
    GO:0080163    regulation of protein serine/threonine phosphatase activity    Any process that modulates the frequency, rate or extent of protein serine/threonine phosphatase activity: catalysis of the reaction: protein serine/threonine phosphate + H2O = protein serine/threonine + phosphate.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PYV  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3ns2)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3ns2
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PYL2_ARATH | O80992
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PYL2_ARATH | O80992
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PYL2_ARATH | O80992: 3kaz 3kb0 3kb3 3kdh 3kdi 3kl1 3nj0 3nj1 3nmh 3nmp 3nmt 3nmv 3nr4 3ujl 4la7 4lg5 4lga 4lgb 5jnn

(-) Related Entries Specified in the PDB File

3kdh APO-PYL2
3nef PYRABACTIN-BOUND PYL1 AT 2.4A
3neg PYRABACTIN-BOUND PYL1 AT 2.8A
3nr4 PYRABACTIN-BOUND PYL2 AT 2.01A
