3N8E - JenaLib

Title :   SUBSTRATE BINDING DOMAIN OF THE HUMAN HEAT SHOCK 70KDA PROTEIN 9 (MORTALIN)

Authors :   M. Wisniewska, T. Karlberg, C. H. Arrowsmith, H. Berglund, C. Bountra, R. Collins, A. M. Edwards, S. Flodin, A. Flores, S. Graslund, M. Hammar I. Johansson, T. Kotenyova, M. Moche, P. Nordlund, T. Nyman, C. Persso P. Schutz, M. I. Siponen, L. Svensson, A. G. Thorsell, L. Tresaugues, S Berg, E. Wahlberg, J. Weigelt, M. Welin, H. Schuler, Structural Geno Consortium (Sgc)

Date :   28 May 10 (Deposition) - 16 Jun 10 (Release) - 16 Jun 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B
Biol. Unit 1: A (1x),B (1x)
Biol. Unit 2: A,B  (2x)

Keywords :   Beta-Sandwich, Helix, Substrate Binding Domain, Structural Genomics Consortium, Sgc, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Wisniewska, T. Karlberg, C. H. Arrowsmith, H. Berglund, C. Bountra, R. Collins, A. M. Edwards, S. Flodin, A. Flores, S. Graslund, M. Hammarstrom, I. . Johansson, T. Kotenyova, M Moche, P. Nordlund, T. Nyman, C. Persson, P. Schutz, M. I. Siponem, L. Svensson, A. G. Thorsell, L. Tresaugues, S. Van Der Berg, E. Wahlberg, J. Weigelt, M. Welin, H. Schuler
Substrate Binding Domain Of The Human Heat Shock 70Kda Protein 9 (Mortalin)
To Be Published
PubMed: search

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (3, 6)

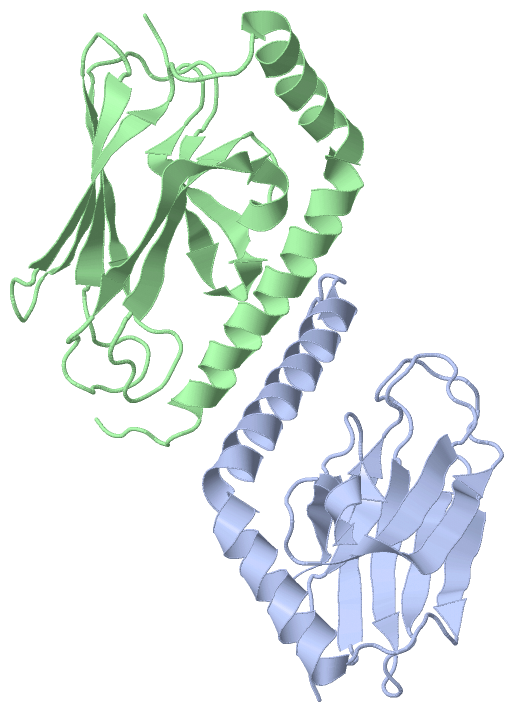

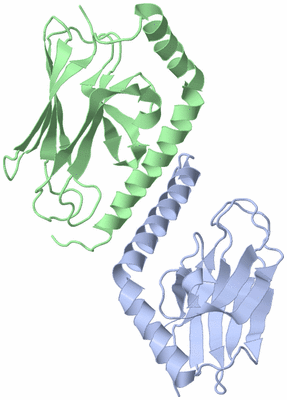

Asymmetric Unit (3, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_076669	T	539	K	GRP75_HUMAN	Polymorphism	---	A/B	T	539	K
2	UniProt	VAR_076670	R	573	W	GRP75_HUMAN	Polymorphism	147723579	A/B	R	573	W
3	UniProt	VAR_076671	E	577	K	GRP75_HUMAN	Polymorphism	---	A/B	E	577	K

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

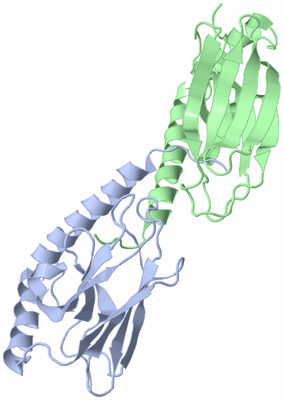

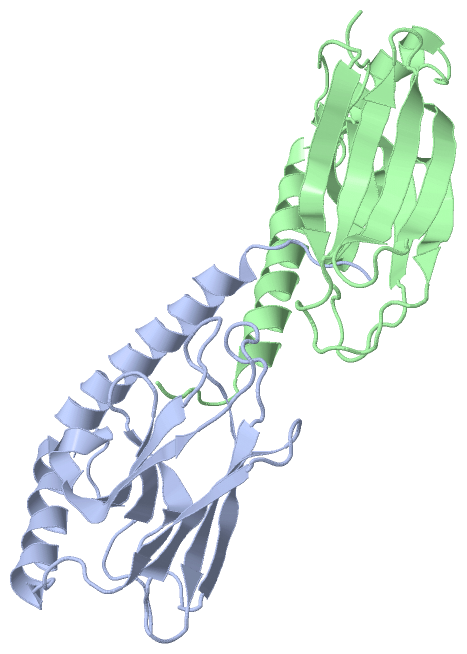

Biological Unit 1 (3, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_076669	T	539	K	GRP75_HUMAN	Polymorphism	---	A/B	T	539	K
2	UniProt	VAR_076670	R	573	W	GRP75_HUMAN	Polymorphism	147723579	A/B	R	573	W
3	UniProt	VAR_076671	E	577	K	GRP75_HUMAN	Polymorphism	---	A/B	E	577	K

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

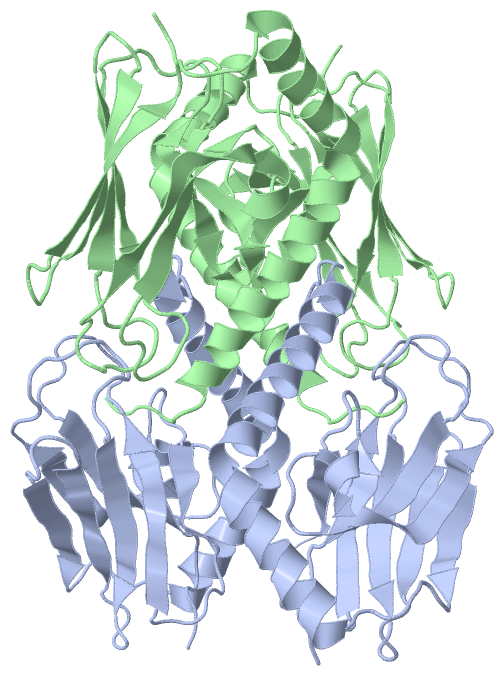

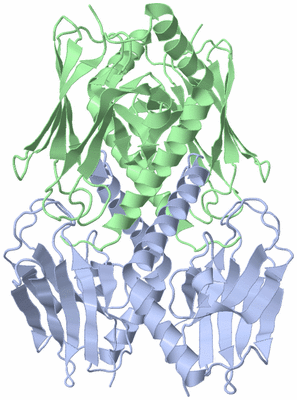

Biological Unit 2 (3, 12)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_076669	T	539	K	GRP75_HUMAN	Polymorphism	---	A/B	T	539	K
2	UniProt	VAR_076670	R	573	W	GRP75_HUMAN	Polymorphism	147723579	A/B	R	573	W
3	UniProt	VAR_076671	E	577	K	GRP75_HUMAN	Polymorphism	---	A/B	E	577	K

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:159
 aligned with GRP75_HUMAN | P38646 from UniProtKB/Swiss-Prot  Length:679

    Alignment length:159
                                   448       458       468       478       488       498       508       518       528       538       548       558       568       578       588
          GRP75_HUMAN   439 DVTPLSLGIETLGGVFTKLINRNTTIPTKKSQVFSTAADGQTQVEIKVCQGEREMAGDNKLLGQFTLIGIPPAPRGVPQIEVTFDIDANGIVHVSAKDKGTGREQQIVIQSSGGLSKDDIENMVKNAEKYAEEDRRKKERVEAVNMAEGIIHDTETKME 597
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee.....eeeee.......eeeeeee.........eeeeeee....hhhhheeeeeeee............eeeeeee.....eeeeeee.....eeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------K---------------------------------W---K-------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3n8e A 439 DVTPLSLGIETLGGVFTKLINRNTTIPTKKSQVFSTAADGQTQVEIKVCQGEREMAGDNKLLGQFTLIGIPPAPRGVPQIEVTFDIDANGIVHVSAKDKGTGREQQIVIQSSGGLSKDDIENMVKNAEKYAEEDRRKKERVEAVNMAEGIIHDTETKME 597
                                   448       458       468       478       488       498       508       518       528       538       548       558       568       578       588

Chain B from PDB  Type:PROTEIN  Length:159
 aligned with GRP75_HUMAN | P38646 from UniProtKB/Swiss-Prot  Length:679

    Alignment length:159
                                   448       458       468       478       488       498       508       518       528       538       548       558       568       578       588
          GRP75_HUMAN   439 DVTPLSLGIETLGGVFTKLINRNTTIPTKKSQVFSTAADGQTQVEIKVCQGEREMAGDNKLLGQFTLIGIPPAPRGVPQIEVTFDIDANGIVHVSAKDKGTGREQQIVIQSSGGLSKDDIENMVKNAEKYAEEDRRKKERVEAVNMAEGIIHDTETKME 597
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) HSP70-3n8eB01 B:439-597                                                                                                                                         Pfam domains (1)
           Pfam domains (2) HSP70-3n8eB02 B:439-597                                                                                                                                         Pfam domains (2)
         Sec.struct. author ......eeeeehhheeeeee.......eeeeeee.........eeeeeee....hhhhheeeeeeee............eeeeeee....eeeeeeee.....eeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------K---------------------------------W---K-------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3n8e B 439 DVTPLSLGIETLGGVFTKLINRNTTIPTKKSQVFSTAADGQTQVEIKVCQGEREMAGDNKLLGQFTLIGIPPAPRGVPQIEVTFDIDANGIVHVSAKDKGTGREQQIVIQSSGGLSKDDIENMVKNAEKYAEEDRRKKERVEAVNMAEGIIHDTETKME 597
                                   448       458       468       478       488       498       508       518       528       538       548       558       568       578       588

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 2)

Gene Ontology (22, 22)

Asymmetric Unit(hide GO term definitions)

Chain A,B (GRP75_HUMAN | P38646)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0019899	enzyme binding	Interacting selectively and non-covalently with any enzyme.
	GO:0017134	fibroblast growth factor binding	Interacting selectively and non-covalently with a fibroblast growth factor.
	GO:0031072	heat shock protein binding	Interacting selectively and non-covalently with a heat shock protein, any protein synthesized or activated in response to heat shock.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0031625	ubiquitin protein ligase binding	Interacting selectively and non-covalently with a ubiquitin protein ligase enzyme, any of the E3 proteins.
	GO:0051082	unfolded protein binding	Interacting selectively and non-covalently with an unfolded protein.
biological process
	GO:0071347	cellular response to interleukin-1	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an interleukin-1 stimulus.
	GO:0030097	hemopoiesis	The process whose specific outcome is the progression of the myeloid and lymphoid derived organ/tissue systems of the blood and other parts of the body over time, from formation to the mature structure. The site of hemopoiesis is variable during development, but occurs primarily in bone marrow or kidney in many adult vertebrates.
	GO:0043066	negative regulation of apoptotic process	Any process that stops, prevents, or reduces the frequency, rate or extent of cell death by apoptotic process.
	GO:0006611	protein export from nucleus	The directed movement of a protein from the nucleus into the cytoplasm.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0009636	response to toxic substance	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a toxic stimulus.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005925	focal adhesion	Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
	GO:0042645	mitochondrial nucleoid	The region of a mitochondrion to which the DNA is confined.
	GO:0005739	mitochondrion	A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
	GO:0043209	myelin sheath	An electrically insulating fatty layer that surrounds the axons of many neurons. It is an outgrowth of glial cells: Schwann cells supply the myelin for peripheral neurons while oligodendrocytes supply it to those of the central nervous system.
	GO:0005730	nucleolus	A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	3n8e
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GRP75_HUMAN \| P38646
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Description
