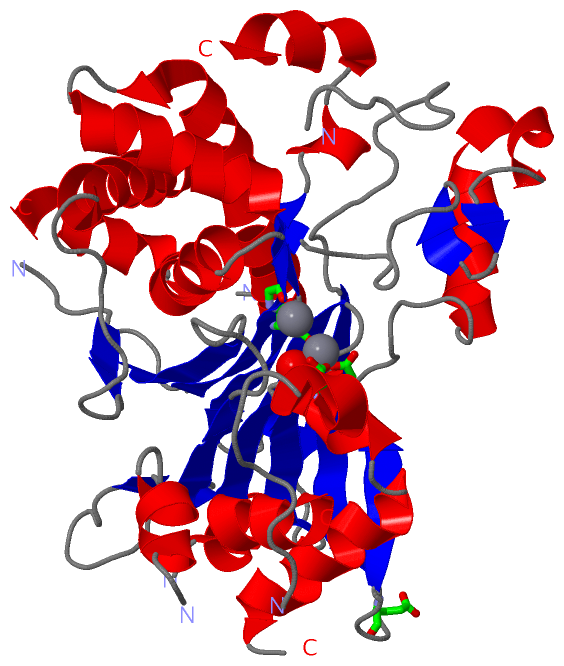

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NATIVE BOVINE PDP1C

Authors :  Y. Guo, S. R. Ernst, D. W. Carroll, Hackert M. L.
Date :  19 May 10  (Deposition) - 01 Jun 11  (Release) - 01 Jun 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Phosphatase, Pdp1C, Pyruvate Dehydrogenase Phosphatase 1, Pyruvate Dehydrogenase Complex, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Y. Guo, S. R. Ernst, D. W. Carroll, M. L. Hackert
Crystal Structure Of Catalytic Subunit Of Bovine Pyruvate Dehydrogenase Phophatase 1 - Catalytic Domain
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PYRUVATE DEHYDROGENASE PHOSPHATASE 1
    ChainsA
    EC Number3.1.3.43
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPKK233-3
    Expression System StrainJM 101
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentPDP1C, UNP RESIDUES 72-538
    GenePDP, PDP1, PPM2C
    Organism CommonBOVINE
    Organism ScientificBOS TAURUS
    Organism Taxid9913
    SynonymPDP 1, PYRUVATE DEHYDROGENASE PHOSPHATASE CATALYTIC SUBUNIT 1, PDPC 1, PROTEIN PHOSPHATASE 2C

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1MN2Ligand/IonMANGANESE (II) ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:73 , GLY A:74 , GLU A:230 , HOH A:505BINDING SITE FOR RESIDUE MN A 501
2AC2SOFTWAREASP A:73 , ASP A:347 , ASP A:445 , HOH A:504 , HOH A:507BINDING SITE FOR RESIDUE MN A 502

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3N3C)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Pro A:321 -Pro A:322

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3N3C)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPM_2PS51746 PPM-type phosphatase domain profile.PDP1_BOVIN109-525  1A:38-454
2PPM_1PS01032 PPM-type phosphatase domain signature.PDP1_BOVIN139-147  1A:68-76

(-) Exons   (0, 0)

(no "Exon" information available for 3N3C)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:378
 aligned with PDP1_BOVIN | P35816 from UniProtKB/Swiss-Prot  Length:538

    Alignment length:453
                                    91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531
           PDP1_BOVIN    82 PPQVNSILKANEYSFKVPEFDGKNVSSVLGFDSNQLPANAPIEDRRSAATCLQTRGMLLGVFDGHAGCACSQAVSERLFYYIAVSLLPHETLLEIENAVESGRALLPILQWHKHPNDYFSKEASKLYFNSLRTYWQELIDLNTGESTDIDVKEALINAFKRLDNDISLEAQVGDPNSFLNYLVLRVAFSGATACVAHVDGVDLHVANTGDSRAMLGVQEEDGSWSAVTLSNDHNAQNEREVERLKLEHPKNEAKSVVKQDRLLGLLMPFRAFGDVKFKWSIDLQKRVIESGPDQLNDNEYTKFIPPNYYTPPYLTAEPEVTYHRLRPQDKFLVLATDGLWETMHRQDVVRIVGEYLTGMHHQQPIAVGGYKVTLGQMHGLLTERRAKMSSVFEDQNAATHLIRHAVGNNEFGAVDHERLSKMLSLPEELARMYRDDITIIVVQFNSHVVGAYQ 534
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------      --------PP2C-3n3cA01 A:123-415                                                                                                                                                                                                                                                                               -              --------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh...eeee...........eeeeeeeee.......eeeeeeee.....eeeeeeeee..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhh------....eee...........hhhhhhhhhhhhhhhhhh--------.hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhee.eeeeeee..eeeeeee...eeeeeee.....eeeee........hhhhhhhhhhhhhhhhh...ee..ee.........ee.hhhh.hhhhhhhhh.------------.................eeeeee....eeeeeeehhhhhh..hhhhhhhhhhhhhh..-----------------------------------.hhhhhhhhhhh--------------........hhhhhh..eeeeeeeehhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------------------------PPM_2  PDB: A:38-454 UniProt: 109-525                                                                                                                                                                                                                                                                                                                                                                                            --------- PROSITE (1)
                PROSITE (2) ---------------------------------------------------------PPM_1    --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3n3c A  11 PPQVNSILKANEYSFKVPEFDGKNVSSVLGFDSNQLPANAPIEDRRSAATCLQTRGMLLGVFDGHAGCACSQAVSERLFYYIAVSLLPHETLLEIENA------LLPILQWHKHPNDYFSKEASKLYFNSLRTYWQELID--------IDVKEALINAFKRLDNDISLEAQVGDPNSFLNYLVLRVAFSGATACVAHVDGVDLHVANTGDSRAMLGVQEEDGSWSAVTLSNDHNAQNEREVERLKLEHPKNEAKSVVKQDRLLGLLMPFRAFGDVKFKWSIDLQKRVIE------------KFIPPNYYTPPYLTAEPEVTYHRLRPQDKFLVLATDGLWETMHRQDVVRIVGEYLTGM-----------------------------------QNAATHLIRHAV--------------KMLSLPEELARMYRDDITIIVVQFNSHVVGAYQ 463
                                    20        30        40        50        60        70        80        90       100       | -    |  120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290        |-         - |     320       330       340       350       360        |-         -         -         -    |  410     |   -         -|      440       450       460
                                                                                                                           108    115                                150      159                                                                                                                                         299          312                                                      369                                 405        416            431

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3N3C)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3N3C)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: PP2C (22)

(-) Gene Ontology  (13, 13)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PDP1_BOVIN | P35816)
molecular function
    GO:0004741    [pyruvate dehydrogenase (lipoamide)] phosphatase activity    Catalysis of the reaction: [pyruvate dehydrogenase (lipoamide)] phosphate + H2O = [pyruvate dehydrogenase (lipoamide)] + phosphate.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0043169    cation binding    Interacting selectively and non-covalently with cations, charged atoms or groups of atoms with a net positive charge.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004721    phosphoprotein phosphatase activity    Catalysis of the reaction: a phosphoprotein + H2O = a protein + phosphate. Together with protein kinases, these enzymes control the state of phosphorylation of cell proteins and thereby provide an important mechanism for regulating cellular activity.
    GO:0004722    protein serine/threonine phosphatase activity    Catalysis of the reaction: protein serine phosphate + H2O = protein serine + phosphate, and protein threonine phosphate + H2O = protein threonine + phosphate.
biological process
    GO:0016311    dephosphorylation    The process of removing one or more phosphoric (ester or anhydride) residues from a molecule.
    GO:0006470    protein dephosphorylation    The process of removing one or more phosphoric residues from a protein.
cellular component
    GO:0005759    mitochondrial matrix    The gel-like material, with considerable fine structure, that lies in the matrix space, or lumen, of a mitochondrion. It contains the enzymes of the tricarboxylic acid cycle and, in some organisms, the enzymes concerned with fatty acid oxidation.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:321 - Pro A:322   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3n3c
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PDP1_BOVIN | P35816
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.3.43
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  PDP1_BOVIN | P35816
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PDP1_BOVIN | P358163mq3

(-) Related Entries Specified in the PDB File

3mq3 LOWER RESOLUTION: 2.8 ASTROM
