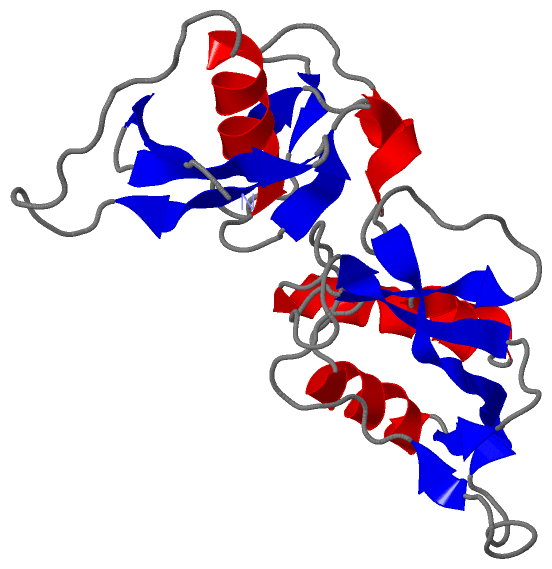

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

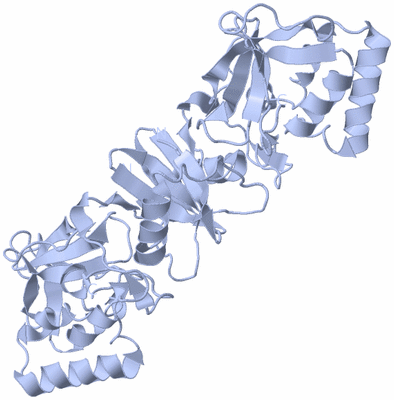

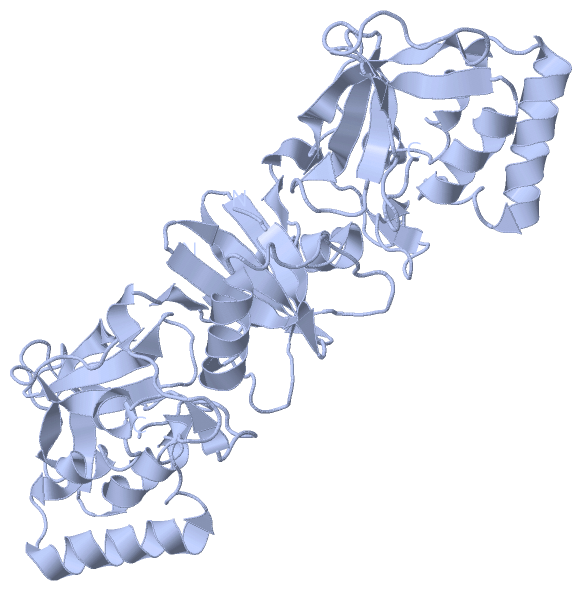

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF THE PRRSV NONSTRUCTURAL PROTEIN NSP1

Authors :  F. Xue, Y. N. Sun, L. M. Yan, C. Zhao, Z. Y. Lou, Z. H. Rao
Date :  30 Apr 10  (Deposition) - 19 May 10  (Release) - 21 Jul 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Prrsv, Nsp1, Nuclease, Papain-Like Cysteine Protease, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Xue, Y. N. Sun, L. M. Yan, C. Zhao, J. Chen, M. Bartlam, X. M. Li, Z. Y. Lou, Z. H. Rao
The Crystal Structure Of Porcine Reproductive And Respiratory Syndrome Virus Nonstructural Protein Nsp1Beta Reveals A Novel Metal-Dependent Nuclease
J. Virol. V. 84 6461 2010
PubMed-ID: 20410261  |  Reference-DOI: 10.1128/JVI.00301-10

(-) Compounds

Molecule 1 - PAPAIN-LIKE CYSTEINE PROTEASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX-6P-1
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 181-383
    Organism Common: PRRSV
    Organism Scientific: PORCINE REPRODUCTIVE AND RESPIRATORY SYNDROME VIRUS
    Organism Taxid: 28344
    Synonym: NSP1B

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3MTV)

(-) Sites  (0, 0)

(no "Site" information available for 3MTV)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3MTV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3MTV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3MTV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3MTV)

(-) Exons   (0, 0)

(no "Exon" information available for 3MTV)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:203
 aligned with B2ZAB4_PRRSV | B2ZAB4 from UniProtKB/TrEMBL  Length:2473

    Alignment length:203
                                   190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
         B2ZAB4_PRRSV   181 ADVYDIGRGAVMYVAGGKVSWAPRGGNEVKFEPVPKELKLVANRLHTSFPPHHVVDMSKFTFITPGSGVSMRVEYQYGCLPADTVPEGNCWWRLLDSLPPEVQYKEIRHANQFGYQTKHGVPGKYLQRRLQVNGLRAVTDTHGPIVIQYFSVKESWIRHLKLVEEPSLPGFEDLLRIRVEPNTSPLAGKDEKIFRFGSHKWYG 383
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------Peptidase_C32-3mtvA01 A:75-202                                                                                                  - Pfam domains
         Sec.struct. author ..eeeee..eeeeee..eeeeee..............hhhhhhhhhhhh....eee.hhh.......ee.......ee..hhhhh.....hhhhhh..hhhhhhhhhhhhhhh.........hhhhhhhhhh..eeeee.....eeeeee.......eeeee........eeeeeeeeeee..........ee.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mtv A   1 ADVYDIGRGAVMYVAGGKVSWAPRGGNEVKFEPVPKELKLVANRLHTSFPPHHVVDMSKFTFITPGSGVSMRVEYQYGCLPADTVPEGNCWWRLLDSLPPEVQYKEIRHANQFGYQTKHGVPGKYLQRRLQVNGLRAVTDTHGPIVIQYFSVKESWIRHLKLVEEPSLPGFEDLLRIRVEPNTSPLAGKDEKIFRFGSHKWYG 203
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3MTV)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3MTV)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: Peptidase_CA (169)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A   (B2ZAB4_PRRSV | B2ZAB4)
molecular function
    GO:0004197    cysteine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0008234    cysteine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019082    viral protein processing    Any protein maturation process achieved by the cleavage of a peptide bond or bonds within a viral protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
