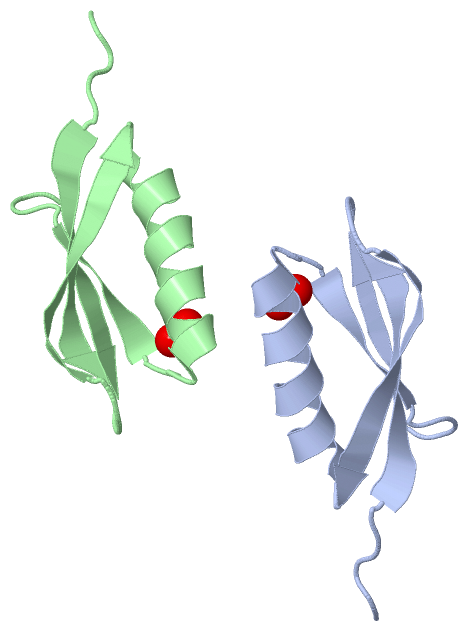

Asymmetric Unit (Jmol Viewer)

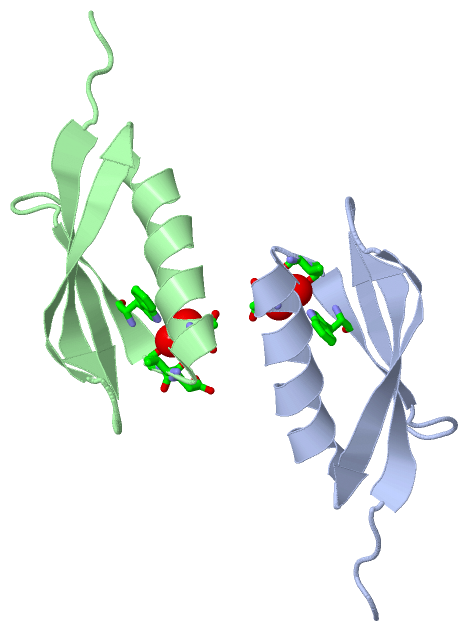

Asym. Unit - sites (Jmol Viewer)

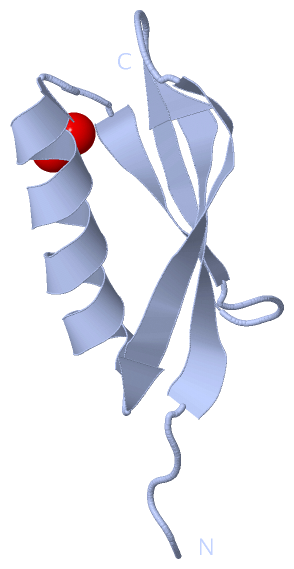

Biological Unit 1 (Jmol Viewer)

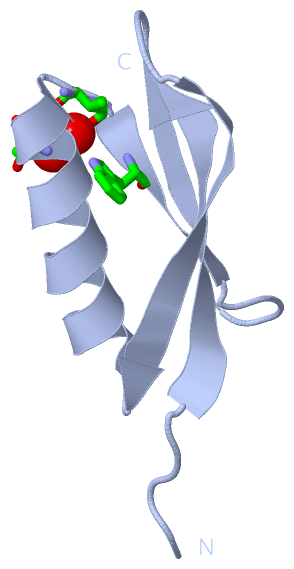

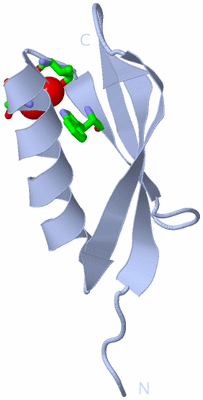

Biol. Unit 1 - sites (Jmol Viewer)

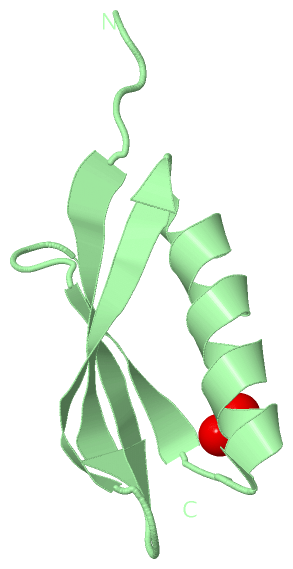

Biological Unit 2 (Jmol Viewer)

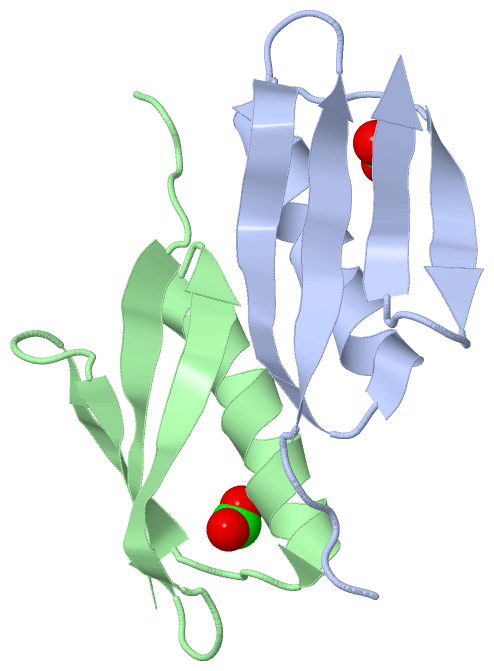

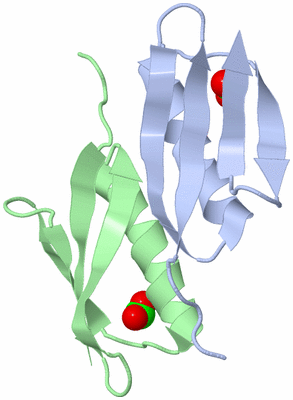

Biological Unit 3 (Jmol Viewer)

Title :   STRUCTURE OF STREPTOCOCCAL PROTEIN G B1 DOMAIN AT PH 3.0

Authors :   J. H. Tomlinson, V. L. Green, P. J. Baker, M. P. Williamson

Date :   26 Apr 10 (Deposition) - 23 Feb 11 (Release) - 23 Feb 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.20

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: A (1x),B (1x)

Keywords :   Protein G, Igg-Binding Protein, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. H. Tomlinson, V. L. Green, P. J. Baker, M. P. Williamson
Structural Origins Of Ph-Dependent Chemical Shifts In The B Domain Of Protein G.
Proteins V. 78 3000 2010
PubMed-ID: 20715051 | Reference-DOI: 10.1002/PROT.22825

Molecule 1 - IMMUNOGLOBULIN G-BINDING PROTEIN G
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET15B
	Expression System Strain	:	BL21 DE3 PLYSS
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	B1 DOMAIN (UNP RESIDUES 227-282)
	Gene	:	SPG
	Organism Scientific	:	STREPTOCOCCUS SP. 'GROUP G'
	Organism Taxid	:	1320
	Synonym	:	IGG-BINDING PROTEIN G

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:	A (1x)	B (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	FMT	2	Ligand/Ion	FORMIC ACID

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	FMT	1	Ligand/Ion	FORMIC ACID

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	FMT	1	Ligand/Ion	FORMIC ACID

Biological Unit 3 (1, 1)

No.	Name	Count	Type	Full Name
1	FMT	1	Ligand/Ion	FORMIC ACID

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:43 , VAL A:47 , GLY A:49 , TRP A:51	BINDING SITE FOR RESIDUE FMT A 65
2	AC2	SOFTWARE	ASN B:43 , VAL B:47 , ASP B:48 , GLY B:49 , TRP B:51	BINDING SITE FOR RESIDUE FMT B 65

(no "SS Bond" information available for 3MP9)

(no "Cis Peptide Bond" information available for 3MP9)

(no "SAP(SNP)/Variant" information available for 3MP9)

(no "PROSITE Motif" information available for 3MP9)

(no "Exon" information available for 3MP9)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:61
 aligned with SPG1_STRSG | P06654 from UniProtKB/Swiss-Prot  Length:448

    Alignment length:85
                                   207       217       227       237       247       257       267       277
           SPG1_STRSG   198 YHKNLINNAKTVEGVKELIDEILAALPKTDTYKLILNGKTLKGETTTEAVDAATAEKVFKQYANDNGVDGEWTYDDATKTFTVTE 282
               SCOP domains d3m                        p9a_ A:                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...------------------------..eeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhh....eeeee....eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                 3mp9 A   4 HHH------------------------AMDTYKLILNGKTLKGETTTEAVDAATAEKVFKQYANDNGVDGEWTYDDATKTFTVTE  64
                              |      -         -       | 9        19        29        39        49        59
                              6                        7

Chain B from PDB  Type:PROTEIN  Length:61
 aligned with SPG1_STRSG | P06654 from UniProtKB/Swiss-Prot  Length:448

    Alignment length:85
                                   207       217       227       237       247       257       267       277
           SPG1_STRSG   198 YHKNLINNAKTVEGVKELIDEILAALPKTDTYKLILNGKTLKGETTTEAVDAATAEKVFKQYANDNGVDGEWTYDDATKTFTVTE 282
               SCOP domains d3m                        p9b_ B:                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------------------------IgG_binding_B-3mp9B01 B:10-64                           Pfam domains (1)
           Pfam domains (2) ------------------------------IgG_binding_B-3mp9B02 B:10-64                           Pfam domains (2)
         Sec.struct. author ...------------------------..eeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhh....eeeee....eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                 3mp9 B   4 HHH------------------------AMDTYKLILNGKTLKGETTTEAVDAATAEKVFKQYANDNGVDGEWTYDDATKTFTVTE  64
                              |      -         -       | 9        19        29        39        49        59
                              6                        7

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: beta-Grasp (ubiquitin-like) (1032)

Superfamily: Immunoglobulin-binding domains (65)

Family: Immunoglobulin-binding domains (65)

Protein domain: Immunoglobulin-binding protein G, different constituent domains (36)

Streptococcus sp., group G [TaxId: 1306] (32)

1a	d3mp9a_	A:
1b	d3mp9b_	B:

(no "CATH Domain" information available for 3MP9)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: IgG_binding_B] (24)

Family: IgG_binding_B (24)

Streptococcus sp. group G (24)

1a	IgG_binding_B-3mp9B01	B:10-64
1b	IgG_binding_B-3mp9B02	B:10-64

Asymmetric Unit(hide GO term definitions)

Chain A,B (SPG1_STRSG | P06654)

molecular function
	GO:0019864	IgG binding	Interacting selectively and non-covalently with an immunoglobulin of an IgG isotype.
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005618	cell wall	The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
