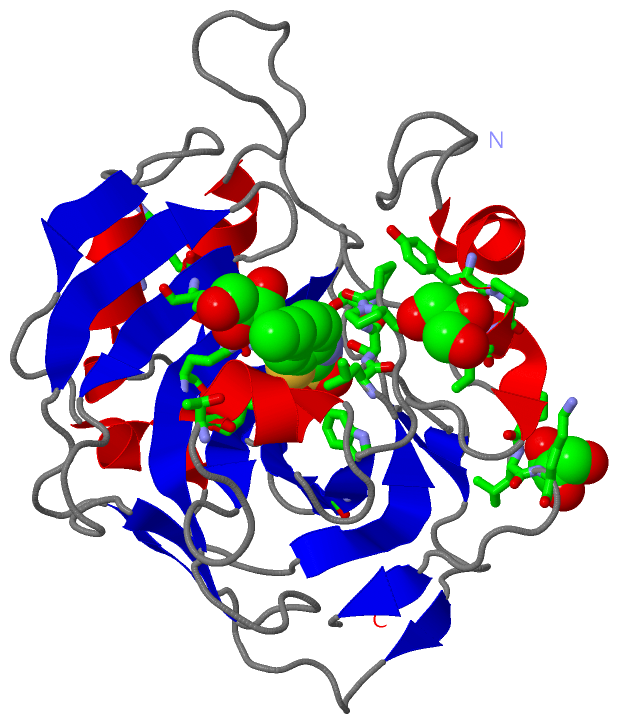

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HUMAN CARBONIC ANHYDRASE VII [ISOFORM 1], CA7

Authors :  E. Ugochukwu, N. Shafqat, E. Pilka, A. Chaikuad, T. Krojer, J. Muniz, J. J. Bray, C. Bountra, C. H. Arrowsmith, J. Weigelt, A. Edwards, F. Von D E. P. Carpenter, W. W. Yue, U. Oppermann, Structural Genomics Conso (Sgc)
Date :  31 Mar 10  (Deposition) - 23 Jun 10  (Release) - 23 Jun 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.32
Chains :  Asym./Biol. Unit :  A
Keywords :  Carbonic Anhydrase Vii, Ca7, Structural Genomics, Structural Genomics Consortium, Sgc, Cytoplasm, Lyase, Metal-Binding, Zinc (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Ugochukwu, N. Shafqat, E. Pilka, A. Chaikuad, T. Krojer, J. Muniz, J. Kim, J. Bray, C. Bountra, C. H. Arrowsmith, J. Weigelt, A. Edwards, F. Von Delft, E. P. Carpenter, W. W. Yue, U. Oppermann
Crystal Structure Of Human Carbonic Anhydrase Vii [Isoform 1], Ca7
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CARBONIC ANHYDRASE 7
    Chains: A
    EC Number: 4.2.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PNIC28-BSA4
    Expression System Strain: BL21(DE3)-R3
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES IN UNP 24-281
    Gene: CA7
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: CA7, CARBONIC ANHYDRASE VII, CA-VII, CARBONATE DEHYDRATASE VII

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 5)

Asymmetric/Biological Unit (3, 5)
No.NameCountTypeFull Name
1EZL1Ligand/Ion6-ETHOXY-1,3-BENZOTHIAZOLE-2-SULFONAMIDE
2GOL3Ligand/IonGLYCEROL
3ZN1Ligand/IonZINC ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:96 , HIS A:98 , HIS A:121 , EZL A:264BINDING SITE FOR RESIDUE ZN A 263
2AC2SOFTWAREHIS A:96 , HIS A:98 , HIS A:121 , VAL A:123 , LEU A:200 , THR A:201 , THR A:202 , PRO A:203 , TRP A:211 , ZN A:263 , GOL A:267BINDING SITE FOR RESIDUE EZL A 264
3AC3SOFTWAREARG A:223 , LYS A:227 , PRO A:252 , LEU A:253 , LYS A:254BINDING SITE FOR RESIDUE GOL A 265
4AC4SOFTWARETYR A:22 , PRO A:23 , ILE A:24 , PRO A:204BINDING SITE FOR RESIDUE GOL A 266
5AC5SOFTWAREGLN A:69 , GLN A:94 , THR A:132 , EZL A:264BINDING SITE FOR RESIDUE GOL A 267

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3MDZ)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ser A:31 -Pro A:32
2Pro A:203 -Pro A:204

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3MDZ)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ALPHA_CA_2PS51144 Alpha-carbonic anhydrases profile.CAH7_HUMAN5-262  1A:5-262
2ALPHA_CA_1PS00162 Alpha-carbonic anhydrases signature.CAH7_HUMAN107-123  1A:107-123

(-) Exons   (0, 0)

(no "Exon" information available for 3MDZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:259
 aligned with CAH7_HUMAN | P43166 from UniProtKB/Swiss-Prot  Length:264

    Alignment length:259
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
           CAH7_HUMAN     4 HHGWGYGQDDGPSHWHKLYPIAQGDRQSPINIISSQAVYSPSLQPLELSYEACMSLSITNNGHSVQVDFNDSDDRTVVTGGPLEGPYRLKQFHFHWGKKHDVGSEHTVDGKSFPSELHLVHWNAKKYSTFGEAASAPDGLAVVGVFLETGDEHPSMNRLTDALYMVRFKGTKAQFSCFNPKCLLPASRHYWTYPGSLTTPPLSESVTWIVLREPICISERQMGKFRSLLFTSEDDERIHMVNNFRPPQPLKGRVVKASF 262
               SCOP domains d3mdza_ A: automated matches                                                                                                                                                                                                                                        SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---Carb_anhydrase-3mdzA01 A:7-262                                                                                                                                                                                                                                   Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhh......ee.....ee.......eee.....eeeeee....eeeee.......eee.......eeeeeeeeee..........ee......eeeeeeee......hhhhhh.....eeeeeeeeee....hhhhhhhhhh........eee....hhhhhh.....eeeeee..........eeeeee...eeehhhhhhhhhh............................ee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -ALPHA_CA_2  PDB: A:5-262 UniProt: 5-262                                                                                                                                                                                                                            PROSITE (1)
                PROSITE (2) -------------------------------------------------------------------------------------------------------ALPHA_CA_1       ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mdz A   4 MHGWGYGQDDGPSHWHKLYPIAQGDRQSPINIISSQAVYSPSLQPLELSYEACMSLSITNNGHSVQVDFNDSDDRTVVTGGPLEGPYRLKQFHFHWGKKHDVGSEHTVDGKSFPSELHLVHWNAKKYSTFGEAASAPDGLAVVGVFLETGDEHPSMNRLTDALYMVRFKGTKAQFSCFNPKCLLPASRHYWTYPGSLTTPPLSESVTWIVLREPICISERQMGKFRSLLFTSEDDERIHMVNNFRPPQPLKGRVVKASF 262
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3MDZ)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Carb_anhydrase] (168)

(-) Gene Ontology  (14, 14)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CAH7_HUMAN | P43166)
molecular function
    GO:0004089    carbonate dehydratase activity    Catalysis of the reaction: H2CO3 = CO2 + H2O.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0015701    bicarbonate transport    The directed movement of bicarbonate into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006730    one-carbon metabolic process    The chemical reactions and pathways involving the transfer of one-carbon units in various oxidation states.
    GO:0032849    positive regulation of cellular pH reduction    Any process that activates or increases the frequency, rate, or extent of a process that reduces the internal pH of a cell.
    GO:0002230    positive regulation of defense response to virus by host    Any host process that results in the promotion of antiviral immune response mechanisms, thereby limiting viral replication.
    GO:0098779    positive regulation of macromitophagy in response to mitochondrial depolarization    The macromitophagy process that is triggered by a detection of the loss of mitochondrial membrane potential.
    GO:0032230    positive regulation of synaptic transmission, GABAergic    Any process that activates, maintains or increases the frequency, rate or extent of GABAergic synaptic transmission, the process of communication from a neuron to another neuron across a synapse using the neurotransmitter gamma-aminobutyric acid (GABA).
    GO:2001225    regulation of chloride transport    Any process that modulates the frequency, rate or extent of chloride transport.
    GO:0098792    xenophagy    The macroautophagy process in which a region of cytoplasm containing an intracellular pathogen or some part of an intracellular pathogen (e.g. viral capsid) is enclosed in a double membrane bound autophagosome, which then fuses with the lysosome leading to degradation of the contents.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    EZL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:203 - Pro A:204   [ RasMol ]
    Ser A:31 - Pro A:32   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3mdz
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAH7_HUMAN | P43166
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.1.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CAH7_HUMAN | P43166
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAH7_HUMAN | P43166: 3ml5

(-) Related Entries Specified in the PDB File

3caj CRYSTAL STRUCTURE OF THE HUMAN CARBONIC ANHYDRASE II IN COMPLEX WITH ETHOXZOLAMIDE
