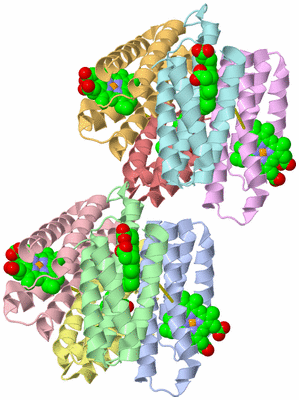

Asymmetric Unit (Jmol Viewer)

Asym. Unit - sites (Jmol Viewer)

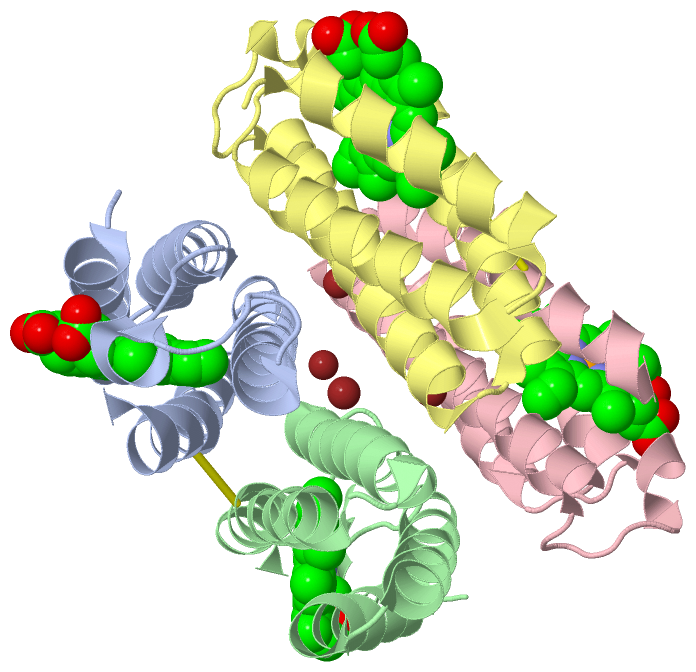

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   A TETRAMERIC ZN-BOUND CYTOCHROME CB562 COMPLEX WITH COVALENTLY AND NON-COVALENTLY STABILIZED INTERFACES CRYSTALLIZED IN THE PRESENCE OF CU(II) AND ZN(II)

Authors :   J. D. Brodin, F. A. Tezcan

Date :   16 Mar 10 (Deposition) - 16 Jun 10 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,B,C,D  (1x)
Biol. Unit 2: E,F,G,H  (1x)

Keywords :   Tetramer Of Four Helix Bundles, Electron Transport, Heme, Iron, Metal-Binding, Transport, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. D. Brodin, A. Medina-Morales, T. Ni, E. N. Salgado, X. I. Ambroggio, F. A. Tezcan
Evolution Of Metal Selectivity In Templated Protein Interfaces.
J. Am. Chem. Soc. V. 132 8610 2010
PubMed-ID: 20515031 | Reference-DOI: 10.1021/JA910844N

Molecule 1 - SOLUBLE CYTOCHROME B562
	Chains	:	A, B, C, D, E, F, G, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	CYBC
	Mutation	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	CYTOCHROME B-562

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A	B	C	D
Biological Unit 2 (1x)	:					E	F	G	H

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 16)

No.	Name	Count	Type	Full Name
1	HEM	8	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	ZN	8	Ligand/Ion	ZINC ION

Biological Unit 1 (1, 4)

No.	Name	Count	Type	Full Name
1	HEM	4	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (1, 4)

No.	Name	Count	Type	Full Name
1	HEM	4	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (16, 16)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLU A:4 , MET A:7 , GLU A:8 , ASN A:11 , MET A:33 , PRO A:45 , PRO A:46 , PHE A:61 , PHE A:65 , CYS A:98 , CYS A:101 , HIS A:102 , ARG A:106 , HOH A:350 , GLU H:49 , ASP H:50	BINDING SITE FOR RESIDUE HEM A 150
02	AC2	SOFTWARE	HIS A:73 , HIS A:77 , ASP C:74 , HIS D:63	BINDING SITE FOR RESIDUE ZN A 107
03	AC3	SOFTWARE	LEU B:3 , GLU B:4 , MET B:7 , ASN B:11 , PRO B:45 , PRO B:46 , PHE B:61 , CYS B:98 , CYS B:101 , HIS B:102 , ARG B:106 , HOH B:343	BINDING SITE FOR RESIDUE HEM B 150
04	AC4	SOFTWARE	HIS B:73 , HIS B:77 , HIS C:63 , ASP D:74	BINDING SITE FOR RESIDUE ZN B 107
05	AC5	SOFTWARE	GLU C:4 , MET C:7 , ASN C:11 , PRO C:45 , PRO C:46 , PHE C:61 , PHE C:65 , CYS C:98 , CYS C:101 , HIS C:102	BINDING SITE FOR RESIDUE HEM C 150
06	AC6	SOFTWARE	ASP A:74 , HIS B:63 , HIS C:73 , HIS C:77	BINDING SITE FOR RESIDUE ZN C 107
07	AC7	SOFTWARE	GLU D:4 , MET D:7 , MET D:33 , PRO D:45 , PRO D:46 , PHE D:61 , CYS D:98 , CYS D:101 , HIS D:102 , ARG D:106	BINDING SITE FOR RESIDUE HEM D 150
08	AC8	SOFTWARE	HIS A:63 , ASP B:74 , HIS D:73 , HIS D:77	BINDING SITE FOR RESIDUE ZN D 107
09	AC9	SOFTWARE	ASP D:50 , GLU E:4 , MET E:7 , MET E:33 , PRO E:45 , PRO E:46 , PHE E:61 , LEU E:68 , CYS E:98 , CYS E:101 , HIS E:102 , TYR E:105 , ARG E:106 , HOH E:158	BINDING SITE FOR RESIDUE HEM E 150
10	BC1	SOFTWARE	HIS E:73 , HIS E:77 , ASP G:74 , HIS H:63	BINDING SITE FOR RESIDUE ZN E 107
11	BC2	SOFTWARE	GLU A:4 , GLU F:4 , MET F:7 , GLU F:8 , ASN F:11 , PRO F:45 , PRO F:46 , PHE F:61 , CYS F:98 , CYS F:101 , HIS F:102 , ARG F:106 , HOH F:346	BINDING SITE FOR RESIDUE HEM F 150
12	BC3	SOFTWARE	HIS F:73 , HIS F:77 , HIS G:63 , ASP H:74	BINDING SITE FOR RESIDUE ZN F 107
13	BC4	SOFTWARE	LEU G:3 , GLU G:4 , MET G:7 , ASN G:11 , PRO G:45 , PRO G:46 , PHE G:61 , CYS G:98 , CYS G:101 , HIS G:102 , TYR G:105 , ARG G:106	BINDING SITE FOR RESIDUE HEM G 150
14	BC5	SOFTWARE	ASP E:74 , HIS F:63 , HIS G:73 , HIS G:77	BINDING SITE FOR RESIDUE ZN G 107
15	BC6	SOFTWARE	GLU H:4 , MET H:7 , LEU H:10 , PRO H:45 , PRO H:46 , PHE H:61 , LEU H:94 , CYS H:98 , CYS H:101 , HIS H:102 , TYR H:105 , ARG H:106	BINDING SITE FOR RESIDUE HEM H 150
16	BC7	SOFTWARE	HIS E:63 , ASP F:74 , HIS H:73 , HIS H:77	BINDING SITE FOR RESIDUE ZN H 107

Asymmetric Unit

No.	Residues
1	A:96	-	B:96
2	C:96	-	D:96
3	E:96	-	F:96
4	G:96	-	H:96

(no "Cis Peptide Bond" information available for 3M79)

(no "SAP(SNP)/Variant" information available for 3M79)

(no "PROSITE Motif" information available for 3M79)

(no "Exon" information available for 3M79)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79a_ A: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 A   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain B from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79b_ B: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 B   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain C from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79c_ C: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 C   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain D from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79d_ D: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 D   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain E from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79e_ E: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 E   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain F from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79f_ F: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 F   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain G from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79g_ G: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 G   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Chain H from PDB  Type:PROTEIN  Length:106
 aligned with C562_ECOLX | P0ABE7 from UniProtKB/Swiss-Prot  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
           C562_ECOLX    23 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYHQKYR 128
               SCOP domains d3m79h_ H: automated matches                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Cytochrom_B562-3m79H01 H:1-106                                                                             Pfam domains (1)
           Pfam domains (2) Cytochrom_B562-3m79H02 H:1-106                                                                             Pfam domains (2)
           Pfam domains (3) Cytochrom_B562-3m79H03 H:1-106                                                                             Pfam domains (3)
           Pfam domains (4) Cytochrom_B562-3m79H04 H:1-106                                                                             Pfam domains (4)
           Pfam domains (5) Cytochrom_B562-3m79H05 H:1-106                                                                             Pfam domains (5)
           Pfam domains (6) Cytochrom_B562-3m79H06 H:1-106                                                                             Pfam domains (6)
           Pfam domains (7) Cytochrom_B562-3m79H07 H:1-106                                                                             Pfam domains (7)
           Pfam domains (8) Cytochrom_B562-3m79H08 H:1-106                                                                             Pfam domains (8)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3m79 H   1 ADLEDNMETLNDNLKVIEKADNAAQVKDALTKMAAAAADAWSATPPKLEDKSPDSPEMHDFRHGFWILIGQIHDALHLANEGKVKEAQAAAEQLKCTCNACHQKYR 106
                                    10        20        30        40        50        60        70        80        90       100

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Four-helical up-and-down bundle (308)

Superfamily: Cytochromes (82)

Family: Cytochrome b562 (38)

Protein domain: automated matches (32)

Escherichia coli [TaxId: 562] (31)

1a	d3m79a_	A:
1b	d3m79b_	B:
1c	d3m79c_	C:
1d	d3m79d_	D:
1e	d3m79e_	E:
1f	d3m79f_	F:
1g	d3m79g_	G:
1h	d3m79h_	H:

(no "CATH Domain" information available for 3M79)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: Cytochrom_B562] (14)

Family: Cytochrom_B562 (14)

Escherichia coli (13)

1a	Cytochrom_B562-3m79H01	H:1-106
1b	Cytochrom_B562-3m79H02	H:1-106
1c	Cytochrom_B562-3m79H03	H:1-106
1d	Cytochrom_B562-3m79H04	H:1-106
1e	Cytochrom_B562-3m79H05	H:1-106
1f	Cytochrom_B562-3m79H06	H:1-106
1g	Cytochrom_B562-3m79H07	H:1-106
1h	Cytochrom_B562-3m79H08	H:1-106

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (C562_ECOLX | P0ABE7)

molecular function
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0022900	electron transport chain	A process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3m79)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3m79
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	C562_ECOLX \| P0ABE7
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	C562_ECOLX \| P0ABE7
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 16)

Sites (16, 16)

SS Bonds (4, 4)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 8)

CATH Domains (0, 0)

Pfam Domains (1, 8)

Gene Ontology (7, 7)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
