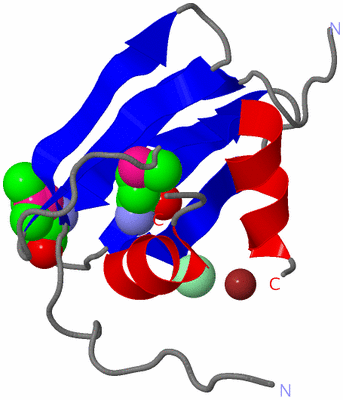

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

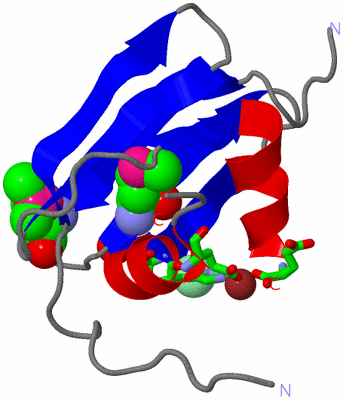

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PROTEIN WITH UNKNOWN FUNCTION WHICH BELONGS TO PFAM DUF971 FAMILY (AFE_2189) FROM ACIDITHIOBACILLUS FERROOXIDANS ATCC 23270 AT 1.93 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  18 Feb 10  (Deposition) - 09 Mar 10  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.93
Chains :  Asym./Biol. Unit :  A
Keywords :  Afe_2189, Pfam Duf971 Family, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi-2, Quinone Biosynthesis, Biosynthetic Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Protein With Unknown Function Which Belongs To Pfam Duf971 Family (Afe_2189) From Acidithiobacillus Ferrooxidans Atcc 23270 At 1. 93 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: SPEEDET
    Expression System Strain: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: AFE_0852, AFE_2189
    Organism Scientific: ACIDITHIOBACILLUS FERROOXIDANS
    Organism Taxid: 243159
    Strain: ATCC 23270 / DSM 14882 / NCIB 8455

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 4)

Asymmetric/Biological Unit (3, 4)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION
2MSE2Mod. Amino AcidSELENOMETHIONINE
3ZN1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:21 , HIS A:36 , GLU A:40 , GLU A:100BINDING SITE FOR RESIDUE ZN A 101
2AC2SOFTWARETHR A:33 , HIS A:36 , HOH A:117BINDING SITE FOR RESIDUE CL A 102

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3LUU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3LUU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3LUU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3LUU)

(-) Exons   (0, 0)

(no "Exon" information available for 3LUU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:89
 aligned with B7J6R7_ACIF2 | B7J6R7 from UniProtKB/TrEMBL  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
         B7J6R7_ACIF2     2 SDPRTQPLEIRPLMISRVMEVDWADGHTSRLTFEHLRVECPCAECKGHTPDQAQIVTGKEHVSVVEVVPVGHYAVQLHFSDGHNTGIFTWEYLRRLDAE 100
               SCOP domains --------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------DUF971-3luuA01 A:10-95                                                                ----- Pfam domains
         Sec.struct. author ......eeeeeee....eeeeee....eeeeehhhhhhh...----------...........eeeeeee...eeeeee.......eeehhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 3luu A   2 SDPRTQPLEIRPLmISRVmEVDWADGHTSRLTFEHLRVECPC----------AQIVTGKEHVSVVEVVPVGHYAVQLHFSDGHNTGIFTWEYLRRLDAE 100
                                    11   |    21        31        41 |       -  |     61        71        81        91
                                        15-MSE|                     43         54
                                             20-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3LUU)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3LUU)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DUF971] (5)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (B7J6R7_ACIF2 | B7J6R7)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3luu)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

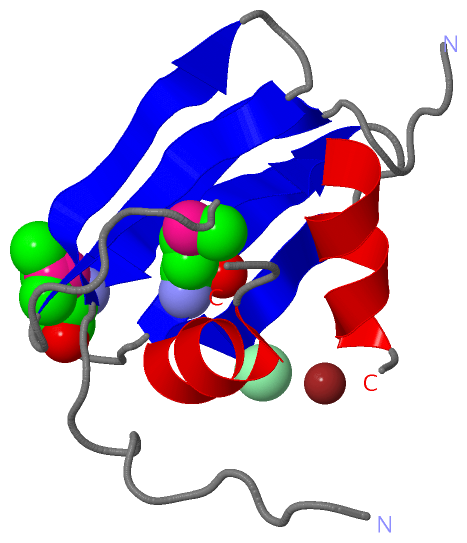

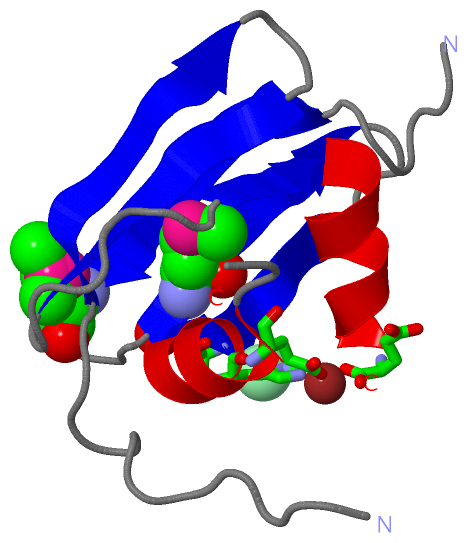

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
