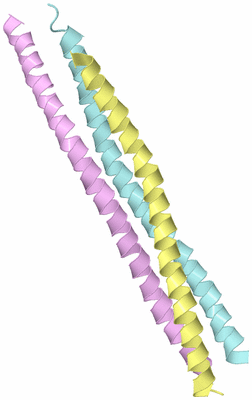

Biological Unit 2 (Jmol Viewer)

Title :   A TRANSITION FROM STRONG RIGHT-HANDED TO CANONICAL LEFT-HANDED SUPERCOILING IN A CONSERVED COILED COIL SEGMENT OF TRIMERIC AUTOTRANSPORTER ADHESINS - THE M3 MUTANT STRUCTURE

Authors :   K. Zeth, B. Hernandez-Alvarez, A. N. Lupas

Date :   15 Feb 10 (Deposition) - 31 Mar 10 (Release) - 05 May 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.50

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B,C  (1x)
Biol. Unit 2: D,E,F  (1x)

Keywords :   Adhesion, Coiled Coil, Trimeric Autotransporter, Cell Adhesion, Cell Membrane, Cell Outer Membrane, Membrane, Plasmid, Virulence (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. H. Alvarez, M. Gruber, A. Ursinus, S. Dunin-Horkawicz, A. N. Lupas, K. Zeth
A Transition From Strong Right-Handed To Canonical Left-Handed Supercoiling In A Conserved Coiled-Coil Segment Of Trimeric Autotransporter Adhesins.
J. Struct. Biol. V. 170 236 2010
PubMed-ID: 20178846 | Reference-DOI: 10.1016/J.JSB.2010.02.009

Molecule 1 - ADHESIN YADA
	Chains	:	A, B, C, D, E, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	YADA, INVA, YOP1, YOPA
	Organism Scientific	:	YERSINIA ENTEROCOLITICA
	Organism Taxid	:	630

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A	B	C
Biological Unit 2 (1x)	:				D	E	F

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 3LT7)

(no "Site" information available for 3LT7)

(no "SS Bond" information available for 3LT7)

Asymmetric Unit

No.	Residues
1	Lys A:-7	-	Ser A:-6
2	Asn C:53	-	Ser C:54
3	Lys D:-7	-	Ser D:-6
4	Asn F:53	-	Ser F:54

(no "SAP(SNP)/Variant" information available for 3LT7)

(no "PROSITE Motif" information available for 3LT7)

(no "Exon" information available for 3LT7)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:54
 aligned with YADA1_YEREN | P31489 from UniProtKB/Swiss-Prot  Length:455

    Alignment length:54
                                   342       352       362       372       382
          YADA1_YEREN   333 KSSHTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGL 386
               SCOP domains ------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------ Transcript
                 3lt7 A  -7 KSSHTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFHQLENRLDKLEKRLLKLL  46
                                     2        12        22        32        42

Chain B from PDB  Type:PROTEIN  Length:61
 aligned with YADA1_YEREN | P31489 from UniProtKB/Swiss-Prot  Length:455

    Alignment length:61
                                   345       355       365       375       385       395
          YADA1_YEREN   336 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNSLF 396
               SCOP domains ------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------- Transcript
                 3lt7 B  -4 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFHQLENRLDKLEKRLLKLLASSAALNSLF  56
                                     5        15        25        35        45        55

Chain C from PDB  Type:PROTEIN  Length:59
 aligned with YADA1_YEREN | P31489 from UniProtKB/Swiss-Prot  Length:455

    Alignment length:59
                                   345       355       365       375       385
          YADA1_YEREN   336 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNS 394
               SCOP domains ----------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------- Transcript
                 3lt7 C  -4 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFHQLENRLDKLEKRLLKLLASSAALNS  54
                                     5        15        25        35        45

Chain D from PDB  Type:PROTEIN  Length:54
 aligned with YADA1_YEREN | P31489 from UniProtKB/Swiss-Prot  Length:455

    Alignment length:54
                                   342       352       362       372       382
          YADA1_YEREN   333 KSSHTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGL 386
               SCOP domains ------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------ Transcript
                 3lt7 D  -7 KSSHTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFHQLENRLDKLEKRLLKLL  46
                                     2        12        22        32        42

Chain E from PDB  Type:PROTEIN  Length:61
 aligned with YADA1_YEREN | P31489 from UniProtKB/Swiss-Prot  Length:455

    Alignment length:61
                                   345       355       365       375       385       395
          YADA1_YEREN   336 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNSLF 396
               SCOP domains ------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------- Transcript
                 3lt7 E  -4 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFHQLENRLDKLEKRLLKLLASSAALNSLF  56
                                     5        15        25        35        45        55

Chain F from PDB  Type:PROTEIN  Length:59
 aligned with YADA1_YEREN | P31489 from UniProtKB/Swiss-Prot  Length:455

    Alignment length:59
                                   345       355       365       375       385
          YADA1_YEREN   336 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFRQLDNRLDKLDTRVDKGLASSAALNS 394
               SCOP domains ----------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------- CATH domains
           Pfam domains (1) ------------------------------------------YadA-3lt7F01      Pfam domains (1)
           Pfam domains (2) ------------------------------------------YadA-3lt7F02      Pfam domains (2)
           Pfam domains (3) ------------------------------------------YadA-3lt7F03      Pfam domains (3)
           Pfam domains (4) ------------------------------------------YadA-3lt7F04      Pfam domains (4)
           Pfam domains (5) ------------------------------------------YadA-3lt7F05      Pfam domains (5)
           Pfam domains (6) ------------------------------------------YadA-3lt7F06      Pfam domains (6)
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------- Transcript
                 3lt7 F  -4 HTLKTANSYTDVTVSNSTKKAIRESNQYTDHKFHQLENRLDKLEKRLLKLLASSAALNS  54
                                     5        15        25        35        45

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3LT7)

(no "CATH Domain" information available for 3LT7)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Pilus (9)

Family: YadA (2)

Yersinia enterocolitica (2)

1a	YadA-3lt7F01	F:38-54
1b	YadA-3lt7F02	F:38-54
1c	YadA-3lt7F03	F:38-54
1d	YadA-3lt7F04	F:38-54
1e	YadA-3lt7F05	F:38-54
1f	YadA-3lt7F06	F:38-54

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (YADA1_YEREN | P31489)

molecular function
	GO:0005518	collagen binding	Interacting selectively and non-covalently with collagen, a group of fibrous proteins of very high tensile strength that form the main component of connective tissue in animals. Collagen is highly enriched in glycine (some regions are 33% glycine) and proline, occurring predominantly as 3-hydroxyproline (about 20%).
biological process
	GO:0007155	cell adhesion	The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0009279	cell outer membrane	A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0019867	outer membrane	The external membrane of Gram-negative bacteria or certain organelles such as mitochondria and chloroplasts; freely permeable to most ions and metabolites.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3lt7)

	Sites
(no "Sites" information available for 3lt7)

	Cis Peptide Bonds
		Asn C:53 - Ser C:54	[ RasMol ]
		Asn F:53 - Ser F:54	[ RasMol ]
		Lys A:-7 - Ser A:-6	[ RasMol ]
		Lys D:-7 - Ser D:-6	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3lt7
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	YADA1_YEREN \| P31489
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	YADA1_YEREN \| P31489
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	YADA1_YEREN \| P31489	:	1p9h 3lt6

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (4, 4)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 6)

Gene Ontology (7, 7)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
