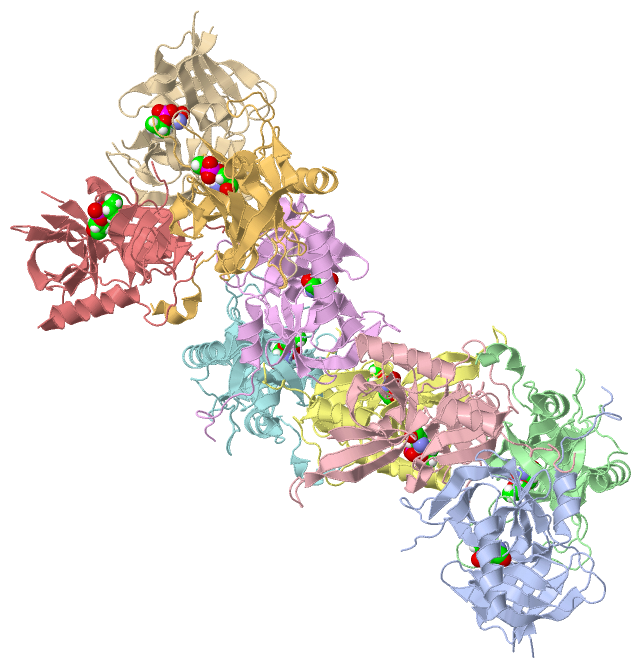

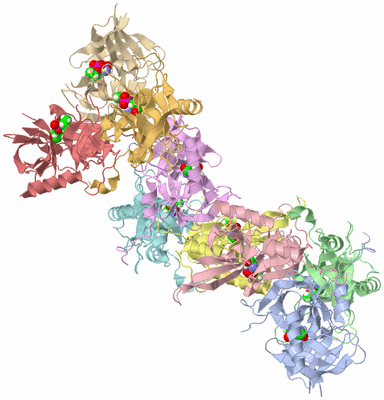

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

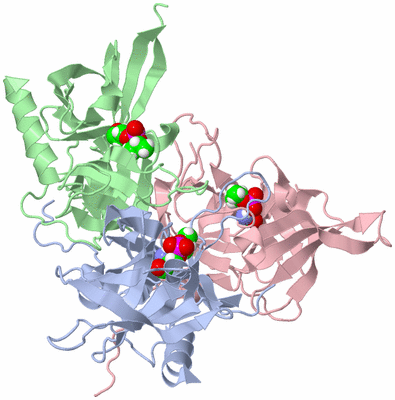

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

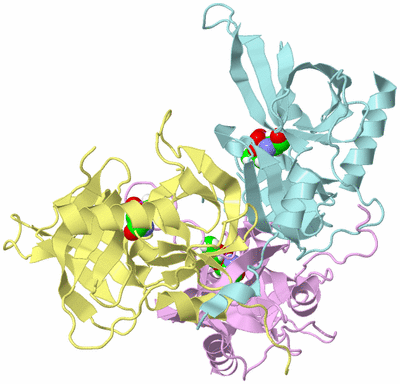

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

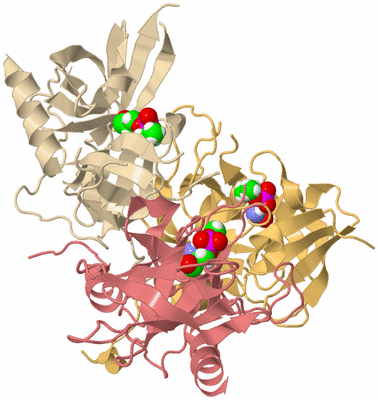

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  DFP MODIFIED DEGS DELTA PDZ

Authors :  J. Sohn, R. A. Grant, R. T. Sauer
Date :  21 Jan 10  (Deposition) - 25 Aug 10  (Release) - 10 Nov 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.35
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I
Biol. Unit 1:  A,B,C  (1x)
Biol. Unit 2:  D,E,F  (1x)
Biol. Unit 3:  G,H,I  (1x)
Keywords :  Protease, Stress-Sensor, Htra, Pdz Omp, Hydrolase, Serine Protease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Sohn, R. A. Grant, R. T. Sauer
Allostery Is An Intrinsic Property Of The Protease Domain O Degs: Implications For Enzyme Function And Evolution.
J. Biol. Chem. V. 285 34039 2010
PubMed-ID: 20739286  |  Reference-DOI: 10.1074/JBC.M110.135541

(-) Compounds

Molecule 1 - PROTEASE DEGS
    Chains: A, B, C, D, E, F, G, H, I
    EC Number: 3.4.21.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21B
    Expression System Strain: X90(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: PROTEASE DOMAIN
    Gene: B3235, DEGS, HHOB, HTRH, JW3204
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12

 Structural Features

(-) Chains, Units

  123456789
Asymmetric Unit : ABCDEFGHI
Biological Unit 1 (1x): ABC
Biological Unit 2 (1x):    DEF
Biological Unit 3 (1x):       GHI

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 9)

Asymmetric Unit (1, 9)
No.NameCountTypeFull Name
1MIS9Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1MIS3Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1MIS3Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE
Biological Unit 3 (1, 3)
No.NameCountTypeFull Name
1MIS3Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE

(-) Sites  (0, 0)

(no "Site" information available for 3LH3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3LH3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3LH3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3LH3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3LH3)

(-) Exons   (0, 0)

(no "Exon" information available for 3LH3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:207
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:216
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDG 252
               SCOP domains d3lh3a_ A: automated matches                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........hhhhhhhhh..eeeeeeee..-----..eeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeeeeee.----.....eeee...........eeee....eeeeeeee.............eeeeehhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3lh3 A  37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLN-----QLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRI----TGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDG 252
                                    46        56        66|     | 76        86        96       106       116       126       136       146       156       166       176  |    186       196    |  206       216       226       236       246
                                                         67    73                                                                                                       179  184              201-MIS


Chain B from PDB  Type:PROTEIN  Length:213
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:216
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDG 252
               SCOP domains d3lh3b_ B: automated matches                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhh....hhhhhhhhh..eeeeeeeee.---...eeeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeeee.............eee...........eeee....eeeeeeee.............eeeeehhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3lh3 B  37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLN---HNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDG 252
                                    46        56        66|   |   76        86        96       106       116       126       136       146       156       166       176       186       196    |  206       216       226       236       246
                                                         67  71                                                                                                                               201-MIS


Chain C from PDB  Type:PROTEIN  Length:214
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:217
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDGR 253
               SCOP domains d3lh3c_ C: automated matches                                                                                                                                                                                              SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhh..eeeeeeeeee.....eeeeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeee..............eee...........eeee....eeeeeeee....---......eeeeehhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lh3 C  37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFDKS---ETPEGIGFAIPFQLATKIMDKLIRDGR 253
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196    |  206       216      |  -|      236       246
                                                                                                                                                                                              201-MIS               223 227


Chain D from PDB  Type:PROTEIN  Length:212
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:217
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
           DEGS_ECOLI    40 TDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDGRVIR 256
               SCOP domains d3lh3d_ D: automated matches                                                                                                                                                                                              SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhh..eeeeeeeee.......eeeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeeeeee..........eeee...........eeee....eeeeeeee..-----......eeeeehhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lh3 D  40 TDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFD-----ETPEGIGFAIPFQLATKIMDKLIRDGRVIR 256
                                    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199 |     209       219 |     229       239       249
                                                                                                                                                                                           201-MIS             221   227


Chain E from PDB  Type:PROTEIN  Length:203
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:215
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRD 251
               SCOP domains d3lh3e_ E: automated matches                                                                                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhh..eeeeeeeee..----.eeeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeeeeee.--------.eeee...........eeee....eeeeeeee.............eeeeehhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lh3 E  37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNT----QLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRI--------NFLQTDASINHGNsGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRD 251
                                    46        56        66 |    | 76        86        96       106       116       126       136       146       156       166       176  |      - |     196    |  206       216       226       236       246
                                                          68   73                                                                                                       179      188          201-MIS


Chain F from PDB  Type:PROTEIN  Length:211
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:216
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRDG 252
               SCOP domains d3lh3f_ F: automated matches                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhh....hhhhhhhhh..eeeeeeeee.......eeeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeeee.............eee...........eeee....eeeeeeee..-----......eeeeehhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3lh3 F  37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFD-----ETPEGIGFAIPFQLATKIMDKLIRDG 252
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196    |  206       216    |    -|      236       246
                                                                                                                                                                                              201-MIS             221   227


Chain G from PDB  Type:PROTEIN  Length:202
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:215
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRD 251
               SCOP domains d3lh3g_ G: automated matches                                                                                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh....hhhhhhhhh..eeeeeee---------....eeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeee..............eee...........eeee....eeeeeeee...----......eeeeehhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lh3 G  37 FDSTDETPASYNLAVRRAAPAVVNVYNR---------LEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFDK----ETPEGIGFAIPFQLATKIMDKLIRD 251
                                    46        56       | -       |76        86        96       106       116       126       136       146       156       166       176       186       196    |  206       216     |   -|      236       246
                                                      64        74                                                                                                                            201-MIS              222  227


Chain H from PDB  Type:PROTEIN  Length:193
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:211
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           DEGS_ECOLI    41 DETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRD 251
               SCOP domains d3lh3h_ H: automated ma             tches                                                                                                                                                                           SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhh..eeeee.-------------..eeeeee.....eeeee.........eeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeee..............eee...........eee.....eeeeeeee...-----.....eeeeehhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lh3 H  41 DETPASYNLAVRRAAPAVVNVYN-------------RTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNsGGALVNSLGELMGINTLSFDK-----TPEGIGFAIPFQLATKIMDKLIRD 251
                                    50        60  |      -      | 80        90       100       110       120       130       140       150       160       170       180       190       200|      210       220 |     230       240       250
                                                 63            77                                                                                                                         201-MIS              222   228


Chain I from PDB  Type:PROTEIN  Length:198
 aligned with DEGS_ECOLI | P0AEE3 from UniProtKB/Swiss-Prot  Length:355

    Alignment length:215
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           DEGS_ECOLI    37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLNTNSHNQLEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIGLNPTGRQNFLQTDASINHGNSGGALVNSLGELMGINTLSFDKSNDGETPEGIGFAIPFQLATKIMDKLIRD 251
               SCOP domains d3lh3i_ I: automated matches                                                                                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------------Trypsin-3lh3I10 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (1)
           Pfam domains (2) -------------Trypsin-3lh3I11 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (2)
           Pfam domains (3) -------------Trypsin-3lh3I12 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (3)
           Pfam domains (4) -------------Trypsin-3lh3I13 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (4)
           Pfam domains (5) -------------Trypsin-3lh3I14 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (5)
           Pfam domains (6) -------------Trypsin-3lh3I15 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (6)
           Pfam domains (7) -------------Trypsin-3lh3I16 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (7)
           Pfam domains (8) -------------Trypsin-3lh3I17 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (8)
           Pfam domains (9) -------------Trypsin-3lh3I18 I:      50-245                                                                                                                                                                      --PDZ- Pfam domains (9)
         Sec.struct. author ..........hhhhhhhhh..eeeeeeee..------.eeeeeeeeee.....eeeeehhhhh...eeeee.....eeeeeeeeee....eeeee......................eeeeeehhhhh..eeeeeeeee.....------...eee...........eeee....eeeeeeee..-----......eeeeehhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lh3 I  37 FDSTDETPASYNLAVRRAAPAVVNVYNRGLN------LEIRTLGSGVIMDQRGYIITNKHVINDADQIIVALQDGRVFEALLVGSDSLTDLAVLKINATGGLPTIPINARRVPHIGDVVLAIGNPYNLGQTITQGIISATGRIG------QNFLQTDASINHGNsGGALVNSLGELMGINTLSFD-----ETPEGIGFAIPFQLATKIMDKLIRD 251
                                    46        56        66|      |76        86        96       106       116       126       136       146       156       166       176   |     -|      196    |  206       216    |    -|      236       246
                                                         67     74                                                                                                       180    187           201-MIS             221   227
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 9)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3LH3)

(-) Pfam Domains  (2, 18)

Asymmetric Unit
(-)
Clan: PDZ-like (184)
(-)
Family: PDZ (172)
(-)
Escherichia coli (strain K12) (21)
1aPDZ-3lh3I01I:248-251
1bPDZ-3lh3I02I:248-251
1cPDZ-3lh3I03I:248-251
1dPDZ-3lh3I04I:248-251
1ePDZ-3lh3I05I:248-251
1fPDZ-3lh3I06I:248-251
1gPDZ-3lh3I07I:248-251
1hPDZ-3lh3I08I:248-251
1iPDZ-3lh3I09I:248-251
(-)
Clan: Peptidase_PA (797)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I   (DEGS_ECOLI | P0AEE3)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0071218    cellular response to misfolded protein    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a misfolded protein stimulus.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0071575    integral component of external side of plasma membrane    The component of the plasma membrane consisting of the gene products that penetrate only the external side of the membrane.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0031226    intrinsic component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having either part of their peptide sequence embedded in the hydrophobic region of the membrane or some other covalently attached group such as a GPI anchor that is similarly embedded in the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MIS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3lh3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3lh3)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3lh3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DEGS_ECOLI | P0AEE3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.4.21.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DEGS_ECOLI | P0AEE3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DEGS_ECOLI | P0AEE3: 1sot 1soz 1te0 1vcw 2qf0 2qf3 2qgr 2r3u 2r3y 2rce 3b8j 3gcn 3gco 3gds 3gdu 3gdv 3lgi 3lgt 3lgu 3lgv 3lgw 3lgy 3lh1 4rqy 4rqz 4rr0 4rr1

(-) Related Entries Specified in the PDB File

2rce THIS ENTRY SUPERSEDES 2RCE
3lgi UNMODIFIED DOMAIN
3lgt Y162/H198P DOUBLE MUTANT DOMAIN
3lgu
3lgv H198P MUTANT DOMAIN
3lgw
3lgy
3lh1
