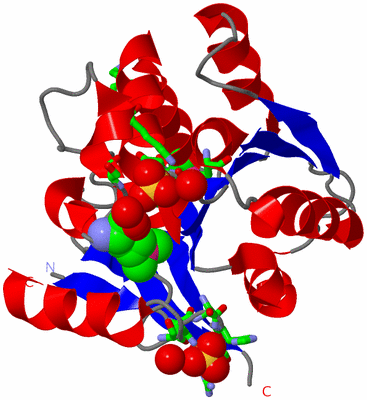

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  1.5A CRYSTAL STRUCTURE OF A PUTATIVE PEPTIDASE E PROTEIN FROM LISTERIA MONOCYTOGENES EGD-E

Authors :  J. S. Brunzelle, O. Onopriyenko, A. Savchenko, W. F. Anderson, Center Structural Genomics Of Infectious Diseases (Csgid)
Date :  19 Dec 09  (Deposition) - 14 Jul 10  (Release) - 14 Jul 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Hypothetical Protein Lmo0363, Csgid, Similar To Peptidase E, Hydrolase, Protease, Serine Protease, Structural Genomics, National Institute Of Allergy And Infectious Diseases, National Institutes Of Health, Department Of Health And Human Services, Center For Structural Genomics Of Infectious Diseases (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. S. Brunzelle, O. Onopriyenko, A. Savchenko, W. F. Anderson, Center For Structural Genomics Of Infectious Diseases (Csgid)
1. 5A Crystal Structure Of A Putative Peptidase E Protein From Listeria Monocytogenes Egd-E
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNCHARACTERIZED PEPTIDASE LMO0363
    Chains: A
    EC Number: 3.4.21.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21(DE3)-MAGIC
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: LMO0363
    Organism Scientific: LISTERIA MONOCYTOGENES
    Organism Taxid: 169963
    Strain: EGD-E

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name
1MSE2Mod. Amino AcidSELENOMETHIONINE
2SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:103 , ASN A:163 , SER A:187 , ASN A:188 , HIS A:189 , ARG A:203 , HOH A:279BINDING SITE FOR RESIDUE SO4 A 206
2AC2SOFTWAREGLU A:39 , ASN A:88 , MSE A:135 , SER A:137 , LYS A:140 , HOH A:283 , HOH A:359BINDING SITE FOR RESIDUE SO4 A 207

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3L4E)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Thr A:164 -Pro A:165

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3L4E)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3L4E)

(-) Exons   (0, 0)

(no "Exon" information available for 3L4E)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:202
 aligned with Y363_LISMO | P58495 from UniProtKB/Swiss-Prot  Length:205

    Alignment length:206
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199
           Y363_LISMO     - -MKNLFLTSSFKDVVPLFTEFESNLQGKTVTFIPTASTVEEVTFYVEAGKKALESLGLLVEELDIATESLGEITTKLRKNDFIYVTGGNTFFLLQELKRTGADKLILEEIAAGKLYIGESAGAVITSPNIAYIQTMDSTKKAVNLTNYDALNLVDFSTLPHYNNTPFKEITQKIVTEYAGKSQIYPISNHEAIFIRGKEVITKRLS 205
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------Peptidase_S51-3l4eA01 A:44-198                                                                                                                             ------- Pfam domains
         Sec.struct. author ...eeeee.hhhhhhhhhhhhh......eeeeehhhhhhh..hhhhhhhhhhhhhh..eeee......hhhhhhhhhhhh.eeee...hhhhhhhhhhhhhhhhhhhhhhhh..eeeeehhhhhh....hhhhh...hhhhh..............eee.......hhhhhhhhhhhh----.eee....eeeeee..eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3l4e A   0 AmKNLFLTSSFKDVVPLFTEFESNLQGKTVTFIPTASTVEEVTFYVEAGKKALESLGLLVEELDIATESLGEITTKLRKNDFIYVTGGNTFFLLQELKRTGADKLILEEIAAGKLYIGESAGAVITSPNIAYIQTmDSTKKAVNLTNYDALNLVDFSTLPHYNNTPFKEITQKIVTEY----QIYPISNHEAIFIRGKEVITKRLS 205
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129     | 139       149       159       169       | -  |    189       199
                             |                                                                                                                                   135-MSE                                   177  182
                             1-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3L4E)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3L4E)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Glutaminase_I (73)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Y363_LISMO | P58495)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
