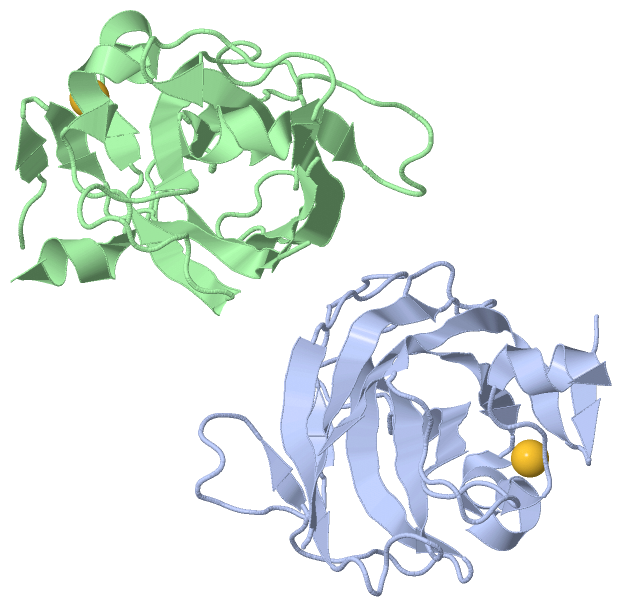

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

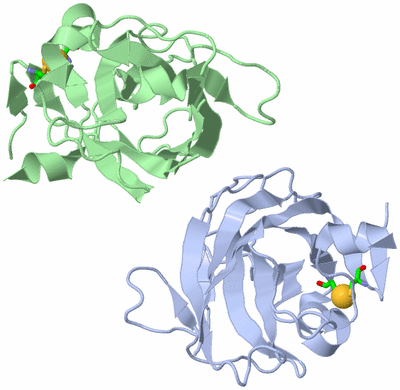

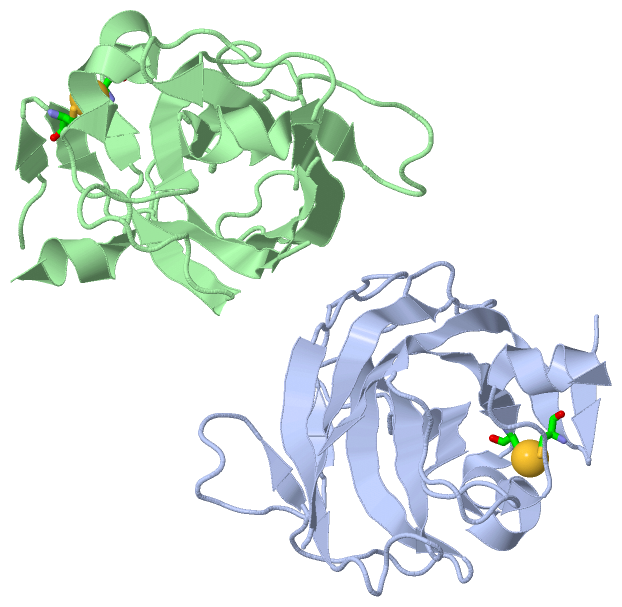

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

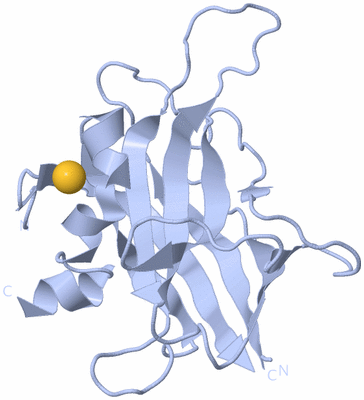

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

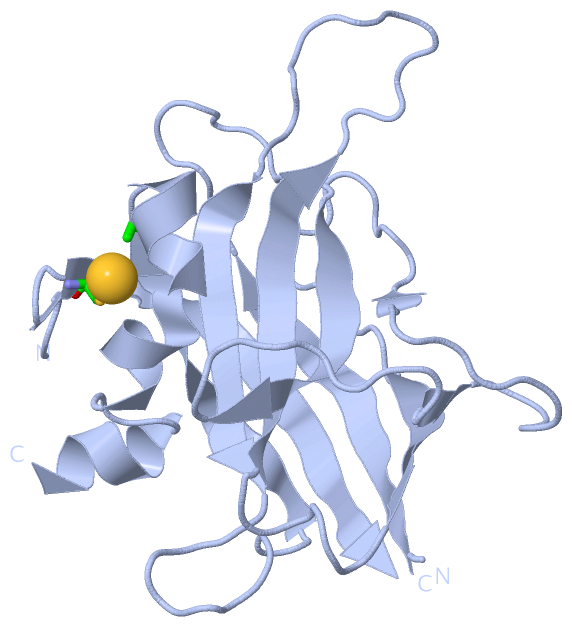

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

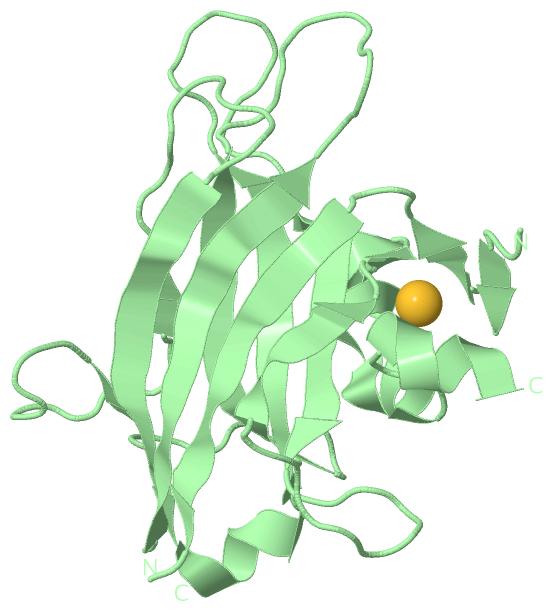

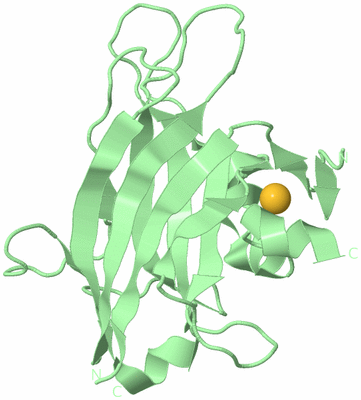

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURAL BASIS OF MEMBRANE-TARGETING BY DOCK180

Authors :  L. Premkumar, A. A. Bobkov, M. Patel, L. Jaroszewski, L. A. Bankston, B. K. Vuori, J-. F. Cote, R. C. Liddington
Date :  18 Dec 09  (Deposition) - 23 Feb 10  (Release) - 19 May 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.37
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Dock180, Dock1, Phosphoinositide Specificity, Guanine Exchange Factor, Rho Gtpase, Cytoskeleton, Cell Migration, Cell Polarity, Apoptosis, Cytoplasm, Guanine-Nucleotide Releasing Factor, Membrane, Phagocytosis, Phosphoprotein, Sh3 Domain, Sh3-Binding, Cell Adhesion, Cell Invasion (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  L. Premkumar, A. A. Bobkov, M. Patel, L. Jaroszewski, L. A. Bankston, B. Stec, K. Vuori, J. F. Cote, R. C. Liddington
Structural Basis Of Membrane Targeting By The Dock180 Family Of Rho Family Guanine Exchange Factors (Rho-Gefs).
J. Biol. Chem. V. 285 13211 2010
PubMed-ID: 20167601  |  Reference-DOI: 10.1074/JBC.M110.102517

(-) Compounds

Molecule 1 - DEDICATOR OF CYTOKINESIS PROTEIN 1
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentDOCK HOMOLOGY REGION-1, DHR-1
    GeneDOCK1
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Synonym180 KDA PROTEIN DOWNSTREAM OF CRK, DOCK180

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1BME2Ligand/IonBETA-MERCAPTOETHANOL
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1BME1Ligand/IonBETA-MERCAPTOETHANOL
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1BME1Ligand/IonBETA-MERCAPTOETHANOL

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:556 , CYS A:595BINDING SITE FOR RESIDUE BME A 2
2AC2SOFTWAREALA B:556 , CYS B:595BINDING SITE FOR RESIDUE BME B 1

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3L4C)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3L4C)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3L4C)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DHR_1PS51650 DHR-1 domain profile.DOCK1_HUMAN425-609

  2A:425-609
B:425-609
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DHR_1PS51650 DHR-1 domain profile.DOCK1_HUMAN425-609

  1A:425-609
-
Biological Unit 2 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DHR_1PS51650 DHR-1 domain profile.DOCK1_HUMAN425-609

  1-
B:425-609

(-) Exons   (0, 0)

(no "Exon" information available for 3L4C)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:178
 aligned with DOCK1_HUMAN | Q14185 from UniProtKB/Swiss-Prot  Length:1865

    Alignment length:185
                                   434       444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604
          DOCK1_HUMAN   425 RNDIYVTLVQGDFDKGSKTTAKNVEVTVSVYDEDGKRLEHVIFPGAGDEAISEYKSVIYYQVKQPRWFETVKVAIPIEDVNRSHLRFTFRHRSSQDSKDKSEKIFALAFVKLMRYDGTTLRDGEHDLIVYKAEAKKLEDAATYLSLPSTKAELEEKGHSATGKSMQSLGSCTISKDSFQISTLVC 609
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeee...........eeeeeeeee.........ee..........ee.............eeeeeee.......eeeeeeeee............eeeeeeee...........eeeeeeeee.hhhhhhhhhhhh....hhhhhhh.-------...ee..eeeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE DHR_1  PDB: A:425-609 UniProt: 425-609                                                                                                                                                    PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3l4c A 425 RNDIYVTLVQGDFDKGSKTTAKNVEVTVSVYDEDGKRLEHVIFPGAGDEAISEYKSVIYYQVKQPRWFETVKVAIPIEDVNRSHLRFTFRHRSSQDSKDKSEKIFALAFVKLMRYDGTTLRDGEHDLIVYKAEAKKLEDAATYLSLPSTKAELEEK-------SMQSLGSCTISKDSFQISTLVC 609
                                   434       444       454       464       474       484       494       504       514       524       534       544       554       564       574     |   -   |   594       604
                                                                                                                                                                                     580     588

Chain B from PDB  Type:PROTEIN  Length:179
 aligned with DOCK1_HUMAN | Q14185 from UniProtKB/Swiss-Prot  Length:1865

    Alignment length:187
                                   434       444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604
          DOCK1_HUMAN   425 RNDIYVTLVQGDFDKGSKTTAKNVEVTVSVYDEDGKRLEHVIFPGAGDEAISEYKSVIYYQVKQPRWFETVKVAIPIEDVNRSHLRFTFRHRSSQDSKDKSEKIFALAFVKLMRYDGTTLRDGEHDLIVYKAEAKKLEDAATYLSLPSTKAELEEKGHSATGKSMQSLGSCTISKDSFQISTLVCST 611
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) DOCK-C2-3l4cB01 B:425-611                                                                                                                                                                   Pfam domains (1)
           Pfam domains (2) DOCK-C2-3l4cB02 B:425-611                                                                                                                                                                   Pfam domains (2)
         Sec.struct. author .eeeeeeeeeee...........eeeeeeeee.........ee..........ee..........eeeeeeeeeehhhhhh.eeeeeeeee............eeeeeeee...........eeeee..ee.hhhhhhhhhhhh....hhhhhhh--------...ee..eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE DHR_1  PDB: B:425-609 UniProt: 425-609                                                                                                                                                   -- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3l4c B 425 RNDIYVTLVQGDFDKGSKTTAKNVEVTVSVYDEDGKRLEHVIFPGAGDEAISEYKSVIYYQVKQPRWFETVKVAIPIEDVNRSHLRFTFRHRSSQDSKDKSEKIFALAFVKLMRYDGTTLRDGEHDLIVYKAEAKKLEDAATYLSLPSTKAELEE--------SMQSLGSCTISKDSFQISTLVCST 611
                                   434       444       454       464       474       484       494       504       514       524       534       544       554       564       574    |    -   |   594       604
                                                                                                                                                                                    579      588

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3L4C)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3L4C)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: C2 (71)

(-) Gene Ontology  (23, 23)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (DOCK1_HUMAN | Q14185)
molecular function
    GO:0005096    GTPase activator activity    Binds to and increases the activity of a GTPase, an enzyme that catalyzes the hydrolysis of GTP.
    GO:0005089    Rho guanyl-nucleotide exchange factor activity    Stimulates the exchange of guanyl nucleotides associated with a GTPase of the Rho family. Under normal cellular physiological conditions, the concentration of GTP is higher than that of GDP, favoring the replacement of GDP by GTP in association with the GTPase.
    GO:0017124    SH3 domain binding    Interacting selectively and non-covalently with a SH3 domain (Src homology 3) of a protein, small protein modules containing approximately 50 amino acid residues found in a great variety of intracellular or membrane-associated proteins.
    GO:0005085    guanyl-nucleotide exchange factor activity    Stimulates the exchange of guanyl nucleotides associated with a GTPase. Under normal cellular physiological conditions, the concentration of GTP is higher than that of GDP, favoring the replacement of GDP by GTP in association with the GTPase.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0038096    Fc-gamma receptor signaling pathway involved in phagocytosis    An Fc-gamma receptor signaling pathway that contributes to the endocytic engulfment of external particulate material by phagocytes.
    GO:0006915    apoptotic process    A programmed cell death process which begins when a cell receives an internal (e.g. DNA damage) or external signal (e.g. an extracellular death ligand), and proceeds through a series of biochemical events (signaling pathway phase) which trigger an execution phase. The execution phase is the last step of an apoptotic process, and is typically characterized by rounding-up of the cell, retraction of pseudopodes, reduction of cellular volume (pyknosis), chromatin condensation, nuclear fragmentation (karyorrhexis), plasma membrane blebbing and fragmentation of the cell into apoptotic bodies. When the execution phase is completed, the cell has died.
    GO:0007596    blood coagulation    The sequential process in which the multiple coagulation factors of the blood interact, ultimately resulting in the formation of an insoluble fibrin clot; it may be divided into three stages: stage 1, the formation of intrinsic and extrinsic prothrombin converting principle; stage 2, the formation of thrombin; stage 3, the formation of stable fibrin polymers.
    GO:0016477    cell migration    The controlled self-propelled movement of a cell from one site to a destination guided by molecular cues. Cell migration is a central process in the development and maintenance of multicellular organisms.
    GO:0007010    cytoskeleton organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures.
    GO:0007229    integrin-mediated signaling pathway    A series of molecular signals initiated by the binding of extracellular ligand to an integrin on the surface of a target cell, and ending with regulation of a downstream cellular process, e.g. transcription.
    GO:0006909    phagocytosis    An endocytosis process that results in the engulfment of external particulate material by phagocytes. The particles are initially contained within phagocytic vacuoles (phagosomes), which then fuse with primary lysosomes to effect digestion of the particles.
    GO:0006911    phagocytosis, engulfment    The internalization of bacteria, immune complexes and other particulate matter or of an apoptotic cell by phagocytosis, including the membrane and cytoskeletal processes required, which involves one of three mechanisms: zippering of pseudopods around a target via repeated receptor-ligand interactions, sinking of the target directly into plasma membrane of the phagocytosing cell, or induced uptake via an enhanced membrane ruffling of the phagocytosing cell similar to macropinocytosis.
    GO:0043547    positive regulation of GTPase activity    Any process that activates or increases the activity of a GTPase.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0007264    small GTPase mediated signal transduction    Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
    GO:0048010    vascular endothelial growth factor receptor signaling pathway    Any series of molecular signals initiated by the binding of an extracellular ligand to a vascular endothelial growth factor receptor (VEGFR) located on the surface of the receiving cell, and ending with regulation of a downstream cellular process, e.g. transcription.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0032045    guanyl-nucleotide exchange factor complex    A protein complex that stimulates the exchange of guanyl nucleotides associated with a GTPase.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BME  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3l4c)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3l4c
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DOCK1_HUMAN | Q14185
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DOCK1_HUMAN | Q14185
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
