(-) Description

Title :  CRYSTAL STRUCTURE OF THE PROTEIN YQBN. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET SR445.

Authors :  A. P. Kuzin, M. Su, J. Seetharaman, D. Wang, Y. Fang, K. Cunningham, L. - C. Ma, R. Xiao, M. Liu, M. C. Baran, T. B. Acton, B. Rost, G. T. Montelione, J. F. Hunt, L. Tong, Northeast Structural Genomics Consortium (Nesg)
Date :  09 Nov 09  (Deposition) - 24 Nov 09  (Release) - 08 Dec 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Nesg, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Unknown Function, Northeast Structural Genomics Consortium (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. P. Kuzin, M. Su, J. Seetharaman, D. Wang, Y. Fang, K. Cunningham, L. -C. Ma, R. Xiao, M. Liu, M. C. Baran, T. B. Acton, B. Rost, G. T. Montelione, J. F. Hunt, L. Tong
Crystal Structure Of The Protein Yqbn. Northeast Structural Genomics Consortium Target Sr445.
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN YQBN
    Chains: A
    Engineered: YES
    Gene: YQBN, BSU26040
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1MN1Ligand/IonMANGANESE (II) ION
2MSE1Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:38 , ASP A:52 , GLU A:111 , ARG A:115BINDING SITE FOR RESIDUE MN A 158

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3KLU)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Tyr A:92 -Pro A:93

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3KLU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3KLU)

(-) Exons   (0, 0)

(no "Exon" information available for 3KLU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:119
 aligned with YQBN_BACSU | P45930 from UniProtKB/Swiss-Prot  Length:149

    Alignment length:130
                                    17        27        37        47        57        67        77        87        97       107       117       127       137
           YQBN_BACSU     8 KVYDLSFFMPGQTIEAEEVEVPISKRFVDKEGNVVPFIFKAITTERIDELEKENTTYKNVKGRGRVKELDSQRFYARIAVETTVYPNFKAKELREAYKTEDPVEVAKRVLSVGGEYANWLNKAIEINGFD 137
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---XkdN-3kluA01 A:11-137                                                                                                           Pfam domains
         Sec.struct. author ...hhhhhh.........eee...............eee...hhhhhhhhhhhh..-----------..hhhhhhhhhhhhheee....hhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3klu A   8 KVYDLSFFmPGQTIDAEEVEVPISKRFVDKEGNVVPFIFKAITTDRIDELEKENTT-----------ELDSQRFYARIAVETTVYPTFKAKELREAYKTEDPVEVAKRVLSVGGEYANWLNKAIEINGFD 137
                                    17        27        37        47        57     |   -       |77        87        97       107       117       127       137
                                   16-MSE                                         63          75
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3KLU)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3KLU)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: XkdN] (1)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3KLU)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Tyr A:92 - Pro A:93   [ RasMol ]

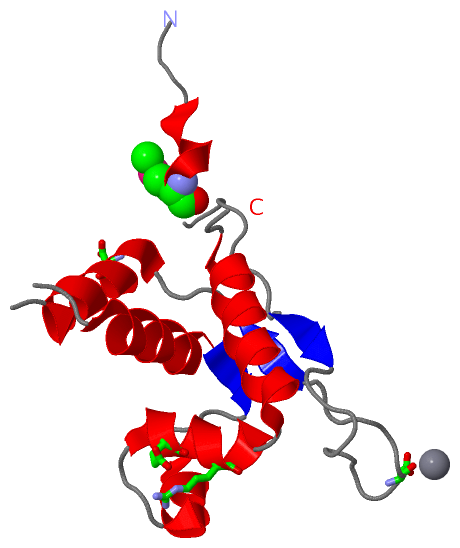

(-) Still Images
