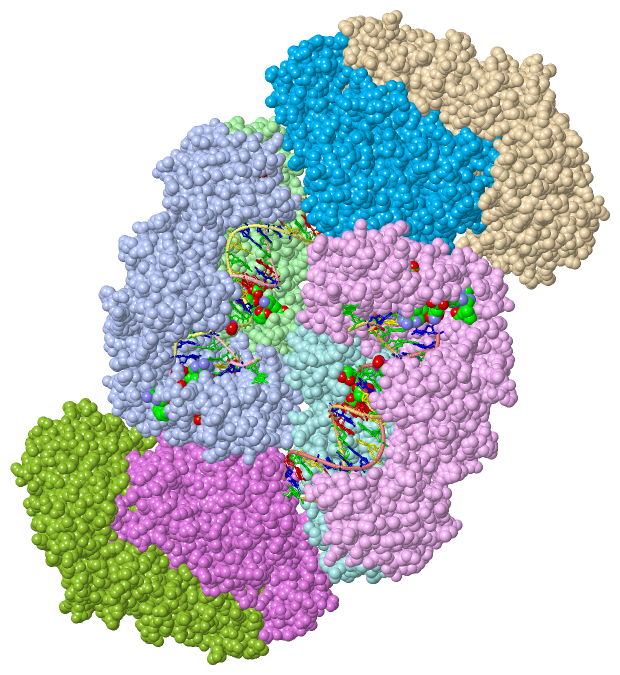

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

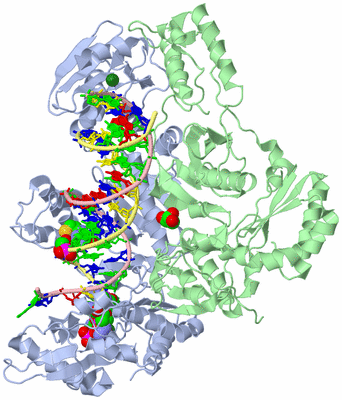

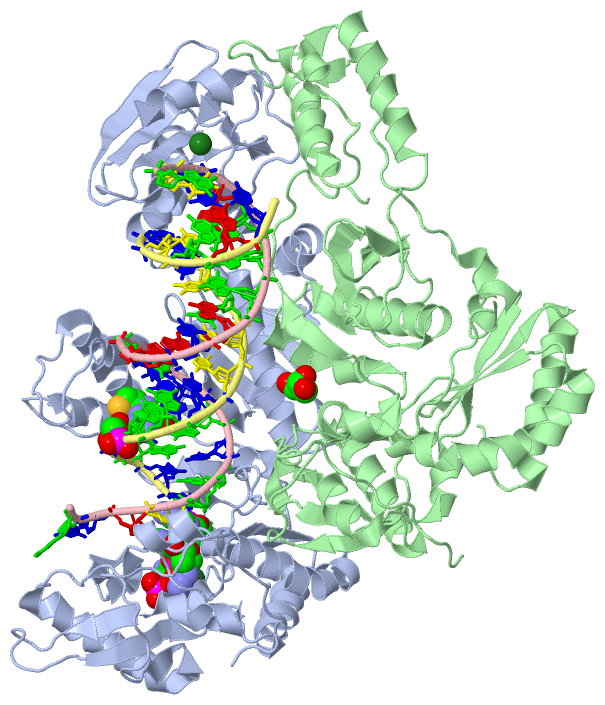

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

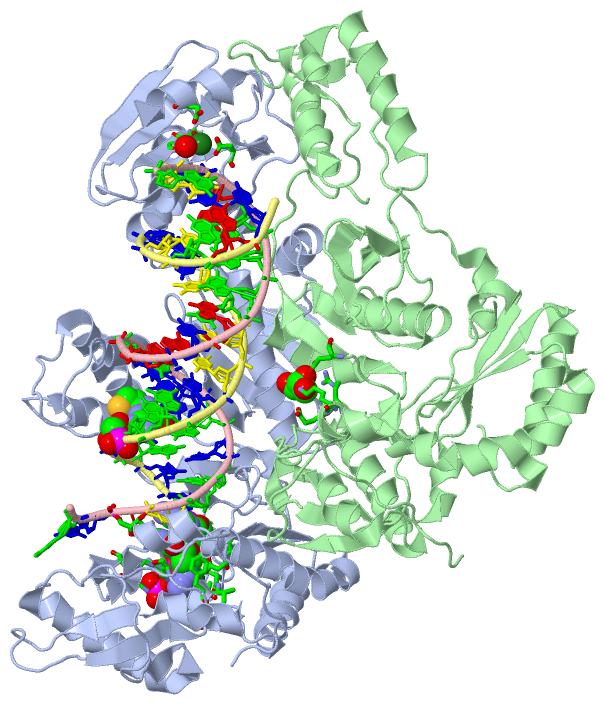

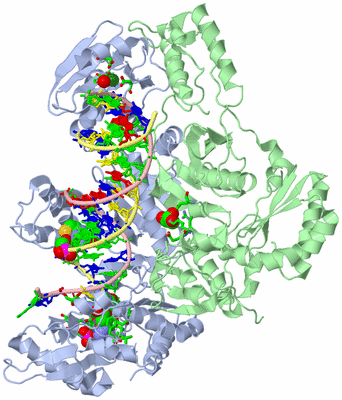

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

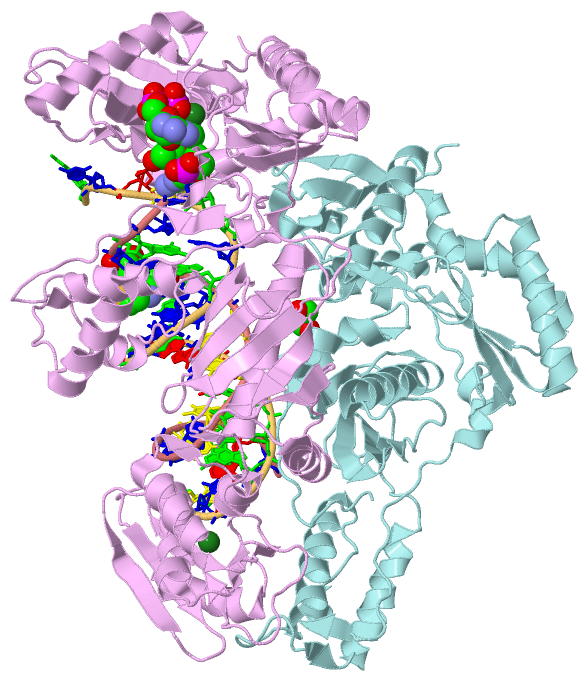

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

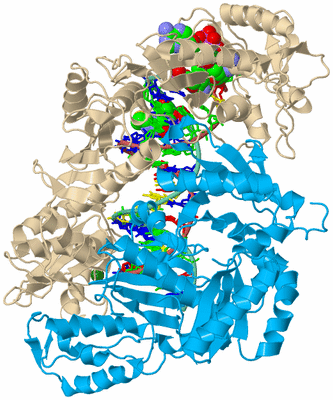

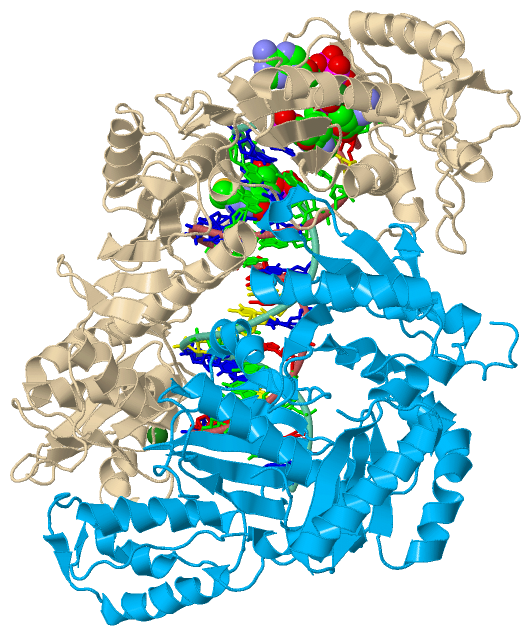

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

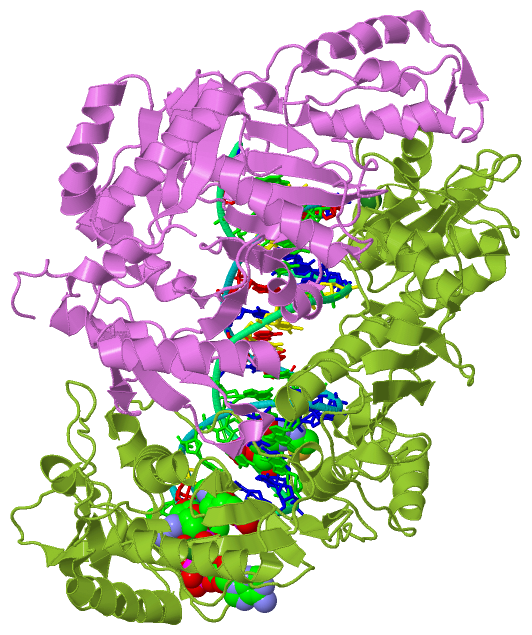

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF WILD-TYPE HIV-1 REVERSE TRANSCRIPTASE CROSSLINKED TO A DSDNA WITH A BOUND EXCISION PRODUCT, AZTPPPPA

Authors :  X. Tu, K. Das, S. G. Sarafianos, E. Arnold
Date :  07 Nov 09  (Deposition) - 22 Sep 10  (Release) - 12 Jan 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.15
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Biol. Unit 3:  I,J,K,L  (1x)
Biol. Unit 4:  M,N,O,P  (1x)
Keywords :  Azt Resistance Mechanism, Hiv-1 Reverse Transcriptase, Wild-Type, Azt Resistance Mutations, P51/P66, Nuceleoside Inhibitor, Thymidine Analog Mutations, Aids, Hiv, Dna Polymerase, Nrti, Nrti Resistance, Azt, Aztppppa, Aztp4A, Dinucleoside Tetraphosphate, Dna-Directed Dna Polymerase, Endonuclease, Hydrolase, Magnesium, Metal-Binding, Multifunctional Enzyme, Nuclease, Rna-Directed Dna Polymerase, Transferase, Transferase-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Tu, K. Das, Q. Han, J. D. Bauman, A. D. Clark, X. Hou, Y. V. Frenkel, B. L. Gaffney, R. A. Jones, P. L. Boyer, S. H. Hughes, S. G. Sarafianos, E. Arnold
Structural Basis Of Hiv-1 Resistance To Azt By Excision.
Nat. Struct. Mol. Biol. V. 17 1202 2010
PubMed-ID: 20852643  |  Reference-DOI: 10.1038/NSMB.1908

(-) Compounds

Molecule 1 - REVERSE TRANSCRIPTASE/RIBONUCLEASE H
    Chains: A, E, I, M
    EC Number: 2.7.7.49, 2.7.7.7, 3.1.26.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PRT35A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: GAG-POL
    Mutation: YES
    Organism Common: HIV-1
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS TYPE 1
    Organism Taxid: 11678
    Strain: BH10
    Synonym: P66 RT

Molecule 2 - P51 RT
    Chains: B, F, J, N
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PRT35A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: GAG-POL
    Mutation: YES
    Organism Common: HIV-1
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS TYPE 1
    Organism Taxid: 11678
    Strain: BH10

Molecule 3 - DNA (5'- D(*AP*T*GP*CP*AP*TP*GP*GP*CP*GP*CP*CP*CP*GP*AP*AP*CP*AP*GP*GP*GP*AP*C P*TP*GP*TP*G)-3')
    Chains: C, G, K, O
    Engineered: YES
    Other Details: DNA TEMPLATE
    Other Details - Source: DNA TEMPLATE FOR REVERSE TRANSCRIPTASE
    Synthetic: YES

Molecule 4 - DNA (5'- D(*A*CP*AP*GP*TP*CP*CP*CP*TP*GP*TP*TP*CP*GP*GP*(MRG) P*CP*GP*CP*CP*(2DA))-3')
    Chains: D, H, L, P
    Engineered: YES
    Other Details: DNA PRIMER
    Other Details - Source: DNA PRIMER FOR REVERSE TRANSCRIPTASE
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12345678910111213141516
Asymmetric Unit : ABCDEFGHIJKLMNOP
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH
Biological Unit 3 (1x):         IJKL
Biological Unit 4 (1x):             MNOP

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 22)

Asymmetric Unit (5, 22)
No.NameCountTypeFull Name
12DA4Mod. Nucleotide2',3'-DIDEOXYADENOSINE-5'-MONOPHOSPHATE
2GOL2Ligand/IonGLYCEROL
3MG8Ligand/IonMAGNESIUM ION
4MRG4Mod. NucleotideN2-(3-MERCAPTOPROPYL)-2'-DEOXYGUANOSINE-5'-MONOPHOSPHATE
5ZP44Ligand/Ion[[[[(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHOXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL] [(2S,3S,5R)-3-AZIDO-5-(5-METHYL-2,4-DIOXO-PYRIMIDIN-1-YL)OXOLAN-2-YL]METHYL HYDROGEN PHOSPHATE
Biological Unit 1 (4, 4)
No.NameCountTypeFull Name
12DA1Mod. Nucleotide2',3'-DIDEOXYADENOSINE-5'-MONOPHOSPHATE
2GOL1Ligand/IonGLYCEROL
3MG-1Ligand/IonMAGNESIUM ION
4MRG1Mod. NucleotideN2-(3-MERCAPTOPROPYL)-2'-DEOXYGUANOSINE-5'-MONOPHOSPHATE
5ZP41Ligand/Ion[[[[(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHOXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL] [(2S,3S,5R)-3-AZIDO-5-(5-METHYL-2,4-DIOXO-PYRIMIDIN-1-YL)OXOLAN-2-YL]METHYL HYDROGEN PHOSPHATE
Biological Unit 2 (4, 4)
No.NameCountTypeFull Name
12DA1Mod. Nucleotide2',3'-DIDEOXYADENOSINE-5'-MONOPHOSPHATE
2GOL1Ligand/IonGLYCEROL
3MG-1Ligand/IonMAGNESIUM ION
4MRG1Mod. NucleotideN2-(3-MERCAPTOPROPYL)-2'-DEOXYGUANOSINE-5'-MONOPHOSPHATE
5ZP41Ligand/Ion[[[[(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHOXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL] [(2S,3S,5R)-3-AZIDO-5-(5-METHYL-2,4-DIOXO-PYRIMIDIN-1-YL)OXOLAN-2-YL]METHYL HYDROGEN PHOSPHATE
Biological Unit 3 (3, 3)
No.NameCountTypeFull Name
12DA1Mod. Nucleotide2',3'-DIDEOXYADENOSINE-5'-MONOPHOSPHATE
2GOL-1Ligand/IonGLYCEROL
3MG-1Ligand/IonMAGNESIUM ION
4MRG1Mod. NucleotideN2-(3-MERCAPTOPROPYL)-2'-DEOXYGUANOSINE-5'-MONOPHOSPHATE
5ZP41Ligand/Ion[[[[(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHOXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL] [(2S,3S,5R)-3-AZIDO-5-(5-METHYL-2,4-DIOXO-PYRIMIDIN-1-YL)OXOLAN-2-YL]METHYL HYDROGEN PHOSPHATE
Biological Unit 4 (3, 3)
No.NameCountTypeFull Name
12DA1Mod. Nucleotide2',3'-DIDEOXYADENOSINE-5'-MONOPHOSPHATE
2GOL-1Ligand/IonGLYCEROL
3MG-1Ligand/IonMAGNESIUM ION
4MRG1Mod. NucleotideN2-(3-MERCAPTOPROPYL)-2'-DEOXYGUANOSINE-5'-MONOPHOSPHATE
5ZP41Ligand/Ion[[[[(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHOXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL]OXY-HYDROXY-PHOSPHORYL] [(2S,3S,5R)-3-AZIDO-5-(5-METHYL-2,4-DIOXO-PYRIMIDIN-1-YL)OXOLAN-2-YL]METHYL HYDROGEN PHOSPHATE

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:110 , VAL A:111 , ASP A:185 , ZP4 A:823BINDING SITE FOR RESIDUE MG A 600
02AC2SOFTWAREASP A:443 , GLY A:444 , ASP A:498 , ASP A:549 , HOH A:567BINDING SITE FOR RESIDUE MG A 602
03AC3SOFTWARELYS A:65 , ARG A:72 , ASP A:110 , VAL A:111 , GLY A:112 , ASP A:113 , ALA A:114 , TYR A:115 , PHE A:116 , GLN A:151 , MET A:184 , ASP A:185 , LYS A:219 , HOH A:560 , MG A:600 , DA C:705 , 2DA D:822BINDING SITE FOR RESIDUE ZP4 A 823
04AC4SOFTWAREARG B:78 , GLU B:79 , LYS B:82 , GLU B:413BINDING SITE FOR RESIDUE GOL B 429
05AC5SOFTWAREASP E:110 , VAL E:111 , ASP E:185 , ZP4 E:823BINDING SITE FOR RESIDUE MG E 600
06AC6SOFTWAREASP E:443 , GLY E:444 , ASP E:498BINDING SITE FOR RESIDUE MG E 602
07AC7SOFTWARELYS E:65 , LYS E:66 , ARG E:72 , ASP E:110 , VAL E:111 , GLY E:112 , ASP E:113 , ALA E:114 , TYR E:115 , PHE E:116 , GLN E:151 , MET E:184 , ASP E:185 , HIS E:221 , LEU E:228 , MG E:600 , DA G:705 , 2DA H:822BINDING SITE FOR RESIDUE ZP4 E 823
08AC8SOFTWAREARG F:78 , GLU F:79 , GLU F:413 , HOH F:433BINDING SITE FOR RESIDUE GOL F 429
09AC9SOFTWAREASP I:110 , VAL I:111 , ASP I:185 , ZP4 I:823BINDING SITE FOR RESIDUE MG I 600
10BC1SOFTWAREASP I:443 , GLY I:444 , GLU I:478 , ASP I:498 , HOH I:565BINDING SITE FOR RESIDUE MG I 602
11BC2SOFTWARELYS I:65 , ARG I:72 , ASP I:110 , VAL I:111 , ASP I:113 , ALA I:114 , TYR I:115 , PHE I:116 , GLN I:151 , MET I:184 , ASP I:185 , HIS I:221 , LEU I:228 , HOH I:564 , MG I:600 , DA K:705 , 2DA L:822BINDING SITE FOR RESIDUE ZP4 I 823
12BC3SOFTWAREASP M:110 , VAL M:111 , GLY M:112 , ASP M:185 , ZP4 M:823BINDING SITE FOR RESIDUE MG M 600
13BC4SOFTWAREASP M:443 , GLU M:478 , ASP M:498 , HOH M:558BINDING SITE FOR RESIDUE MG M 602
14BC5SOFTWARELYS M:65 , ARG M:72 , ASP M:110 , VAL M:111 , ASP M:113 , ALA M:114 , TYR M:115 , PHE M:116 , GLN M:151 , MET M:184 , ASP M:185 , LYS M:219 , MG M:600 , DA O:705 , 2DA P:822BINDING SITE FOR RESIDUE ZP4 M 823

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3KLF)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Pro A:420 -Pro A:421
2Pro E:420 -Pro E:421
3Pro I:420 -Pro I:421
4Pro M:420 -Pro M:421

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (5, 24)

Asymmetric Unit (5, 24)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_POL_HV1B1_003 *K771RPOL_HV1B1  ---  ---A/B/E/F/I/J/M/NK172R
2UniProtVAR_POL_HV1B1_004 *K1050RPOL_HV1B1  ---  ---A/E/I/MK451R
3UniProtVAR_POL_HV1B1_005 *V1057LPOL_HV1B1  ---  ---A/E/I/MV458L
4UniProtVAR_POL_HV1B1_006 *K1111QPOL_HV1B1  ---  ---A/E/I/MK512Q
5UniProtVAR_POL_HV1B1_007 *E1128QPOL_HV1B1  ---  ---A/E/I/ME529Q
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 1 (5, 6)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_POL_HV1B1_003 *K771RPOL_HV1B1  ---  ---A/BK172R
2UniProtVAR_POL_HV1B1_004 *K1050RPOL_HV1B1  ---  ---AK451R
3UniProtVAR_POL_HV1B1_005 *V1057LPOL_HV1B1  ---  ---AV458L
4UniProtVAR_POL_HV1B1_006 *K1111QPOL_HV1B1  ---  ---AK512Q
5UniProtVAR_POL_HV1B1_007 *E1128QPOL_HV1B1  ---  ---AE529Q
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 2 (5, 6)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_POL_HV1B1_003 *K771RPOL_HV1B1  ---  ---E/FK172R
2UniProtVAR_POL_HV1B1_004 *K1050RPOL_HV1B1  ---  ---EK451R
3UniProtVAR_POL_HV1B1_005 *V1057LPOL_HV1B1  ---  ---EV458L
4UniProtVAR_POL_HV1B1_006 *K1111QPOL_HV1B1  ---  ---EK512Q
5UniProtVAR_POL_HV1B1_007 *E1128QPOL_HV1B1  ---  ---EE529Q
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 3 (5, 6)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_POL_HV1B1_003 *K771RPOL_HV1B1  ---  ---I/JK172R
2UniProtVAR_POL_HV1B1_004 *K1050RPOL_HV1B1  ---  ---IK451R
3UniProtVAR_POL_HV1B1_005 *V1057LPOL_HV1B1  ---  ---IV458L
4UniProtVAR_POL_HV1B1_006 *K1111QPOL_HV1B1  ---  ---IK512Q
5UniProtVAR_POL_HV1B1_007 *E1128QPOL_HV1B1  ---  ---IE529Q
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 4 (5, 6)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_POL_HV1B1_003 *K771RPOL_HV1B1  ---  ---M/NK172R
2UniProtVAR_POL_HV1B1_004 *K1050RPOL_HV1B1  ---  ---MK451R
3UniProtVAR_POL_HV1B1_005 *V1057LPOL_HV1B1  ---  ---MV458L
4UniProtVAR_POL_HV1B1_006 *K1111QPOL_HV1B1  ---  ---MK512Q
5UniProtVAR_POL_HV1B1_007 *E1128QPOL_HV1B1  ---  ---ME529Q
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (2, 12)

Asymmetric Unit (2, 12)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RT_POLPS50878 Reverse transcriptase (RT) catalytic domain profile.POL_HV1B1643-833






 		  8A:44-234
B:44-234
E:44-234
F:44-234
I:44-234
J:44-234
M:44-234
N:44-234
2RNASE_HPS50879 RNase H domain profile.POL_HV1B11033-1156


 		  4A:434-554
E:434-554
I:434-554
M:434-554
Biological Unit 1 (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RT_POLPS50878 Reverse transcriptase (RT) catalytic domain profile.POL_HV1B1643-833






 		  2A:44-234
B:44-234
-
-
-
-
-
-
2RNASE_HPS50879 RNase H domain profile.POL_HV1B11033-1156


 		  1A:434-554
-
-
-
Biological Unit 2 (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RT_POLPS50878 Reverse transcriptase (RT) catalytic domain profile.POL_HV1B1643-833






 		  2-
-
E:44-234
F:44-234
-
-
-
-
2RNASE_HPS50879 RNase H domain profile.POL_HV1B11033-1156


 		  1-
E:434-554
-
-
Biological Unit 3 (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RT_POLPS50878 Reverse transcriptase (RT) catalytic domain profile.POL_HV1B1643-833






 		  2-
-
-
-
I:44-234
J:44-234
-
-
2RNASE_HPS50879 RNase H domain profile.POL_HV1B11033-1156


 		  1-
-
I:434-554
-
Biological Unit 4 (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RT_POLPS50878 Reverse transcriptase (RT) catalytic domain profile.POL_HV1B1643-833






 		  2-
-
-
-
-
-
M:44-234
N:44-234
2RNASE_HPS50879 RNase H domain profile.POL_HV1B11033-1156


 		  1-
-
-
M:434-554

(-) Exons   (0, 0)

(no "Exon" information available for 3KLF)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:553
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:553
                                   610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930       940       950       960       970       980       990      1000      1010      1020      1030      1040      1050      1060      1070      1080      1090      1100      1110      1120      1130      1140      1150
           POL_HV1B1    601 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA 1153
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........................hhhhhhhhhhhhhhhhhhh.eee..........eeeee......eeeee.hhhhhhhh...........hhhhh....eeeeee...hhhhh..hhhhhhhhheee.........eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh...............eee..eee....eee...........hhhhhhhhhhhhhhhhh......hhhhhhh.............hhhhhhhhhhhhhhh...............eeeeee.....eeeeee.....eeeeeee......eehhhhhhhhhhhhhhhhhhhhh....eeee..hhhhhhhhhhhh........eee......................eee.eeee......eeeeee.....eeeeee...hhhhhhhhhhhhhhhh.....eeee.hhhhhhhhhh...ee.hhhhhhhhhhhhhh....eee......hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R------L-----------------------------------------------------Q----------------Q------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------RT_POL  PDB: A:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNASE_H  PDB: A:434-554 UniProt: 1033-1156                                                                                PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3klf A    2 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDICKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA  554
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551


Chain B from PDB  Type:PROTEIN  Length:413
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:426
                                   611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951       961       971       981       991      1001      1011      1021
           POL_HV1B1    602 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ 1027
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........................hhhhhhhhhhhhhhhhhh..eeee.........eeee........eeee.hhhhhhhhhhhhhh........hhhhh.eeeeee.hhhhhhh..hhhhhhhhheee.hhhhh...eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh......-------------....hhhhh............eehhhhhhhhhhhhhhh.......hhhhhh..........ee..hhhhhhhhhhhhhhh...............eeeeeeee..eeeeeee.....eeeee..........hhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhh......eeee............ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------R---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------RT_POL  PDB: B:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3klf B    3 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTP-------------GYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ  428
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212    |    -       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422
                                                                                                                                                                                                                                                217           231


Chain C from PDB  Type:DNA  Length:23

                3klf C  703 GCATGGCGCCCGAACAGGGACTG  725
                                   712       722


Chain D from PDB  Type:DNA  Length:20

                3klf D  803 CAGTCCCTGTTCGGgCGCCx  822
                                   812    |  822
                                        817-MRG|
                                             822-2DA


Chain E from PDB  Type:PROTEIN  Length:553
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:553
                                   610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930       940       950       960       970       980       990      1000      1010      1020      1030      1040      1050      1060      1070      1080      1090      1100      1110      1120      1130      1140      1150
           POL_HV1B1    601 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA 1153
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........................hhhhhhhhhhhhhhhhhhh.eee..........eeeee......eeeee.hhhhhhhh...........hhhhh....eeeeee...hhhhh..hhhhhhhhheee.........eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh...............eee..eee....eee...........hhhhhhhhhhhhhhhhh......hhhhhhh.............hhhhhhhhhhhhhhh...............eeeeee.....eeeeee.....eeeeeee......eehhhhhhhhhhhhhhhhhhhhh....eeee..hhhhhhhhhhhh........eee......................eee.eeee......eeeeee.....eeeeee...hhhhhhhhhhhhhhhh.....eeee.hhhhhhhhhh...ee.hhhhhhhhhhhhhh....eee......hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R------L-----------------------------------------------------Q----------------Q------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------RT_POL  PDB: E:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNASE_H  PDB: E:434-554 UniProt: 1033-1156                                                                                PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3klf E    2 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDICKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA  554
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551


Chain F from PDB  Type:PROTEIN  Length:413
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:426
                                   611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951       961       971       981       991      1001      1011      1021
           POL_HV1B1    602 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ 1027
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........................hhhhhhhhhhhhhhhhhh..eeee.........eeee........eeee.hhhhhhhhhhhhhh........hhhhh.eeeeee.hhhhhhh.....hhhhhheee.hhhhh...eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh......-------------....hhhhh............eehhhhhhhhhhhhhhhhh.....hhhhhh..........ee..hhhhhhhhhhhhhhh...............eeeeeeee..eeeeeee.....eeeee..........hhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhh.......eee............ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------R---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------RT_POL  PDB: F:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3klf F    3 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTP-------------GYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ  428
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212    |    -       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422
                                                                                                                                                                                                                                                217           231


Chain G from PDB  Type:DNA  Length:23

                3klf G  703 GCATGGCGCCCGAACAGGGACTG  725
                                   712       722


Chain H from PDB  Type:DNA  Length:20

                3klf H  803 CAGTCCCTGTTCGGgCGCCx  822
                                   812    |  822
                                        817-MRG|
                                             822-2DA


Chain I from PDB  Type:PROTEIN  Length:553
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:553
                                   610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930       940       950       960       970       980       990      1000      1010      1020      1030      1040      1050      1060      1070      1080      1090      1100      1110      1120      1130      1140      1150
           POL_HV1B1    601 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA 1153
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........................hhhhhhhhhhhhhhhhhhh.eee..........eeeee......eeeee.hhhhhhhh...........hhhhh....eeeeee...hhhhh..hhhhhhhhheee.........eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh...............eee..eee....eee...........hhhhhhhhhhhhhhhhh......hhhhhhh.............hhhhhhhhhhhhhhh...............eeeeee.....eeeeee.....eeeeeee......eehhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhh........eee......................eee.eeee......eeeeee.....eeeeee...hhhhhhhhhhhhhhhh.....eeee.hhhhhhhhhh...ee.hhhhhhhhhhhhhh....eee......hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R------L-----------------------------------------------------Q----------------Q------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------RT_POL  PDB: I:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNASE_H  PDB: I:434-554 UniProt: 1033-1156                                                                                PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3klf I    2 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDICKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA  554
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551


Chain J from PDB  Type:PROTEIN  Length:413
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:426
                                   611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951       961       971       981       991      1001      1011      1021
           POL_HV1B1    602 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ 1027
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........................hhhhhhhhhhhhhhhhhh..eeee.........eeee........eeee.hhhhhhhhhhhhhh........hhhhh.eeeeee.hhhhhhh..hhhhhhhhheee.hhhhh...eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh......-------------....hhhhh............eehhhhhhhhhhhhhhh.......hhhhhhhhh.......ee..hhhhhhhhhhhhhhh...............eeeeeeee..eeeeeee.....eeeeeee........hhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhh.......eee............ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------R---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------RT_POL  PDB: J:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3klf J    3 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTP-------------GYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ  428
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212    |    -       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422
                                                                                                                                                                                                                                                217           231


Chain K from PDB  Type:DNA  Length:23

                3klf K  703 GCATGGCGCCCGAACAGGGACTG  725
                                   712       722


Chain L from PDB  Type:DNA  Length:20

                3klf L  803 CAGTCCCTGTTCGGgCGCCx  822
                                   812    |  822
                                        817-MRG|
                                             822-2DA


Chain M from PDB  Type:PROTEIN  Length:553
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:553
                                   610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930       940       950       960       970       980       990      1000      1010      1020      1030      1040      1050      1060      1070      1080      1090      1100      1110      1120      1130      1140      1150
           POL_HV1B1    601 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA 1153
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNase_H-3klfM01 M:435-554                                                                                                Pfam domains (1)
           Pfam domains (2) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNase_H-3klfM02 M:435-554                                                                                                Pfam domains (2)
           Pfam domains (3) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNase_H-3klfM03 M:435-554                                                                                                Pfam domains (3)
           Pfam domains (4) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNase_H-3klfM04 M:435-554                                                                                                Pfam domains (4)
         Sec.struct. author .........................hhhhhhhhhhhhhhhhhhh.eee..........eeeee......eeeee.hhhhhhhh...........hhhhh....eeeeee...hhhhh..hhhhhhhhheee.........eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh...............eee..eee....eee...........hhhhhhhhhhhhhhhhh......hhhhhhhhh...........hhhhhhhhhhhhhhh...............eeeeee.....eeeeee.....eeeeeee......eehhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhh........eee......................eee.eeee......eeeeee.....eeeeee...hhhhhhhhhhhhhhhh.....eeee.hhhhhhhhhh...ee.hhhhhhhhhhhhhh....eee......hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R------L-----------------------------------------------------Q----------------Q------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------RT_POL  PDB: M:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------RNASE_H  PDB: M:434-554 UniProt: 1033-1156                                                                                PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3klf M    2 ISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDICKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA  554
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551


Chain N from PDB  Type:PROTEIN  Length:413
 aligned with POL_HV1B1 | P03366 from UniProtKB/Swiss-Prot  Length:1447

    Alignment length:426
                                   611       621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951       961       971       981       991      1001      1011      1021
           POL_HV1B1    602 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLCKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ 1027
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) ------------------------------------------------------------RVT_1-3klfN01 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN17 N:238-307                                           ---------RVT_connect-3klfN09 N:317-419                                                                          --------- Pfam domains (1)
           Pfam domains (2) ------------------------------------------------------------RVT_1-3klfN02 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN18 N:238-307                                           ---------RVT_connect-3klfN10 N:317-419                                                                          --------- Pfam domains (2)
           Pfam domains (3) ------------------------------------------------------------RVT_1-3klfN03 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN19 N:238-307                                           ---------RVT_connect-3klfN11 N:317-419                                                                          --------- Pfam domains (3)
           Pfam domains (4) ------------------------------------------------------------RVT_1-3klfN04 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN20 N:238-307                                           ---------RVT_connect-3klfN12 N:317-419                                                                          --------- Pfam domains (4)
           Pfam domains (5) ------------------------------------------------------------RVT_1-3klfN05 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN21 N:238-307                                           ---------RVT_connect-3klfN13 N:317-419                                                                          --------- Pfam domains (5)
           Pfam domains (6) ------------------------------------------------------------RVT_1-3klfN06 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN22 N:238-307                                           ---------RVT_connect-3klfN14 N:317-419                                                                          --------- Pfam domains (6)
           Pfam domains (7) ------------------------------------------------------------RVT_1-3klfN07 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN23 N:238-307                                           ---------RVT_connect-3klfN15 N:317-419                                                                          --------- Pfam domains (7)
           Pfam domains (8) ------------------------------------------------------------RVT_1-3klfN08 N:63-234                                                                                                                                                      ---RVT_thumb-3klfN24 N:238-307                                           ---------RVT_connect-3klfN16 N:317-419                                                                          --------- Pfam domains (8)
         Sec.struct. author ........................hhhhhhhhhhhhhhhhhh..eeee.........eeee........eeee.hhhhhhhhhhhhhh........hhhhh.eeeeee.hhhhhhh..hhhhhhhhheee.hhhhh...eeeee........hhhhhhhhhhhhhhhhhhhhh...eeeee..eeeeee..hhhhhhhhhhhhhhhhhh......-------------....hhhhh............eehhhhhhhhhhhhhhh.......hhhhhh..........ee..hhhhhhhhhhhhhhh...............eeeeeeee..eeeeeee.....eeeee..........hhhhhhhhhhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhh......eeee............ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------R---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------RT_POL  PDB: N:44-234 UniProt: 643-833                                                                                                                                                         -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3klf N    3 SPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTP-------------GYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ  428
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212    |    -       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422
                                                                                                                                                                                                                                                217           231


Chain O from PDB  Type:DNA  Length:23

                3klf O  703 GCATGGCGCCCGAACAGGGACTG  725
                                   712       722


Chain P from PDB  Type:DNA  Length:20

                3klf P  803 CAGTCCCTGTTCGGgCGCCx  822
                                   812    |  822
                                        817-MRG|
                                             822-2DA
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3KLF)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3KLF)

(-) Pfam Domains  (4, 28)

Asymmetric Unit
(-)
Clan: RNase_H (288)
(-)
Clan: RdRP (210)
(-)
Clan: no clan defined [family: RVT_connect] (84)
(-)
Clan: no clan defined [family: RVT_thumb] (84)

(-) Gene Ontology  (45, 45)

Asymmetric Unit(hide GO term definitions)
Chain A,B,E,F,I,J,M,N   (POL_HV1B1 | P03366)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0004523    RNA-DNA hybrid ribonuclease activity    Catalysis of the endonucleolytic cleavage of RNA in RNA-DNA hybrids to 5'-phosphomonoesters.
    GO:0003964    RNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1). Catalyzes RNA-template-directed extension of the 3'- end of a DNA strand by one deoxynucleotide at a time.
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004533    exoribonuclease H activity    Catalysis of the exonucleolytic cleavage of RNA to 5'-phosphomonoester oligonucleotides in both 5' to 3' and 3' to 5' directions.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008289    lipid binding    Interacting selectively and non-covalently with a lipid.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0015074    DNA integration    The process in which a segment of DNA is incorporated into another, usually larger, DNA molecule such as a chromosome.
    GO:0006310    DNA recombination    Any process in which a new genotype is formed by reassortment of genes resulting in gene combinations different from those that were present in the parents. In eukaryotes genetic recombination can occur by chromosome assortment, intrachromosomal recombination, or nonreciprocal interchromosomal recombination. Intrachromosomal recombination occurs by crossing over. In bacteria it may occur by genetic transformation, conjugation, transduction, or F-duction.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0090503    RNA phosphodiester bond hydrolysis, exonucleolytic    The chemical reactions and pathways involving the hydrolysis of terminal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0006278    RNA-dependent DNA biosynthetic process    A DNA biosynthetic process that uses RNA as a template for RNA-dependent DNA polymerases (e.g. reverse transcriptase) that synthesize the new strand.
    GO:0075713    establishment of integrated proviral latency    A process by which the virus integrates into the host genome and establishes as a stable provirus or prophage.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0039526    modulation by virus of host apoptotic process    Any process in which a virus modulates the frequency, rate or extent of apoptosis of infected host cells.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0039657    suppression by virus of host gene expression    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of gene expression in the host organism. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA (for protein-coding genes) and the translation of that mRNA into protein. Some protein processing events may be included when they are required to form an active form of a product from an inactive precursor form.
    GO:0046718    viral entry into host cell    The process that occurs after viral attachment by which a virus, or viral nucleic acid, breaches the plasma membrane or cell envelope and enters the host cell. The process ends when the viral nucleic acid is released into the host cell cytoplasm.
    GO:0075732    viral penetration into host nucleus    The crossing by the virus of the host nuclear membrane, either as naked viral genome or for small viruses as an intact capsid.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019076    viral release from host cell    The dissemination of mature viral particles from the host cell, e.g. by cell lysis or the budding of virus particles from the cell membrane.
cellular component
    GO:0030430    host cell cytoplasm    The cytoplasm of a host cell.
    GO:0044174    host cell endosome    A membrane-bounded organelle that carries materials newly ingested by endocytosis. It passes many of the materials to host cell lysosomes for degradation.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0042025    host cell nucleus    A membrane-bounded organelle as it is found in the host cell in which chromosomes are housed and replicated. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0072494    host multivesicular body    A late endosome in which regions of the limiting host cell endosomal membrane invaginate to form internal vesicles; host membrane proteins that enter the internal vesicles are sequestered from the host cytoplasm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019013    viral nucleocapsid    The complete protein-nucleic acid complex that is the packaged form of the genome in a virus particle.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.
    GO:0055036    virion membrane    The lipid bilayer surrounding a virion.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    2DA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MRG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZP4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:420 - Pro A:421   [ RasMol ]
    Pro E:420 - Pro E:421   [ RasMol ]
    Pro I:420 - Pro I:421   [ RasMol ]
    Pro M:420 - Pro M:421   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3klf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  POL_HV1B1 | P03366
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.7.49
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc
  2.7.7.7
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc
  3.1.26.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  POL_HV1B1 | P03366
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        POL_HV1B1 | P03366: 1a9m 1ajv 1ajx 1axa 1bqm 1bqn 1d4h 1d4i 1d4j 1dlo 1dw6 1ebk 1ebw 1eby 1ebz 1ec0 1ec1 1ec2 1ec3 1eet 1g35 1gnm 1gnn 1gno 1har 1hbv 1hef 1heg 1hih 1hmv 1hni 1hnv 1hos 1hps 1hpz 1hqe 1hqu 1hrh 1hte 1htf 1htg 1hvi 1hvk 1hvp 1hvu 1hys 1ikv 1ikw 1ikx 1iky 1j5o 1kjh 1mer 1mes 1met 1meu 1n5y 1n6q 1npa 1npv 1npw 1qe1 1qmc 1r0a 1rdh 1rtd 1rvl 1rvm 1rvn 1rvo 1rvp 1rvq 1rvr 1s6p 1s6q 1s9e 1s9g 1sbg 1suq 1sv5 1t03 1t05 1t7k 1tv6 1tvr 1uwb 1w5v 1w5w 1w5x 1w5y 1yt9 1zp8 1zpa 1zsf 1zsr 2aqu 2b5j 2b6a 2ban 2bbb 2be2 2exf 2fde 2g69 2hb3 2hmi 2hnz 2hs1 2hs2 2i4d 2i4u 2i4v 2i4w 2i4x 2i5j 2iaj 2ic3 2idw 2ien 2ieo 2jzw 2l45 2l46 2l4l 2uxz 2uy0 2vg5 2vg6 2vg7 2wkz 2wl0 2x4u 2xye 2xyf 2ykm 2ykn 2zd1 2ze2 3avi 3bgr 3dlk 3gga 3ggv 3ggx 3hvt 3ig1 3irx 3is9 3isn 3ith 3jsm 3jyt 3k2p 3k4v 3kle 3klg 3klh 3kli 3ndt 3nu3 3nu4 3nu5 3nu6 3nu9 3nuj 3nuo 3ok9 3psu 3qaa 3qlh 3qo9 3tkg 3tkw 3tl9 3tlh 3v4i 3v6d 3v81 3zps 3zpt 3zpu 4coe 4cp7 4cpq 4cpr 4cps 4cpt 4cpu 4cpw 4cpx 4dg1 4g1q 4g8g 4g8i 4g9d 4g9f 4h4m 4h4o 4i2p 4i2q 4icl 4id5 4idk 4ifv 4ify 4ig0 4ig3 4kfb 4kko 4ko0 4lsl 4lsn 4mfb 4o44 4o4g 4ojr 4pqu 4puo 4pwd 4q0b 4qag 4r5p 4rw4 4rw6 4rw7 4rw8 4rw9 4u8w 4we1 4ye3 4yhq 4zip 4zls 5agz 5ah6 5ah7 5ah8 5ah9 5aha 5ahb 5ahc 5bry 5bs4 5c24 5c25 5c42 5cym 5cyq 5d3g 5fdl 5hbm 5hlf 5hp1 5hro 5i3u 5i42 5j1e 5jfp 5jfu 5jg1 5t6z 5t70 5tep 5ter 5tuq 5tw3 5txl 5txm 5txn 5txo 5txp

(-) Related Entries Specified in the PDB File

3kle 3klg 3klh 3kli
