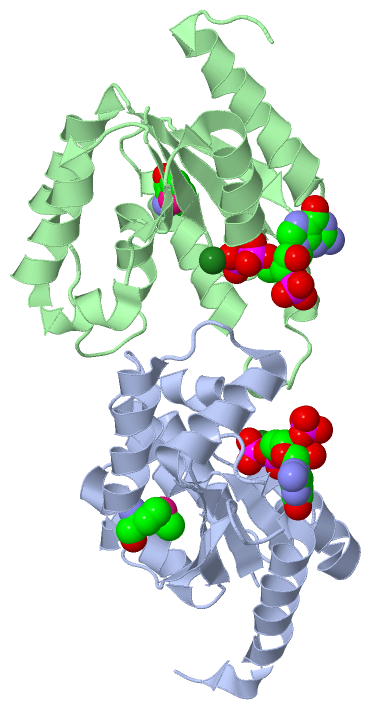

Biological Unit 1 (Jmol Viewer)

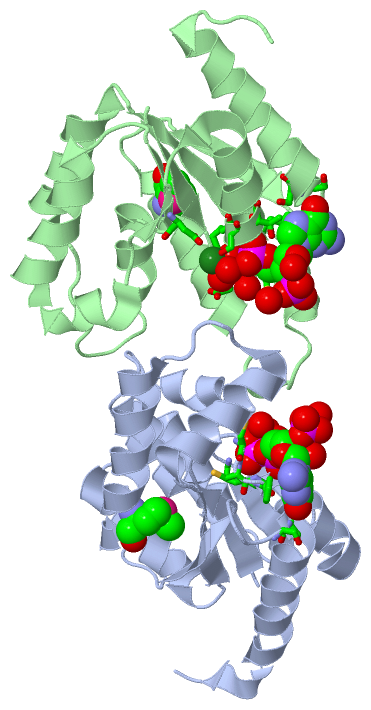

Biol. Unit 1 - sites (Jmol Viewer)

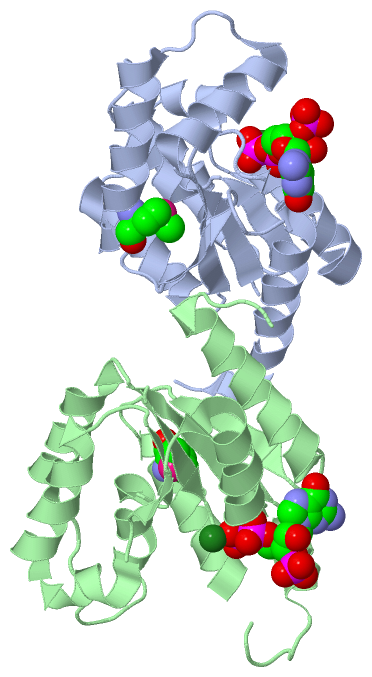

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF YORR PROTEIN IN COMPLEX WITH PHOSPHORYLATED GDP FROM BACILLUS SUBTILIS, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET SR256

Authors :   F. Forouhar, D. Friedman, J. Seetharaman, J. Janjua, R. Xiao, K. Cunningham, L. Ma, C. Ho, J. K. Everett, R. Nair, T. B. Acton, B. Rost, G. T. Montelione, L. Tong, J. F. Hunt, Northeast Structural Genomics Consortium (Nesg)

Date :   20 Oct 09 (Deposition) - 27 Oct 09 (Release) - 27 Oct 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.20

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: A (1x),B (1x)

Keywords :   Alpha-Beta Protein. , Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Forouhar, D. Friedman, J. Seetharaman, J. Janjua, R. Xiao, K. Cunningham, L. Ma, C. Ho, J. K. Everett, R. Nair, T. B. Acton, B. Rost, G. T. Montelione, L. Tong, J. F. Hunt
Northeast Structural Genomics Consortium Target Sr256
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - SPBC2 PROPHAGE-DERIVED UNCHARACTERIZED PROTEIN YORR
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET21
	Expression System Strain	:	BL21(DE3)+ MAGIC
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Gene	:	BSU20280, YORR
	Organism Scientific	:	BACILLUS SUBTILIS
	Organism Taxid	:	1423
	Strain	:	168

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:	A (1x)	B (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 6)

No.	Name	Count	Type	Full Name
1	G3D	2	Ligand/Ion	GUANOSINE-3'-MONOPHOSPHATE-5'-DIPHOSPHATE
2	MG	2	Ligand/Ion	MAGNESIUM ION
3	MSE	2	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (2, 4)

No.	Name	Count	Type	Full Name
1	G3D	2	Ligand/Ion	GUANOSINE-3'-MONOPHOSPHATE-5'-DIPHOSPHATE
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	MSE	2	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (2, 2)

No.	Name	Count	Type	Full Name
1	G3D	1	Ligand/Ion	GUANOSINE-3'-MONOPHOSPHATE-5'-DIPHOSPHATE
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	MSE	1	Mod. Amino Acid	SELENOMETHIONINE

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS A:11 , CYS A:12 , PHE A:13 , LYS A:14 , SER A:15 , THR A:16 , SER A:152 , SER A:153 , MG A:181 , HOH A:227 , HOH A:234 , HOH A:268 , HOH A:269	BINDING SITE FOR RESIDUE G3D A 180
2	AC2	SOFTWARE	SER A:15 , G3D A:180 , HOH A:268 , HOH A:269 , HOH A:270 , HOH B:231	BINDING SITE FOR RESIDUE MG A 181
3	AC3	SOFTWARE	ASP B:10 , CYS B:11 , CYS B:12 , PHE B:13 , LYS B:14 , SER B:15 , THR B:16 , SER B:152 , SER B:153 , HOH B:175 , HOH B:176 , MG B:181 , HOH B:217 , HOH B:230 , HOH B:235	BINDING SITE FOR RESIDUE G3D B 180
4	AC4	SOFTWARE	SER B:15 , ASP B:61 , HOH B:175 , HOH B:176 , G3D B:180	BINDING SITE FOR RESIDUE MG B 181

(no "SS Bond" information available for 3KB2)

(no "Cis Peptide Bond" information available for 3KB2)

(no "SAP(SNP)/Variant" information available for 3KB2)

(no "PROSITE Motif" information available for 3KB2)

(no "Exon" information available for 3KB2)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:171
 aligned with YORR_BACSU | O31896 from UniProtKB/Swiss-Prot  Length:165

    Alignment length:171
                                                                                                                                                                                             165
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161   |     -
           YORR_BACSU     2 TLIILEGPDCCFKSTVAAKLSKELKYPIIKGSSFELAKSGNEKLFEHFNKLADEDNVIIDRFVYSNLVYAKKFKDYSILTERQLRFIEDKIKAKAKVVYLHADPSVIKKRLRVRGDEYIEGKDIDSILELYREVMSNAGLHTYSWDTGQWSSDEIAKDIIFLVE-------   -
               SCOP domains d3kb2a_ A: automated matches                                                                                                                                                SCOP domains
               CATH domains 3kb2A00 A:2-172 P-loop containing nucleotide triphosphate hydrolases                                                                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....hhhhhhhhhhhhhh..eee..hhhhhh.hhhhhhhhhhhhh....eeee.hhhhhhhhh.........hhhhhhhhhhhhh..eeeeeee.hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3kb2 A   2 TLIILEGPDCCFKSTVAAKLSKELKYPIIKGSSFELAKSGNEKLFEHFNKLADEDNVIIDRFVYSNLVYAKKFKDYSILTERQLRFIEDKIKAKAKVVYLHADPSVIKKRLRVRGDEYIEGKDIDSILELYREVmSNAGLHTYSWDTGQWSSDEIAKDIIFLVELEHHHHH 172
                                    11        21        31        41        51        61        71        81        91       101       111       121       131    |  141       151       161       171
                                                                                                                                                                136-MSE

Chain B from PDB  Type:PROTEIN  Length:167
 aligned with YORR_BACSU | O31896 from UniProtKB/Swiss-Prot  Length:165

    Alignment length:171
                                                                                                                                                                                             165
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161   |     -
           YORR_BACSU     2 TLIILEGPDCCFKSTVAAKLSKELKYPIIKGSSFELAKSGNEKLFEHFNKLADEDNVIIDRFVYSNLVYAKKFKDYSILTERQLRFIEDKIKAKAKVVYLHADPSVIKKRLRVRGDEYIEGKDIDSILELYREVMSNAGLHTYSWDTGQWSSDEIAKDIIFLVE-------   -
               SCOP domains d3kb2b_ B: automated matches                                                                                                                                                SCOP domains
               CATH domains 3kb2B00 B:2-172 P-loop containing nucleotide triphosphate hydrolases                                                                                                        CATH domains
           Pfam domains (1) --AAA_18-3kb2B01 B:4-130                                                                                                         ------------------------------------------ Pfam domains (1)
           Pfam domains (2) --AAA_18-3kb2B02 B:4-130                                                                                                         ------------------------------------------ Pfam domains (2)
         Sec.struct. author .eeeee.....hhhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhhhhhhh...eeee.hhhhhhhhh.........hhhhhhhhhhhhh..eeeeeee.hhhhhhhhh.......----hhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3kb2 B   2 TLIILEGPDCCFKSTVAAKLSKELKYPIIKGSSFELAKSGNEKLFEHFNKLADEDNVIIDRFVYSNLVYAKKFKDYSILTERQLRFIEDKIKAKAKVVYLHADPSVIKKRLRVRGDEY----DIDSILELYREVmSNAGLHTYSWDTGQWSSDEIAKDIIFLVELEHHHHH 172
                                    11        21        31        41        51        61        71        81        91       101       111       | -  |    131    |  141       151       161       171
                                                                                                                                               119  124         136-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: P-loop containing nucleoside triphosphate hydrolases (2083)

Superfamily: P-loop containing nucleoside triphosphate hydrolases (2083)

Family: Nucleotide and nucleoside kinases (231)

Protein domain: automated matches (25)

Bacillus subtilis [TaxId: 1423] (1)

1a	d3kb2a_	A:
1b	d3kb2b_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: P-loop containing nucleotide triphosphate hydrolases (1378)

Bacillus subtilis. Organism_taxid: 1423. Strain: 168. (6)

1a	3kb2A00	A:2-172
1b	3kb2B00	B:2-172

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: P-loop_NTPase (1112)

Family: AAA_18 (7)

Bacillus subtilis (1)

1a	AAA_18-3kb2B01	B:4-130
1b	AAA_18-3kb2B02	B:4-130

Asymmetric Unit(hide GO term definitions)

(no "Gene Ontology" information available for 3KB2)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		G3D	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3kb2)

Biological Units
	Complete Structure

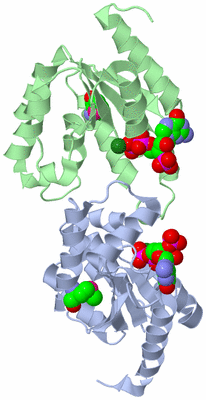

		Biological Unit 1	[ Jena3D ]

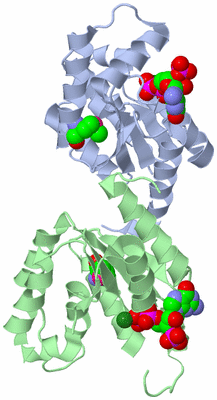

		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3kb2
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	YORR_BACSU \| O31896
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	YORR_BACSU \| O31896
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	YORR_BACSU \| O31896	:	2axp
