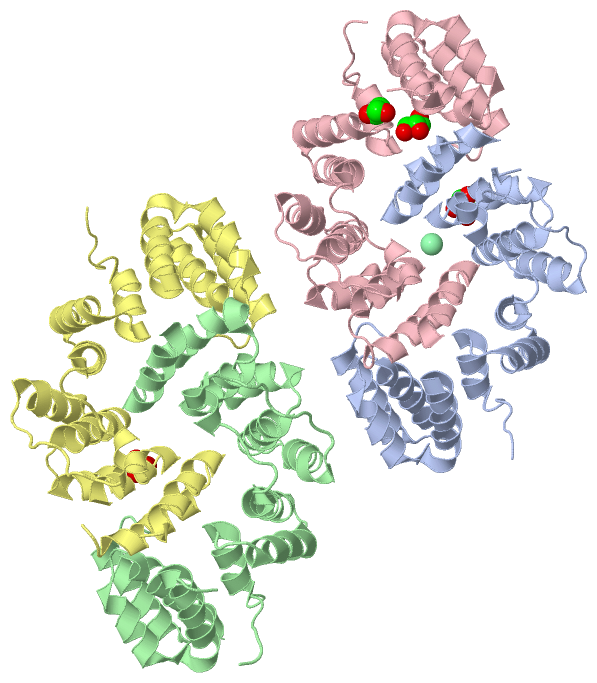

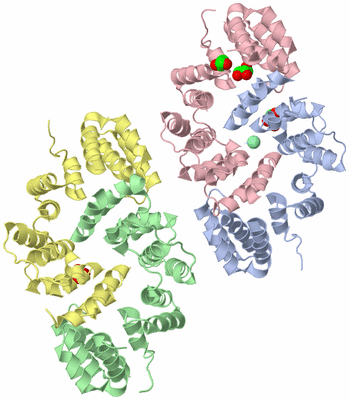

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

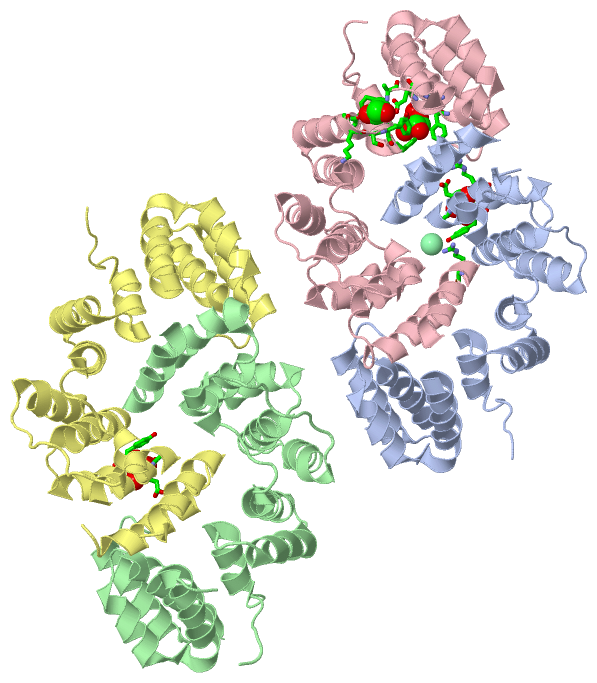

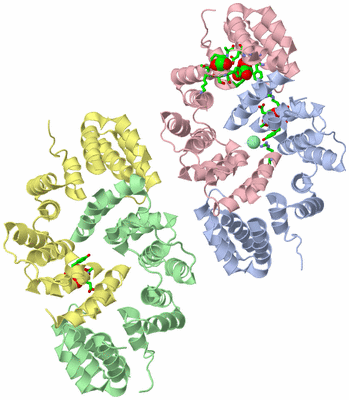

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

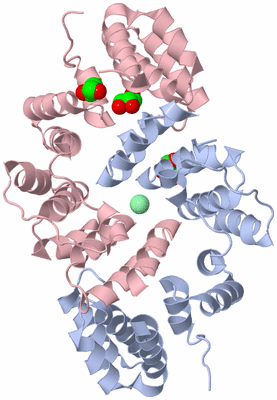

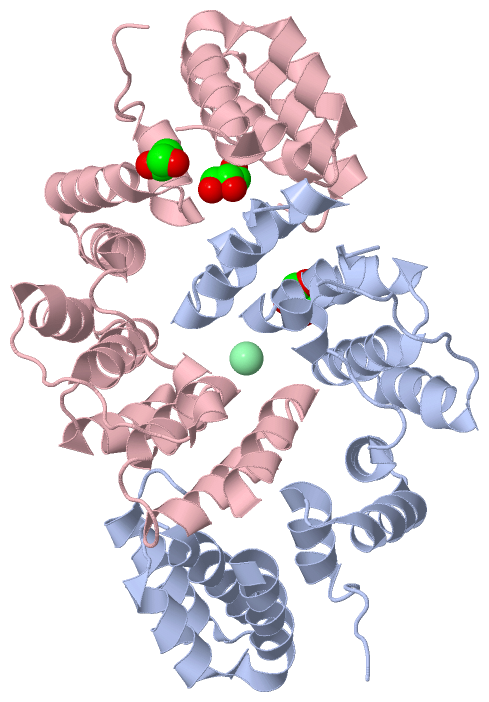

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

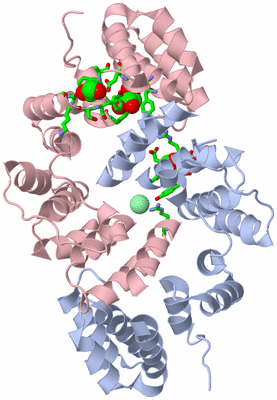

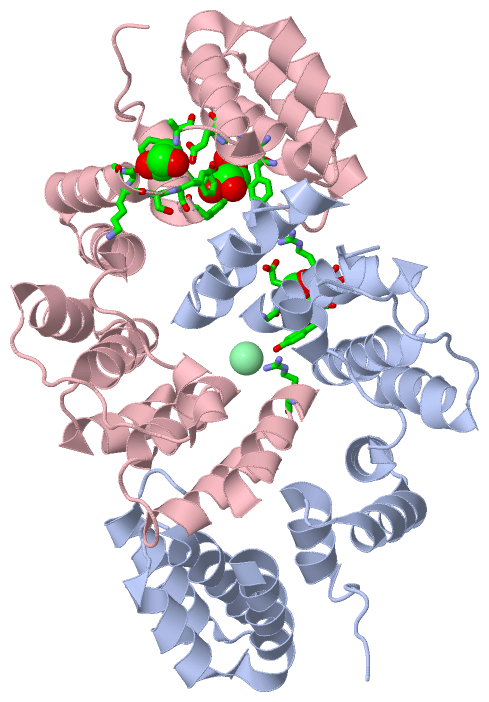

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

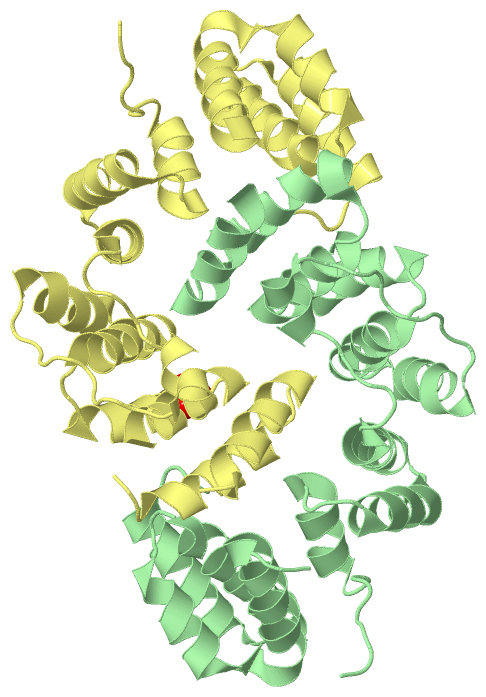

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CDC27 N-TERMINUS

Authors :  D. Barford, Z. Zhang, S. M. Roe
Date :  19 Oct 09  (Deposition) - 23 Mar 10  (Release) - 26 Feb 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,C  (1x)
Biol. Unit 2:  B,D  (1x)
Keywords :  Tetratricopeptide Repeat Protein, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Zhang, S. M. Roe, M. Diogon, E. Kong, H. El Alaoui, D. Barford
Molecular Structure Of The N-Terminal Domain Of The Apc/C Subunit Cdc27 Reveals A Homo-Dimeric Tetratricopeptide Repeat Architecture
J. Mol. Biol. V. 397 1316 2010
PubMed-ID: 20206185  |  Reference-DOI: 10.1016/J.JMB.2010.02.045

(-) Compounds

Molecule 1 - POSSIBLE PROTEIN OF NUCLEAR SCAFFOLD
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: POPINS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: N-TERMINAL DOMAIN, RESIDUES 1-242
    Gene: NC_003237
    Organism Scientific: ENCEPHALITOZOON CUNICULI
    Organism Taxid: 6035
    Synonym: CDC27

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A C
Biological Unit 2 (1x):  B D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 5)

Asymmetric Unit (3, 5)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION
2GOL3Ligand/IonGLYCEROL
3SO41Ligand/IonSULFATE ION
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2GOL3Ligand/IonGLYCEROL
3SO4-1Ligand/IonSULFATE ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2GOL-1Ligand/IonGLYCEROL
3SO41Ligand/IonSULFATE ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:47 , GLU A:48 , TYR A:49 , THR A:50 , ARG A:51BINDING SITE FOR RESIDUE GOL A 243
2AC2SOFTWAREARG C:16BINDING SITE FOR RESIDUE CL C 243
3AC3SOFTWAREPHE C:147 , GLU C:151 , TYR C:209 , SER C:212 , ASN C:213 , HOH C:269BINDING SITE FOR RESIDUE GOL C 244
4AC4SOFTWAREPHE C:141 , GLY C:142 , LYS C:143 , SER C:144 , PHE C:145 , ARG C:173 , GLU C:178BINDING SITE FOR RESIDUE GOL C 245
5AC5SOFTWAREGLY D:47 , GLU D:48 , TYR D:49 , THR D:50 , HOH D:264BINDING SITE FOR RESIDUE SO4 D 243

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3KAE)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Val A:203 -Pro A:204
2Val B:203 -Pro B:204
3Val C:203 -Pro C:204
4Val D:203 -Pro D:204

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3KAE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3KAE)

(-) Exons   (0, 0)

(no "Exon" information available for 3KAE)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:225
 aligned with Q8SQV4_ENCCU | Q8SQV4 from UniProtKB/TrEMBL  Length:475

    Alignment length:240
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242
         Q8SQV4_ENCCU     3 SKLIGKICKSIRYRDYETAIFLAACLLPCKPEYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKRDKENVRQTGRRGIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhh.hhhhhhhhhhhhh----.hhhhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.........hhhhhh......hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhh.......-----------hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3kae A   3 SKLIGKICKSIRYRDYETAIFLAACLL----EYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKR-----------GIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
                                    12        22      |  - |      42        52        62        72        82        92       102       112       122       132       142       152       162|        -  |    182       192       202       212       222       232       242
                                                     29   34                                                                                                                              163         175


Chain B from PDB  Type:PROTEIN  Length:231
 aligned with Q8SQV4_ENCCU | Q8SQV4 from UniProtKB/TrEMBL  Length:475

    Alignment length:239
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233
         Q8SQV4_ENCCU     4 KLIGKICKSIRYRDYETAIFLAACLLPCKPEYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKRDKENVRQTGRRGIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.........hhhhhh......hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh...hhhhhhhhhhh........--------..hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3kae B   4 KLIGKICKSIRYRDYETAIFLAACLLPCKPEYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKRD--------RRGIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163|      173       183       193       203       213       223       233
                                                                                                                                                                                          164      173


Chain C from PDB  Type:PROTEIN  Length:231
 aligned with Q8SQV4_ENCCU | Q8SQV4 from UniProtKB/TrEMBL  Length:475

    Alignment length:239
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233
         Q8SQV4_ENCCU     4 KLIGKICKSIRYRDYETAIFLAACLLPCKPEYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKRDKENVRQTGRRGIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh.hhhhhhhhhhhhh.....hhhhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.........hhhhhh......hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhh........--------..hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3kae C   4 KLIGKICKSIRYRDYETAIFLAACLLPCKPEYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKRD--------RRGIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163|      173       183       193       203       213       223       233
                                                                                                                                                                                          164      173


Chain D from PDB  Type:PROTEIN  Length:227
 aligned with Q8SQV4_ENCCU | Q8SQV4 from UniProtKB/TrEMBL  Length:475

    Alignment length:240
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242
         Q8SQV4_ENCCU     3 SKLIGKICKSIRYRDYETAIFLAACLLPCKPEYRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKRDKENVRQTGRRGIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) -----------Apc3-3kaeD01 D:14-8  8                                                     ---------------------------------------------------------------------------           -------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) -----------Apc3-3kaeD02 D:14-8  8                                                     ---------------------------------------------------------------------------           -------------------------------------------------------------------- Pfam domains (2)
           Pfam domains (3) -----------Apc3-3kaeD03 D:14-8  8                                                     ---------------------------------------------------------------------------           -------------------------------------------------------------------- Pfam domains (3)
           Pfam domains (4) -----------Apc3-3kaeD04 D:14-8  8                                                     ---------------------------------------------------------------------------           -------------------------------------------------------------------- Pfam domains (4)
         Sec.struct. author .hhhhhhhhhhhh.hhhhhhhhhhhhh...--hhhhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.........hhhhhh......hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhh.......-----------hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3kae D   3 SKLIGKICKSIRYRDYETAIFLAACLLPCK--YRMLMSIVLYLNGEYTRALFHLHKLNTCTSKYYESLCYKKKKDYKKAIKSLESILEGKVERDPDVDARIQEMFVDPGDEEFFESLLGDLCTLSGYREEGIGHYVRSFGKSFLFSPVENLLLENKVPQKR-----------GIEEEYVSDSIEFHESLSPSLVKKYMEHVPGIGSYFISNAARRYFNLGMNDKSKACFELVRRKDPMFL 242
                                    12        22        32  |     42        52        62        72        82        92       102       112       122       132       142       152       162|        -  |    182       192       202       212       222       232       242
                                                        32 35                                                                                                                             163         175
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3KAE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3KAE)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (Q8SQV4_ENCCU | Q8SQV4)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0004842    ubiquitin-protein transferase activity    Catalysis of the transfer of ubiquitin from one protein to another via the reaction X-Ub + Y --> Y-Ub + X, where both X-Ub and Y-Ub are covalent linkages.
biological process
    GO:0031145    anaphase-promoting complex-dependent catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent attachment of ubiquitin, with ubiquitin-protein ligation catalyzed by the anaphase-promoting complex, and mediated by the proteasome.
    GO:0071851    mitotic G1 cell cycle arrest in response to nitrogen starvation    The process in which the mitotic cell cycle is halted during G1 phase, as a result of deprivation of nitrogen.
    GO:0000070    mitotic sister chromatid segregation    The cell cycle process in which replicated homologous chromosomes are organized and then physically separated and apportioned to two sets during the mitotic cell cycle. Each replicated chromosome, composed of two sister chromatids, aligns at the cell equator, paired with its homologous partner. One homolog of each morphologic type goes into each of the resulting chromosome sets.
    GO:0045842    positive regulation of mitotic metaphase/anaphase transition    Any process that activates or increases the frequency, rate or extent of the cell cycle process in which a cell progresses from metaphase to anaphase during mitosis, triggered by the activation of the anaphase promoting complex by Cdc20/Sleepy homolog which results in the degradation of Securin.
    GO:0016567    protein ubiquitination    The process in which one or more ubiquitin groups are added to a protein.
cellular component
    GO:0005680    anaphase-promoting complex    A ubiquitin ligase complex that degrades mitotic cyclins and anaphase inhibitory protein, thereby triggering sister chromatid separation and exit from mitosis. Substrate recognition by APC occurs through degradation signals, the most common of which is termed the Dbox degradation motif, originally discovered in cyclin B.
    GO:0032153    cell division site    The eventual plane of cell division (also known as cell cleavage or cytokinesis) in a dividing cell. In Eukaryotes, the cleavage apparatus, composed of septin structures and the actomyosin contractile ring, forms along this plane, and the mitotic, or meiotic, spindle is aligned perpendicular to the division plane. In bacteria, the cell division site is generally located at mid-cell and is the site at which the cytoskeletal structure, the Z-ring, assembles.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
