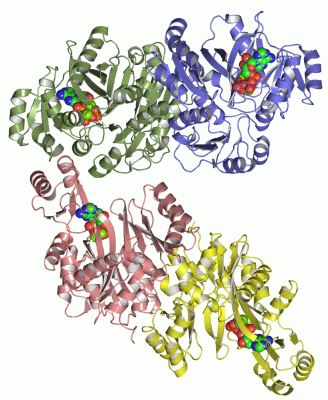

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

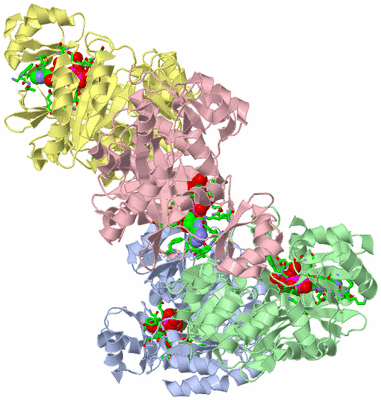

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

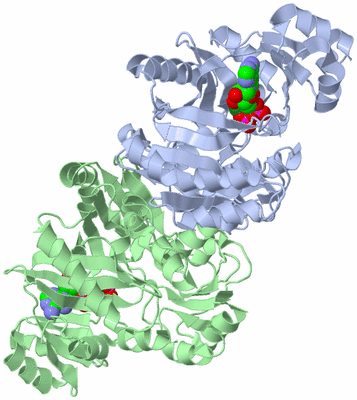

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

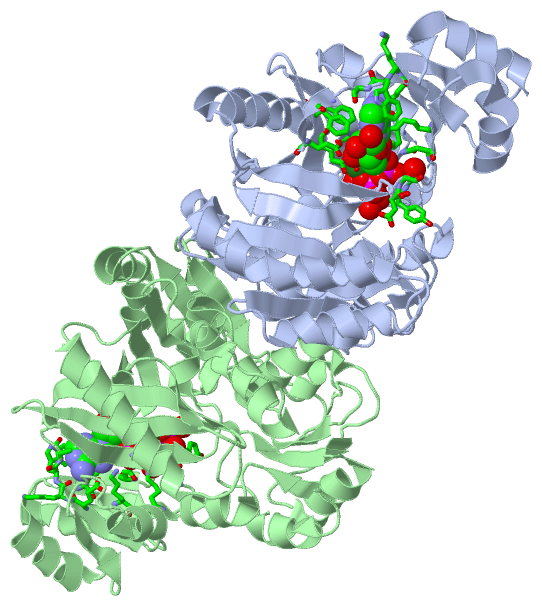

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

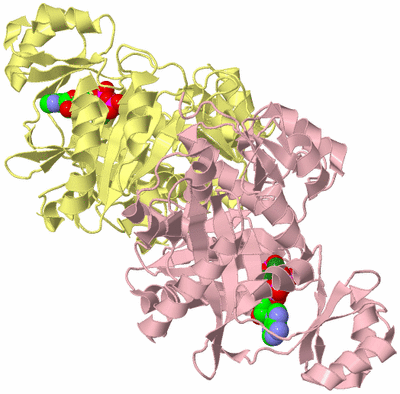

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CARBOXYAMINOIMIDAZOLE RIBONUCLEOTIDE SYNTHASE FROM ASPERIGILLUS CLAVATUS COMPLEXED WITH ATP

Authors :  J. B. Thoden, H. M. Holden, H. Paritala, S. M. Firestine
Date :  07 Oct 09  (Deposition) - 20 Oct 09  (Release) - 02 Mar 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Purine Biosynthesis, Atp-Grasp, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. B. Thoden, H. M. Holden, H. Paritala, S. M. Firestine
Structural And Functional Studies Of Aspergillus Clavatus N(5)-Carboxyaminoimidazole Ribonucleotide Synthetase
Biochemistry V. 49 752 2010
PubMed-ID: 20050602  |  Reference-DOI: 10.1021/BI901599U

(-) Compounds

Molecule 1 - PHOSPHORIBOSYL-AMINOIMIDAZOLE CARBOXYLASE
    Chains: A, B, C, D
    EC Number: 4.1.1.21
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28
    Expression System Strain: ROSETTAS(DE2)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 1-383
    Gene: ACLA_051590, ADE2
    Organism Scientific: ASPERGILLUS CLAVATUS
    Organism Taxid: 5057
    Strain: NRRL 1

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 12)

Asymmetric Unit (2, 12)
No.NameCountTypeFull Name
1ATP4Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2MG8Ligand/IonMAGNESIUM ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1ATP2Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2MG-1Ligand/IonMAGNESIUM ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1ATP2Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (12, 12)

Asymmetric Unit (12, 12)
No.NameEvidenceResiduesDescription
01AC1SOFTWARELYS A:104 , LYS A:146 , ALA A:151 , TYR A:152 , ASP A:153 , GLY A:154 , ASN A:157 , GLU A:181 , LYS A:182 , TRP A:183 , ALA A:184 , PHE A:186 , GLU A:189 , GLU A:254 , PHE A:256 , GLU A:267 , MG A:401 , MG A:402 , HOH A:423 , HOH A:432 , HOH A:445 , HOH A:476 , HOH A:477 , HOH A:496 , HOH A:526 , HOH A:566BINDING SITE FOR RESIDUE ATP A 400
02AC2SOFTWAREGLU A:254 , GLU A:267 , ATP A:400 , HOH A:432BINDING SITE FOR RESIDUE MG A 401
03AC3SOFTWAREGLU A:267 , ATP A:400 , HOH A:423 , HOH A:445BINDING SITE FOR RESIDUE MG A 402
04AC4SOFTWARELYS B:104 , MET B:144 , LYS B:146 , ALA B:151 , TYR B:152 , ASP B:153 , GLY B:154 , ASN B:157 , GLU B:181 , LYS B:182 , TRP B:183 , ALA B:184 , GLU B:189 , GLU B:254 , GLU B:267 , MG B:401 , MG B:402 , HOH B:409 , HOH B:455 , HOH B:485 , HOH B:497 , HOH B:507BINDING SITE FOR RESIDUE ATP B 400
05AC5SOFTWAREGLU B:254 , GLU B:267 , ATP B:400 , HOH B:497BINDING SITE FOR RESIDUE MG B 401
06AC6SOFTWAREGLU B:267 , ATP B:400 , HOH B:485 , HOH B:507BINDING SITE FOR RESIDUE MG B 402
07AC7SOFTWARELYS C:104 , MET C:144 , LYS C:146 , TYR C:152 , ASP C:153 , GLY C:154 , ASN C:157 , GLU C:181 , LYS C:182 , TRP C:183 , ALA C:184 , PHE C:186 , GLU C:189 , GLN C:211 , GLU C:254 , GLU C:267 , HOH C:388 , HOH C:398 , MG C:401 , MG C:402 , HOH C:407 , HOH C:409 , HOH C:467 , HOH C:505 , HOH C:519 , HOH C:535 , HOH C:580BINDING SITE FOR RESIDUE ATP C 400
08AC8SOFTWAREGLU C:254 , GLU C:267 , HOH C:398 , ATP C:400 , MG C:402BINDING SITE FOR RESIDUE MG C 401
09AC9SOFTWAREGLU C:267 , HOH C:388 , ATP C:400 , MG C:401 , HOH C:467BINDING SITE FOR RESIDUE MG C 402
10BC1SOFTWARELYS D:104 , MET D:144 , LYS D:146 , ALA D:151 , TYR D:152 , ASP D:153 , GLY D:154 , ASN D:157 , GLU D:181 , LYS D:182 , TRP D:183 , ALA D:184 , GLU D:189 , GLU D:254 , CYS D:266 , GLU D:267 , HOH D:385 , MG D:401 , MG D:402 , HOH D:415 , HOH D:426 , HOH D:435 , HOH D:455 , HOH D:499BINDING SITE FOR RESIDUE ATP D 400
11BC2SOFTWAREGLU D:254 , GLU D:267 , ATP D:400 , MG D:402 , HOH D:455BINDING SITE FOR RESIDUE MG D 401
12BC3SOFTWARELYS D:104 , GLU D:267 , ATP D:400 , MG D:401 , HOH D:415 , HOH D:426BINDING SITE FOR RESIDUE MG D 402

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3K5H)

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Glu A:92 -Pro A:93
2Tyr A:141 -Pro A:142
3Ala A:221 -Pro A:222
4Glu B:92 -Pro B:93
5Tyr B:141 -Pro B:142
6Ala B:221 -Pro B:222
7Glu C:92 -Pro C:93
8Tyr C:141 -Pro C:142
9Ala C:221 -Pro C:222
10Glu D:92 -Pro D:93
11Tyr D:141 -Pro D:142
12Ala D:221 -Pro D:222

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3K5H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3K5H)

(-) Exons   (0, 0)

(no "Exon" information available for 3K5H)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:382
 aligned with A1CII2_ASPCL | A1CII2 from UniProtKB/TrEMBL  Length:572

    Alignment length:382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
         A1CII2_ASPCL     1 MWNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRIR 382
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee..hhhhhhhhhhhhhh..eeeeee.....hhhhh.....ee....hhhhhhhhhhh..eeee.....hhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhh......eeee...hhhhhhhhhhhhh..eeeee.........eeee.hhhhhhhhhhhh....eeeee...eeeeeeeeeee....eee...eeeeee..eeeeeee.....hhhhhhhhhhhhhhhhhh....eeeeeeeeee....eeeeeee...hhhhhhhhhhh..hhhhhhhhhhh....hhhhhh....eeeeeee.....hhhhhhhhhhh....eeeee..........eeeeeeee..hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k5h A   1 MWNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRIR 382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380


Chain B from PDB  Type:PROTEIN  Length:380
 aligned with A1CII2_ASPCL | A1CII2 from UniProtKB/TrEMBL  Length:572

    Alignment length:380
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
         A1CII2_ASPCL     2 WNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRI 381
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeee..hhhhhhhhhhhhhhh..eeeee.....hhhhh.....ee....hhhhhhhhhhh..eeee.....hhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhh.......eeee...hhhhhhhhhhhhh..eeeee.........eeee.hhhhhhhhhhhh....eeeee...eeeeeeeeeee....eee...eeeeee..eeeeeee.....hhhhhhhhhhhhhhhhhh....eeeeeeeeee....eeeeeee...hhhhhhhhhhh..hhhhhhhhhhh....hhhhhh....eeeeeee.....hhhhhhhhhhh....eeeee..........eeeeeeee..hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k5h B   2 WNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRI 381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain C from PDB  Type:PROTEIN  Length:382
 aligned with A1CII2_ASPCL | A1CII2 from UniProtKB/TrEMBL  Length:572

    Alignment length:382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
         A1CII2_ASPCL     1 MWNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRIR 382
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee..hhhhhhhhhhhhhh...eeeee.....hhhhh.....ee....hhhhhhhhhhh..eeee.....hhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhh.......eee....hhhhhhhhhhhhh..eeeee.........eeee.hhhhhhhhhhhh....eeee....eeeeeeeeeee....eee...eeeeee..eeeeeee.....hhhhhhhhhhhhhhhhhh....eeeeeeeeee....eeeeeee...hhhhhhhhhhh..hhhhhhhhhhh....hhhhhh....eeeeeee.....hhhhhhhhhhh....eeeee..........eeeeeeee..hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k5h C   1 MWNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRIR 382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380


Chain D from PDB  Type:PROTEIN  Length:380
 aligned with A1CII2_ASPCL | A1CII2 from UniProtKB/TrEMBL  Length:572

    Alignment length:380
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
         A1CII2_ASPCL     2 WNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRI 381
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------------------------------------------------------------------------------------------------------------ATP-grasp-3k5hD01 D:111-283                                                                                                                                                  -------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) -------------------------------------------------------------------------------------------------------------ATP-grasp-3k5hD02 D:111-283                                                                                                                                                  -------------------------------------------------------------------------------------------------- Pfam domains (2)
           Pfam domains (3) -------------------------------------------------------------------------------------------------------------ATP-grasp-3k5hD03 D:111-283                                                                                                                                                  -------------------------------------------------------------------------------------------------- Pfam domains (3)
           Pfam domains (4) -------------------------------------------------------------------------------------------------------------ATP-grasp-3k5hD04 D:111-283                                                                                                                                                  -------------------------------------------------------------------------------------------------- Pfam domains (4)
         Sec.struct. author .....eeee..hhhhhhhhhhhhhh...eeee......hhhhh...........hhhhhhhhhhh..eeee.....hhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhh.......eeee...hhhhhhhhhhhhh..eeeee.........eeee.hhhhhhhhhhhh....eeeee...eeeeeeeeeeee..eeee...eeeeee..eeeeeee.....hhhhhhhhhhhhhhhhhh....eeeeeeeeee....eeeeeee...hhhhhhhhhhh..hhhhhhhhhhhh...hhhhhh....eeeeeee.....hhhhhhhhhhh....eeeee..........eeeeeeee..hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k5h D   2 WNSRKVGVLGGGQLGRMLVESANRLNIQVNVLDADNSPAKQISAHDGHVTGSFKEREAVRQLAKTCDVVTAEIEHVDTYALEEVASEVKIEPSWQAIRTIQNKFNQKEHLRKYGIPMAEHRELVENTPAELAKVGEQLGYPLMLKSKTMAYDGRGNFRVNSQDDIPEALEALKDRPLYAEKWAYFKMELAVIVVKTKDEVLSYPTVETVQEDSICKLVYAPARNVSDAINQKAQELARKAVAAFDGKGVFGVEMFLLEDDSIMLCEIASRIHNSGHYTIEGCALSQFDAHLRAILDLPIPAQSLEIRQPSIMLNIIGGAAPDTHLQAAECALSIPNASIHLYSKGAAKPGRKMGHITVTAPTMHEAETHIQPLIDVVDRI 381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3K5H)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3K5H)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: ATP-grasp (83)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (A1CII2_ASPCL | A1CII2)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0004638    phosphoribosylaminoimidazole carboxylase activity    Catalysis of the reaction: 5-amino-1-(5-phospho-D-ribosyl)imidazole-4-carboxylate + 2 H(+) = 5-amino-1-(5-phospho-D-ribosyl)imidazole + CO(2).
biological process
    GO:0006189    'de novo' IMP biosynthetic process    The chemical reactions and pathways resulting in the formation of IMP, inosine monophosphate, by the stepwise assembly of a purine ring on ribose 5-phosphate.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ATP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:221 - Pro A:222   [ RasMol ]
    Ala B:221 - Pro B:222   [ RasMol ]
    Ala C:221 - Pro C:222   [ RasMol ]
    Ala D:221 - Pro D:222   [ RasMol ]
    Glu A:92 - Pro A:93   [ RasMol ]
    Glu B:92 - Pro B:93   [ RasMol ]
    Glu C:92 - Pro C:93   [ RasMol ]
    Glu D:92 - Pro D:93   [ RasMol ]
    Tyr A:141 - Pro A:142   [ RasMol ]
    Tyr B:141 - Pro B:142   [ RasMol ]
    Tyr C:141 - Pro C:142   [ RasMol ]
    Tyr D:141 - Pro D:142   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

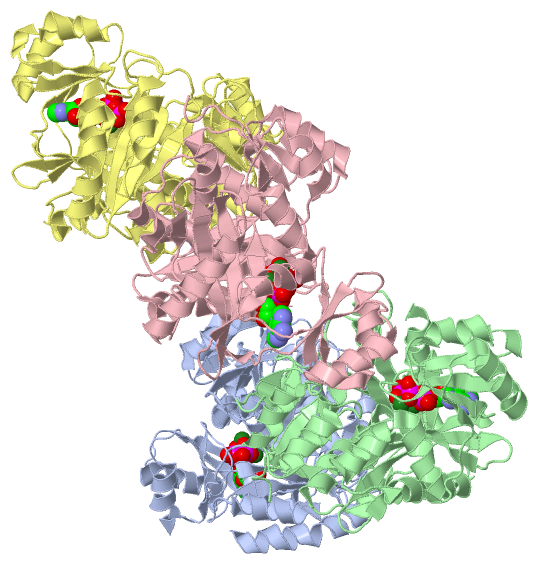

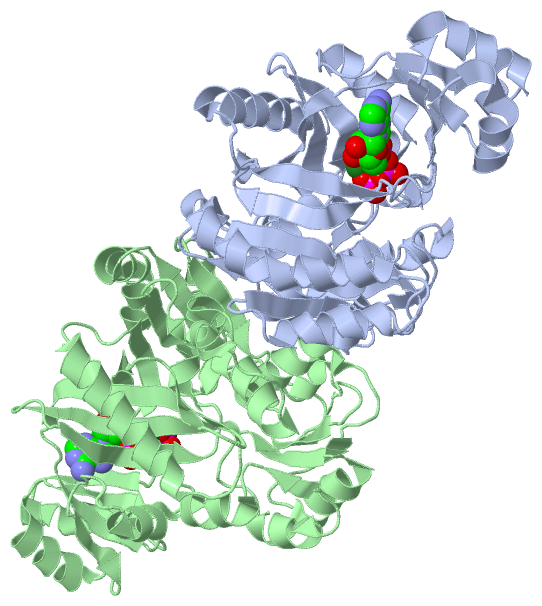

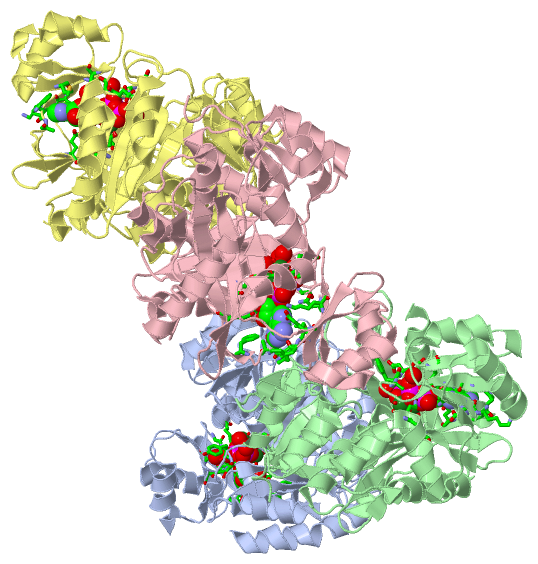

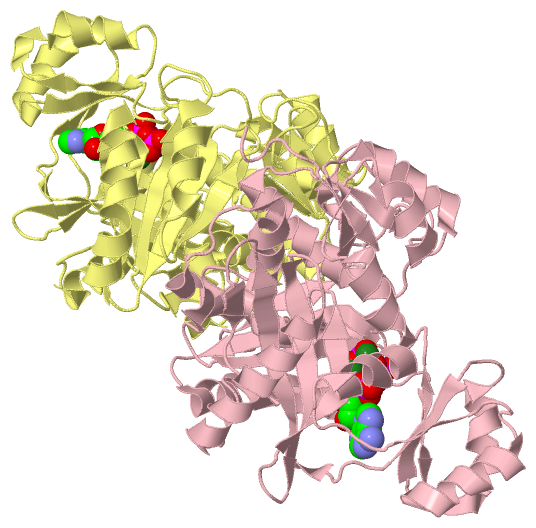

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3k5h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A1CII2_ASPCL | A1CII2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  4.1.1.21
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A1CII2_ASPCL | A1CII2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A1CII2_ASPCL | A1CII2: 3k5i

(-) Related Entries Specified in the PDB File

3k5i CRYSTAL STRUCTURE OF N5-CARBOXYAMINOIMIDAZOLE SYNTHASE FROM ASPERGILLUS CLAVATUS IN COMPLEX WITH ADP AND 5- AMINOIMADAZOLE RIBONUCLEOTIDE
