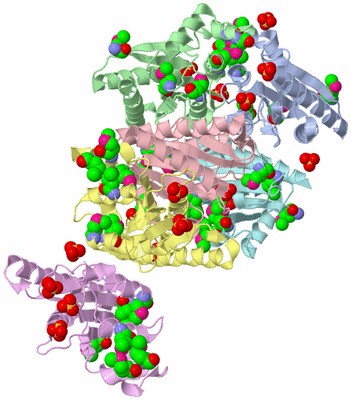

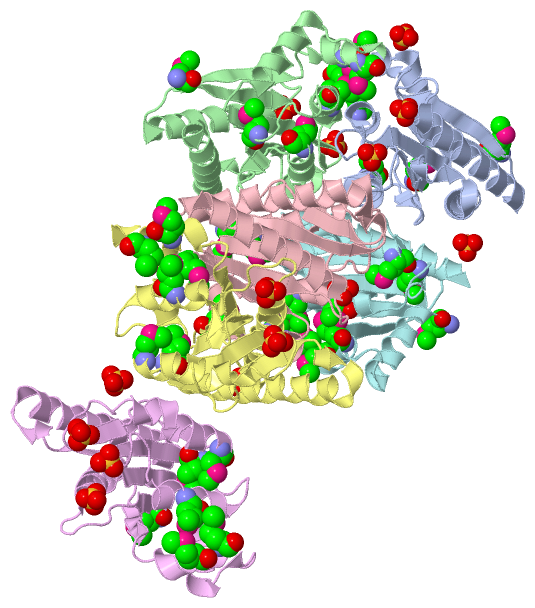

Asymmetric Unit (Jmol Viewer)

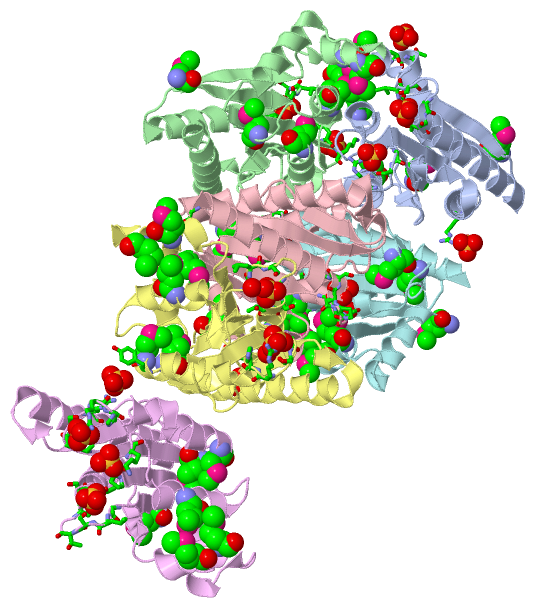

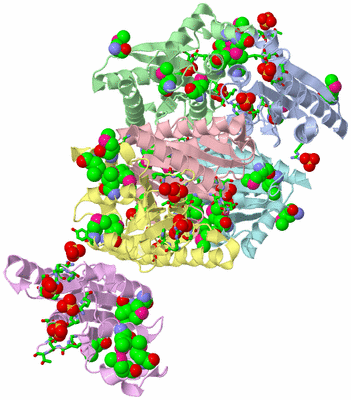

Asym. Unit - sites (Jmol Viewer)

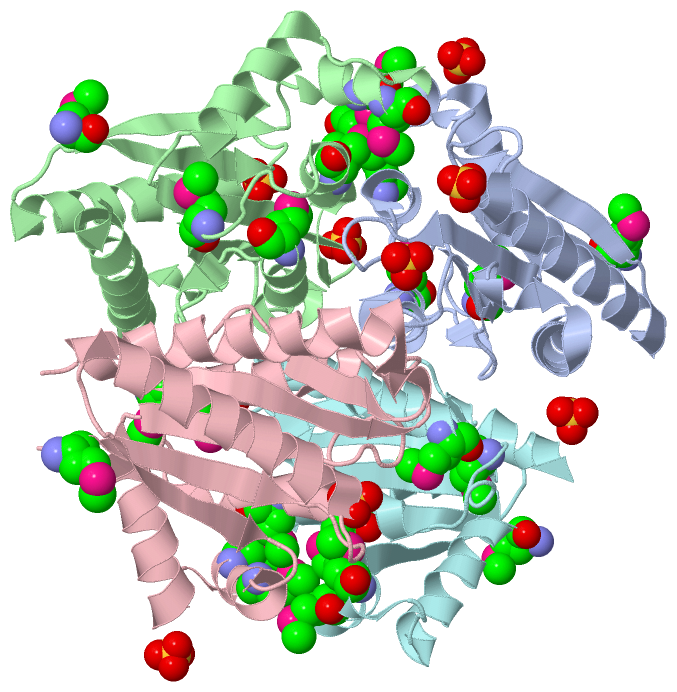

Biological Unit 1 (Jmol Viewer)

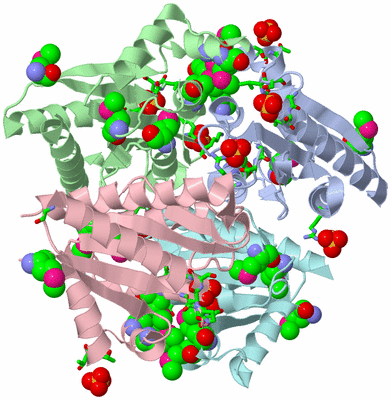

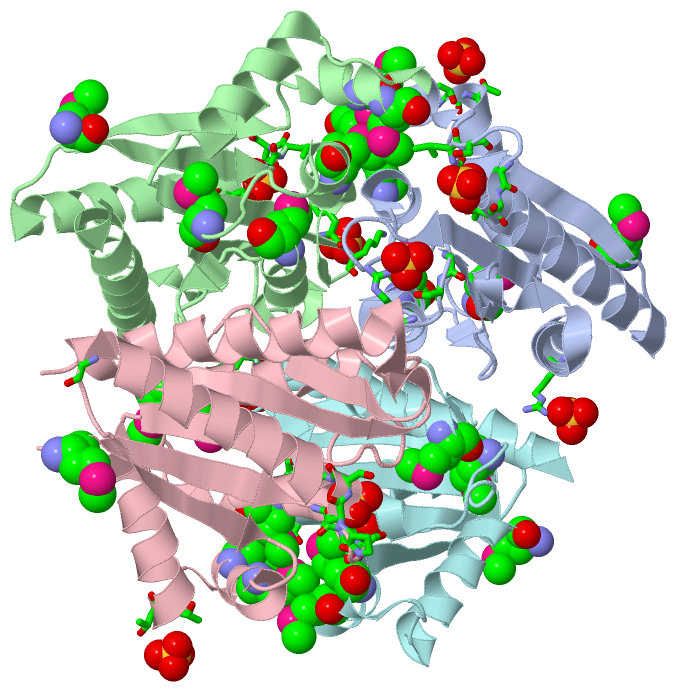

Biol. Unit 1 - sites (Jmol Viewer)

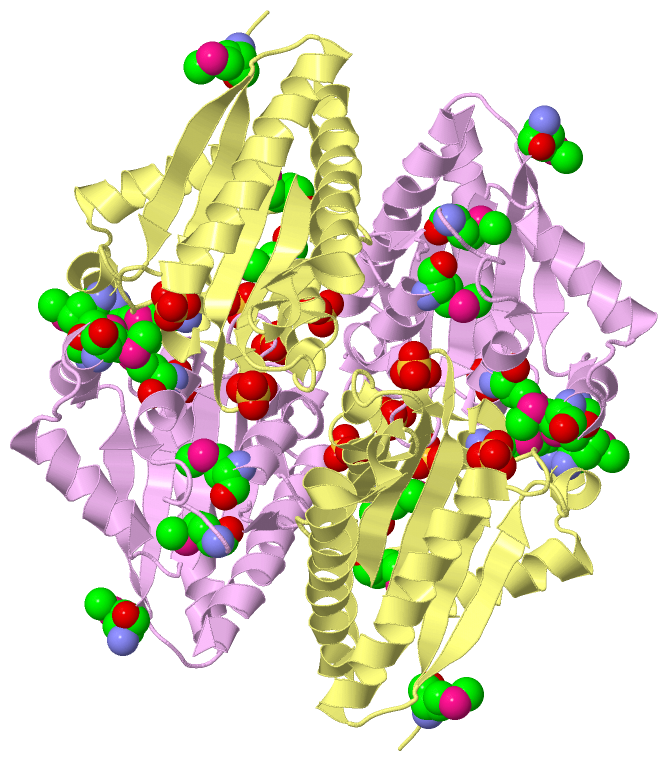

Biological Unit 2 (Jmol Viewer)

Title :   X-RAY STRUCTURE OF OXIDOREDUCTASE FROM CORYNEBACTERIUM DIPHTHERIAE. ORTHOROMBIC CRYSTAL FORM, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET CDR100D

Authors :   A. Kuzin, S. Lew, S. Sahdev, R. Xiao, C. Ciccosanti, H. Wang, J. K. Everett, R. Nair, T. B. Acton, B. Rost, G. T. Montelione, L. Tong, J. F. Hunt, Northeast Structural Genomics Consortium (Nesg)

Date :   29 Sep 09 (Deposition) - 20 Oct 09 (Release) - 20 Oct 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C,D,E,F
Biol. Unit 1: A,B,C,F  (1x)
Biol. Unit 2: D,E  (2x)

Keywords :   Crystal Structure, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Cdr100D, Q6Ngs1, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Kuzin, S. Lew, J. Seetharaman, S. Sahdev, R. Xiao, C. Ciccosanti, H. Wang, J. K. Everett, R. Nair, T. B. Acton, B. Rost, G. T. Montelione, L. Tong, J. F. Hunt
Northeast Structural Genomics Consortium Target Cdr100D
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - OXIDOREDUCTASE
	Chains	:	A, B, C, D, E, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET 14-15
	Expression System Strain	:	BL21(DE3)+ MAGIC
	Expression System Taxid	:	469008
	Expression System Vector Type	:	CPLASMID
	Gene	:	DIP1437
	Organism Scientific	:	CORYNEBACTERIUM DIPHTHERIAE
	Organism Taxid	:	1717

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A	B	C			F
Biological Unit 2 (2x)	:				D	E

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 52)

No.	Name	Count	Type	Full Name
1	MSE	36	Mod. Amino Acid	SELENOMETHIONINE
2	SO4	16	Ligand/Ion	SULFATE ION

Biological Unit 1 (2, 34)

No.	Name	Count	Type	Full Name
1	MSE	24	Mod. Amino Acid	SELENOMETHIONINE
2	SO4	10	Ligand/Ion	SULFATE ION

Biological Unit 2 (2, 36)

No.	Name	Count	Type	Full Name
1	MSE	24	Mod. Amino Acid	SELENOMETHIONINE
2	SO4	12	Ligand/Ion	SULFATE ION

Asymmetric Unit (16, 16)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLY A:10 , LEU A:11 , SER A:12 , SER A:15 , SER A:16 , THR A:17	BINDING SITE FOR RESIDUE SO4 A 182
02	AC2	SOFTWARE	GLY A:118 , SER A:119 , ARG A:121	BINDING SITE FOR RESIDUE SO4 A 183
03	AC3	SOFTWARE	ARG A:167 , THR E:13	BINDING SITE FOR RESIDUE SO4 A 184
04	AC4	SOFTWARE	THR A:63 , THR A:64 , GLY C:36	BINDING SITE FOR RESIDUE SO4 A 185
05	AC5	SOFTWARE	GLY B:10 , LEU B:11 , SER B:12 , SER B:15 , SER B:16 , THR B:17	BINDING SITE FOR RESIDUE SO4 B 182
06	AC6	SOFTWARE	PHE B:86 , LYS B:87	BINDING SITE FOR RESIDUE SO4 B 183
07	AC7	SOFTWARE	THR C:63 , THR C:64	BINDING SITE FOR RESIDUE SO4 C 182
08	AC8	SOFTWARE	GLY C:10 , LEU C:11 , SER C:12 , PRO C:14 , SER C:15 , SER C:16 , THR C:17	BINDING SITE FOR RESIDUE SO4 C 183
09	AC9	SOFTWARE	GLY D:10 , LEU D:11 , SER D:12 , SER D:15 , SER D:16 , THR D:17 , HOH D:209	BINDING SITE FOR RESIDUE SO4 D 182
10	BC1	SOFTWARE	GLY D:118 , SER D:119 , ARG D:121 , HIS D:122 , HOH D:220	BINDING SITE FOR RESIDUE SO4 D 183
11	BC2	SOFTWARE	TYR D:136 , HIS E:122 , ARG E:164	BINDING SITE FOR RESIDUE SO4 D 184
12	BC3	SOFTWARE	GLY E:10 , LEU E:11 , SER E:12 , SER E:15 , SER E:16 , THR E:17 , PRO E:84	BINDING SITE FOR RESIDUE SO4 E 182
13	BC4	SOFTWARE	TYR D:136 , LYS E:87	BINDING SITE FOR RESIDUE SO4 E 183
14	BC5	SOFTWARE	ALA E:117 , GLY E:118 , SER E:119 , ARG E:121 , HIS E:122	BINDING SITE FOR RESIDUE SO4 E 184
15	BC6	SOFTWARE	GLY F:10 , LEU F:11 , SER F:12 , SER F:15 , SER F:16 , THR F:17 , PRO F:84	BINDING SITE FOR RESIDUE SO4 F 182
16	BC7	SOFTWARE	GLY F:118 , SER F:119 , ARG F:121 , HOH F:201	BINDING SITE FOR RESIDUE SO4 F 183

(no "SS Bond" information available for 3K1Y)

Asymmetric Unit

No.	Residues
1	Thr A:13	-	Pro A:14
2	Thr B:13	-	Pro B:14
3	Thr C:13	-	Pro C:14
4	Thr D:13	-	Pro D:14
5	Thr E:13	-	Pro E:14
6	Thr F:13	-	Pro F:14

(no "SAP(SNP)/Variant" information available for 3K1Y)

(no "PROSITE Motif" information available for 3K1Y)

(no "Exon" information available for 3K1Y)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:182
 aligned with Q6NGS1_CORDI | Q6NGS1 from UniProtKB/TrEMBL  Length:221

    Alignment length:182
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178
         Q6NGS1_CORDI     - --MRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLMTAMTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKMFFDILDTDALTGMPTIIAATAGSARHSLVLDYALRPLLSYMRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee......hhhhhhhhhhhhhhhhhhhhh...eeeeeee...hhhhhh........hhhhhhhhhhhhhh.eeeeeee......hhhhhhhhhhh........eeeeeeee......hhhhhhhhhhhhhh..ee....eeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k1y A  -1 SHmRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLmTAmTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKmFFDILDTDALTGmPTIIAATAGSARHSLVLDYALRPLLSYmRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
                              |      8        18        28        38        48     |  58        68        78        88       |98       108|      118       128       138       148       158       168       178
                              |                                                   54-MSE                                    96-MSE      109-MSE                     137-MSE
                              1-MSE                                                  57-MSE

Chain B from PDB  Type:PROTEIN  Length:180
 aligned with Q6NGS1_CORDI | Q6NGS1 from UniProtKB/TrEMBL  Length:221

    Alignment length:180
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
         Q6NGS1_CORDI     1 MRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLMTAMTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKMFFDILDTDALTGMPTIIAATAGSARHSLVLDYALRPLLSYMRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeee......hhhhhhhhhhhhhhhhhhhhh...eeeeeee...hhhhhhhhhhh...hhhhhhhhhhhh...eeeeeeeee..eehhhhhhhhhhh........eeeeeeee......hhhhhhhhhhhhhh..ee....eeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3k1y B   1 mRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLmTAmTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKmFFDILDTDALTGmPTIIAATAGSARHSLVLDYALRPLLSYmRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
                            |       10        20        30        40        50   |  | 60        70        80        90     | 100       110       120       130      |140       150       160       170       180
                            1-MSE                                               54-MSE                                    96-MSE      109-MSE                     137-MSE
                                                                                   57-MSE

Chain C from PDB  Type:PROTEIN  Length:181
 aligned with Q6NGS1_CORDI | Q6NGS1 from UniProtKB/TrEMBL  Length:221

    Alignment length:181
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179
         Q6NGS1_CORDI     - -MRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLMTAMTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKMFFDILDTDALTGMPTIIAATAGSARHSLVLDYALRPLLSYMRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee......hhhhhhhhhhhhhhhhhhhhh...eeeeeee...hhhhhhhhhhh...hhhhhhhhhhhhhh.eeeee........hhhhhhhhhhh........eeeeeeee......hhhhhhhhhhhhhh..ee....eeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k1y C   0 HmRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLmTAmTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKmFFDILDTDALTGmPTIIAATAGSARHSLVLDYALRPLLSYmRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
                             |       9        19        29        39        49    |  |59        69        79        89      | 99       109       119       129       139       149       159       169       179
                             1-MSE                                               54-MSE                                    96-MSE      109-MSE                     137-MSE
                                                                                    57-MSE

Chain D from PDB  Type:PROTEIN  Length:182
 aligned with Q6NGS1_CORDI | Q6NGS1 from UniProtKB/TrEMBL  Length:221

    Alignment length:182
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178
         Q6NGS1_CORDI     - --MRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLMTAMTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKMFFDILDTDALTGMPTIIAATAGSARHSLVLDYALRPLLSYMRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee......hhhhhhhhhhhhhhhhhhhhh...eeeeeee...hhhhhhhhhhh...hhhhhhhhhhhhh..eeeeeeeee..eehhhhhhhhhhh........eeeeeeee....hhhhh..hhhhhhhhh..ee....eeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3k1y D  -1 SHmRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLmTAmTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKmFFDILDTDALTGmPTIIAATAGSARHSLVLDYALRPLLSYmRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
                              |      8        18        28        38        48     |  58        68        78        88       |98       108|      118       128       138       148       158       168       178
                              1-MSE                                               54-MSE                                    96-MSE      109-MSE                     137-MSE
                                                                                     57-MSE

Chain E from PDB  Type:PROTEIN  Length:180
 aligned with Q6NGS1_CORDI | Q6NGS1 from UniProtKB/TrEMBL  Length:221

    Alignment length:180
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
         Q6NGS1_CORDI     1 MRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLMTAMTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKMFFDILDTDALTGMPTIIAATAGSARHSLVLDYALRPLLSYMRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeee......hhhhhhhhhhhhhhhhhhhh....eeeeeee...hhhhhhhhhh....hhhhhhhhhhhh...eeeeeee......hhhhhhhhhhh........eeeeeeee......hhhhhhhhhhhhhh..ee....eeee.hhh.hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3k1y E   1 mRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLmTAmTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKmFFDILDTDALTGmPTIIAATAGSARHSLVLDYALRPLLSYmRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
                            |       10        20        30        40        50   |  | 60        70        80        90     | 100       110       120       130      |140       150       160       170       180
                            1-MSE                                               54-MSE                                    96-MSE      109-MSE                     137-MSE
                                                                                   57-MSE

Chain F from PDB  Type:PROTEIN  Length:180
 aligned with Q6NGS1_CORDI | Q6NGS1 from UniProtKB/TrEMBL  Length:221

    Alignment length:180
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
         Q6NGS1_CORDI     1 MRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLMTAMTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKMFFDILDTDALTGMPTIIAATAGSARHSLVLDYALRPLLSYMRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) FMN_red-3k1yF01 F:1-154                                                                                                                                   -------------------------- Pfam domains (1)
           Pfam domains (2) FMN_red-3k1yF02 F:1-154                                                                                                                                   -------------------------- Pfam domains (2)
           Pfam domains (3) FMN_red-3k1yF03 F:1-154                                                                                                                                   -------------------------- Pfam domains (3)
           Pfam domains (4) FMN_red-3k1yF04 F:1-154                                                                                                                                   -------------------------- Pfam domains (4)
           Pfam domains (5) FMN_red-3k1yF05 F:1-154                                                                                                                                   -------------------------- Pfam domains (5)
           Pfam domains (6) FMN_red-3k1yF06 F:1-154                                                                                                                                   -------------------------- Pfam domains (6)
         Sec.struct. author .eeeeeee......hhhhhhhhhhhhhhhhhhhh....eeeeeee...hhhhhhhhhhh...hhhhhhhhhhhhhh.eeeeeeeee..eehhhhhhhhhh.........eeeeeeee......hhhhhhhhhhhhhh..ee....eeee....hhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3k1y F   1 mRTLAVISAGLSTPSSTRQIADSISEAVTAAVSARGEALSVSTIELSELIPDLmTAmTTRVHTTKLEEITSALSASDGLVVATPVFKASYTGLFKmFFDILDTDALTGmPTIIAATAGSARHSLVLDYALRPLLSYmRAVVVPTGVFAATEDFGGPEGAEFNKRIARAAGELASLIVEES 180
                            |       10        20        30        40        50   |  | 60        70        80        90     | 100       110       120       130      |140       150       160       170       180
                            1-MSE                                               54-MSE                                    96-MSE      109-MSE                     137-MSE
                                                                                   57-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3K1Y)

(no "CATH Domain" information available for 3K1Y)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Flavoprotein (71)

Family: FMN_red (5)

Corynebacterium diphtheriae (2)

1a	FMN_red-3k1yF01	F:1-154
1b	FMN_red-3k1yF02	F:1-154
1c	FMN_red-3k1yF03	F:1-154
1d	FMN_red-3k1yF04	F:1-154
1e	FMN_red-3k1yF05	F:1-154
1f	FMN_red-3k1yF06	F:1-154

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (Q6NGS1_CORDI | Q6NGS1)

molecular function
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Thr A:13 - Pro A:14	[ RasMol ]
		Thr B:13 - Pro B:14	[ RasMol ]
		Thr C:13 - Pro C:14	[ RasMol ]
		Thr D:13 - Pro D:14	[ RasMol ]
		Thr E:13 - Pro E:14	[ RasMol ]
		Thr F:13 - Pro F:14	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3k1y
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q6NGS1_CORDI \| Q6NGS1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q6NGS1_CORDI \| Q6NGS1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/TrEMBL
	Q6NGS1_CORDI \| Q6NGS1	:	3k20

2vzj	36% OF AMINO ACID RESIDUES ARE IDENTICAL. RELATED ID: CDR100D RELATED DB: TARGETDB

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 52)

Sites (16, 16)

SS Bonds (0, 0)

Cis Peptide Bonds (6, 6)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (1, 6)

Gene Ontology (2, 2)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
