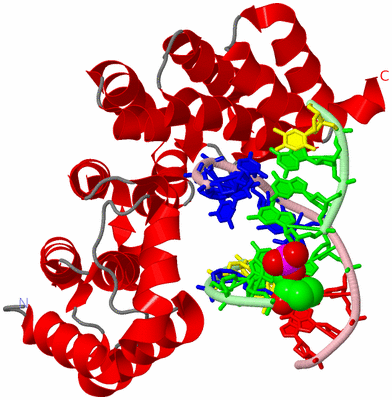

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING AN ABASIC SITE (ACROSS FROM C)

Authors :  E. H. Rubinson, B. F. Eichman
Date :  21 Sep 09  (Deposition) - 22 Sep 10  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Heat Repeat, Dna Binding, Dna Glycosylase, Dna Alkylation, Lyase-Dna Complex, Hydrolase-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. H. Rubinson, A. S. Gowda, T. E. Spratt, B. Gold, B. F. Eichman
An Unprecedented Nucleic Acid Capture Mechanism For Excisio Of Dna Damage.
Nature V. 468 406 2010
PubMed-ID: 20927102  |  Reference-DOI: 10.1038/NATURE09428

(-) Compounds

Molecule 1 - ALKYLPURINE DNA GLYCOSYLASE ALKD
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PBG103
    Expression System Strain: HMS174
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: ALKD, BC_4913
    Organism Scientific: BACILLUS CEREUS
    Organism Taxid: 222523
    Strain: ATCC 10987

Molecule 2 - DNA (5'-D(*TP*GP*GP*GP*(3DR)P*GP*GP*CP*TP*T)-3')
    Chains: B
    Engineered: YES
    Synthetic: YES

Molecule 3 - DNA (5'-D(*AP*AP*AP*GP*CP*CP*CP*CP*CP*C)-3')
    Chains: C
    Engineered: YES
    Synthetic: YES

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
13DR1Mod. Nucleotide1',2'-DIDEOXYRIBOFURANOSE-5'-PHOSPHATE

(-) Sites  (0, 0)

(no "Site" information available for 3JY1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3JY1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3JY1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3JY1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3JY1)

(-) Exons   (0, 0)

(no "Exon" information available for 3JY1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:226
 aligned with Q816E8_BACCR | Q816E8 from UniProtKB/TrEMBL  Length:237

    Alignment length:226
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219
         Q816E8_BACCR     - -MHPFVKALQEHFTAHQNPEKAEPMARYMKNHFLFLGIQTPERRQLLKDIIQIHTLPDQKDFQIIIRELWDLPEREFQAAALDIMQKYKKHINETHIPFLEELIVTKSWWDSVDSIVPTFLGDIFLKHPELISAYIPKWIASDNIWLQRAAILFQLKYKQKMDEELLFWIIGQLHSSKEFFIQKAIGWVLREYAKTNPDVVWEYVQNNELAPLSKREAIKHIKQNY 225
               SCOP domains d3jy1a_ A: automated matches                                                                                                                                                                                                       SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------DNA_alkylation-3jy1A01 A:8-221                                                                                                                                                                                        ---- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhh.hhhhhhhhhhhh.........hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhh.hhhhhhhhhhh...hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhh..hhhhhhhhhh.hhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3jy1 A   0 PMHPFVKALQEHFTAHQNPEKAEPMARYMKNHFLFLGIQTPERRQLLKDIIQIHTLPDQKDFQIIIRELWDLPEREFQAAALDIMQKYKKHINETHIPFLEELIVTKSWWDSVDSIVPTFLGDIFLKHPELISAYIPKWIASDNIWLQRAAILFQLKYKQKMDEELLFWIIGQLHSSKEFFIQKAIGWVLREYAKTNPDVVWEYVQNNELAPLSKREAIKHIKQNY 225
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219


Chain B from PDB  Type:DNA  Length:10

                 3jy1 B   1 TGGGxGGCTT  10
                                |   10
                                5-3DR


Chain C from PDB  Type:DNA  Length:10

                 3jy1 C  11 AAAGCCCCCC  20
                                    20
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3JY1)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3JY1)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    3DR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3jy1)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3jy1)


(-) Still Images

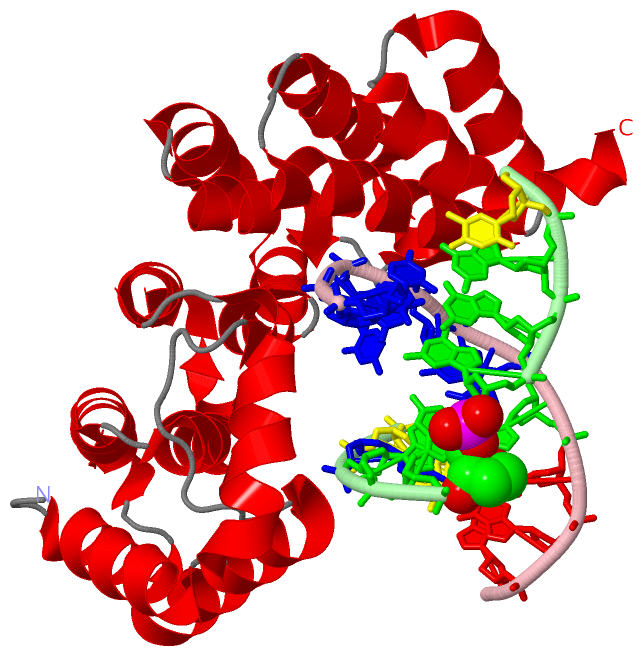

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3jy1
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q816E8_BACCR | Q816E8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q816E8_BACCR | Q816E8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q816E8_BACCR | Q816E8: 3bvs 3jx7 3jxy 3jxz 5cl3 5cl4 5cl5 5cl6 5cl7 5cl8 5cl9 5cla 5clb 5clc 5cld 5cle 5kub

(-) Related Entries Specified in the PDB File

3bvs CRYSTAL STRUCTURE OF BACILLUS CEREUS ALKYLPURING DNA GLYCOSYLASE ALKD
3jx7 BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING A 3MA ANALOG
3jxy BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING A GT MISMATCH
3jxz BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING AN ABASIC SITE (ACROSS FROM T)
