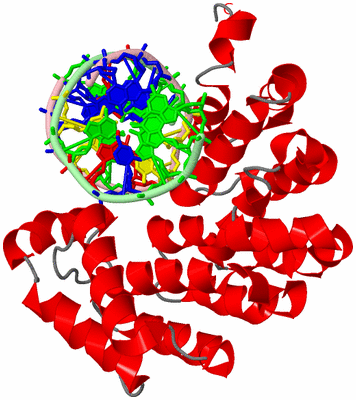

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING A GT MISMATCH

Authors :  E. H. Rubinson, B. F. Eichman
Date :  21 Sep 09  (Deposition) - 22 Sep 10  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Heat Repeat, Dna Binding, Dna Glycosylase, Dna Alkylation, Lyase-Dna Complex, Hydrolase-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. H. Rubinson, A. S. Gowda, T. E. Spratt, B. Gold, B. F. Eichman
An Unprecedented Nucleic Acid Capture Mechanism For Excisio Of Dna Damage.
Nature V. 468 406 2010
PubMed-ID: 20927102  |  Reference-DOI: 10.1038/NATURE09428

(-) Compounds

Molecule 1 - ALKYLPURINE DNA GLYCOSYLASE ALKD
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PBG103
    Expression System Strain: HMS174
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: ALKD, BC_4913
    Organism Scientific: BACILLUS CEREUS
    Organism Taxid: 222523
    Strain: ATCC 10987

Molecule 2 - DNA (5'-D(*CP*GP*GP*AP*CP*TP*GP*AP*CP*GP*GP*G)-3')
    Chains: B
    Engineered: YES
    Synthetic: YES

Molecule 3 - DNA (5'-D(*CP*CP*CP*GP*TP*TP*AP*GP*TP*CP*CP*G)-3')
    Chains: C
    Engineered: YES
    Synthetic: YES

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3JXY)

(-) Sites  (0, 0)

(no "Site" information available for 3JXY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3JXY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3JXY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3JXY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3JXY)

(-) Exons   (0, 0)

(no "Exon" information available for 3JXY)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:231
 aligned with Q816E8_BACCR | Q816E8 from UniProtKB/TrEMBL  Length:237

    Alignment length:231
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229
         Q816E8_BACCR     - -MHPFVKALQEHFTAHQNPEKAEPMARYMKNHFLFLGIQTPERRQLLKDIIQIHTLPDQKDFQIIIRELWDLPEREFQAAALDIMQKYKKHINETHIPFLEELIVTKSWWDSVDSIVPTFLGDIFLKHPELISAYIPKWIASDNIWLQRAAILFQLKYKQKMDEELLFWIIGQLHSSKEFFIQKAIGWVLREYAKTNPDVVWEYVQNNELAPLSKREAIKHIKQNYGINNE 230
               SCOP domains d3jxya_ A: automated matches                                                                                                                                                                                                            SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------DNA_alkylation-3jxyA01 A:8-221                                                                                                                                                                                        --------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh..hhhhhhhhhhhh.........hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhh...hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh..hhhhhhhhhhhh..hhhhhhhhh..hhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3jxy A   0 PMHPFVKALQEHFTAHQNPEKAEPMARYMKNHFLFLGIQTPERRQLLKDIIQIHTLPDQKDFQIIIRELWDLPEREFQAAALDIMQKYKKHINETHIPFLEELIVTKSWWDSVDSIVPTFLGDIFLKHPELISAYIPKWIASDNIWLQRAAILFQLKYKQKMDEELLFWIIGQLHSSKEFFIQKAIGWVLREYAKTNPDVVWEYVQNNELAPLSKREAIKHIKQNYGINNE 230
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229


Chain B from PDB  Type:DNA  Length:12

                 3jxy B   1 CGGACTGACGGG  12
                                    10


Chain C from PDB  Type:DNA  Length:12

                 3jxy C   1 CCCGTTAGTCCG  12
                                    10
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3JXY)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3JXY)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3jxy)

  Sites
(no "Sites" information available for 3jxy)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3jxy)


(-) Still Images

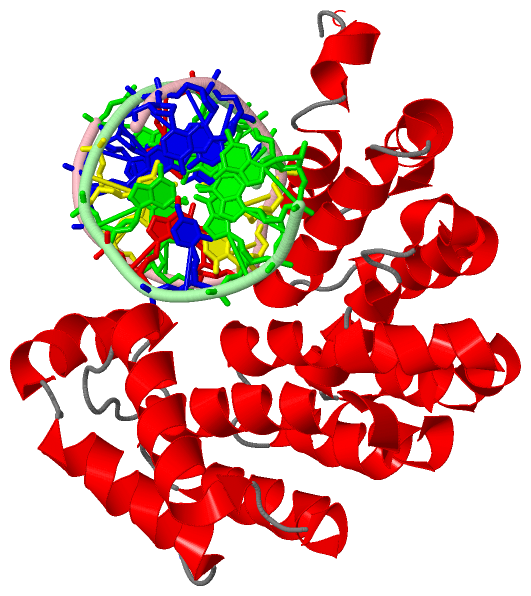

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3jxy
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q816E8_BACCR | Q816E8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q816E8_BACCR | Q816E8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q816E8_BACCR | Q816E8: 3bvs 3jx7 3jxz 3jy1 5cl3 5cl4 5cl5 5cl6 5cl7 5cl8 5cl9 5cla 5clb 5clc 5cld 5cle 5kub

(-) Related Entries Specified in the PDB File

3bvs CRYSTAL STRUCTURE OF BACILLUS CEREUS ALKYLPURING DNA GLYCOSYLASE ALKD
3jx7 BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING A 3MA ANALOG
3jxz BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING AN ABASIC SITE (ACROSS FROM T)
3jy1 BACILLUS CEREUS ALKYLPURINE DNA GLYCOSYLASE ALKD BOUND TO DNA CONTAINING AN ABASIC SITE (ACROSS FROM C)
