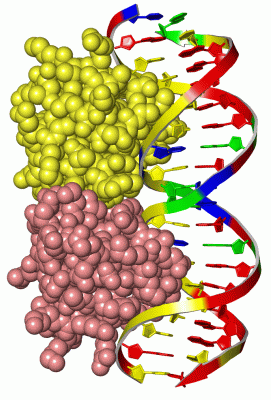

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

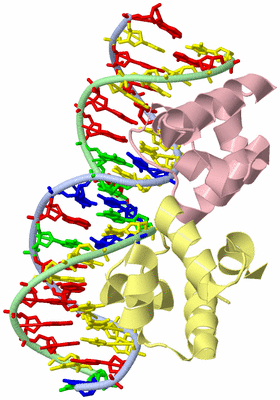

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE P22 C2 REPRESSOR PROTEIN IN COMPLEX WITH SYNTHETIC OPERATOR 9C

Authors :  D. Watkins, G. B. Koudelka, L. D. Williams
Date :  18 Sep 09  (Deposition) - 19 Jan 10  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.67
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Protein-Dna Complex, Dna-Binding, Repressor, Transcription, Transcription Regulation, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Watkins, S. Mohan, G. B. Koudelka, L. D. Williams
Sequence Recognition Of Dna By Protein-Induced Conformational Transitions
J. Mol. Biol. V. 396 1145 2010
PubMed-ID: 20053356  |  Reference-DOI: 10.1016/J.JMB.2009.12.050

(-) Compounds

Molecule 1 - 5'-D(*CP*AP*TP*TP*TP*AP*AP*GP*AP*CP*GP*TP*CP*TP*TP*AP*AP*AP *TP*A)-3'
    Chains: A
    Engineered: YES
    Other Details: SYNTHETIC DNA OPERATOR 9C
    Other Details - Source: SYNTHETIC DNA OPERATOR 9C
    Synthetic: YES

Molecule 2 - 5'-D(*TP*AP*TP*TP*TP*AP*AP*GP*AP*CP*GP*TP*CP*TP*TP*AP*AP*AP *TP*G)-3'
    Chains: B
    Engineered: YES
    Other Details: SYNTHETIC DNA OPERATOR 9C
    Other Details - Source: SYNTHETIC DNA OPERATOR 9C
    Synthetic: YES

Molecule 3 - REPRESSOR PROTEIN C2
    Chains: C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PUC18
    Expression System Strain: XA90
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: C2
    Organism Common: BACTERIOPHAGE P22
    Organism Scientific: ENTEROBACTERIA PHAGE P22
    Organism Taxid: 10754

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3JXB)

(-) Sites  (0, 0)

(no "Site" information available for 3JXB)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3JXB)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3JXB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3JXB)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_CROC1PS50943 Cro/C1-type HTH domain profile.RPC2_BPP2210-64
 		  2C:10-64
D:10-64

(-) Exons   (0, 0)

(no "Exon" information available for 3JXB)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:DNA  Length:20

                  3jxb A  1 CATTTAAGACGTCTTAAATA 20
                                    10        20


Chain B from PDB  Type:DNA  Length:20

                  3jxb B 21 TATTTAAGACGTCTTAAATG 40
                                    30        40


Chain C from PDB  Type:PROTEIN  Length:67
 aligned with RPC2_BPP22 | P69202 from UniProtKB/Swiss-Prot  Length:216

    Alignment length:67
                                    11        21        31        41        51        61
            RPC2_BPP22    2 NTQLMGERIRARRKKLKIRQAALGKMVGVSNVAISQWERSETEPNGENLLALSKALQCSPDYLLKGD 68
               SCOP domains d3jxbc_ C: P22 C2 repressor, DNA-binding domain                     SCOP domains
               CATH domains 3jxbC00 C:2-68 lambda repressor-like DNA-binding domains            CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhh..hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------HTH_CROC1  PDB: C:10-64 UniProt: 10-64                 ---- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  3jxb C  2 NTQLMGERIRARRKKLKIRQAALGKMVGVSNVAISQWERSETEPNGENLLALSKALQCSPDYLLKGD 68
                                    11        21        31        41        51        61


Chain D from PDB  Type:PROTEIN  Length:65
 aligned with RPC2_BPP22 | P69202 from UniProtKB/Swiss-Prot  Length:216

    Alignment length:65
                                    13        23        33        43        53        63
            RPC2_BPP22    4 QLMGERIRARRKKLKIRQAALGKMVGVSNVAISQWERSETEPNGENLLALSKALQCSPDYLLKGD 68
               SCOP domains d3jxbd_ D: P22 C2 repressor, DNA-binding domain                   SCOP domains
               CATH domains 3jxbD00 D:4-68 lambda repressor-like DNA-binding domains          CATH domains
           Pfam domains (1) ------HTH_3-3jxbD01 D:10-64                                  ---- Pfam domains (1)
           Pfam domains (2) ------HTH_3-3jxbD02 D:10-64                                  ---- Pfam domains (2)
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------HTH_CROC1  PDB: D:10-64 UniProt: 10-64                 ---- PROSITE
                 Transcript ----------------------------------------------------------------- Transcript
                  3jxb D  4 QLMGERIRARRKKLKIRQAALGKMVGVSNVAISQWERSETEPNGENLLALSKALQCSPDYLLKGD 68
                                    13        23        33        43        53        63
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: HTH (544)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain C,D   (RPC2_BPP22 | P69202)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3jxb)

  Sites
(no "Sites" information available for 3jxb)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3jxb)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3jxb
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RPC2_BPP22 | P69202
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RPC2_BPP22 | P69202
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RPC2_BPP22 | P69202: 1adr 1qar 2r1j 3jxc 3jxd

(-) Related Entries Specified in the PDB File

3jxc CRYSTAL STRUCTURE OF P22 C2 REPRESSOR PROTEIN IN COMPLEX WITH SYNTHETIC OPERATOR 9T IN THE PRESENCE OF TL+
3jxd CRYSTAL STRUCTURE OF P22 C2 REPRESSOR PROTEIN IN COMPLEX WITH SYNTHETIC OPERATOR 9C IN PRESENCE OF RB+
