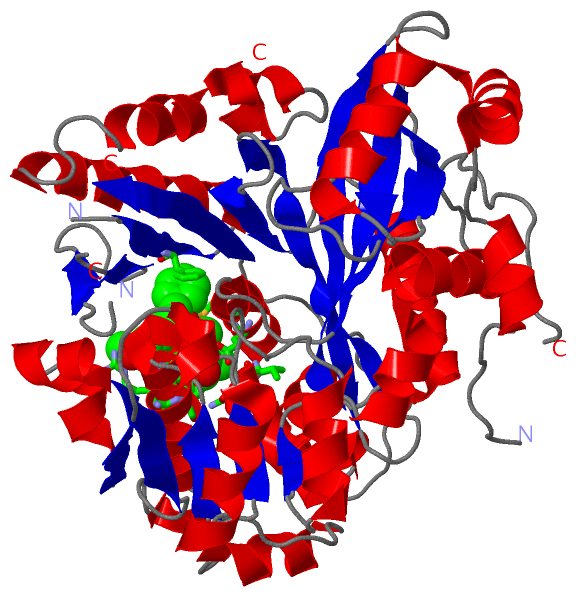

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE BC DOMAIN OF ACC2 IN COMPLEX WITH SORAPHEN A

Authors :  Y. S. Cho, J. I. Lee, D. Shin, H. T. Kim, T. G. Lee, Y. S. Heo
Date :  09 Sep 09  (Deposition) - 12 Jan 10  (Release) - 12 Jan 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Bc Domain, Soraphen A, Alternative Splicing, Atp-Binding, Biotin, Fatty Acid Biosynthesis, Ligase, Lipid Synthesis, Manganese, Membrane, Metal-Binding, Multifunctional Enzyme, Nucleotide-Binding, Phosphoprotein, Polymorphism (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Y. S. Cho, J. I. Lee, D. Shin, H. T. Kim, H. Y. Jung, T. G. Lee, L. W. Kang, Y. J. Ahn, H. S. Cho, Y. S. Heo
Molecular Mechanism For The Regulation Of Human Acc2 Through Phosphorylation By Ampk.
Biochem. Biophys. Res. Commun. V. 391 187 2010
PubMed-ID: 19900410  |  Reference-DOI: 10.1016/J.BBRC.2009.11.029
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ACETYL-COA CARBOXYLASE 2
    ChainsA
    EC Number6.4.1.2, 6.3.4.14
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidMODIFIED PET21B
    Expression System StrainBL21
    Expression System Taxid511693
    Expression System Vector TypePLASMID
    FragmentBC DOMAIN, RESIDUES 217-775
    GeneACACB, ACC2, ACCB
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymACC-BETA, BIOTIN CARBOXYLASE, ACC2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1S1A1Ligand/IonSORAPHEN A

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:274 , ARG A:277 , SER A:278 , GLU A:593 , MET A:594 , VAL A:598 , ASN A:599 , PHE A:704BINDING SITE FOR RESIDUE S1A A 1000

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3JRX)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Ile A:342 -Pro A:343
2Phe A:449 -Pro A:450
3Ala A:534 -Pro A:535

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (2, 2)

Asymmetric/Biological Unit (2, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_031255I552VACACB_HUMANPolymorphism16940029AI552V
2UniProtVAR_031256A651TACACB_HUMANPolymorphism2300455AA651T

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (3, 3)

Asymmetric/Biological Unit (3, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1BCPS50979 Biotin carboxylation domain profile.ACACB_HUMAN259-761  1A:259-758
2CPSASE_1PS00866 Carbamoyl-phosphate synthase subdomain signature 1.ACACB_HUMAN449-463  1A:449-463
3CPSASE_2PS00867 Carbamoyl-phosphate synthase subdomain signature 2.ACACB_HUMAN578-585  1A:578-585

(-) Exons   (12, 12)

Asymmetric/Biological Unit (12, 12)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1aENST000003778481aENSE00002193931chr12:109577202-109577863662ACACB_HUMAN1-2182180--
1.2ENST000003778482ENSE00001592576chr12:109604666-109604798133ACACB_HUMAN218-262451A:237-26226
1.3ENST000003778483ENSE00001645737chr12:109605701-109605839139ACACB_HUMAN263-309471A:263-30947
1.4ENST000003778484ENSE00001696806chr12:109609610-109609719110ACACB_HUMAN309-345371A:309-34537
1.5ENST000003778485ENSE00001659607chr12:109610080-10961016182ACACB_HUMAN346-373281A:346-37328
1.6ENST000003778486ENSE00001752262chr12:109611937-10961203599ACACB_HUMAN373-406341A:373-40634
1.7ENST000003778487ENSE00001658849chr12:109613736-109613845110ACACB_HUMAN406-442371A:406-442 (gaps)37
1.8ENST000003778488ENSE00001745001chr12:109613958-109614068111ACACB_HUMAN443-479371A:443-47937
1.9ENST000003778489ENSE00001659729chr12:109616893-109617102210ACACB_HUMAN480-549701A:480-54970
1.10ENST0000037784810ENSE00001734325chr12:109617722-109617892171ACACB_HUMAN550-606571A:550-60657
1.11ENST0000037784811ENSE00001678287chr12:109623384-109623545162ACACB_HUMAN607-660541A:607-65549
1.12ENST0000037784812ENSE00001749990chr12:109625804-109625967164ACACB_HUMAN661-715551A:666-715 (gaps)50
1.13ENST0000037784813ENSE00001780825chr12:109629418-109629568151ACACB_HUMAN715-765511A:715-75844
1.14ENST0000037784814ENSE00001738467chr12:109629652-109629755104ACACB_HUMAN766-800350--
1.15ENST0000037784815ENSE00001614723chr12:109631453-10963153482ACACB_HUMAN800-827280--
1.16ENST0000037784816ENSE00001662933chr12:109634813-109634958146ACACB_HUMAN828-876490--
1.17ENST0000037784817ENSE00001682078chr12:109637207-109637357151ACACB_HUMAN876-926510--
1.18ENST0000037784818ENSE00001599746chr12:109639372-109639506135ACACB_HUMAN927-971450--
1.19ENST0000037784819ENSE00001711654chr12:109644515-109644661147ACACB_HUMAN972-1020490--
1.20ENST0000037784820ENSE00001649091chr12:109646970-109647158189ACACB_HUMAN1021-1083630--
1.21ENST0000037784821ENSE00001641104chr12:109650641-109650741101ACACB_HUMAN1084-1117340--
1.22bENST0000037784822bENSE00001756818chr12:109654423-10965451189ACACB_HUMAN1117-1147310--
1.23bENST0000037784823bENSE00001595891chr12:109654601-109654725125ACACB_HUMAN1147-1188420--
1.25ENST0000037784825ENSE00001629446chr12:109660312-109660425114ACACB_HUMAN1189-1226380--
1.26ENST0000037784826ENSE00001802870chr12:109660604-109660717114ACACB_HUMAN1227-1264380--
1.27ENST0000037784827ENSE00001718675chr12:109661620-10966170990ACACB_HUMAN1265-1294300--
1.28ENST0000037784828ENSE00001732085chr12:109665176-109665294119ACACB_HUMAN1295-1334400--
1.29ENST0000037784829ENSE00001671433chr12:109670474-109670611138ACACB_HUMAN1334-1380470--
1.30ENST0000037784830ENSE00000754740chr12:109671553-109671652100ACACB_HUMAN1380-1413340--
1.31ENST0000037784831ENSE00000754741chr12:109671743-109671850108ACACB_HUMAN1414-1449360--
1.32ENST0000037784832ENSE00000754742chr12:109673118-10967317457ACACB_HUMAN1450-1468190--
1.33ENST0000037784833ENSE00000754743chr12:109673411-10967345242ACACB_HUMAN1469-1482140--
1.34ENST0000037784834ENSE00000410836chr12:109674970-109675185216ACACB_HUMAN1483-1554720--
1.35ENST0000037784835ENSE00001601824chr12:109677635-109677790156ACACB_HUMAN1555-1606520--
1.36ENST0000037784836ENSE00000754745chr12:109678883-109679086204ACACB_HUMAN1607-1674680--
1.37ENST0000037784837ENSE00001507550chr12:109680242-109680397156ACACB_HUMAN1675-1726520--
1.38ENST0000037784838ENSE00001197605chr12:109683431-109683553123ACACB_HUMAN1727-1767410--
1.39ENST0000037784839ENSE00000834687chr12:109683984-109684253270ACACB_HUMAN1768-1857900--
1.40ENST0000037784840ENSE00000834688chr12:109685411-10968550898ACACB_HUMAN1858-1890330--
1.41ENST0000037784841ENSE00000754750chr12:109687789-109687909121ACACB_HUMAN1890-1930410--
1.42ENST0000037784842ENSE00000754751chr12:109689851-109689961111ACACB_HUMAN1931-1967370--
1.43ENST0000037784843ENSE00000754752chr12:109690820-109690963144ACACB_HUMAN1968-2015480--
1.44ENST0000037784844ENSE00000754753chr12:109692019-109692139121ACACB_HUMAN2016-2056410--
1.45ENST0000037784845ENSE00000754755chr12:109693945-10969404197ACACB_HUMAN2056-2088330--
1.46ENST0000037784846ENSE00000754756chr12:109696073-10969616997ACACB_HUMAN2088-2120330--
1.47ENST0000037784847ENSE00000754757chr12:109696778-109696913136ACACB_HUMAN2121-2166460--
1.49ENST0000037784849ENSE00001654404chr12:109698285-109698462178ACACB_HUMAN2166-2225600--
1.50ENST0000037784850ENSE00000754759chr12:109700162-109700274113ACACB_HUMAN2225-2263390--
1.51ENST0000037784851ENSE00000754760chr12:109702037-109702191155ACACB_HUMAN2263-2314520--
1.52ENST0000037784852ENSE00000754761chr12:109702915-109703085171ACACB_HUMAN2315-2371570--
1.53ENST0000037784853ENSE00000754762chr12:109703194-109703330137ACACB_HUMAN2372-2417460--
1.54bENST0000037784854bENSE00001423352chr12:109704041-1097060281988ACACB_HUMAN2417-2458420--

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:496
 aligned with ACACB_HUMAN | O00763 from UniProtKB/Swiss-Prot  Length:2458

    Alignment length:522
                                   246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       606       616       626       636       646       656       666       676       686       696       706       716       726       736       746       756
          ACACB_HUMAN   237 DLHRDFTVASPAEFVTRFGGDRVIEKVLIANNGIAAVKCMRSIRRWAYEMFRNERAIRFVVMVTPEDLKANAEYIKMADHYVPVPGGPNNNNYANVELIVDIAKRIPVQAVWAGWGHASENPKLPELLCKNGVAFLGPPSEAMWALGDKIASTVVAQTLQVPTLPWSGSGLTVEWTEDDLQQGKRISVPEDVYDKGCVKDVDEGLEAAERIGFPLMIKASEGGGGKGIRKAESAEDFPILFRQVQSEIPGSPIFLMKLAQHARHLEVQILADQYGNAVSLFGRDCSIQRRHQKIVEEAPATIAPLAIFEFMEQCAIRLAKTVGYVSAGTVEYLYSQDGSFHFLELNPRLQVEHPCTEMIADVNLPAAQLQIAMGVPLHRLKDIRLLYGESPWGVTPISFETPSNPPLARGHVIAARITSENPDEGFKPSSGTVQELNFRSSKNVWGYFSVAATGGLHEFADSQFGHCFSWGENREEAISNMVVALKELSIRGDFRTTVEYLINLLETESFQNNDIDTGWLDY 758
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ----------------------CPSase_L_chain-3jrxA03 A:259-379                                                                                         --------------------------------      CPSase_L_D2-3jrxA01 A:418-616                                                                                                                                                                          ---------------------------------Biotin          _carb_C-3jrxA02 A:650-          757                                                         - Pfam domains
         Sec.struct. author .........hhhhhhhhh.......eeee..hhhhhhhhhhhhhhhhhhhhh.....eeeeeehhhhhhh.hhhhhhh.eeee....hhhhh..hhhhhhhhhhhh...eee.........hhhhhhhhh...ee...hhhhhhhhhhhhhhhhhhhhh................------.......hhhhhhh....hhhhhhhhhhhhh..eeeee........eeee....hhhhhhhhhhhhh....eeeee.....eeeeeeeee.....eeeeeeeeeeee....eeeeee.....hhhhhhhhhhhhhhhhhhhh..eeeeeeeee.....eeeeeee.....hhhhhhhhhh.hhhhhhhhhhh..hhhhhhhhhhhh.......................eeeeeeee.----------....eeee......eeeee...----------..eeeeeeee.hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhh....hhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------V--------------------------------------------------------------------------------------------------T----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----------------------BC  PDB: A:259-758 UniProt: 259-761                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------CPSASE_1       ------------------------------------------------------------------------------------------------------------------CPSASE_2----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.2  PDB: A:237-262  Exon 1.3  PDB: A:263-309 UniProt: 263-309      ------------------------------------Exon 1.5  PDB: A:346-373    --------------------------------Exon 1.7  PDB: A:406-442 (gaps)      Exon 1.8  PDB: A:443-479             Exon 1.9  PDB: A:480-549 UniProt: 480-549                             Exon 1.10  PDB: A:550-606 UniProt: 550-606               Exon 1.11  PDB: A:607-655 UniProt: 607-660            Exon 1.12  PDB: A:666-715 (gaps) UniProt: 661-715      ------------------------------------------- Transcript 1 (1)
           Transcript 1 (2) ------------------------------------------------------------------------Exon 1.4  PDB: A:309-345             ---------------------------Exon 1.6  PDB: A:373-406          --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Exon 1.13  PDB: A:715-758 UniProt: 715-765   Transcript 1 (2)
                 3jrx A 237 DLHRDFTVASPAEFVTRFGGDRVIEKVLIANNGIAAVKCMRSIRRWAYEMFRNERAIRFVVMVTPEDLKANAEYIKMADHYVPVPGGPNNNNYANVELIVDIAKRIPVQAVWAGWGHASENPKLPELLCKNGVAFLGPPSEAMWALGDKIASTVVAQTLQVPTLPWSGSGLTVEW------QGKRISVPEDVYDKGCVKDVDEGLEAAERIGFPLMIKASEGGGGKGIRKAESAEDFPILFRQVQSEIPGSPIFLMKLAQHARHLEVQILADQYGNAVSLFGRDCSIQRRHQKIVEEAPATIAPLAIFEFMEQCAIRLAKTVGYVSAGTVEYLYSQDGSFHFLELNPRLQVEHPCTEMIADVNLPAAQLQIAMGVPLHRLKDIRLLYGESPWGVTPISFETPSNPPLARGHVIAARITS----------SGTVQELNFRSSKNVWGYFSVA----------SQFGHCFSWGENREEAISNMVVALKELSIRGDFRTTVEYLINLLETESFQNNDIDTGWLDY 758
                                   246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406    |    - |     426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       606       616       626       636       646        |-       666       676       686|        - |     706       716       726       736       746       756
                                                                                                                                                                                                        411    418                                                                                                                                                                                                                                          655        666                  687        698

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3JRX)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3JRX)

(-) Pfam Domains  (3, 3)

Asymmetric/Biological Unit

(-) Gene Ontology  (34, 34)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ACACB_HUMAN | O00763)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003989    acetyl-CoA carboxylase activity    Catalysis of the reaction: ATP + acetyl-CoA + HCO3- = ADP + phosphate + malonyl-CoA.
    GO:0004075    biotin carboxylase activity    Catalysis of the reaction: ATP + biotin-carboxyl-carrier protein + CO2 = ADP + phosphate + carboxybiotin-carboxyl-carrier protein.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0006084    acetyl-CoA metabolic process    The chemical reactions and pathways involving acetyl-CoA, a derivative of coenzyme A in which the sulfhydryl group is acetylated; it is a metabolite derived from several pathways (e.g. glycolysis, fatty acid oxidation, amino-acid catabolism) and is further metabolized by the tricarboxylic acid cycle. It is a key intermediate in lipid and terpenoid biosynthesis.
    GO:0006768    biotin metabolic process    The chemical reactions and pathways involving biotin, cis-tetrahydro-2-oxothieno(3,4-d)imidazoline-4-valeric acid; the (+) enantiomer is very widely distributed in cells and serves as a carrier in a number of enzymatic beta-carboxylation reactions.
    GO:0006853    carnitine shuttle    The transfer of acyl groups to and from acyl-CoA molecules to form O-acylcarnitine, which can exchange across the mitochondrial inner membrane with unacylated carnitine.
    GO:0097009    energy homeostasis    Any process involved in the balance between food intake (energy input) and energy expenditure.
    GO:0006633    fatty acid biosynthetic process    The chemical reactions and pathways resulting in the formation of a fatty acid, any of the aliphatic monocarboxylic acids that can be liberated by hydrolysis from naturally occurring fats and oils. Fatty acids are predominantly straight-chain acids of 4 to 24 carbon atoms, which may be saturated or unsaturated; branched fatty acids and hydroxy fatty acids also occur, and very long chain acids of over 30 carbons are found in waxes.
    GO:0006631    fatty acid metabolic process    The chemical reactions and pathways involving fatty acids, aliphatic monocarboxylic acids liberated from naturally occurring fats and oils by hydrolysis.
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
    GO:2001295    malonyl-CoA biosynthetic process    The chemical reactions and pathways resulting in the formation of malonyl-CoA, the S-malonyl derivative of coenzyme A.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0043086    negative regulation of catalytic activity    Any process that stops or reduces the activity of an enzyme.
    GO:0031999    negative regulation of fatty acid beta-oxidation    Any process that stops, prevents, or reduces the frequency, rate or extent of fatty acid beta-oxidation.
    GO:0046322    negative regulation of fatty acid oxidation    Any process that stops, prevents, or reduces the frequency, rate or extent of fatty acid oxidation.
    GO:0010629    negative regulation of gene expression    Any process that decreases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0050995    negative regulation of lipid catabolic process    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the breakdown of lipids.
    GO:0031325    positive regulation of cellular metabolic process    Any process that activates or increases the frequency, rate or extent of the chemical reactions and pathways by which individual cells transform chemical substances.
    GO:0060421    positive regulation of heart growth    Any process that increases the rate or extent of heart growth. Heart growth is the increase in size or mass of the heart.
    GO:0010884    positive regulation of lipid storage    Any process that increases the rate, frequency or extent of lipid storage. Lipid storage is the accumulation and maintenance in cells or tissues of lipids, compounds soluble in organic solvents but insoluble or sparingly soluble in aqueous solvents. Lipid reserves can be accumulated during early developmental stages for mobilization and utilization at later stages of development.
    GO:0051289    protein homotetramerization    The formation of a protein homotetramer, a macromolecular structure consisting of four noncovalently associated identical subunits.
    GO:0010906    regulation of glucose metabolic process    Any process that modulates the rate, frequency or extent of glucose metabolism. Glucose metabolic processes are the chemical reactions and pathways involving glucose, the aldohexose gluco-hexose.
    GO:0031667    response to nutrient levels    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus reflecting the presence, absence, or concentration of nutrients.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0012505    endomembrane system    A collection of membranous structures involved in transport within the cell. The main components of the endomembrane system are endoplasmic reticulum, Golgi bodies, vesicles, cell membrane and nuclear envelope. Members of the endomembrane system pass materials through each other or though the use of vesicles.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005741    mitochondrial outer membrane    The outer, i.e. cytoplasm-facing, lipid bilayer of the mitochondrial envelope.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    S1A  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:534 - Pro A:535   [ RasMol ]
    Ile A:342 - Pro A:343   [ RasMol ]
    Phe A:449 - Pro A:450   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3jrx
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ACACB_HUMAN | O00763
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  6.3.4.14
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc
  6.4.1.2
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  ACACB_HUMAN | O00763
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ACACB_HUMAN | O007632dn8 2hjw 2kcc 3ff6 3gid 3glk 3jrw 3tdc 4hq6 5kkn

(-) Related Entries Specified in the PDB File

2hjw CRYSTAL STRUCTURE OF THE BC DOMAIN OF HUMAN ACC2
3jrw
