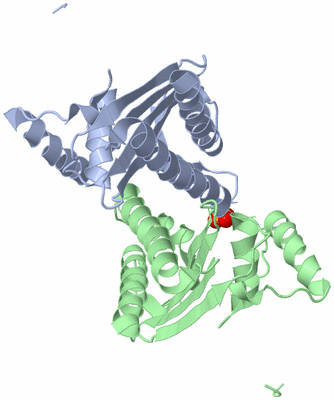

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  SULFUR-SAD AT LONG WAVELENGTH: STRUCTURE OF BH3703 FROM BACILLUS HALODURANS

Authors :  U. A. Ramagopal, R. Toro, S. Wasserman, S. K. Burley, S. C. Almo
Date :  25 Jun 09  (Deposition) - 14 Jul 09  (Release) - 14 Jul 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.27
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  U. A. Ramagopal, R. Toro, S. Wasserman, S. K. Burley, S. C. Almo
Sulfur-Sad At Long Wavelength: Structure Of Bh3703 From Bacillus Halodurans
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BH3703 PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: BC-PSGX3(BC)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: BH3703
    Organism Scientific: BACILLUS HALODURANS
    Organism Taxid: 272558
    Strain: C-125 / JCM 9153

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:66 , GLN A:67 , HOH A:209 , HOH A:301 , TYR B:143BINDING SITE FOR RESIDUE SO4 A 178

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3I0T)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ser B:50 -Asp B:51

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3I0T)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3I0T)

(-) Exons   (0, 0)

(no "Exon" information available for 3I0T)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:170
 aligned with Q9K6M5_BACHD | Q9K6M5 from UniProtKB/TrEMBL  Length:169

    Alignment length:170
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169
         Q9K6M5_BACHD     - -MEKQIESYYQEIAQLIIDMIPEEWAEVRFYAQEDHDGWKIFFFHYLSASSDEWTKDIDIRDVIKVPQDEFMEKYNELSFCISDFRKDYAEAFGEPWMSFQMTFYASGKFNIDFYYDKNPFDTFLTRLAWQYEHFGTIPEDSFYKETLNEYLEEKAQGKRYPFLEPLKEE 169
               SCOP domains d3i0ta_ A: Uncharacterized protein BH3703                                                                                                                                  SCOP domains
               CATH domains 3i0tA01 A:0-118 BH3703-like domains                                                                                    3i0tA02 A:119-177                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh...eeeeeeeeee.....eeeeeeeee.....eee.hhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeee....eeeeee......hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh...hhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3i0t A   0 SLEKQIESYYQEIAQLIIDMIPEEWAEVRFYAQEDHDGWKIFFFHYLSASSDEWTKDIDIRDVIKVPQDEFMEKYNELSFCISDFRKDYAEAFGEPWMSFQMTFYASGKFNIDFYYDKNPFDTFLTRLAWQYEHFGTIPEDSFYKETLNEYLEEKAQGKRYPFLEPLHHH 177
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159      |177
                                                                                                                                                                                                166|
                                                                                                                                                                                                 175


Chain B from PDB  Type:PROTEIN  Length:171
 aligned with Q9K6M5_BACHD | Q9K6M5 from UniProtKB/TrEMBL  Length:169

    Alignment length:171
                             1                                                                                                                                                                     169
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169
         Q9K6M5_BACHD     - -MEKQIESYYQEIAQLIIDMIPEEWAEVRFYAQEDHDGWKIFFFHYLSASSDEWTKDIDIRDVIKVPQDEFMEKYNELSFCISDFRKDYAEAFGEPWMSFQMTFYASGKFNIDFYYDKNPFDTFLTRLAWQYEHFGTIPEDSFYKETLNEYLEEKAQGKRYPFLEPLKEE-   -
               SCOP domains d3i0tb_ B: Uncharacterized protein BH3703                                                                                                                                   SCOP domains
               CATH domains 3i0tB01 B:0-118 BH3703-like domains                                                                                    3i0tB02 B:119-177                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh...eeeeeeeeee.....eeeeeeeee.....eee.hhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeee....eeeeee......hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh....hhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3i0t B   0 SLEKQIESYYQEIAQLIIDMIPEEWAEVRFYAQEDHDGWKIFFFHYLSASSDEWTKDIDIRDVIKVPQDEFMEKYNELSFCISDFRKDYAEAFGEPWMSFQMTFYASGKFNIDFYYDKNPFDTFLTRLAWQYEHFGTIPEDSFYKETLNEYLEEKAQGKRYPFLEPLHHHH 177
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159      |176
                                                                                                                                                                                                166|
                                                                                                                                                                                                 174
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3I0T)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3I0T)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser B:50 - Asp B:51   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3i0t
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9K6M5_BACHD | Q9K6M5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9K6M5_BACHD | Q9K6M5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q9K6M5_BACHD | Q9K6M5: 2ia1

(-) Related Entries Specified in the PDB File

2ia1 CRYSTAL STRUCTURE OF PROTEIN BH3703 FROM BACILLUS HALODURANS, PFAM DUF600
