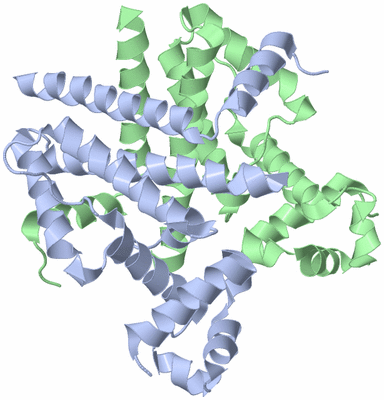

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TETR TRIPLE MUTANT (H64K, S135L, S138I)

Authors :  M. A. Klieber, O. Scholz, S. Lochner, P. Gmeiner, W. Hillen, Y. A. Muller
Date :  16 Dec 08  (Deposition) - 27 Oct 09  (Release) - 27 Oct 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Tetracycline Repressor, Bacterial Transcription Regulation, Altered Inducer Specificity, 4-De-Dimethylamino- Anhydrotetracycline, Antibiotic Resistance, Dna-Binding, Magnesium, Metal-Binding, Repressor, Transcription, Transcription Regulation, Transposable Element (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. A. Klieber, O. Scholz, S. Lochner, P. Gmeiner, W. Hillen, Y. A. Muller
Structural Origins For Selectivity And Specificity In An Engineered Bacterial Repressor-Inducer Pair.
Febs J. V. 276 5610 2009
PubMed-ID: 19712110  |  Reference-DOI: 10.1111/J.1742-4658.2009.07254.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TETRACYCLINE REPRESSOR PROTEIN CLASS B FROM TRANSPOSON TN10, TETRACYCLINE REPRESSOR PROTEIN CLASS D
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PWH610
    Expression System Strain: RB791
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: DNA-BINDING DOMAIN (RESIDUES 1-50) AND THE EFFECTOR-BINDING DOMAIN (RESIDUES 51-208)
    Gene: TETR
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Other Details: THE FUSION PROTEIN OF DNA-BINDING DOMAIN (RESIDUES 1-50) FROM TETR VARIANT B AND THE EFFECTOR- BINDING DOMAIN (RESIDUES 51-208) FROM TETR VARIANT D
    Strain: K12

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3FK6)

(-) Sites  (0, 0)

(no "Site" information available for 3FK6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3FK6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3FK6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3FK6)

(-) PROSITE Motifs  (2, 3)

Asymmetric/Biological Unit (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HTH_TETR_2PS50977 TetR-type HTH domain profile.TETR4_ECOLX3-63  1B:3-63
2HTH_TETR_1PS01081 TetR-type HTH domain signature.TETR4_ECOLX21-52
 		  2A:21-52
B:21-52

(-) Exons   (0, 0)

(no "Exon" information available for 3FK6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:195
 aligned with TETR4_ECOLX | P0ACT4 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:204
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203
          TETR4_ECOLX     4 LNRESVIDAALELLNETGIDGLTTRKLAQKLGIEQPTLYWHVKNKRALLDALAVEILARHHDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAISAVSHFTLGAVLEQQEHTAALTDRPAAPDENLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTALLQI 207
               SCOP domains d3fk6a1 A:4-67 Tetracyclin repressor (Tet-repressor, TetR)      d3fk6a2 A:68-207 Tetracyclin repressor (Tet-repressor, TetR)                                                                                 SCOP domains
               CATH domains 3fk6A01 A:4-66 Homeodomain-like                                3fk6A02 A:67-207 Tetracycline Repressor, domain 2                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh...hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.---------..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) HTH_TETR_2  PDB: - UniProt: 3-63                            ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (1)
                PROSITE (2) -----------------HTH_TETR_1  PDB: A:21-52        ----------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3fk6 A   4 LDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWHVKNKRALLDALAVEILARHKDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAILAVIHFTLGAVLEQQEHTAAL---------NLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTALLQI 207
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153 |       - |     173       183       193       203
                                                                                                                                                                                 155       165


Chain B from PDB  Type:PROTEIN  Length:194
 aligned with TETR4_ECOLX | P0ACT4 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:202
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202
          TETR4_ECOLX     3 RLNRESVIDAALELLNETGIDGLTTRKLAQKLGIEQPTLYWHVKNKRALLDALAVEILARHHDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAISAVSHFTLGAVLEQQEHTAALTDRPAAPDENLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTAL 204
               SCOP domains d3fk6b1 B:3-67 Tetracyclin repressor (Tet-repressor, TetR)       d3fk6b2 B:68-204 Tetracyclin repressor (Tet-repressor, TetR)                                                                              SCOP domains
               CATH domains 3fk6B01 B:3-66 Homeodomain-like                                 3fk6B02 B:67-204 Tetracycline Repressor, domain 2                                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh....hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh.hhhhhhh....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh--------...hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) HTH_TETR_2  PDB: B:3-63 UniProt: 3-63                        --------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ------------------HTH_TETR_1  PDB: B:21-52        -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3fk6 B   3 RLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWHVKNKRALLDALAVEILARHKDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAILAVIHFTLGAVLEQQEHTAAL--------ENLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTAL 204
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152  |      - |     172       182       192       202
                                                                                                                                                                                  155      164
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3FK6)

(-) Gene Ontology  (6, 12)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (TETR4_ECOLX | P0ACT4)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
