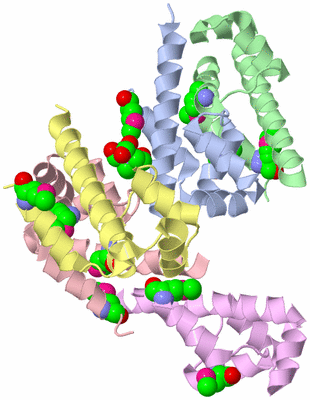

Asymmetric Unit (Jmol Viewer)

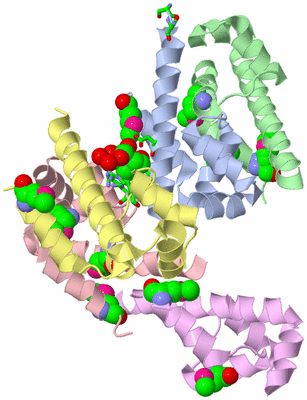

Asym. Unit - sites (Jmol Viewer)

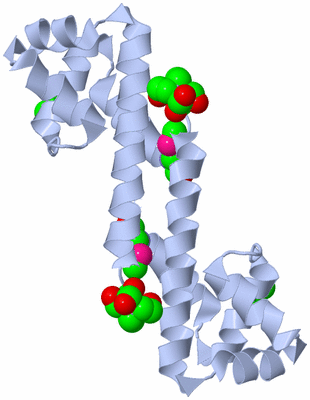

Biological Unit 1 (Jmol Viewer)

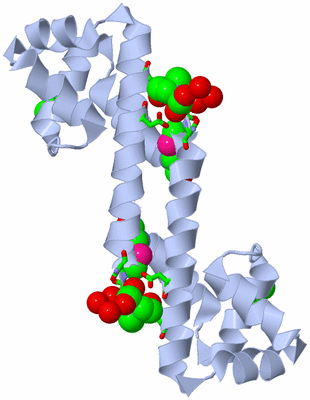

Biol. Unit 1 - sites (Jmol Viewer)

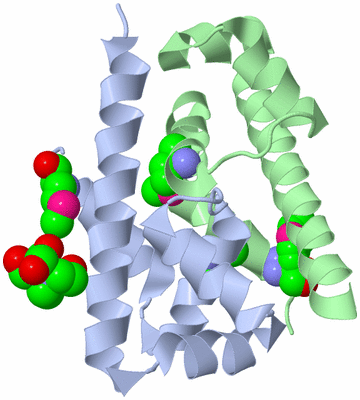

Biological Unit 2 (Jmol Viewer)

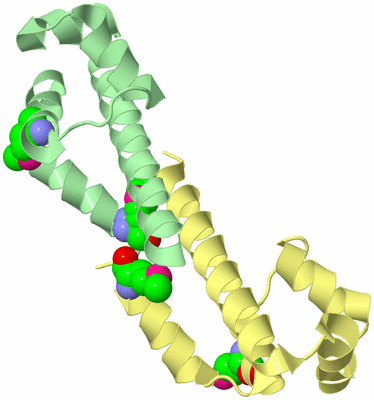

Biological Unit 3 (Jmol Viewer)

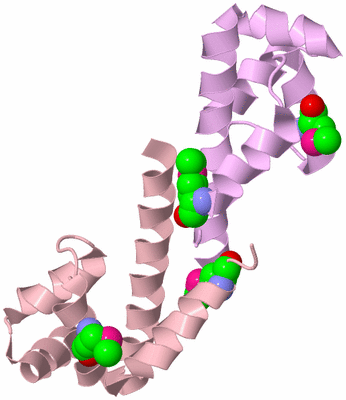

Biological Unit 4 (Jmol Viewer)

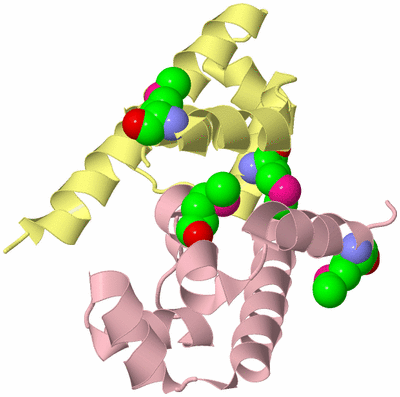

Biological Unit 5 (Jmol Viewer)

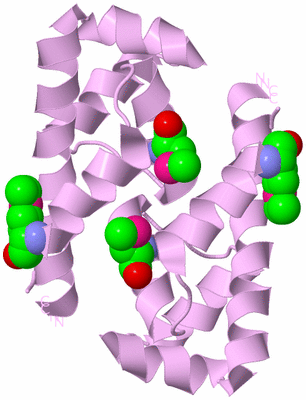

Biological Unit 6 (Jmol Viewer)

Title :   XRE-FAMILY LIKE PROTEIN FROM PSEUDOMONAS SYRINGAE PV. TOMATO STR. DC3000

Authors :   T. Petrova, M. Cuff, G. Shackleford, M. Gu, A. Joachimiak, Midwest Cen Structural Genomics (Mcsg)

Date :   06 Nov 08 (Deposition) - 02 Dec 08 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.85

Chains :   Asym. Unit : A,B,C,D,E
Biol. Unit 1: A  (2x)
Biol. Unit 2: A,B  (1x)
Biol. Unit 3: B (1x),D (1x)
Biol. Unit 4: C,E  (1x)
Biol. Unit 5: C,D  (1x)
Biol. Unit 6: E  (2x)

Keywords :   Helix-Turn-Helix; Dna Binding Protein; Xenobiotic Response Element Family Of Transcriptional Regulators, Structural Genomics, Psi-2, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Dna-Binding, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Petrova, M. Cuff, G. Shackleford, M. Gu, A. Joachimiak
Xre-Family Like Protein From Pseudomonas Syringae Pv. Tomat Str. Dc3000
To Be Published
PubMed: search

Molecule 1 - XRE-FAMILY LIKE PROTEIN
	Chains	:	A, B, C, D, E
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PMCSG7
	Expression System Strain	:	BL21 (DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	PSPTO0717, PSPTO_0717
	Organism Scientific	:	PSEUDOMONAS SYRINGAE PV. TOMATO
	Organism Taxid	:	223283
	Strain	:	DC3000
	Synonym	:	DNA-BINDING PROTEIN

		1	2	3	4	5
Asymmetric Unit	:	A	B	C	D	E
Biological Unit 1 (2x)	:	A
Biological Unit 2 (1x)	:	A	B
Biological Unit 3 (1x)	:		B (1x)		D (1x)
Biological Unit 4 (1x)	:			C		E
Biological Unit 5 (1x)	:			C	D
Biological Unit 6 (2x)	:					E

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 11)

No.	Name	Count	Type	Full Name
1	BTB	1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	10	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (2, 6)

No.	Name	Count	Type	Full Name
1	BTB	2	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (2, 5)

No.	Name	Count	Type	Full Name
1	BTB	1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 3 (1, 2)

No.	Name	Count	Type	Full Name
1	BTB	-1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	2	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 4 (1, 4)

No.	Name	Count	Type	Full Name
1	BTB	-1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 5 (1, 4)

No.	Name	Count	Type	Full Name
1	BTB	-1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 6 (1, 4)

No.	Name	Count	Type	Full Name
1	BTB	-1	Ligand/Ion	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
2	MSE	4	Mod. Amino Acid	SELENOMETHIONINE

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:-1 , SER A:-2 , ASP A:14 , GLU A:18 , HOH A:103 , HOH A:616 , ARG C:49 , ARG D:50	BINDING SITE FOR RESIDUE BTB A 81

(no "SS Bond" information available for 3F6W)

(no "Cis Peptide Bond" information available for 3F6W)

(no "SAP(SNP)/Variant" information available for 3F6W)

(no "PROSITE Motif" information available for 3F6W)

(no "Exon" information available for 3F6W)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:82
 aligned with Q889N2_PSESM | Q889N2 from UniProtKB/TrEMBL  Length:80

    Alignment length:82
                               1
                               |     7        17        27        37        47        57        67        77
          Q889N2_PSESM    - ---MKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFMDFCRGIGTDPYALLSKLEAMTP 79
               SCOP domains ---------------------------------------------------------------------------------- SCOP domains
               CATH domains 3f6wA00 A:-2-79 lambda repressor-like DNA-binding domains                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                  3f6w A -2 SNATKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFmDFCRGIGTDPYALLSKLEAmTP 79
                                     7        17        27        37        47        57        67        77
                                                                                      57-MSE              77-MSE

Chain B from PDB  Type:PROTEIN  Length:82
 aligned with Q889N2_PSESM | Q889N2 from UniProtKB/TrEMBL  Length:80

    Alignment length:82
                              1
                              |      8        18        28        38        48        58        68        78
          Q889N2_PSESM    - --MKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFMDFCRGIGTDPYALLSKLEAMTPS 80
               SCOP domains ---------------------------------------------------------------------------------- SCOP domains
               CATH domains 3f6wB00 B:-1-80 lambda repressor-like DNA-binding domains                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                  3f6w B -1 NATKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFmDFCRGIGTDPYALLSKLEAmTPS 80
                                     8        18        28        38        48        58        68        78
                                                                                     57-MSE              77-MSE

Chain C from PDB  Type:PROTEIN  Length:82
 aligned with Q889N2_PSESM | Q889N2 from UniProtKB/TrEMBL  Length:80

    Alignment length:82
                              1
                              |      8        18        28        38        48        58        68        78
          Q889N2_PSESM    - --MKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFMDFCRGIGTDPYALLSKLEAMTPS 80
               SCOP domains ---------------------------------------------------------------------------------- SCOP domains
               CATH domains 3f6wC00 C:-1-80 lambda repressor-like DNA-binding domains                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                  3f6w C -1 NATKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFmDFCRGIGTDPYALLSKLEAmTPS 80
                                     8        18        28        38        48        58        68        78
                                                                                     57-MSE              77-MSE

Chain D from PDB  Type:PROTEIN  Length:82
 aligned with Q889N2_PSESM | Q889N2 from UniProtKB/TrEMBL  Length:80

    Alignment length:82
                               1
                               |     7        17        27        37        47        57        67        77
          Q889N2_PSESM    - ---MKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFMDFCRGIGTDPYALLSKLEAMTP 79
               SCOP domains ---------------------------------------------------------------------------------- SCOP domains
               CATH domains 3f6wD00 D:-2-79 lambda repressor-like DNA-binding domains                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                  3f6w D -2 SNATKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFmDFCRGIGTDPYALLSKLEAmTP 79
                                     7        17        27        37        47        57        67        77
                                                                                      57-MSE              77-MSE

Chain E from PDB  Type:PROTEIN  Length:80
 aligned with Q889N2_PSESM | Q889N2 from UniProtKB/TrEMBL  Length:80

    Alignment length:80
                             1
                             |       9        19        29        39        49        59        69        79
          Q889N2_PSESM    - -MKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFMDFCRGIGTDPYALLSKLEAMTP 79
               SCOP domains -------------------------------------------------------------------------------- SCOP domains
               CATH domains 3f6wE00 E:0-79 lambda repressor-like DNA-binding domains                         CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhh.....hhhhhhhhhhh...hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  3f6w E  0 ATKTIHNARYQALLDLLLEARSAAGITQKELAARLGRPQSFVSKTENAERRLDVIEFmDFCRGIGTDPYALLSKLEAmTP 79
                                     9        19        29        39        49       |59        69       |79
                                                                                    57-MSE              77-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3F6W)

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: 434 Repressor (Amino-terminal Domain) (116)

Homologous Superfamily: lambda repressor-like DNA-binding domains (100)

Tomato str (Pseudomonas syringae pv) (1)

1a	3f6wE00	E:0-79
1b	3f6wA00	A:-2-79
1c	3f6wB00	B:-1-80
1d	3f6wC00	C:-1-80
1e	3f6wD00	D:-2-79

(no "Pfam Domain" information available for 3F6W)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E (Q889N2_PSESM | Q889N2)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0003674	molecular_function	Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
	GO:0043565	sequence-specific DNA binding	Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
	GO:0008150	biological_process	Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BTB	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3f6w)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3f6w
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q889N2_PSESM \| Q889N2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q889N2_PSESM \| Q889N2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 3F6W)

1y7y	RELATED ID: APC88786 RELATED DB: TARGETDB
2b5a
3ef8

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 11)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (1, 5)

Pfam Domains (0, 0)

Gene Ontology (4, 4)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
