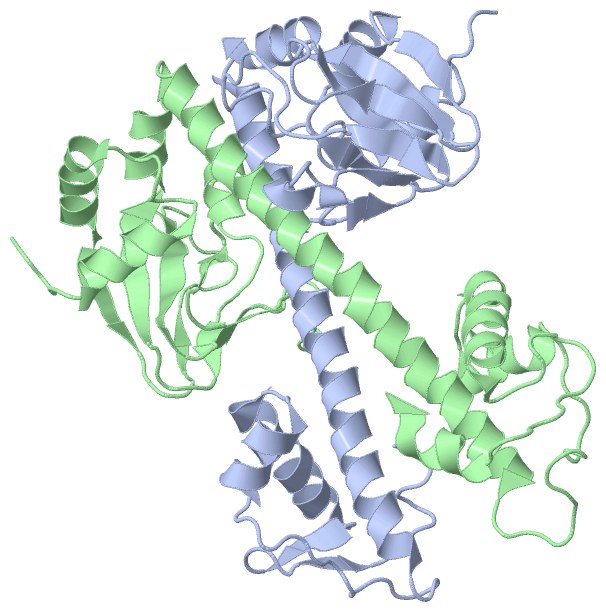

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

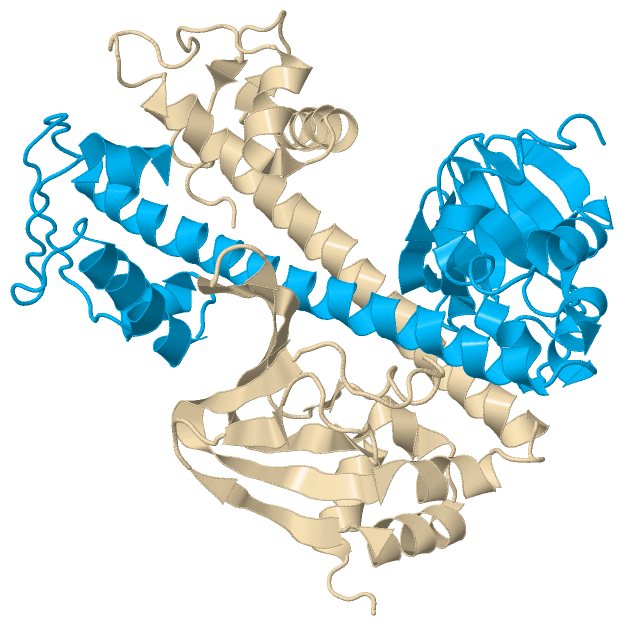

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DNR FROM PSEUDOMONAS AERUGINOSA.

Authors :  G. Giardina
Date :  26 Jun 08  (Deposition) - 19 May 09  (Release) - 19 May 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.60
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Biol. Unit 5:  I,J  (1x)
Keywords :  Crp-Fnr, Hth, Beta Barrel, Dimerization Helix, Homodimer, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Giardina, S. Rinaldo, N. Castiglione, M. Caruso, F. Cutruzzola
A Dramatic Conformational Rearrangement Is Necessary For The Activation Of Dnr From Pseudomonas Aeruginosa. Crystal Structure Of Wild-Type Dnr.
Proteins 2009
PubMed-ID: 19415759  |  Reference-DOI: 10.1002/PROT.22428
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DNR PROTEIN
    Chains: A, B, C, D, E, F, G, H, I, J
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: DNR, PA0527
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287
    Strain: PAO1
    Synonym: TRANSCRIPTIONAL REGULATOR DNR

 Structural Features

(-) Chains, Units

  12345678910
Asymmetric Unit : ABCDEFGHIJ
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH
Biological Unit 5 (1x):         IJ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3DKW)

(-) Sites  (0, 0)

(no "Site" information available for 3DKW)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3DKW)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ile F:177 -Pro F:178

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3DKW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3DKW)

(-) Exons   (0, 0)

(no "Exon" information available for 3DKW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhh........hhhhhhhhhh..eeee....eeee.......eeeeeee..ee....hhhhh.....ee...eee...............eee....eeeeeehhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..............hhhhhhhh..hhhhhhhhhhhhhhhh.eee....eee.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw A   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain B from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhh......hhhhhhhhhhhheeee....ee.........eeeeeee..ee..............ee...eee.hhhhhh.........ee....eeeeeehhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh................hhhhhhh..hhhhhhhhhhhhhhhh.............hhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw B   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain C from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhh........hhhhhhhhhhh....ee...eeee.......eeeeeee..eeee.........eeeee...eee...hhhhh......eeee...eeeeeeehhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhh..hhhhhhhhhhhhhhh...............hhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw C   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain D from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhh.......hhhhhhhhhhh...eee................eeeeeeeee..............ee...eee................eeeeeeee...hhhhhhhhh..hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh..........................hhhhhhhhhhhhhhh..eee....eee...hhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw D   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain E from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhh........hhhhhhhhh...eee...ee.........eeeee....eeeeee.....eeeeeee...eee..............eeee...eeeeeeehhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.................hhhhhh..hhhhhhhhhhhhhhh..eee....eee..hhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw E   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain F from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhh......hhhhhhhhhhhheeeee..............eeeeeee..ee..............ee...eee.hhhhh..........ee...eeeeeeehhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhh.....hhhhhhhhhhhh.....ee......ee.hhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw F   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain G from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhh........hhhhhhhhhh..eeeee...eeee.........eeeee..ee..ee.....ee...ee...eee...............eee...eeeee.hhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........................hhhhhhhhhhhhhhh..eee....eee.hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw G   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain H from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....................hhhhhhhhhhheeeeee..............eeeeeee..ee...................eee................ee...eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.................hhhhhhhh......hhhhhhhhhhhh.............hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw H   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain I from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh..hhhhhhhhhhh.eeeee....eee.......eeeeeeeeeeeeeeee...eeeeeeee...eee..............eeeeeeeeeeeeeehhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh................hhhhhhhhhh..hhhhhhhhhhhhhh..ee......ee.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw I   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain J from PDB  Type:PROTEIN  Length:227
 aligned with Q51441_PSEAI | Q51441 from UniProtKB/TrEMBL  Length:227

    Alignment length:227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
         Q51441_PSEAI     1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhh......hhhhhhhhhh..eeeee...eeee.......eeeeeee..eeeeee.....eeeeeee...eee.hhhhhh.......eeee...eeeeeeehhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.................hhhhhh...hhhhhhhhhhhhhhh..............hhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dkw J   1 MEFQRVHQQLLQSHHLFEPLSPVQLQELLASSDLVNLDKGAYVFRQGEPAHAFYYLISGCVKIYRLTPEGQEKILEVTNERNTFAEAMMFMDTPNYVATAQAVVPSQLFRFSNKAYLRQLQDNTPLALALLAKLSTRLHQRIDEIETLSLKNATHRVVRYLLTLAAHAPGENCRVEIPVAKQLVAGHLSIQPETFSRIMHRLGDEGIIHLDGREISILDRERLECFE 227
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3DKW)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3DKW)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3DKW)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J   (Q51441_PSEAI | Q51441)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0051173    positive regulation of nitrogen compound metabolic process    Any process that activates or increases the frequency, rate or extent of the chemical reactions and pathways involving nitrogen or nitrogenous compounds.
    GO:0051353    positive regulation of oxidoreductase activity    Any process that activates or increases the frequency, rate or extent of oxidoreductase activity, the catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0071731    response to nitric oxide    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a nitric oxide stimulus.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3dkw)

  Sites
(no "Sites" information available for 3dkw)

  Cis Peptide Bonds
    Ile F:177 - Pro F:178   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3dkw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q51441_PSEAI | Q51441
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q51441_PSEAI | Q51441
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q51441_PSEAI | Q51441: 2z69

(-) Related Entries Specified in the PDB File

2z69 STRUCTURE OF THE SENSING DOMAIN OF DNR FROM PSEUDOMONAS AERUGINOSA
