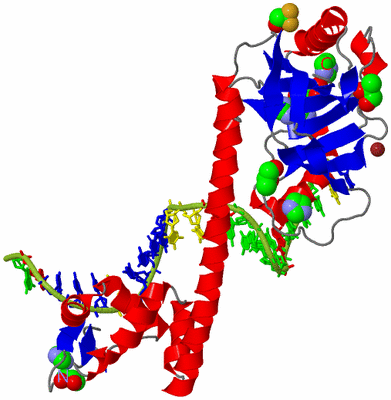

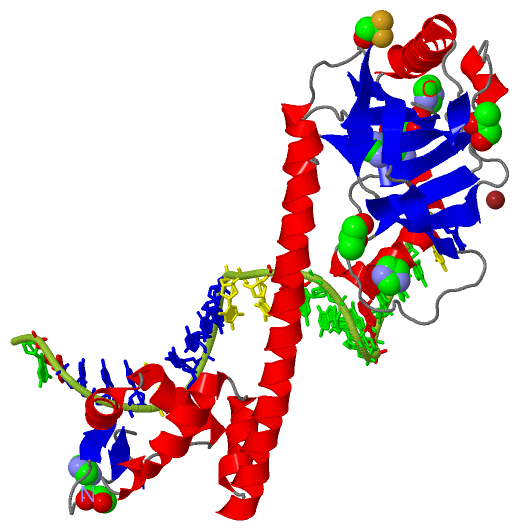

Asymmetric Unit (Jmol Viewer)

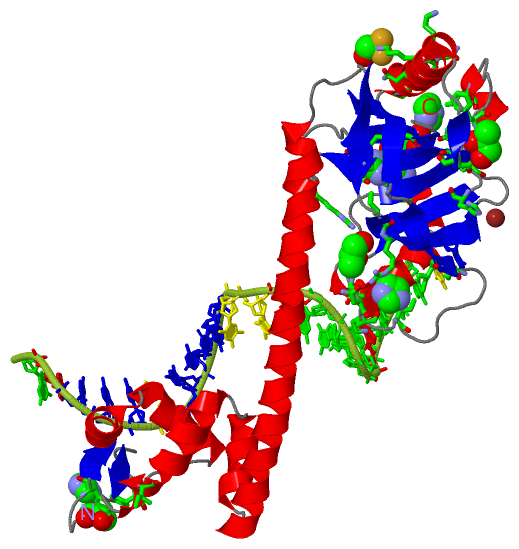

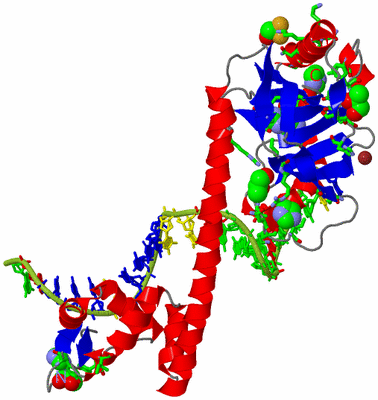

Asym. Unit - sites (Jmol Viewer)

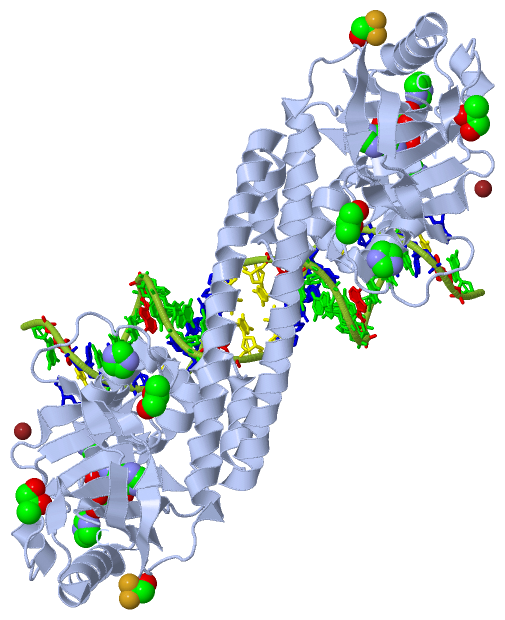

Biological Unit 1 (Jmol Viewer)

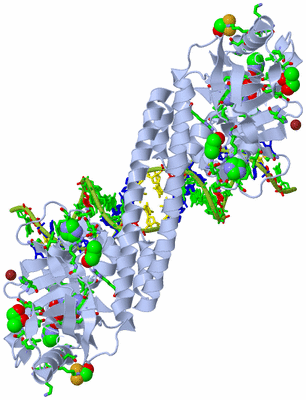

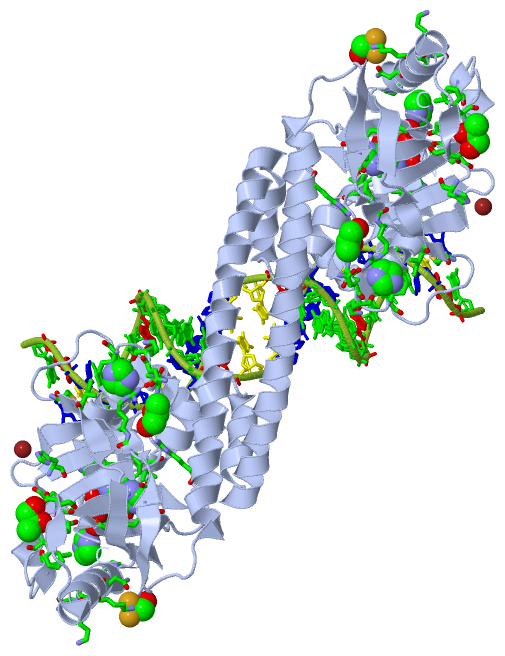

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF E253Q BMRR BOUND TO 22 BASE PAIR PROMOTER SITE

Authors :   K. J. Newberry, J. L. Huffman, R. G. Brennan

Date :   20 May 08 (Deposition) - 26 Aug 08 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,M
Biol. Unit 1: A,M  (2x)

Keywords :   Transcription Regulator, Protein-Dna Complex, Multidrug Binding Protein, Merr Family, Winged-Helix, Activator, Dna- Binding, Transcription Regulation, Transcription Regulator/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. J. Newberry, J. L. Huffman, M. C. Miller, N. Vazquez-Laslop, A. A. Neyfakh, R. G. Brennan
Structures Of Bmrr-Drug Complexes Reveal A Rigid Multidrug Binding Pocket And Transcription Activation Through Tyrosine Expulsion
J. Biol. Chem. V. 283 26795 2008
PubMed-ID: 18658145 | Reference-DOI: 10.1074/JBC.M804191200
(for further references see the PDB file header)

Molecule 1 - MULTIDRUG-EFFLUX TRANSPORTER 1 REGULATOR
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PBAD
	Expression System Strain	:	TOP10
	Expression System Vector Type	:	PLASMID
	Fragment	:	RESIDUES 1-278
	Gene	:	BMRR, BMR1R
	Mutation	:	YES
	Organism Scientific	:	BACILLUS SUBTILIS

Molecule 2 - BMR PROMOTER DNA
	Chains	:	M
	Engineered	:	YES
	Synthetic	:	YES

		1	2
Asymmetric Unit	:	A	M
Biological Unit 1 (2x)	:	A	M

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (5, 11)

No.	Name	Count	Type	Full Name
1	ETF	1	Ligand/Ion	TRIFLUOROETHANOL
2	FLC	1	Ligand/Ion	CITRATE ANION
3	IMD	5	Ligand/Ion	IMIDAZOLE
4	PGO	3	Ligand/Ion	S-1,2-PROPANEDIOL
5	ZN	1	Ligand/Ion	ZINC ION

Biological Unit 1 (4, 20)

No.	Name	Count	Type	Full Name
1	ETF	2	Ligand/Ion	TRIFLUOROETHANOL
2	FLC	2	Ligand/Ion	CITRATE ANION
3	IMD	10	Ligand/Ion	IMIDAZOLE
4	PGO	6	Ligand/Ion	S-1,2-PROPANEDIOL
5	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (11, 11)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS A:189	BINDING SITE FOR RESIDUE ZN A 501
02	AC2	SOFTWARE	PRO A:144 , TYR A:187 , ILE A:255	BINDING SITE FOR RESIDUE FLC A 756
03	AC3	SOFTWARE	ARG A:111 , ARG A:133 , ASN A:197	BINDING SITE FOR RESIDUE PGO A 600
04	AC4	SOFTWARE	SER A:175 , PHE A:176 , MET A:207 , ILE A:209 , SER A:249 , ASP A:250	BINDING SITE FOR RESIDUE PGO A 602
05	AC5	SOFTWARE	TYR A:5 , TYR A:35 , GLN A:234 , LYS A:235 , LYS A:238	BINDING SITE FOR RESIDUE PGO A 604
06	AC6	SOFTWARE	TYR A:5 , ALA A:34 , ASN A:232 , LYS A:235	BINDING SITE FOR RESIDUE ETF A 901
07	AC7	SOFTWARE	ILE A:51 , ASN A:149 , ILE A:255	BINDING SITE FOR RESIDUE IMD A 302
08	AC8	SOFTWARE	PRO A:144 , ILE A:182 , PRO A:226	BINDING SITE FOR RESIDUE IMD A 303
09	AC9	SOFTWARE	GLU A:129 , ILE A:132 , LEU A:254 , GLU A:271 , LYS A:273	BINDING SITE FOR RESIDUE IMD A 304
10	BC1	SOFTWARE	TYR A:35 , LYS A:238	BINDING SITE FOR RESIDUE IMD A 305
11	BC2	SOFTWARE	ARG A:133 , THR A:196 , LYS A:198 , ILE A:200	BINDING SITE FOR RESIDUE IMD A 306

(no "SS Bond" information available for 3D71)

(no "Cis Peptide Bond" information available for 3D71)

(no "SAP(SNP)/Variant" information available for 3D71)

Asymmetric Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HTH_MERR_2	PS50937	MerR-type HTH domain profile.	BMRR_BACSU	5-75	1	A:5-75
2	HTH_MERR_1	PS00552	MerR-type HTH domain signature.	BMRR_BACSU	9-31	1	A:9-31

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HTH_MERR_2	PS50937	MerR-type HTH domain profile.	BMRR_BACSU	5-75	2	A:5-75
2	HTH_MERR_1	PS00552	MerR-type HTH domain signature.	BMRR_BACSU	9-31	2	A:9-31

(no "Exon" information available for 3D71)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:277
 aligned with BMRR_BACSU | P39075 from UniProtKB/Swiss-Prot  Length:278

    Alignment length:277
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           BMRR_BACSU     2 KESYYSIGEVSKLANVSIKALRYYDKIDLFKPAYVDPDTSYRYYTDSQLIHLDLIKSLKYIGTPLEEMKKAQDLEMEELFAFYTEQERQIREKLDFLSALEQTISLVKKRMKRQMEYPALGEVFVLDEEEIRIIQTEAEGIGPENVLNASYSKLKKFIESADGFTNNSYGATFSFQPYTSIDEMTYRHIFTPVLTNKQISSITPDMEITTIPKGRYACIAYNFSPEHYFLNLQKLIKYIADRQLTVVSDVYELIIPIHYSPKKQEEYRVEMKIRIAE 278
               SCOP domains d3d71a1 A:2-120 automated matches                                                                                      d3d71a2 A:121-278 automated matches                                                                                                                            SCOP domains
               CATH domains 3d71A01 A:2-75  [code=1.10.1660.10, no name defined]                      3d71A02 A:76-119 Single helix bin           3d71A03 A:120-278 Multidrug-efflux Transporter 1 Regulator Bmrr; Chain                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eehhhhhhhhh.hhhhhhhhhhh......ee......eee..hhhhhhhhhhhhhhh..hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......eeeeee..eeeeeee.........hhhhhhhhhhhhhhhhh.....eeeee......hhhhh...eeeee..............eeeee..eeeeeeeee.hhhhhhhhhhhhhhhhhhh...eeeeeeeeeee..........eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---HTH_MERR_2  PDB: A:5-75 UniProt: 5-75                                  ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) -------HTH_MERR_1  PDB: A:9-31------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3d71 A   2 KESYYSIGEVSKLANVSIKALRYYDKIDLFKPAYVDPDTSYRYYTDSQLIHLDLIKSLKYIGTPLEEMKKAQDLEMEELFAFYTEQERQIREKLDFLSALEQTISLVKKRMKRQMEYPALGEVFVLDEEEIRIIQTEAEGIGPENVLNASYSKLKKFIESADGFTNNSYGATFSFQPYTSIDEMTYRHIFTPVLTNKQISSITPDMEITTIPKGRYACIAYNFSPEHYFLNLQKLIKYIADRQLTVVSDVYQLIIPIHYSPKKQEEYRVEMKIRILD 278
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271

Chain M from PDB  Type:DNA  Length:23

                 3d71 M -12 GACCCTCCCCTTAGGGGAGGGTC  12
                                    -3||       9
                                     -2|
                                       1

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "Pfam Domain" information available for 3D71)

Asymmetric Unit(hide GO term definitions)

Chain A (BMRR_BACSU | P39075)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ETF	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		FLC	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IMD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PGO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3d71)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3d71
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	BMRR_BACSU \| P39075
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	BMRR_BACSU \| P39075
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1bow	C-TERMINAL FRAGMENT OF BMRR
1exj	WTBMRR BOUND TO DNA AND TPP
1r8e	WTBMRR BOUND TO DNA TO 2.4 A RESOLUTION
2bow	C-TERMINAL FRAGMENT OF BMRR BOUND TO TPP
3d6y	R275E BMRR BOUND TO DNA AND BERBERINE
3d6z	R275E BMRR BOUND TO DNA AND RHODAMINE 6G
3d70	E253A BMRR BOUND TO DNA
