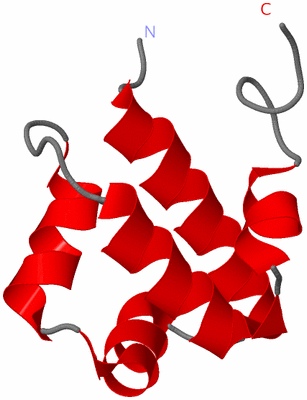

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

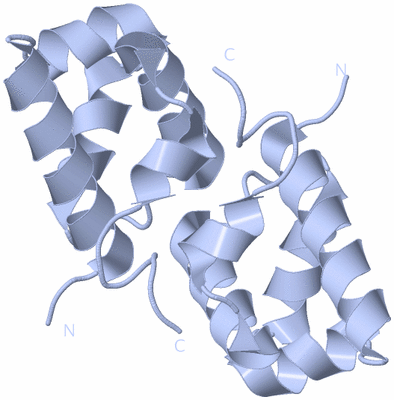

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE PROPHAGE LP1 PROTEIN 11

Authors :  R. Zhang, M. Zhou, L. Keigher, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  30 Oct 07  (Deposition) - 04 Dec 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Prophage Lp1 Protein 11, Structural Genomics, Psi2, Mcsg, Protein Structure Initiative, Midwest Center For Structural Genomics, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, M. Zhou, L. Keigher, A. Joachimiak
The Crystal Structure Of The Prophage Lp1 Protein 11.
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROPHAGE LP1 PROTEIN 11
    Atcc: BAA-793
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PDM68
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: LP_0634
    Organism Scientific: LACTOBACILLUS PLANTARUM WCFS1
    Organism Taxid: 220668
    Strain: WCFS1, NCIMB 8826

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3B7H)

(-) Sites  (0, 0)

(no "Site" information available for 3B7H)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3B7H)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Arg A:47 -Pro A:48
2Pro A:71 -Pro A:72

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3B7H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3B7H)

(-) Exons   (0, 0)

(no "Exon" information available for 3B7H)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76
 aligned with F9UL97_LACPL | F9UL97 from UniProtKB/TrEMBL  Length:78

    Alignment length:76
                                    10        20        30        40        50        60        70
          F9UL97_LACPL    1 MKTDGEFVSEHLMELITQQNLTINRVATLAGLNQSTVNAMFEGRSKRPTITTIRKVCGTLGISVHDFFDFPPYNEV 76
               SCOP domains ---------------------------------------------------------------------------- SCOP domains
               CATH domains 3b7hA00 A:1-76 lambda repressor-like DNA-binding domains                     CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhh..hhhhhhhhhh.hhhhhhhhhh......hhhhhhhhhhhhh.hhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                  3b7h A  1 MKTDGEFVSEHLMELITQQNLTINRVATLAGLNQSTVNAMFEGRSKRPTITTIRKVCGTLGISVHDFFDFPPYNEV 76
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3B7H)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3B7H)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A   (F9UL97_LACPL | F9UL97)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
